Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

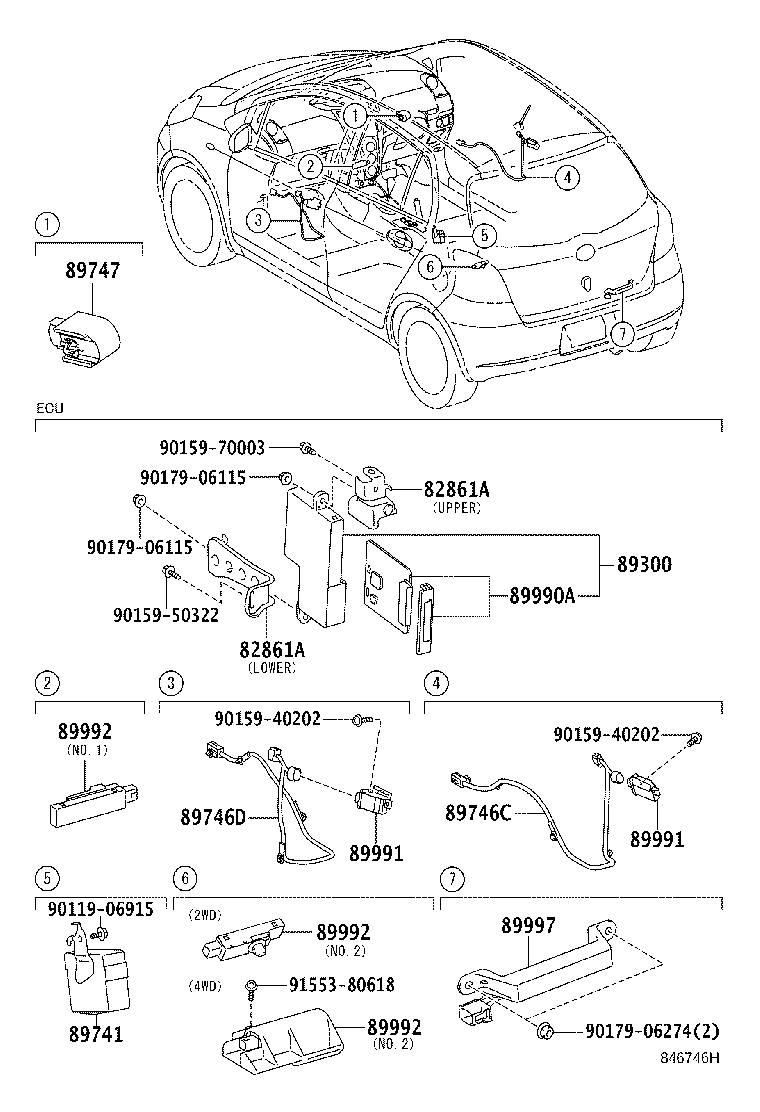

Exploded illustration 846746H 89992 — OSCILLATOR, INDOOR ELECTRICAL KEY (24 parts) 89992 — OSCILLATOR, INDOOR ELECTRICAL KEY (24 parts) 9155380618 — not listed in this catalogue 9015970003 — not listed in this catalogue 9017906115 — not listed in this catalogue 9017906115 — not listed in this catalogue 9011906915 — not listed in this catalogue 9015940202 — not listed in this catalogue 9015940202 — not listed in this catalogue 9015950322 — not listed in this catalogue 9017906274 — not listed in this catalogue 82861A — BRACKET, COMPUTER INTEGRATION, NO.1 (19 parts) 82861A — BRACKET, COMPUTER INTEGRATION, NO.1 (19 parts) 89990A — COMPUTER ASSY, SMART KEY (17 parts) 89300 — BOX ASSY, ECU AGGREGATION (17 parts) 89746D — HARNESS, ELECTRICAL KEY WIRE, NO.2 (9 parts) 89746C — HARNESS, ELECTRICAL KEY WIRE, NO.1 (9 parts) 89991 — OSCILLATOR, DOOR ELECTRICAL KEY (16 parts) 89991 — OSCILLATOR, DOOR ELECTRICAL KEY (16 parts) 89747 — BUZZER, WIRELESS DOOR LOCK (11 parts) 89992 — OSCILLATOR, INDOOR ELECTRICAL KEY (24 parts) 89997 — ANTENNA, ELECTRICAL KEY (9 parts) 89741 — RECEIVER, DOOR CONTROL (22 parts)
846746H · 14 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
153 parts on this figure
Part number Description Fitment Price
82861A — Bracket, Computer Integration, NO.1
82861-52010 note Bracket, Computer Integration, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥1,090
82861-52010 note Bracket, Computer Integration, NO.1
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,090
82861-52010 note Bracket, Computer Integration, NO.1
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,090
82861-52020 note Bracket, Computer Integration, NO.1
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥1,470
82861-52020 note Bracket, Computer Integration, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥1,470
82861-52010 note Bracket, Computer Integration, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥1,090
82861-52010 note Bracket, Computer Integration, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,090
82861-52010 note Bracket, Computer Integration, NO.1
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥1,090
82861-52020 note Bracket, Computer Integration, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥1,470
82861-52020 note Bracket, Computer Integration, NO.1
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥1,470
82861-52020 note Bracket, Computer Integration, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,470
82861-52010 note Bracket, Computer Integration, NO.1
2008-08 → 2010-07 ended
KSP90 U ¥1,090
82861-52010 note Bracket, Computer Integration, NO.1
2008-08 → 2010-07 ended
KSP90 F ¥1,090
82861-52010 note Bracket, Computer Integration, NO.1
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥1,090
82861-52010 note Bracket, Computer Integration, NO.1
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥1,090
82861-52020 note Bracket, Computer Integration, NO.1
2008-08 → 2010-07 ended
KSP90 U ¥1,470
82861-52020 note Bracket, Computer Integration, NO.1
2008-08 → 2010-07 ended
KSP90 F ¥1,470
82861-52020 note Bracket, Computer Integration, NO.1
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥1,470
82861-52020 note Bracket, Computer Integration, NO.1
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥1,470
89300 — Box Assy, Ecu Aggregation
89300-52020 Box Assy, Ecu Aggregation
2005-01 → 2005-07 ended
NCP95,SCP90 U ¥46,700
89300-52020 note Box Assy, Ecu Aggregation
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 F,RS,X ¥46,700
89300-52021 note Box Assy, Ecu Aggregation
2005-08 → 2006-03 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥46,700
89300-52021 Box Assy, Ecu Aggregation
2005-08 → 2006-03 ended
NCP95,SCP90 U ¥46,700
89300-52051 Box Assy, Ecu Aggregation
2006-04 → 2007-01 ended
NCP95,SCP90 U ¥43,300
89300-52051 note Box Assy, Ecu Aggregation
2006-04 → 2007-01 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥43,300
89300-52052 Box Assy, Ecu Aggregation
2007-02 → 2007-08 ended
NCP95,SCP90 U ¥43,300
89300-52052 note Box Assy, Ecu Aggregation
2007-02 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥43,300
89300-52052 Box Assy, Ecu Aggregation
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥43,300
89300-52052 note Box Assy, Ecu Aggregation
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥43,300
89300-52052 note Box Assy, Ecu Aggregation
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥43,300
89300-52052 note Box Assy, Ecu Aggregation
2008-08 → 2008-11 ended
KSP90,NCP9#,SCP90 F,RS ¥43,300
89300-52052 Box Assy, Ecu Aggregation
2008-08 → 2008-11 ended
KSP90,NCP9#,SCP90 ILL,U ¥43,300
89300-52120 Box Assy, Ecu Aggregation
2008-12 → 2010-07 ended
KSP90 U ¥46,600
89300-52120 note Box Assy, Ecu Aggregation
2008-12 → 2010-07 ended
KSP90 F ¥46,600
89300-52120 Box Assy, Ecu Aggregation
2008-12 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥46,600
89300-52120 note Box Assy, Ecu Aggregation
2008-12 → 2010-12 ended
NCP9#,SCP90 F,RS ¥46,600
89741 — Receiver, Door Control
89740-52040 Receiver, Door Control
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥18,600
89740-52040 note Receiver, Door Control
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥18,600
89741-52240 note Receiver, Door Control
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥34,700
89741-52240 note Receiver, Door Control
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,RS,X ¥34,700
89741-52240 Receiver, Door Control
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥34,700
89740-52040 Receiver, Door Control
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥18,600
89740-52040 note Receiver, Door Control
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥18,600
89740-52040 note Receiver, Door Control
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥18,600
89741-52240 Receiver, Door Control
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥34,700
89741-52240 note Receiver, Door Control
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥34,700
89741-52240 Receiver, Door Control
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥34,700
89741-52240 note Receiver, Door Control
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥34,700
89740-52040 Receiver, Door Control
2008-08 → 2010-07 ended
KSP90 U ¥18,600
89740-52040 note Receiver, Door Control
2008-08 → 2010-07 ended
KSP90 F ¥18,600
89740-52040 Receiver, Door Control
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥18,600
89740-52040 note Receiver, Door Control
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥18,600
89741-52240 Receiver, Door Control
2008-08 → 2008-10 ended
KSP90,NCP9#,SCP90 F,RS ¥34,700
89741-52240 note Receiver, Door Control
2008-08 → 2008-10 ended
KSP90,NCP9#,SCP90 F,RS ¥34,700
89741-52241 Receiver, Door Control
2008-11 → 2010-12 ended
KSP90,NCP9#,SCP90 F,RS ¥34,700
89741-52241 note Receiver, Door Control
2008-11 → 2010-12 ended
KSP90,NCP9#,SCP90 F,RS ¥34,700
89741-52241 note Receiver, Door Control
2010-04 → 2010-12 ended
KSP90 B ¥34,700
89741-52241 Receiver, Door Control
2010-07 → 2010-12 ended
KSP90 U ¥34,700
89746C — Harness, Electrical Key Wire, NO.1
89746-52030 Harness, Electrical Key Wire, NO.1
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥4,510
89746-52030 note Harness, Electrical Key Wire, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥4,510
89746-52030 Harness, Electrical Key Wire, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥4,510
89746-52030 note Harness, Electrical Key Wire, NO.1
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥4,510
89746-52030 note Harness, Electrical Key Wire, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,510
89746-52030 Harness, Electrical Key Wire, NO.1
2008-08 → 2010-07 ended
KSP90 U ¥4,510
89746-52030 note Harness, Electrical Key Wire, NO.1
2008-08 → 2010-07 ended
KSP90 F ¥4,510
89746-52030 Harness, Electrical Key Wire, NO.1
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥4,510
89746-52030 note Harness, Electrical Key Wire, NO.1
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥4,510
89746D — Harness, Electrical Key Wire, NO.2
89746-52040 note Harness, Electrical Key Wire, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥4,510
89746-52040 Harness, Electrical Key Wire, NO.2
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥4,510
89746-52040 Harness, Electrical Key Wire, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥4,510
89746-52040 note Harness, Electrical Key Wire, NO.2
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥4,510
89746-52040 note Harness, Electrical Key Wire, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,510
89746-52040 Harness, Electrical Key Wire, NO.2
2008-08 → 2010-07 ended
KSP90 U ¥4,510
89746-52040 note Harness, Electrical Key Wire, NO.2
2008-08 → 2010-07 ended
KSP90 F ¥4,510
89746-52040 Harness, Electrical Key Wire, NO.2
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥4,510
89746-52040 note Harness, Electrical Key Wire, NO.2
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥4,510
89747 — Buzzer, Wireless Door Lock
89747-48020 Buzzer, Wireless Door Lock
2005-01 → 2006-03 ended
NCP95,SCP90 U ¥3,830
89747-48020 note Buzzer, Wireless Door Lock
2005-01 → 2006-03 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥3,830
89747-52010 Buzzer, Wireless Door Lock
2006-04 → 2007-08 ended
NCP95,SCP90 U ¥2,900
89747-52010 note Buzzer, Wireless Door Lock
2006-04 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥2,900
89747-52010 Buzzer, Wireless Door Lock
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥2,900
89747-52010 note Buzzer, Wireless Door Lock
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥2,900
89747-52010 note Buzzer, Wireless Door Lock
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,900
89747-52010 Buzzer, Wireless Door Lock
2008-08 → 2010-07 ended
KSP90 U ¥2,900
89747-52010 note Buzzer, Wireless Door Lock
2008-08 → 2010-07 ended
KSP90 F ¥2,900
89747-52010 Buzzer, Wireless Door Lock
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥2,900
89747-52010 note Buzzer, Wireless Door Lock
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥2,900
89990A — Computer Assy, Smart Key
89990-52080 Computer Assy, Smart Key
2005-01 → 2005-07 ended
NCP95,SCP90 U ¥37,000
89990-52080 note Computer Assy, Smart Key
2005-01 → 2005-07 ended
KSP90,NCP9#,SCP90 F,RS,X ¥37,000
89990-52081 Computer Assy, Smart Key
2005-08 → 2006-02 ended
NCP95,SCP90 U ¥37,000
89990-52081 note Computer Assy, Smart Key
2005-08 → 2006-02 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥37,000
89990-52111 Computer Assy, Smart Key
2006-03 → 2007-01 ended
NCP95,SCP90 U ¥37,000
89990-52111 note Computer Assy, Smart Key
2006-03 → 2007-01 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥37,000
89990-52112 Computer Assy, Smart Key
2007-02 → 2007-08 ended
NCP95,SCP90 U ¥37,000
89990-52112 note Computer Assy, Smart Key
2007-02 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥37,000
89990-52112 note Computer Assy, Smart Key
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥37,000
89990-52112 note Computer Assy, Smart Key
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥37,000
89990-52112 Computer Assy, Smart Key
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥37,000
89990-52112 Computer Assy, Smart Key
2008-08 → 2008-11 ended
KSP90,NCP9#,SCP90 ILL,U ¥37,000
89990-52112 note Computer Assy, Smart Key
2008-08 → 2008-11 ended
KSP90,NCP9#,SCP90 F,RS ¥37,000
89990-52230 Computer Assy, Smart Key
2008-12 → 2010-07 ended
KSP90 U ¥37,000
89990-52230 note Computer Assy, Smart Key
2008-12 → 2010-07 ended
KSP90 F ¥37,000
89990-52230 Computer Assy, Smart Key
2008-12 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥37,000
89990-52230 note Computer Assy, Smart Key
2008-12 → 2010-12 ended
NCP9#,SCP90 F,RS ¥37,000
89991 — Oscillator, Door Electrical Key
89991-30040 note Oscillator, Door Electrical Key
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥10,200
89991-30040 note Oscillator, Door Electrical Key
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥10,200
89991-30050 note Oscillator, Door Electrical Key
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥10,200
89991-30050 note Oscillator, Door Electrical Key
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥10,200
89991-30040 note Oscillator, Door Electrical Key
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥10,200
89991-30040 note Oscillator, Door Electrical Key
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS ¥10,200
89991-30050 note Oscillator, Door Electrical Key
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥10,200
89991-30050 note Oscillator, Door Electrical Key
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS ¥10,200
89991-30040 note Oscillator, Door Electrical Key
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥10,200
89991-30040 note Oscillator, Door Electrical Key
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥10,200
89991-30040 note Oscillator, Door Electrical Key
2008-08 → 2010-07 ended
KSP90 F ¥10,200
89991-30040 note Oscillator, Door Electrical Key
2008-08 → 2010-07 ended
KSP90 U ¥10,200
89991-30050 note Oscillator, Door Electrical Key
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥10,200
89991-30050 note Oscillator, Door Electrical Key
2008-08 → 2010-07 ended
KSP90 F ¥10,200
89991-30050 note Oscillator, Door Electrical Key
2008-08 → 2010-07 ended
KSP90 U ¥10,200
89991-30050 note Oscillator, Door Electrical Key
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥10,200
89992 — Oscillator, Indoor Electrical Key
89992-52010 note Oscillator, Indoor Electrical Key
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥19,400
89992-52010 note Oscillator, Indoor Electrical Key
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥19,400
89992-52020 note Oscillator, Indoor Electrical Key
2005-01 → 2007-08 ended
SCP90 U ¥16,100
89992-52020 note Oscillator, Indoor Electrical Key
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 F,ILL,RS,X ¥16,100
89992-52030 note Oscillator, Indoor Electrical Key
2005-01 → 2007-08 ended
NCP95 U ¥19,400
89992-52030 note Oscillator, Indoor Electrical Key
2005-01 → 2007-08 ended
NCP95 F,ILL ¥19,400
89992-52010 note Oscillator, Indoor Electrical Key
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥19,400
89992-52010 note Oscillator, Indoor Electrical Key
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥19,400
89992-52010 note Oscillator, Indoor Electrical Key
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥19,400
89992-52020 note Oscillator, Indoor Electrical Key
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 ILL,U ¥16,100
89992-52020 note Oscillator, Indoor Electrical Key
2007-08 → 2008-08 ended
KSP90,SCP90 F ¥16,100
89992-52020 note Oscillator, Indoor Electrical Key
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥16,100
89992-52030 note Oscillator, Indoor Electrical Key
2007-08 → 2008-08 ended
NCP95 ILL,U ¥19,400
89992-52030 note Oscillator, Indoor Electrical Key
2007-08 → 2008-08 ended
NCP95 F ¥19,400
89992-52010 note Oscillator, Indoor Electrical Key
2008-08 → 2010-07 ended
KSP90 F ¥19,400
89992-52010 note Oscillator, Indoor Electrical Key
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥19,400
89992-52010 note Oscillator, Indoor Electrical Key
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥19,400
89992-52010 note Oscillator, Indoor Electrical Key
2008-08 → 2010-07 ended
KSP90 U ¥19,400
89992-52020 note Oscillator, Indoor Electrical Key
2008-08 → 2010-07 ended
KSP90 F ¥16,100
89992-52020 note Oscillator, Indoor Electrical Key
2008-08 → 2010-07 ended
KSP90 U ¥16,100
89992-52020 note Oscillator, Indoor Electrical Key
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥16,100
89992-52020 note Oscillator, Indoor Electrical Key
2008-08 → 2010-12 ended
NCP91,SCP90 F,RS ¥16,100
89992-52030 note Oscillator, Indoor Electrical Key
2008-08 → 2010-12 ended
NCP95 ILL,U ¥19,400
89992-52030 note Oscillator, Indoor Electrical Key
2008-08 → 2010-12 ended
NCP95 F ¥19,400
89997 — Antenna, Electrical Key
89997-52010 Antenna, Electrical Key
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥4,500
89997-52010 note Antenna, Electrical Key
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥4,500
89997-52010 Antenna, Electrical Key
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥4,500
89997-52010 note Antenna, Electrical Key
2007-08 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥4,500
89997-52010 note Antenna, Electrical Key
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,500
89997-52010 Antenna, Electrical Key
2008-08 → 2010-07 ended
KSP90 U ¥4,500
89997-52010 note Antenna, Electrical Key
2008-08 → 2010-07 ended
KSP90 F ¥4,500
89997-52010 Antenna, Electrical Key
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL,U ¥4,500
89997-52010 note Antenna, Electrical Key
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥4,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
