Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

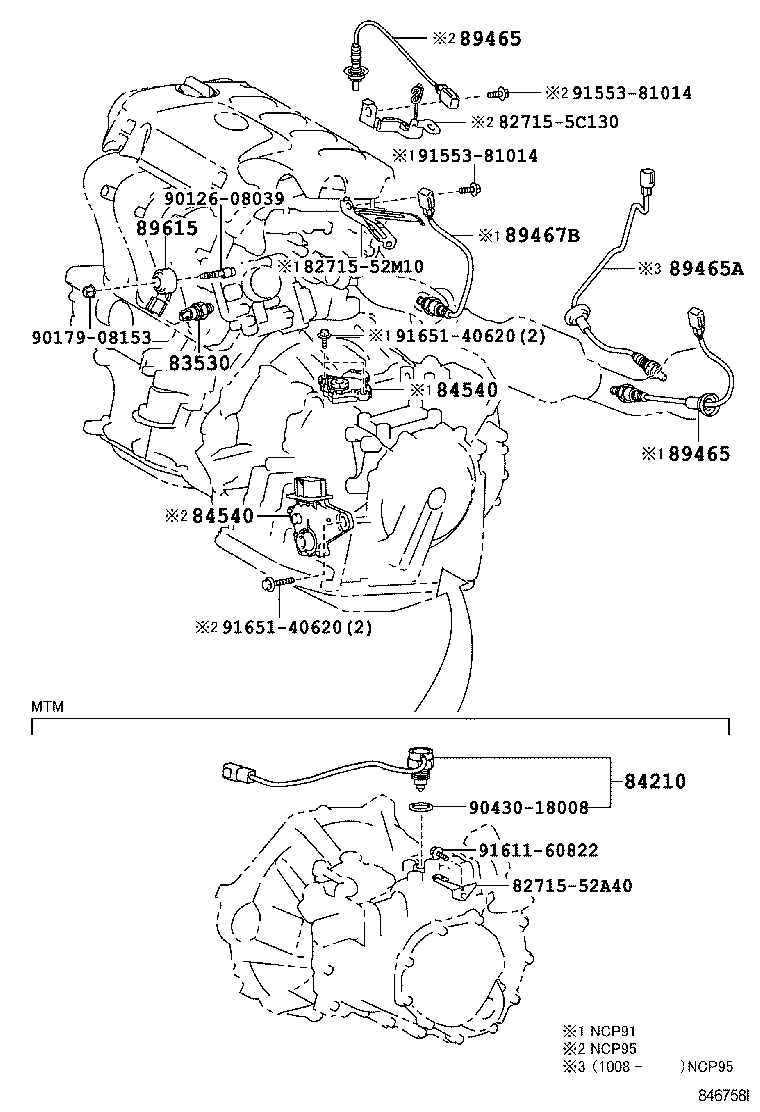

Exploded illustration 846758I 83530 — SWITCH ASSY, OIL PRESSURE (FOR ENGINE) (8 parts) 84540 — SWITCH ASSY, NEUTRAL START (6 parts) 89465 — SENSOR, OXYGEN (18 parts) 89465 — SENSOR, OXYGEN (18 parts) 89467B — SENSOR, AIR FUEL RATIO (5 parts) 89615 — SENSOR, KNOCK CONTROL (4 parts) 827155C130 — not listed in this catalogue 8271552M10 — not listed in this catalogue 9017908153 — not listed in this catalogue 84210 — SWITCH ASSY, BACK-UP LAMP (3 parts) 9043018008 — not listed in this catalogue 9161160822 — not listed in this catalogue 8271552A40 — not listed in this catalogue 9165140620 — not listed in this catalogue 9155381014 — not listed in this catalogue 9155381014 — not listed in this catalogue 9012608039 — not listed in this catalogue 84540 — SWITCH ASSY, NEUTRAL START (6 parts) 9165140620 — not listed in this catalogue 89465A — SENSOR, OXYGEN NO.2 (9 parts)
846758I · 9 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
83530 — Switch Assy, Oil Pressure (FOR ENGINE)
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,970
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,970
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,970
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,970
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,970
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,970
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,970
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,970
84210 — Switch Assy, Back-up Lamp
84210-52010 Switch Assy, Back-up Lamp
2005-01 → 2007-08 ended
NCP91 5F ¥1,360
84210-52010 Switch Assy, Back-up Lamp
2007-08 → 2008-09 ended
NCP91 5F ¥1,360
84210-52010 Switch Assy, Back-up Lamp
2008-09 → 2010-08 ended
NCP91 5F ¥1,360
84540 — Switch Assy, Neutral Start
84540-46010 Switch Assy, Neutral Start
2005-01 → 2007-08 ended
NCP95 ¥8,400
84540-52070 Switch Assy, Neutral Start
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 CVFC ¥7,600
84540-46010 Switch Assy, Neutral Start
2007-08 → 2008-08 ended
NCP95 ¥8,400
84540-52070 Switch Assy, Neutral Start
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 CVFC ¥7,600
84540-46010 Switch Assy, Neutral Start
2008-08 → 2010-12 ended
NCP95 ¥8,400
84540-52070 Switch Assy, Neutral Start
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 CVFC ¥7,600
89465 — Sensor, Oxygen
89465-52250 Sensor, Oxygen
2005-01 → 2007-08 ended
SCP90 ¥11,700
89465-52330 Sensor, Oxygen
2005-01 → 2007-08 ended
KSP90 ¥11,700
89465-52390 Sensor, Oxygen
2005-01 → 2007-08 ended
NCP95 ¥10,400
89465-52400 Sensor, Oxygen
2005-01 → 2007-08 ended
NCP91 ¥11,400
89465-52250 Sensor, Oxygen
2007-08 → 2008-08 ended
SCP90 F,ILL,U ¥11,700
89465-52250 Sensor, Oxygen
2007-08 → 2008-09 ended
SCP90 RS ¥11,700
89465-52330 Sensor, Oxygen
2007-08 → 2008-08 ended
KSP90 ¥11,700
89465-52390 Sensor, Oxygen
2007-08 → 2008-08 ended
NCP95 ¥10,400
89465-52400 Sensor, Oxygen
2007-08 → 2008-09 ended
NCP91 RS ¥11,400
89465-52400 Sensor, Oxygen
2007-08 → 2008-08 ended
NCP91 ILL,U ¥11,400
89465-52250 Sensor, Oxygen
2008-08 → 2010-08 ended
SCP90 ¥11,700
89465-52330 Sensor, Oxygen
2008-08 → 2010-08 ended
KSP90 ¥11,700
89465-52390 Sensor, Oxygen
2008-08 → 2010-08 ended
NCP95 ¥10,400
89465-52400 Sensor, Oxygen
2008-08 → 2010-08 ended
NCP91 ¥11,400
89465-52480 Sensor, Oxygen
2010-08 → 2010-12 ended
NCP91 ¥10,400
89467-12220 Sensor, Oxygen
2010-08 → 2010-12 ended
NCP95 ¥15,900
89467-52140 Sensor, Oxygen
2010-08 → 2010-12 ended
KSP90 ¥15,900
89467-52150 Sensor, Oxygen
2010-08 → 2010-12 ended
SCP90 ¥15,900
89465A — Sensor, Oxygen NO.2
89465-52350 Sensor, Oxygen NO.2
2005-01 → 2007-08 ended
KSP90 ¥10,400
89465-52360 Sensor, Oxygen NO.2
2005-01 → 2007-08 ended
SCP90 ¥11,400
89465-52350 Sensor, Oxygen NO.2
2007-08 → 2008-08 ended
KSP90 ¥10,400
89465-52360 Sensor, Oxygen NO.2
2007-08 → 2008-09 ended
SCP90 ¥11,400
89465-52350 Sensor, Oxygen NO.2
2008-08 → 2010-08 ended
KSP90 ¥10,400
89465-52360 Sensor, Oxygen NO.2
2008-08 → 2010-08 ended
SCP90 ¥11,400
89465-52540 Sensor, Oxygen NO.2
2010-08 → 2010-12 ended
SCP90 ¥10,400
89465-52650 Sensor, Oxygen NO.2
2010-08 → 2010-12 ended
KSP90 ¥10,400
89465-52660 Sensor, Oxygen NO.2
2010-08 → 2010-12 ended
NCP95 ¥10,400
89467B — Sensor, Air Fuel Ratio
89467-52010 Sensor, Air Fuel Ratio
2005-01 → 2007-08 ended
NCP91 ¥15,600
89467-52010 Sensor, Air Fuel Ratio
2007-08 → 2008-08 ended
NCP91 ILL,U ¥15,600
89467-52010 Sensor, Air Fuel Ratio
2007-08 → 2008-09 ended
NCP91 RS ¥15,600
89467-12180 Sensor, Air Fuel Ratio
2009-07 → 2010-12 ended
NCP91 ¥15,900
89467-52010 Sensor, Air Fuel Ratio
2008-08 → 2009-06 ended
NCP91 ¥15,600
89615 — Sensor, Knock Control
89615-20090 Sensor, Knock Control
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,370
89615-20090 Sensor, Knock Control
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,370
89615-20090 Sensor, Knock Control
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,370
89615-20090 Sensor, Knock Control
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,370
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
