Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

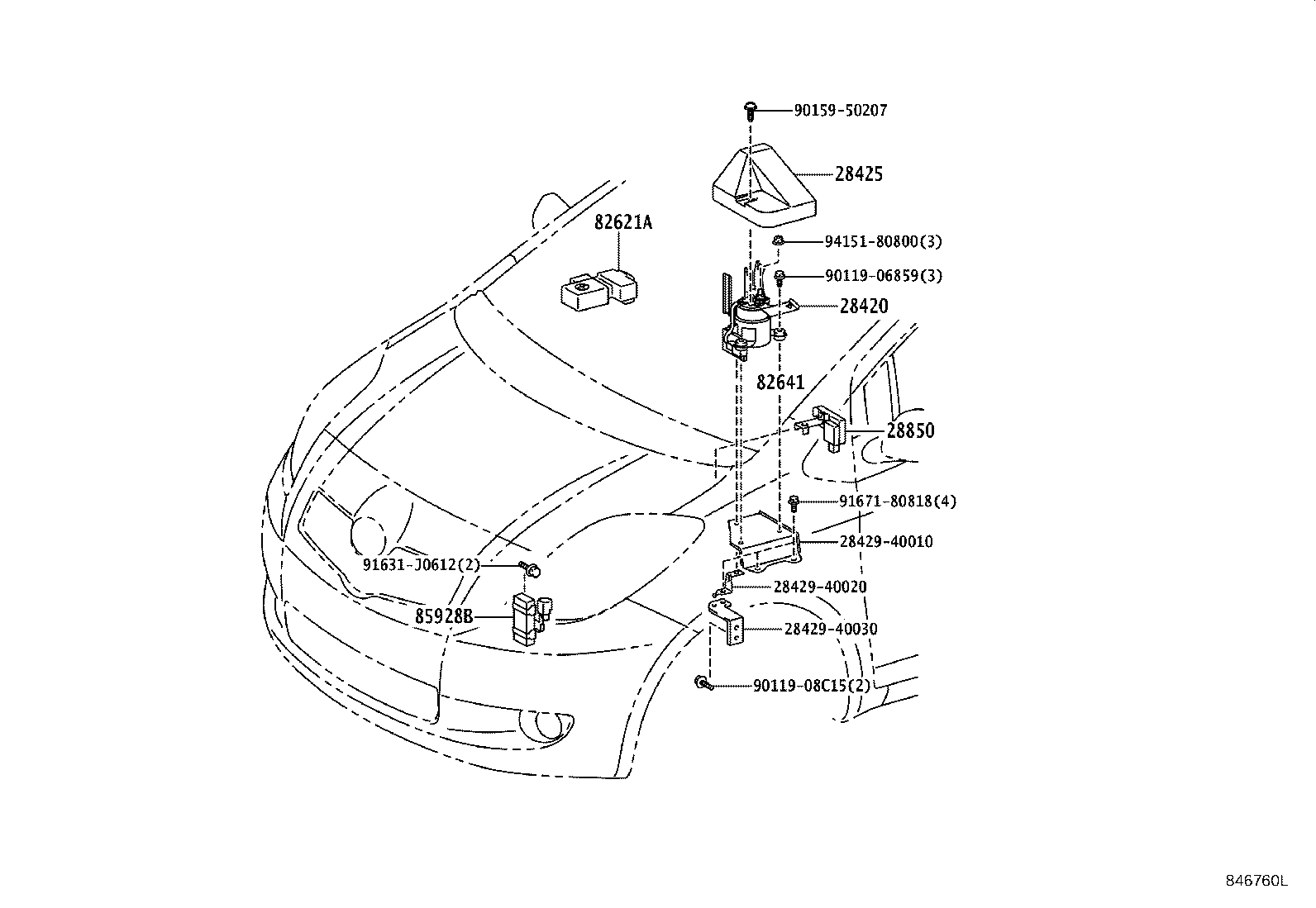

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28420 — Relay Assy, Voltage Converter | ||||
| 28420-40010 note |
Relay Assy, Voltage Converter
2005-04 → 2007-08
ended
|
1KRFE KSP90 B,F | ¥41,500 | |
| 28420-40010 note |
Relay Assy, Voltage Converter
2007-08 → 2008-08
ended
|
1KRFE KSP90 B,F | ¥41,500 | |
| 28420-40010 note |
Relay Assy, Voltage Converter
2008-08 → 2010-08
ended
|
1KRFE KSP90 B,F | ¥41,500 | |
| 28425 — Cover, Voltage Converter Relay | ||||
| 28425-40010 note |
Cover, Voltage Converter Relay
2005-04 → 2007-08
ended
|
1KRFE KSP90 B,F | ¥3,180 | |
| 28425-40010 note |
Cover, Voltage Converter Relay
2007-08 → 2008-08
ended
|
1KRFE KSP90 B,F | ¥3,180 | |
| 28425-40010 note |
Cover, Voltage Converter Relay
2008-08 → 2010-08
ended
|
1KRFE KSP90 B,F | ¥3,180 | |
| 28850 — Sensor Assy, Battery Current | ||||
| 28850-40010 |
Sensor Assy, Battery Current
2005-01 → 2007-08
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 | ¥5,500 | |
| 28850-40010 |
Sensor Assy, Battery Current
2007-08 → 2008-08
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 B,F,ILL,U | ¥5,500 | |
| 28850-40010 |
Sensor Assy, Battery Current
2007-08 → 2008-09
ended
|
1NZFE,2SZFE NCP91,SCP90 RS | ¥5,500 | |
| 28850-40010 |
Sensor Assy, Battery Current
2008-08 → 2010-12
ended
|
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 | ¥5,500 | |
| 82621A — Cover, Fusible Link | ||||
| 82621-52120 |
Cover, Fusible Link
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥2,160 | |
| 82621-52130 note |
Cover, Fusible Link
2005-04 → 2007-08
ended
|
KSP90 B,F | ¥1,670 | |
| 82621-52120 |
Cover, Fusible Link
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | ¥2,160 | |
| 82621-52130 note |
Cover, Fusible Link
2007-08 → 2008-08
ended
|
KSP90 F | ¥1,670 | |
| 82621-52130 note |
Cover, Fusible Link
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥1,670 | |
| 82621-52120 |
Cover, Fusible Link
2008-08 → 2010-10
ended
|
KSP90,NCP9#,SCP90 | ¥2,160 | |
| 82621-52130 note |
Cover, Fusible Link
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥1,670 | |
| 82621-52130 note |
Cover, Fusible Link
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥1,670 | |
| 82621-52140 |
Cover, Fusible Link
2010-11 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥650 | |
| 82641 — Relay, Integration NO.1 | ||||
| 82641-47020 |
Relay, Integration NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥5,400 | |
| 82641-47020 |
Relay, Integration NO.1
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | ¥5,400 | |
| 82641-47020 |
Relay, Integration NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥5,400 | |
| 85928B — Resistor, Cooling Fan | ||||
| 85928-52030 |
Resistor, Cooling Fan
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥7,600 | |
| 85928-52030 |
Resistor, Cooling Fan
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥7,600 | |
| 85928-52030 |
Resistor, Cooling Fan
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥7,600 | |
| 85928-52030 |
Resistor, Cooling Fan
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥7,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
