Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

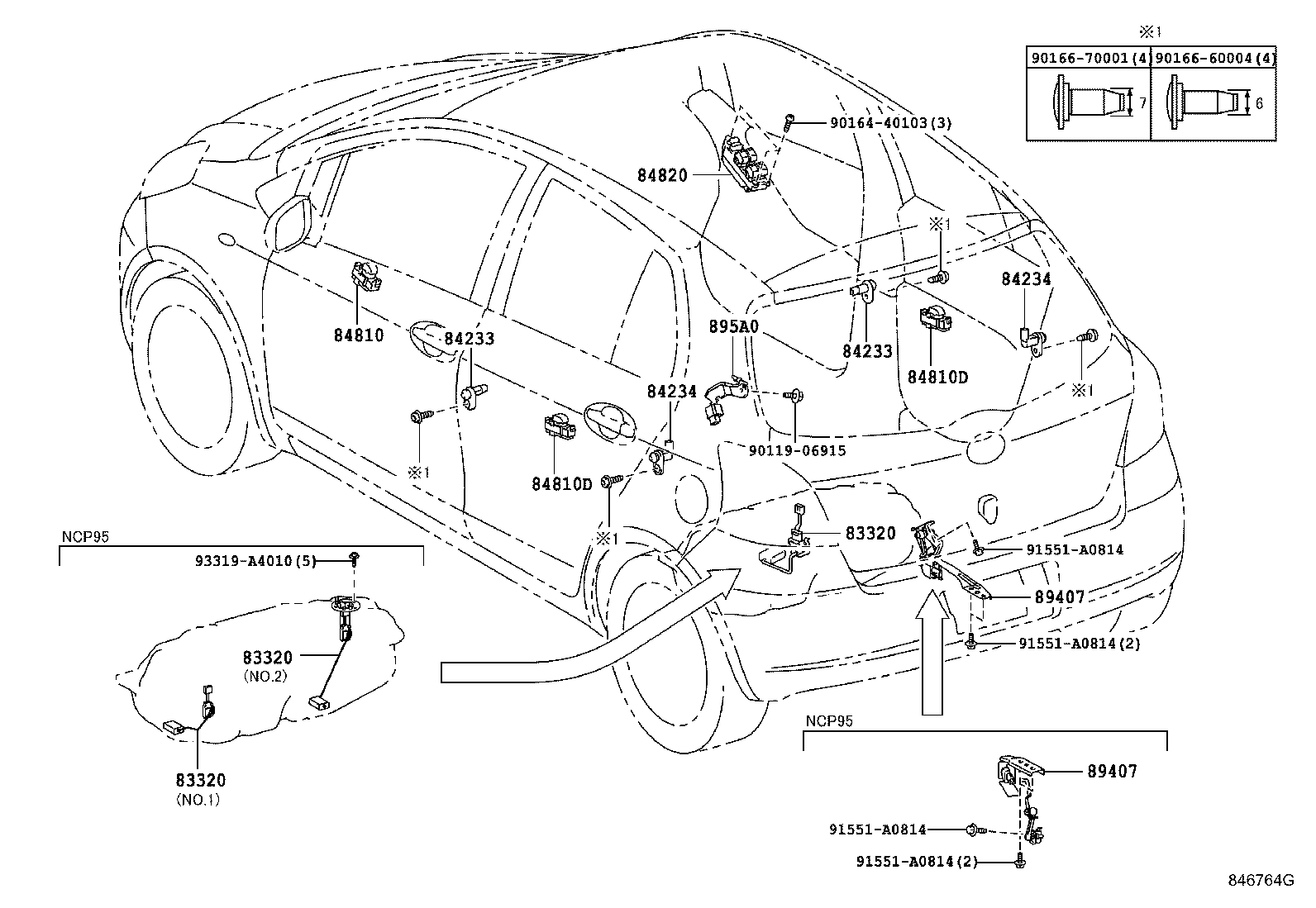

Exploded illustration 846764G 83320 — GAGE ASSY, FUEL SENDER (11 parts) 83320 — GAGE ASSY, FUEL SENDER (11 parts) 83320 — GAGE ASSY, FUEL SENDER (11 parts) 89407 — SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH (13 parts) 89407 — SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH (13 parts) 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (4 parts) 84234 — SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) (4 parts) 84810 — SWITCH ASSY, POWER WINDOW REGULATOR (4 parts) 84810D — SWITCH ASSY, POWER WINDOW REGULATOR, REAR (3 parts) 84810D — SWITCH ASSY, POWER WINDOW REGULATOR, REAR (3 parts) 84820 — MASTER SWITCH ASSY, POWER WINDOW REGULATOR (5 parts) 9016440103 — not listed in this catalogue 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (4 parts) 84234 — SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) (4 parts) 93319A4010 — not listed in this catalogue 91551A0814 — not listed in this catalogue 91551A0814 — not listed in this catalogue 91551A0814 — not listed in this catalogue 91551A0814 — not listed in this catalogue 9011906915 — not listed in this catalogue 895A0 — RELAY ASSY, STOP LAMP CONTROL (5 parts) 9016670001 — not listed in this catalogue 9016660004 — not listed in this catalogue
846764G · 14 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
49 parts on this figure
Part number Description Fitment Price
83320 — Gage Assy, Fuel Sender
83320-52180 Gage Assy, Fuel Sender
2005-01 → 2006-06 ended
KSP90,NCP91,SCP90 ¥5,500
83320-52181 Gage Assy, Fuel Sender
2006-07 → 2007-08 ended
KSP90,NCP91,SCP90 ¥5,500
83320-52190 note Gage Assy, Fuel Sender
2005-01 → 2007-08 ended
NCP95 ¥2,730
83320-59505 note Gage Assy, Fuel Sender
2005-01 → 2007-08 ended
NCP95 ¥2,730
83320-52181 Gage Assy, Fuel Sender
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥5,500
83320-52190 note Gage Assy, Fuel Sender
2007-08 → 2008-08 ended
NCP95 ¥2,730
83320-59505 note Gage Assy, Fuel Sender
2007-08 → 2008-08 ended
NCP95 ¥2,730
83320-52181 Gage Assy, Fuel Sender
2008-08 → 2010-10 ended
KSP90,NCP91,SCP90 ¥5,500
83320-52190 note Gage Assy, Fuel Sender
2008-08 → 2010-12 ended
NCP95 ¥2,730
83320-52260 Gage Assy, Fuel Sender
2010-11 → 2010-12 ended
KSP90,NCP91,SCP90 ¥5,500
83320-59505 note Gage Assy, Fuel Sender
2008-08 → 2010-12 ended
NCP95 ¥2,730
84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84231-52010 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥660
84231-52010 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥660
84231-52010 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥660
84231-52010 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥660
84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84231-52020 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥660
84231-52020 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥660
84231-52020 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥660
84231-52020 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥660
84810 — Switch Assy, Power Window Regulator
84810-52030 Switch Assy, Power Window Regulator
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,470
84810-52030 Switch Assy, Power Window Regulator
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,470
84810-52030 Switch Assy, Power Window Regulator
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,470
84810-52030 Switch Assy, Power Window Regulator
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,470
84810D — Switch Assy, Power Window Regulator, Rear
84810-52030 Switch Assy, Power Window Regulator, Rear
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,470
84810-52030 Switch Assy, Power Window Regulator, Rear
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥2,470
84810-52030 Switch Assy, Power Window Regulator, Rear
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,470
84820 — Master Switch Assy, Power Window Regulator
84820-52200 Master Switch Assy, Power Window Regulator
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥19,800
84820-52270 Master Switch Assy, Power Window Regulator
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ILL,RS ¥19,800
84820-12530 Master Switch Assy, Power Window Regulator
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥18,000
84820-12530 Master Switch Assy, Power Window Regulator
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥18,000
84820-12530 Master Switch Assy, Power Window Regulator
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥18,000
89407 — Sensor Sub-assy, Height Control, Rear RH
89407-52010 Sensor Sub-assy, Height Control, Rear RH
2005-12 → 2006-08 ended
NCP91 RS ¥41,700
89407-52010 note Sensor Sub-assy, Height Control, Rear RH
2005-12 → 2006-08 ended
KSP90,NCP91,SCP90 F,ILL,U,X ¥41,700
89407-52011 Sensor Sub-assy, Height Control, Rear RH
2006-09 → 2007-08 ended
NCP91 RS ¥41,700
89407-52011 note Sensor Sub-assy, Height Control, Rear RH
2006-09 → 2007-08 ended
KSP90,NCP91,SCP90 F,ILL,U,X ¥41,700
89407-52060 note Sensor Sub-assy, Height Control, Rear RH
2005-12 → 2007-08 ended
NCP95 ¥34,700
89407-52011 note Sensor Sub-assy, Height Control, Rear RH
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 F,ILL,U ¥41,700
89407-52011 Sensor Sub-assy, Height Control, Rear RH
2007-08 → 2008-09 ended
NCP91 RS ¥41,700
89407-52011 note Sensor Sub-assy, Height Control, Rear RH
2007-08 → 2008-09 ended
SCP90 RS ¥41,700
89407-52060 note Sensor Sub-assy, Height Control, Rear RH
2007-08 → 2008-08 ended
NCP95 ¥34,700
89407-52011 note Sensor Sub-assy, Height Control, Rear RH
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 F,ILL,U ¥41,700
89407-52011 Sensor Sub-assy, Height Control, Rear RH
2008-09 → 2010-12 ended
NCP91 RS ¥41,700
89407-52011 note Sensor Sub-assy, Height Control, Rear RH
2008-09 → 2010-12 ended
SCP90 RS ¥41,700
89407-52060 note Sensor Sub-assy, Height Control, Rear RH
2008-08 → 2010-12 ended
NCP95 ¥34,700
895A0 — Relay Assy, Stop Lamp Control
895A0-52010 note Relay Assy, Stop Lamp Control
2008-08 → 2008-10 ended
KSP90 B,F ¥6,000
895A0-52010 Relay Assy, Stop Lamp Control
2008-09 → 2008-10 ended
NCP91,SCP90 RS ¥6,000
895A0-52011 note Relay Assy, Stop Lamp Control
2008-11 → 2009-08 ended
KSP90 B,F ¥6,000
895A0-52011 Relay Assy, Stop Lamp Control
2008-11 → 2010-12 ended
NCP91,SCP90 RS ¥6,000
895A0-52011 Relay Assy, Stop Lamp Control
2009-08 → 2010-12 ended
KSP90,SCP90 B,F,ILL,U ¥6,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
