Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

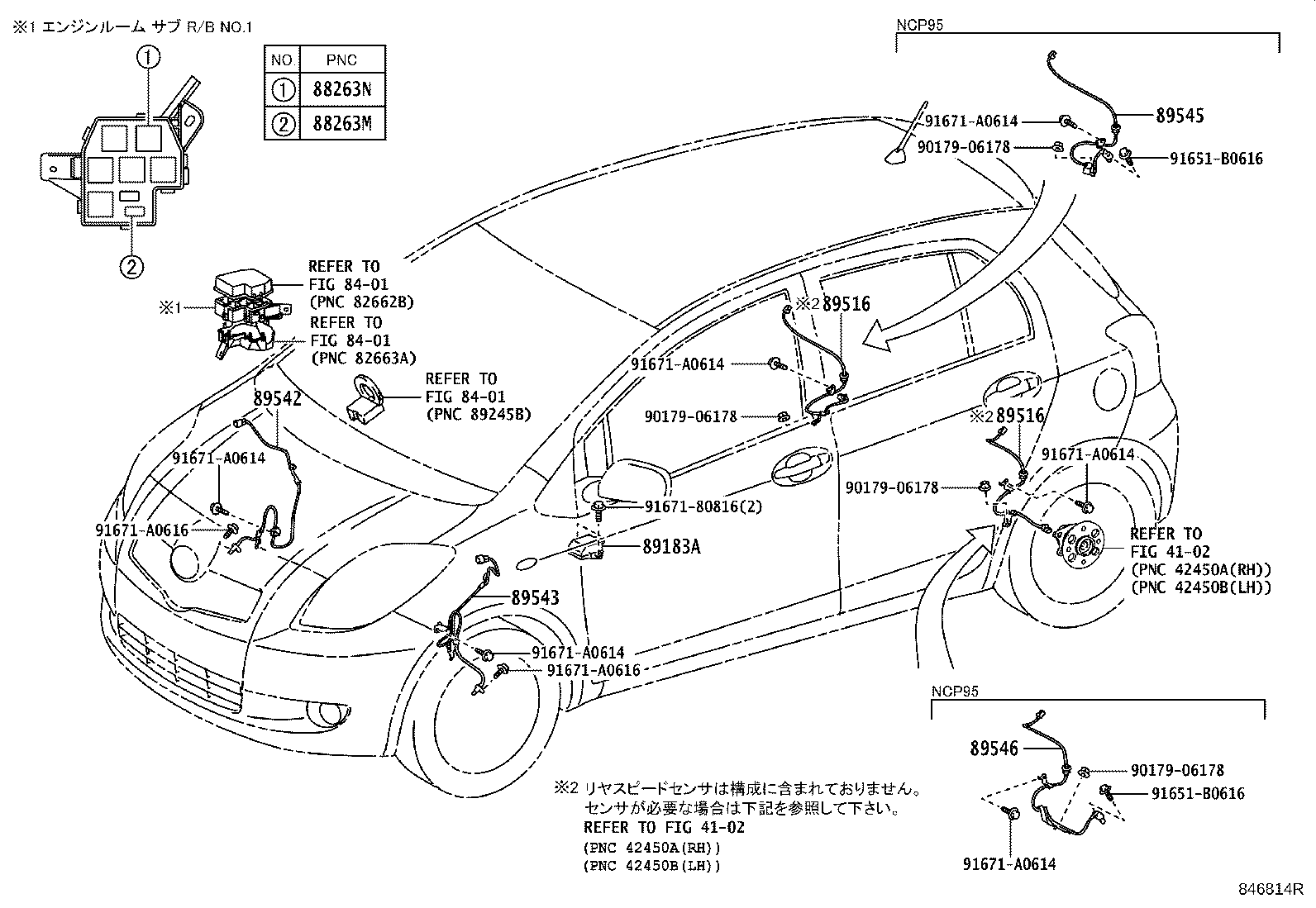

Exploded illustration 846814R 88263N — RELAY, ABS MOTOR (6 parts) 88263M — RELAY, ABS SOLENOID (6 parts) 89183A — SENSOR, YAWRATE (6 parts) 89542 — SENSOR, SPEED, FRONT RH (4 parts) 89543 — SENSOR, SPEED, FRONT LH (5 parts) 89545 — SENSOR, SPEED, REAR RH (3 parts) 89546 — SENSOR, SPEED, REAR LH (3 parts) 89516 — WIRE, SKID CONTROL SENSOR (10 parts) 89516 — WIRE, SKID CONTROL SENSOR (10 parts) 9167180816 — not listed in this catalogue 91671A0614 — not listed in this catalogue 91671A0614 — not listed in this catalogue 91671A0616 — not listed in this catalogue 91671A0616 — not listed in this catalogue 91671A0614 — not listed in this catalogue 91651B0616 — not listed in this catalogue 91671A0614 — not listed in this catalogue 91671A0614 — not listed in this catalogue 91671A0614 — not listed in this catalogue 91651B0616 — not listed in this catalogue 9017906178 — not listed in this catalogue 9017906178 — not listed in this catalogue 9017906178 — not listed in this catalogue 8401 — not listed in this catalogue 9017906178 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 4102 — not listed in this catalogue 4102 — not listed in this catalogue
846814R · 9 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
88263M — Relay, Abs Solenoid
88263-32070 note Relay, Abs Solenoid
2005-04 → 2007-08 ended
KSP90 B,F ¥2,810
88263-32070 note Relay, Abs Solenoid
2005-01 → 2007-08 ended
NCP91 RS ¥2,810
88263-32070 note Relay, Abs Solenoid
2007-08 → 2008-08 ended
KSP90 B,F ¥2,810
88263-32070 note Relay, Abs Solenoid
2007-08 → 2008-09 ended
NCP91 RS ¥2,810
88263-32070 note Relay, Abs Solenoid
2008-08 → 2010-08 ended
KSP90 B,F ¥2,810
88263-32070 note Relay, Abs Solenoid
2008-09 → 2010-12 ended
NCP91 RS ¥2,810
88263N — Relay, Abs Motor
88263-21010 note Relay, Abs Motor
2005-01 → 2007-08 ended
NCP91 RS ¥2,740
88263-21010 note Relay, Abs Motor
2005-04 → 2007-08 ended
KSP90 B,F ¥2,740
88263-21010 note Relay, Abs Motor
2007-08 → 2008-08 ended
KSP90 B,F ¥2,740
88263-21010 note Relay, Abs Motor
2007-08 → 2008-09 ended
NCP91 RS ¥2,740
88263-21010 note Relay, Abs Motor
2008-09 → 2010-12 ended
NCP91 RS ¥2,740
88263-21010 note Relay, Abs Motor
2008-08 → 2010-08 ended
KSP90 B,F ¥2,740
89183A — Sensor, Yawrate
89183-60020 note Sensor, Yawrate
2005-01 → 2007-08 ended
NCP91 RS ¥120,000
89183-60020 note Sensor, Yawrate
2005-04 → 2007-08 ended
KSP90 B,F ¥120,000
89183-60020 note Sensor, Yawrate
2007-08 → 2008-08 ended
KSP90 B,F ¥120,000
89183-60020 note Sensor, Yawrate
2007-08 → 2008-09 ended
NCP91 RS ¥120,000
89183-60020 note Sensor, Yawrate
2008-08 → 2010-08 ended
KSP90 B,F ¥120,000
89183-60020 note Sensor, Yawrate
2008-09 → 2010-12 ended
NCP91 RS ¥120,000
89516 — Wire, Skid Control Sensor
89516-52090 note Wire, Skid Control Sensor
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥2,290
89516-52100 note Wire, Skid Control Sensor
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥2,290
89516-52090 note Wire, Skid Control Sensor
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥2,290
89516-52090 note Wire, Skid Control Sensor
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,290
89516-52100 note Wire, Skid Control Sensor
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥2,290
89516-52100 note Wire, Skid Control Sensor
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,290
89516-52090 note Wire, Skid Control Sensor
2008-08 → 2009-04 ended
KSP90,NCP91,SCP90 ¥2,290
89516-52100 note Wire, Skid Control Sensor
2008-08 → 2009-04 ended
KSP90,NCP91,SCP90 ¥2,290
89516-52110 note Wire, Skid Control Sensor
2009-05 → 2010-12 ended
KSP90,NCP91,SCP90 ¥2,290
89516-52120 note Wire, Skid Control Sensor
2009-05 → 2010-12 ended
KSP90,NCP91,SCP90 ¥2,290
89542 — Sensor, Speed, Front RH
89542-52030 Sensor, Speed, Front RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥21,700
89542-52030 Sensor, Speed, Front RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥21,700
89542-52030 Sensor, Speed, Front RH
2008-08 → 2008-12 ended
KSP90,NCP9#,SCP90 ¥21,700
89542-52060 Sensor, Speed, Front RH
2009-01 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥21,700
89543 — Sensor, Speed, Front LH
89543-52030 Sensor, Speed, Front LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥21,700
89543-52030 Sensor, Speed, Front LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥21,700
89543-52030 Sensor, Speed, Front LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥21,700
89543-52030 Sensor, Speed, Front LH
2008-08 → 2008-12 ended
KSP90,NCP9#,SCP90 ¥21,700
89543-52060 Sensor, Speed, Front LH
2009-01 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥21,700
89545 — Sensor, Speed, Rear RH
89545-52040 Sensor, Speed, Rear RH
2005-01 → 2007-08 ended
NCP95 ¥21,700
89545-52040 Sensor, Speed, Rear RH
2007-08 → 2008-08 ended
NCP95 ¥21,700
89545-52040 Sensor, Speed, Rear RH
2008-08 → 2010-12 ended
NCP95 ¥21,700
89546 — Sensor, Speed, Rear LH
89546-52040 Sensor, Speed, Rear LH
2005-01 → 2007-08 ended
NCP95 ¥21,700
89546-52040 Sensor, Speed, Rear LH
2007-08 → 2008-08 ended
NCP95 ¥21,700
89546-52040 Sensor, Speed, Rear LH
2008-08 → 2010-12 ended
NCP95 ¥21,700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
