Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

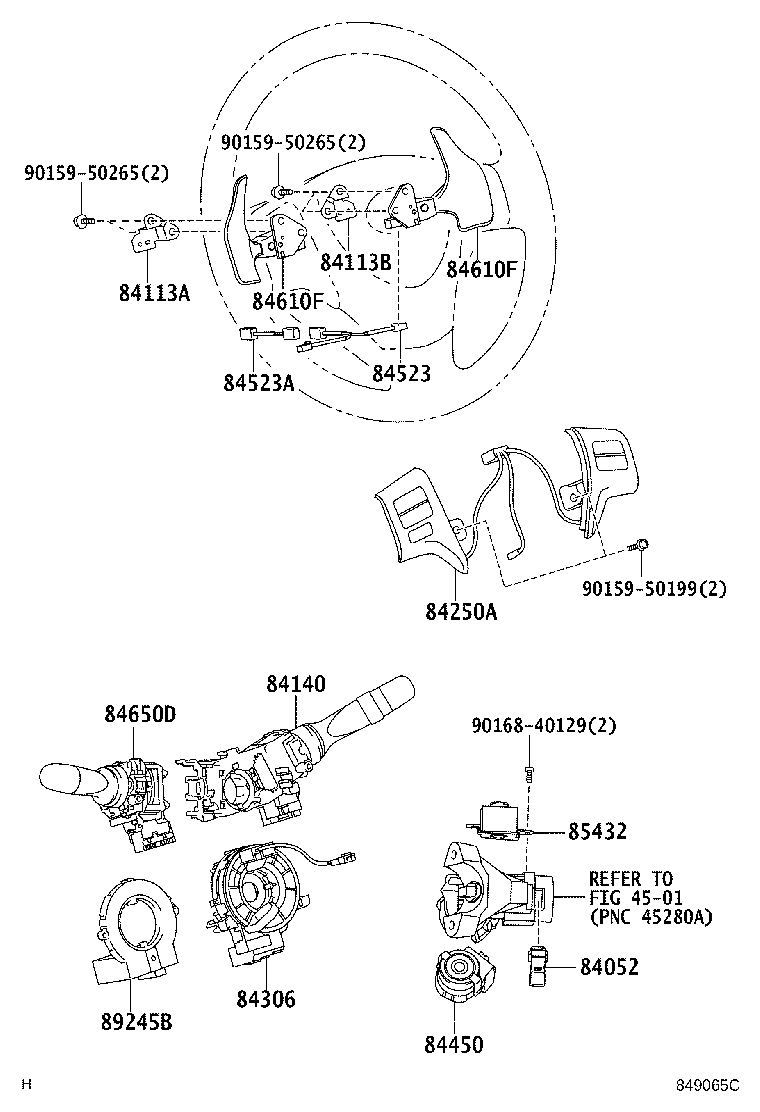

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84052 — Switch Assy, Un-lock Warning | ||||
| 84052-71010 note |
Switch Assy, Un-lock Warning
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥1,970 | |
| 84052-71010 |
Switch Assy, Un-lock Warning
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,RS,X | ¥1,970 | |
| 84052-71010 note |
Switch Assy, Un-lock Warning
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,X | ¥1,970 | |
| 84052-71010 |
Switch Assy, Un-lock Warning
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS | ¥1,970 | |
| 84052-71010 note |
Switch Assy, Un-lock Warning
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 F,RS | ¥1,970 | |
| 84052-71010 |
Switch Assy, Un-lock Warning
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,RS | ¥1,970 | |
| 84052-71010 note |
Switch Assy, Un-lock Warning
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,RS | ¥1,970 | |
| 84052-71010 |
Switch Assy, Un-lock Warning
2010-06 → 2010-12
ended
|
KSP90 U | ¥1,970 | |
| 84113A — Bracket, Switch, NO.1 | ||||
| 84113-52010 |
Bracket, Switch, NO.1
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥360 | |
| 84113-52010 |
Bracket, Switch, NO.1
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥360 | |
| 84113B — Bracket, Switch, NO.2 | ||||
| 84113-52020 |
Bracket, Switch, NO.2
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥360 | |
| 84113-52020 |
Bracket, Switch, NO.2
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥360 | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-12590 note |
Switch Assy, Headlamp Dimmer
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,U,X | ¥6,800 | |
| 84140-12600 note |
Switch Assy, Headlamp Dimmer
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,U,X | ¥7,600 | |
| 84140-52090 |
Switch Assy, Headlamp Dimmer
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥7,600 | |
| 84140-52100 |
Switch Assy, Headlamp Dimmer
2005-01 → 2007-08
ended
|
NCP91 RS | ¥7,000 | |
| 84140-52100 note |
Switch Assy, Headlamp Dimmer
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥7,000 | |
| 84140-52110 note |
Switch Assy, Headlamp Dimmer
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥7,600 | |
| 84140-52120 note |
Switch Assy, Headlamp Dimmer
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥7,600 | |
| 84140-52120 note |
Switch Assy, Headlamp Dimmer
2005-01 → 2007-08
ended
|
NCP91 RS | ¥7,600 | |
| 84140-52130 note |
Switch Assy, Headlamp Dimmer
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥7,600 | |
| 84140-52180 |
Switch Assy, Headlamp Dimmer
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥7,200 | |
| 84140-12590 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥6,800 | |
| 84140-12600 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥7,600 | |
| 84140-52090 |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-09
ended
|
SCP90 RS | ¥7,600 | |
| 84140-52090 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥7,600 | |
| 84140-52090 |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥7,600 | |
| 84140-52100 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥7,000 | |
| 84140-52100 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥7,000 | |
| 84140-52100 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-09
ended
|
SCP90 RS | ¥7,000 | |
| 84140-52100 |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-09
ended
|
NCP91 RS | ¥7,000 | |
| 84140-52110 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-09
ended
|
SCP90 RS | ¥7,600 | |
| 84140-52110 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥7,600 | |
| 84140-52110 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥7,600 | |
| 84140-52120 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥7,600 | |
| 84140-52120 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥7,600 | |
| 84140-52120 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-09
ended
|
SCP90 RS | ¥7,600 | |
| 84140-52120 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-09
ended
|
NCP91 RS | ¥7,600 | |
| 84140-52130 note |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥7,600 | |
| 84140-52180 |
Switch Assy, Headlamp Dimmer
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥7,200 | |
| 84140-12590 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,U | ¥6,800 | |
| 84140-12600 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,U | ¥7,600 | |
| 84140-52090 |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
NCP9# ILL;SCP90 ILL,RS | ¥7,600 | |
| 84140-52090 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥7,600 | |
| 84140-52100 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥7,000 | |
| 84140-52100 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,U | ¥7,000 | |
| 84140-52100 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2010-12
ended
|
SCP90 RS | ¥7,000 | |
| 84140-52100 |
Switch Assy, Headlamp Dimmer
2008-09 → 2010-12
ended
|
NCP91 RS | ¥7,000 | |
| 84140-52110 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥7,600 | |
| 84140-52110 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2010-12
ended
|
SCP90 RS | ¥7,600 | |
| 84140-52110 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥7,600 | |
| 84140-52120 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥7,600 | |
| 84140-52120 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,U | ¥7,600 | |
| 84140-52120 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2010-12
ended
|
SCP90 RS | ¥7,600 | |
| 84140-52120 note |
Switch Assy, Headlamp Dimmer
2008-09 → 2010-12
ended
|
NCP91 RS | ¥7,600 | |
| 84140-52130 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥7,600 | |
| 84140-52180 |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥7,200 | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-52010-B0 note |
Switch Assy, Steering Pad
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,X | ¥10,400 | |
| 84250-52010-B0 note |
Switch Assy, Steering Pad
2005-12 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥10,400 | |
| 84250-52010-B0 note |
Switch Assy, Steering Pad
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 F | ¥10,400 | |
| 84250-52010-B0 note |
Switch Assy, Steering Pad
2005-12 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥10,400 | |
| 84250-52010-B0 note |
Switch Assy, Steering Pad
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 F | ¥10,400 | |
| 84250-52010-B0 note |
Switch Assy, Steering Pad
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥10,400 | |
| 84250-52010-B1 note |
Switch Assy, Steering Pad
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥10,400 | |
| 84250-52010-B1 note |
Switch Assy, Steering Pad
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥10,400 | |
| 84250-52010-C0 note |
Switch Assy, Steering Pad
2005-12 → 2007-08
ended
|
NCP91 RS | ¥10,400 | |
| 84250-52010-C0 note |
Switch Assy, Steering Pad
2005-12 → 2007-08
ended
|
NCP91 RS | ¥10,400 | |
| 84250-52010-C0 note |
Switch Assy, Steering Pad
2005-01 → 2005-12
ended
|
NCP91 RS | ¥10,400 | |
| 84250-52010-B2 note |
Switch Assy, Steering Pad
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥10,400 | |
| 84250-52010-B3 note |
Switch Assy, Steering Pad
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥10,400 | |
| 84250-52080 note |
Switch Assy, Steering Pad
2007-08 → 2008-09
ended
|
NCP91 5F;SCP90 RS | ¥14,800 | |
| 84250-52090 note |
Switch Assy, Steering Pad
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥14,800 | |
| 84250-52010-B2 note |
Switch Assy, Steering Pad
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,U | ¥10,400 | |
| 84250-52010-B3 note |
Switch Assy, Steering Pad
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥10,400 | |
| 84250-52080 note |
Switch Assy, Steering Pad
2008-09 → 2010-12
ended
|
NCP91 5F;SCP90 RS | ¥14,800 | |
| 84250-52090 note |
Switch Assy, Steering Pad
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥14,800 | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-52090 note |
Cable Sub-assy, Spiral
2005-12 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥17,200 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2005-12 → 2007-08
ended
|
NCP91 RS | ¥17,200 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS | ¥17,200 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2005-12 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥17,200 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS | ¥17,200 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥17,200 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥17,200 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2005-01 → 2005-12
ended
|
NCP91 RS | ¥17,200 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2005-12 → 2007-08
ended
|
NCP91 RS | ¥17,200 | |
| 84306-52100 |
Cable Sub-assy, Spiral
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥14,300 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2007-08 → 2008-09
ended
|
NCP91 5F;SCP90 RS | ¥17,200 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2007-08 → 2008-09
ended
|
NCP91 5F | ¥17,200 | |
| 84306-52090 |
Cable Sub-assy, Spiral
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥17,200 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥17,200 | |
| 84306-52100 |
Cable Sub-assy, Spiral
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥14,300 | |
| 84306-52100 |
Cable Sub-assy, Spiral
2007-08 → 2008-09
ended
|
NCP91 5F;SCP90 RS | ¥14,300 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2008-09 → 2010-08
ended
|
NCP91 5F | ¥17,200 | |
| 84306-52090 note |
Cable Sub-assy, Spiral
2008-08 → 2010-12
ended
|
NCP91 5F;NCP91 ILL,U;KSP90,NCP95,SCP90 F,ILL,RS,U | ¥17,200 | |
| 84306-52090 |
Cable Sub-assy, Spiral
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥17,200 | |
| 84306-52100 |
Cable Sub-assy, Spiral
2008-08 → 2010-12
ended
|
NCP91 5F;NCP91 ILL,U;KSP90,NCP95,SCP90 | ¥14,300 | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-71010 |
Switch Assy, Ignition OR Starter
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,RS,X | ¥3,240 | |
| 84450-71010 note |
Switch Assy, Ignition OR Starter
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥3,240 | |
| 84450-71010 note |
Switch Assy, Ignition OR Starter
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,X | ¥3,240 | |
| 84450-71010 |
Switch Assy, Ignition OR Starter
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS | ¥3,240 | |
| 84450-71010 note |
Switch Assy, Ignition OR Starter
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 F,RS | ¥3,240 | |
| 84450-71010 |
Switch Assy, Ignition OR Starter
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,RS | ¥3,240 | |
| 84450-71010 |
Switch Assy, Ignition OR Starter
2010-06 → 2010-12
ended
|
KSP90 U | ¥3,240 | |
| 84450-71010 note |
Switch Assy, Ignition OR Starter
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,RS | ¥3,240 | |
| 84523 — Wire, Switch NO.1 | ||||
| 84523-52020 |
Wire, Switch NO.1
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥2,030 | |
| 84523-52020 |
Wire, Switch NO.1
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥2,030 | |
| 84523A — Wire, Switch NO.2 | ||||
| 84523-12010 |
Wire, Switch NO.2
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥1,790 | |
| 84523-12010 note |
Wire, Switch NO.2
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥1,790 | |
| 84523-12010 note |
Wire, Switch NO.2
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥1,790 | |
| 84523-12010 |
Wire, Switch NO.2
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥1,790 | |
| 84523-12010 note |
Wire, Switch NO.2
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥1,790 | |
| 84610F — Switch Assy, Transmission Shift | ||||
| 84610-52030 note |
Switch Assy, Transmission Shift
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥4,090 | |
| 84610-52040 note |
Switch Assy, Transmission Shift
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥4,090 | |
| 84610-52030 note |
Switch Assy, Transmission Shift
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥4,090 | |
| 84610-52040 note |
Switch Assy, Transmission Shift
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥4,090 | |
| 84650D — Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) | ||||
| 84652-52190 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,RS,X | ¥9,000 | |
| 84652-52250 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2005-01 → 2007-08
ended
|
NCP95,SCP90 U | ¥10,700 | |
| 84652-52190 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 B,F,RS | ¥9,000 | |
| 84652-52250 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | ¥10,700 | |
| 84652-52190 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,RS | ¥9,000 | |
| 84652-52250 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ILL,U | ¥10,700 | |
| 85432 — Solenoid, Key Interlock | ||||
| 85432-71010 |
Solenoid, Key Interlock
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,ILL,RS,X) | ¥3,300 | |
| 85432-71010 note |
Solenoid, Key Interlock
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ATM (F,RS,X) | ¥3,300 | |
| 85432-71010 note |
Solenoid, Key Interlock
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ATM (F,ILL,RS,X) | ¥3,300 | |
| 85432-71010 |
Solenoid, Key Interlock
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS) | ¥3,300 | |
| 85432-71010 note |
Solenoid, Key Interlock
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 ATM (F,RS) | ¥3,300 | |
| 85432-71010 |
Solenoid, Key Interlock
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (B,F,RS) | ¥3,300 | |
| 85432-71010 note |
Solenoid, Key Interlock
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM (F,RS) | ¥3,300 | |
| 85432-71010 |
Solenoid, Key Interlock
2010-06 → 2010-12
ended
|
KSP90 U | ¥3,300 | |
| 89245B — Sensor, Steering | ||||
| 89245-52030 note |
Sensor, Steering
2005-01 → 2007-08
ended
|
NCP91 RS | ¥19,400 | |
| 89245-52030 note |
Sensor, Steering
2007-08 → 2008-09
ended
|
NCP91 RS | ¥19,400 | |
| 89245-52030 note |
Sensor, Steering
2008-09 → 2010-12
ended
|
NCP91 RS | ¥19,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
