Exploded illustration 851535G 85031B — VALVE SUB-ASSY, WASHER (3 parts) 85035 — NOZZLE SUB-ASSY, WASHER (12 parts) 85035 — NOZZLE SUB-ASSY, WASHER (12 parts) 85310 — MOTOR AND PUMP ASSY, WINDSHIELD WASHER (4 parts) 85330 — JAR ASSY, WINDSHIELD WASHER (11 parts) 85336J — PROTECTOR, WASHER JAR (4 parts) 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (4 parts) 85371 — HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) (19 parts) 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (4 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (3 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (3 parts) 9011906767 — not listed in this catalogue 85332 — CAP, WINDSHIELD WASHER JAR (4 parts) 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (4 parts) 8537152060 — not listed in this catalogue 85035 — NOZZLE SUB-ASSY, WASHER (12 parts) 8504 — not listed in this catalogue

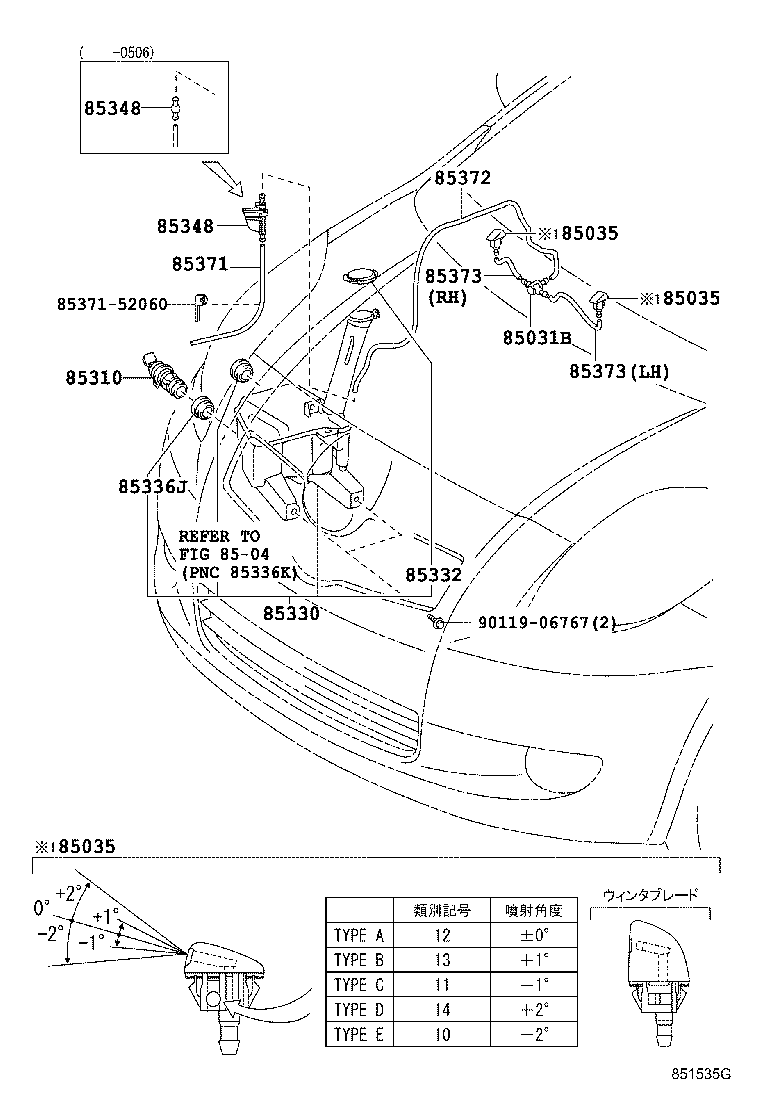

851535G · 14 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
85031B — Valve Sub-assy, Washer
85321-30080 Valve Sub-assy, Washer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥0
85321-30080 Valve Sub-assy, Washer
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥0
85321-30080 Valve Sub-assy, Washer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥0
85035 — Nozzle Sub-assy, Washer
85381-52250 note Nozzle Sub-assy, Washer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
85381-52280 note Nozzle Sub-assy, Washer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
85381-52290 note Nozzle Sub-assy, Washer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
85381-52300 note Nozzle Sub-assy, Washer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
85381-52310 note Nozzle Sub-assy, Washer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
85381-52250 note Nozzle Sub-assy, Washer
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 —
85381-52300 note Nozzle Sub-assy, Washer
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 —
85381-52310 note Nozzle Sub-assy, Washer
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 —
85381-52250 note Nozzle Sub-assy, Washer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
85381-52300 note Nozzle Sub-assy, Washer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
85381-52310 note Nozzle Sub-assy, Washer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
85381-52320 note Nozzle Sub-assy, Washer
2008-11 → 2010-12 ended
KSP90,NCP9#,SCP90 —
85310 — Motor And Pump Assy, Windshield Washer
85330-21010 Motor And Pump Assy, Windshield Washer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥0
85330-21010 Motor And Pump Assy, Windshield Washer
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥0
85330-21010 Motor And Pump Assy, Windshield Washer
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥0
85330-21010 Motor And Pump Assy, Windshield Washer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥0
85330 — Jar Assy, Windshield Washer
85315-52160 Jar Assy, Windshield Washer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
85315-52170 note Jar Assy, Windshield Washer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
85315-52170 note Jar Assy, Windshield Washer
2005-01 → 2007-08 ended
KSP90 B,F —
85315-52160 Jar Assy, Windshield Washer
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U —
85315-52160 Jar Assy, Windshield Washer
2007-08 → 2008-09 ended
NCP91,SCP90 RS —
85315-52170 note Jar Assy, Windshield Washer
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U —
85315-52170 note Jar Assy, Windshield Washer
2007-08 → 2008-08 ended
KSP90 B,F —
85315-52170 note Jar Assy, Windshield Washer
2007-08 → 2008-09 ended
NCP91,SCP90 RS —
85315-52160 Jar Assy, Windshield Washer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
85315-52170 note Jar Assy, Windshield Washer
2008-08 → 2010-08 ended
KSP90 B,F —
85315-52170 note Jar Assy, Windshield Washer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
85332 — Cap, Windshield Washer Jar
85316-26030 Cap, Windshield Washer Jar
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
85316-26030 Cap, Windshield Washer Jar
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U —
85316-26030 Cap, Windshield Washer Jar
2007-08 → 2008-09 ended
NCP91,SCP90 RS —
85316-26030 Cap, Windshield Washer Jar
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
85336J — Protector, Washer Jar
85336-60300 Protector, Washer Jar
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥0
85336-60300 Protector, Washer Jar
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥0
85336-60300 Protector, Washer Jar
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥0
85336-60300 Protector, Washer Jar
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥0
85348 — Joint, Windshield Washer Hose, NO.1
85349-89122 Joint, Windshield Washer Hose, NO.1
2005-01 → 2005-06 ended
KSP90,NCP9#,SCP90 —
85385-52361 Joint, Windshield Washer Hose, NO.1
2005-06 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥0
85385-52361 Joint, Windshield Washer Hose, NO.1
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥0
85385-52361 Joint, Windshield Washer Hose, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥0
85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT)
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2005-06 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2005-06 → 2007-08 ended
KSP90 B,F —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2005-06 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS,U,X —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 ILL —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 ILL —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2005-02 → 2005-06 ended
KSP90,NCP9#,SCP90 —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2005-02 → 2005-06 ended
KSP90,NCP9#,SCP90 —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2005-01 → 2005-02 ended
KSP90 —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2005-01 → 2005-02 ended
KSP90,NCP9#,SCP90 —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2005-01 → 2005-02 ended
KSP90,NCP9#,SCP90 —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2005-02 → 2005-06 ended
KSP90 —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2007-08 → 2008-09 ended
NCP91,SCP90 RS —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2007-08 → 2008-09 ended
NCP91,SCP90 RS —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2007-08 → 2008-08 ended
KSP90 B,F —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2008-08 → 2010-08 ended
KSP90 B,F —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2005-01 → 2005-06 ended
KSP90,NCP9#,SCP90 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2005-06 → 2007-08 ended
KSP90,NCP9#,SCP90 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE)
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
