Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

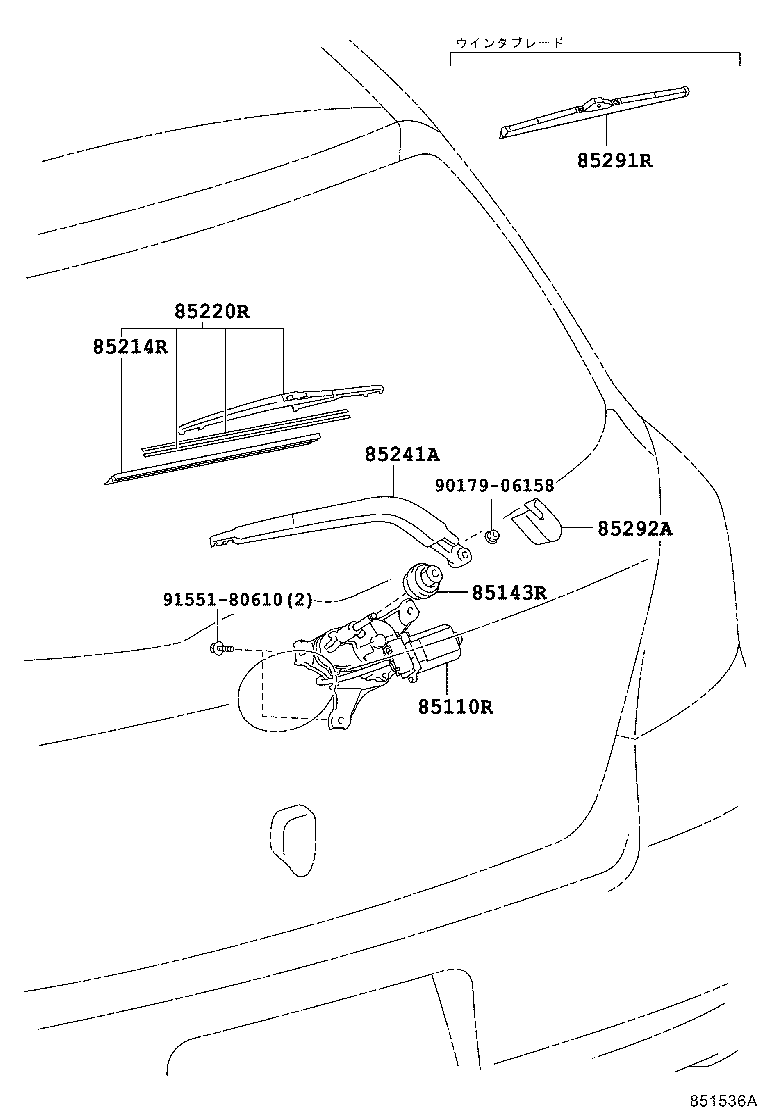

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110R — Motor Assy, Rear Wiper | ||||
| 85130-52110 |
Motor Assy, Rear Wiper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥21,300 | |
| 85130-52110 |
Motor Assy, Rear Wiper
2007-08 → 2008-05
ended
|
KSP90,NCP9#,SCP90 | ¥21,300 | |
| 85130-52170 |
Motor Assy, Rear Wiper
2008-06 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | ¥21,300 | |
| 85130-52170 |
Motor Assy, Rear Wiper
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥21,300 | |
| 85143R — Grommet, Rear Wiper Motor | ||||
| 85143-52020 |
Grommet, Rear Wiper Motor
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥0 | |
| 85143-52020 |
Grommet, Rear Wiper Motor
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥0 | |
| 85143-52020 |
Grommet, Rear Wiper Motor
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥0 | |
| 85143-52020 |
Grommet, Rear Wiper Motor
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥0 | |
| 85214R — Rubber, Rear Wiper | ||||
| 85214-31010 |
Rubber, Rear Wiper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥660 | |
| 85214-31010 |
Rubber, Rear Wiper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥660 | |
| 85214-31010 |
Rubber, Rear Wiper
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥660 | |
| 85214-31010 |
Rubber, Rear Wiper
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥660 | |
| 85220R — Blade Assy, Rear Wiper | ||||
| 85242-52040 |
Blade Assy, Rear Wiper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,350 | |
| 85242-52040 |
Blade Assy, Rear Wiper
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,350 | |
| 85242-52040 |
Blade Assy, Rear Wiper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,350 | |
| 85242-52040 |
Blade Assy, Rear Wiper
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥1,350 | |
| 85241A — Arm, Rear Wiper | ||||
| 85241-52120 |
Arm, Rear Wiper
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥2,700 | |
| 85241-52120 |
Arm, Rear Wiper
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,700 | |
| 85241-52120 |
Arm, Rear Wiper
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥2,700 | |
| 85241-52120 |
Arm, Rear Wiper
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥2,700 | |
| 85291R — Blade,Rear Wiper, Winter | ||||
| 85291-13060 note |
Blade,Rear Wiper, Winter
2005-05 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥2,400 | |
| 85291-42020 note |
Blade,Rear Wiper, Winter
2005-01 → 2005-04
ended
|
KSP90,NCP9#,SCP90 | ¥2,400 | |
| 85291-13060 note |
Blade,Rear Wiper, Winter
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,400 | |
| 85291-13060 note |
Blade,Rear Wiper, Winter
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥2,400 | |
| 85291-13060 note |
Blade,Rear Wiper, Winter
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥2,400 | |
| 85292A — Cap, Rear Wiper Arm Head | ||||
| 85292-28030 |
Cap, Rear Wiper Arm Head
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥360 | |
| 85292-28030 |
Cap, Rear Wiper Arm Head
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥360 | |
| 85292-28030 |
Cap, Rear Wiper Arm Head
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥360 | |
| 85292-28030 |
Cap, Rear Wiper Arm Head
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥360 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
