Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

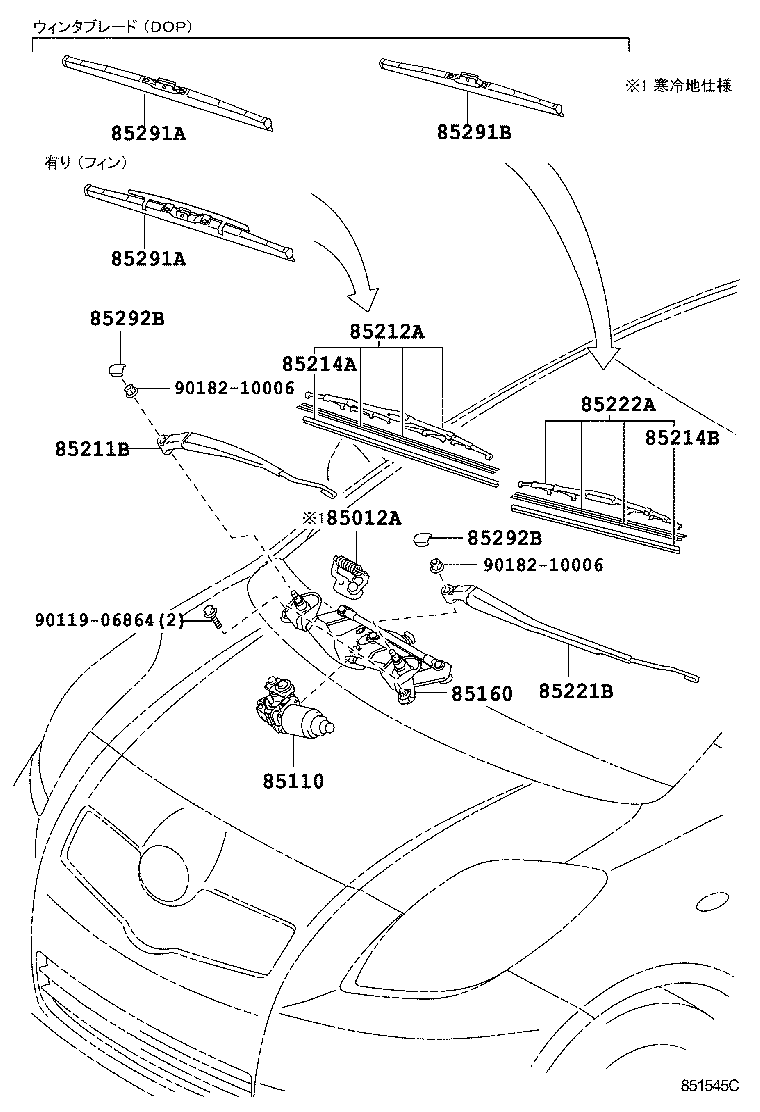

Exploded illustration 851545C 85291A — BLADE, FRONT WIPER, WINTER, RH (9 parts) 85291A — BLADE, FRONT WIPER, WINTER, RH (9 parts) 85291B — BLADE, FRONT WIPER, WINTER, LH (4 parts) 85212A — BLADE, FR WIPER, RH (4 parts) 85214A — RUBBER, WIPER, RH (4 parts) 85012A — CRANK SUB-ASSY, FRONT WIPER (4 parts) 85211B — ARM, FRONT WIPER, RH (4 parts) 85292B — CAP, FRONT WIPER ARM HEAD (4 parts) 9018210006 — not listed in this catalogue 9011906864 — not listed in this catalogue 85110 — MOTOR ASSY, WINDSHIELD WIPER (9 parts) 85221B — ARM, FRONT WIPER, LH (4 parts) 85160 — LINK ASSY, WINDSHIELD WIPER (4 parts) 9018210006 — not listed in this catalogue 85292B — CAP, FRONT WIPER ARM HEAD (4 parts) 85222A — BLADE, FR WIPER, LH (5 parts) 85214B — RUBBER, WIPER, LH (5 parts)
851545C · 14 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
85012A — Crank Sub-assy, Front Wiper
85012-58030 note Crank Sub-assy, Front Wiper
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥0
85012-58030 note Crank Sub-assy, Front Wiper
2007-08 → 2008-08 ended
KSP90 B,F ¥0
85012-58030 note Crank Sub-assy, Front Wiper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥0
85012-58030 note Crank Sub-assy, Front Wiper
2008-08 → 2010-08 ended
KSP90 B,F ¥0
85110 — Motor Assy, Windshield Wiper
85110-52280 Motor Assy, Windshield Wiper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥27,000
85110-52290 note Motor Assy, Windshield Wiper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥30,200
85110-52290 note Motor Assy, Windshield Wiper
2005-01 → 2007-08 ended
KSP90 B,F ¥30,200
85110-1A080 note Motor Assy, Windshield Wiper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥30,200
85110-1A080 note Motor Assy, Windshield Wiper
2007-08 → 2008-08 ended
KSP90 B,F ¥30,200
85110-1A080 note Motor Assy, Windshield Wiper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥30,200
85110-52490 Motor Assy, Windshield Wiper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥29,600
85110-52490 Motor Assy, Windshield Wiper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥29,600
85110-1A080 Motor Assy, Windshield Wiper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥30,200
85160 — Link Assy, Windshield Wiper
85150-52230 Link Assy, Windshield Wiper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥10,900
85150-52230 Link Assy, Windshield Wiper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥10,900
85150-52230 Link Assy, Windshield Wiper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥10,900
85150-52230 Link Assy, Windshield Wiper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥10,900
85211B — Arm, Front Wiper, RH
85211-52210 Arm, Front Wiper, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥4,660
85211-52210 Arm, Front Wiper, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥4,660
85211-52210 Arm, Front Wiper, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥4,660
85211-52210 Arm, Front Wiper, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥4,660
85212A — Blade, FR Wiper, RH
85212-30370 Blade, FR Wiper, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,360
85212-30370 Blade, FR Wiper, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,360
85212-30370 Blade, FR Wiper, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,360
85212-30370 Blade, FR Wiper, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,360
85214A — Rubber, Wiper, RH
85214-50100 Rubber, Wiper, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥850
85214-50100 Rubber, Wiper, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥850
85214-50100 Rubber, Wiper, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥850
85214-50100 Rubber, Wiper, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥850
85214B — Rubber, Wiper, LH
85214-68010 Rubber, Wiper, LH
2005-01 → 2005-11 ended
KSP90,NCP9#,SCP90 ¥960
85214-68011 Rubber, Wiper, LH
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥750
85214-68011 Rubber, Wiper, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥750
85214-68011 Rubber, Wiper, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥750
85214-68011 Rubber, Wiper, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥750
85221B — Arm, Front Wiper, LH
85221-52210 Arm, Front Wiper, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥5,800
85221-52210 Arm, Front Wiper, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥5,800
85221-52210 Arm, Front Wiper, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥5,800
85221-52210 Arm, Front Wiper, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥5,800
85222A — Blade, FR Wiper, LH
85222-68010 Blade, FR Wiper, LH
2005-01 → 2005-11 ended
KSP90,NCP9#,SCP90 ¥1,710
85222-68011 Blade, FR Wiper, LH
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,340
85222-68011 Blade, FR Wiper, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,340
85222-68011 Blade, FR Wiper, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,340
85222-68011 Blade, FR Wiper, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,340
85291A — Blade, Front Wiper, Winter, RH
85291-24090 note Blade, Front Wiper, Winter, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥5,700
85291-24100 note Blade, Front Wiper, Winter, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥6,900
85291-24090 note Blade, Front Wiper, Winter, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥5,700
85291-24090 note Blade, Front Wiper, Winter, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥5,700
85291-24100 note Blade, Front Wiper, Winter, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,900
85291-24100 note Blade, Front Wiper, Winter, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥6,900
85291-24090 note Blade, Front Wiper, Winter, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥5,700
85291-24100 note Blade, Front Wiper, Winter, RH
2008-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,900
85291-52080 note Blade, Front Wiper, Winter, RH
2008-09 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥8,800
85291B — Blade, Front Wiper, Winter, LH
85291-28120 note Blade, Front Wiper, Winter, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,000
85291-28120 note Blade, Front Wiper, Winter, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,000
85291-28120 note Blade, Front Wiper, Winter, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,000
85291-28120 note Blade, Front Wiper, Winter, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,000
85292B — Cap, Front Wiper Arm Head
85292-13010 Cap, Front Wiper Arm Head
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥250
85292-13010 Cap, Front Wiper Arm Head
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥250
85292-13010 Cap, Front Wiper Arm Head
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥250
85292-13010 Cap, Front Wiper Arm Head
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥250
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
