Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

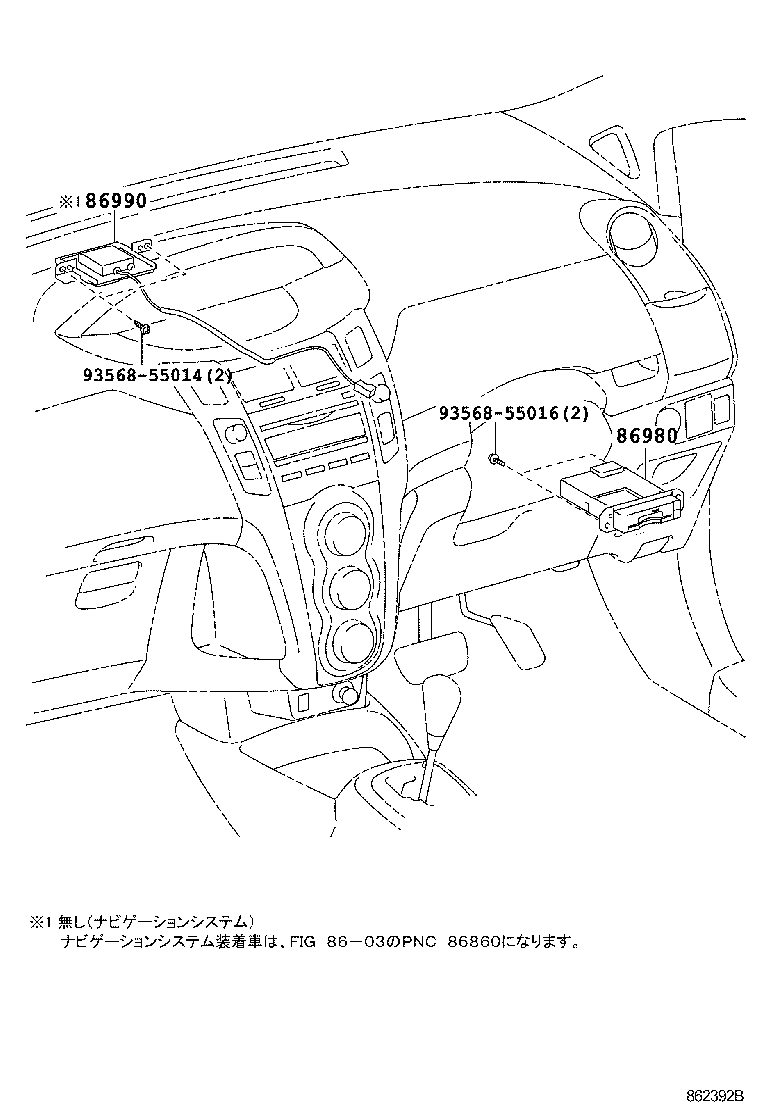

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86980 — Computer Assy, Toll Collection | ||||
| 86980-52010 note |
Computer Assy, Toll Collection
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥25,500 | |
| 86980-22010 note |
Computer Assy, Toll Collection
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥28,600 | |
| 86980-22010 note |
Computer Assy, Toll Collection
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥28,600 | |
| 86980-22010 note |
Computer Assy, Toll Collection
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥28,600 | |
| 86990 — Antenna Assy, Toll Collection | ||||
| 86990-52010 note |
Antenna Assy, Toll Collection
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥10,400 | |
| 86990-52010 note |
Antenna Assy, Toll Collection
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥10,400 | |
| 86990-52010 note |
Antenna Assy, Toll Collection
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥10,400 | |
| 86990-52010 note |
Antenna Assy, Toll Collection
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥10,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
