Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

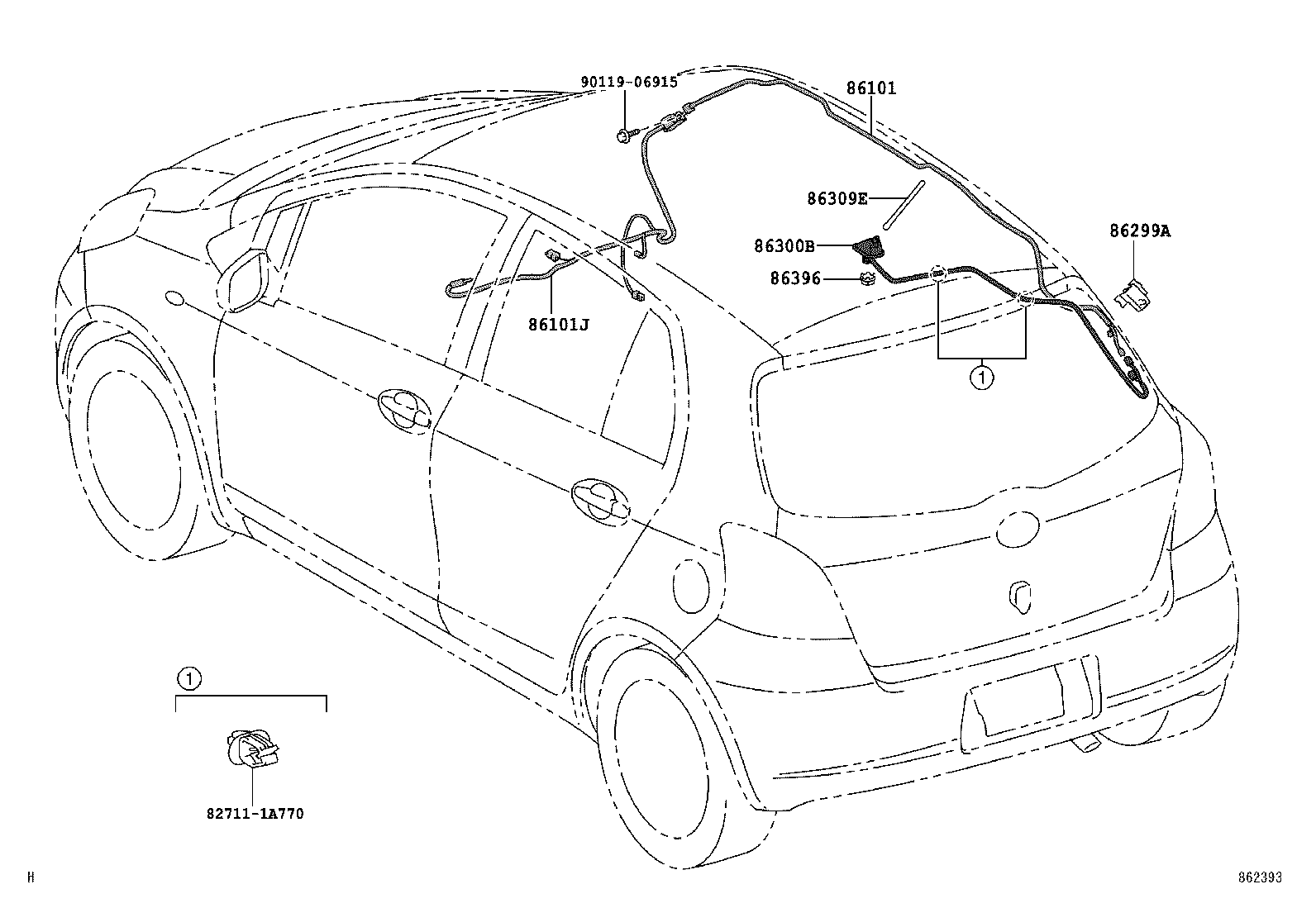

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-52340 |
Cord Sub-assy, Antenna
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥5,800 | |
| 86101-52390 note |
Cord Sub-assy, Antenna
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥8,200 | |
| 86101-52390 note |
Cord Sub-assy, Antenna
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥8,200 | |
| 86101-52340 |
Cord Sub-assy, Antenna
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥5,800 | |
| 86101-52340 |
Cord Sub-assy, Antenna
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥5,800 | |
| 86101-52340 |
Cord Sub-assy, Antenna
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥5,800 | |
| 86101J — Cord Sub-assy, Antenna, NO.2 | ||||
| 86101-52400 |
Cord Sub-assy, Antenna, NO.2
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥4,960 | |
| 86101-52420 note |
Cord Sub-assy, Antenna, NO.2
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥5,800 | |
| 86101-52420 note |
Cord Sub-assy, Antenna, NO.2
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥5,800 | |
| 86101-52430 note |
Cord Sub-assy, Antenna, NO.2
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥6,500 | |
| 86101-52430 note |
Cord Sub-assy, Antenna, NO.2
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥6,500 | |
| 86101-52440 note |
Cord Sub-assy, Antenna, NO.2
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥5,800 | |
| 86101-52400 |
Cord Sub-assy, Antenna, NO.2
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥4,960 | |
| 86101-52400 |
Cord Sub-assy, Antenna, NO.2
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥4,960 | |
| 86101-52440 note |
Cord Sub-assy, Antenna, NO.2
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥5,800 | |
| 86101-52440 note |
Cord Sub-assy, Antenna, NO.2
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥5,800 | |
| 86101-52400 |
Cord Sub-assy, Antenna, NO.2
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥4,960 | |
| 86101-52440 note |
Cord Sub-assy, Antenna, NO.2
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥5,800 | |
| 86299A — Clip, Radio TO Antenna Wire | ||||
| 86299-52010 |
Clip, Radio TO Antenna Wire
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥300 | |
| 86299-52010 |
Clip, Radio TO Antenna Wire
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥300 | |
| 86299-52010 |
Clip, Radio TO Antenna Wire
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥300 | |
| 86299-52010 |
Clip, Radio TO Antenna Wire
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥300 | |
| 86300B — Antenna Assy, Amplifier, NO.1 | ||||
| 86300-52280 |
Antenna Assy, Amplifier, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥19,900 | |
| 86300-52310 note |
Antenna Assy, Amplifier, NO.1
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥19,900 | |
| 86300-52310 note |
Antenna Assy, Amplifier, NO.1
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥19,900 | |
| 86300-52280 |
Antenna Assy, Amplifier, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥19,900 | |
| 86300-52280 |
Antenna Assy, Amplifier, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥19,900 | |
| 86300-52280 |
Antenna Assy, Amplifier, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥19,900 | |
| 86309E — Pole Sub-assy, Roof Antenna | ||||
| 86309-52030 |
Pole Sub-assy, Roof Antenna
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥3,270 | |
| 86309-52070 note |
Pole Sub-assy, Roof Antenna
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥3,270 | |
| 86309-52070 note |
Pole Sub-assy, Roof Antenna
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥3,270 | |
| 86309-52030 |
Pole Sub-assy, Roof Antenna
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥3,270 | |
| 86309-52030 |
Pole Sub-assy, Roof Antenna
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥3,270 | |
| 86309-52030 |
Pole Sub-assy, Roof Antenna
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥3,270 | |
| 86396 — Nut, Antenna | ||||
| 86396-20040 |
Nut, Antenna
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥470 | |
| 86396-20040 |
Nut, Antenna
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥470 | |
| 86396-20040 |
Nut, Antenna
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥470 | |
| 86396-20040 |
Nut, Antenna
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥470 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
