Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

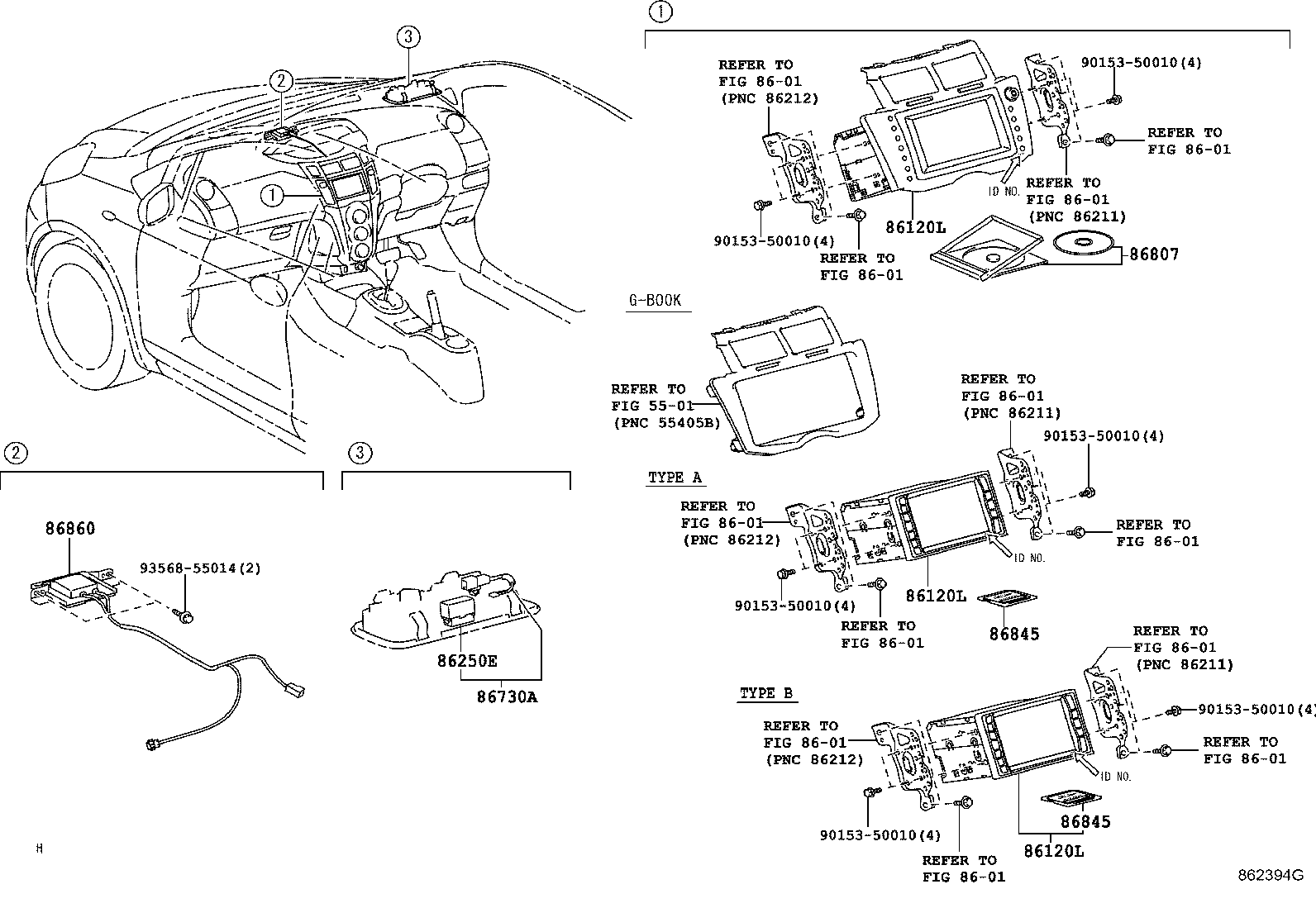

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120L — Receiver Assy, Navigation | ||||
| 86100-52020 note |
Receiver Assy, Navigation
2005-01 → 2005-08
ended
|
NCP91 RS | ¥521,000 | |
| 86100-52021 note |
Receiver Assy, Navigation
2005-09 → 2005-12
ended
|
NCP91 RS | ¥521,000 | |
| 86100-52070 note |
Receiver Assy, Navigation
2005-12 → 2006-03
ended
|
KSP90,NCP9#,SCP90 ILL,RS | — | |
| 86100-52071 note |
Receiver Assy, Navigation
2006-04 → 2006-08
ended
|
KSP90,NCP9#,SCP90 ILL,RS | ¥726,000 | |
| 86100-52072 note |
Receiver Assy, Navigation
2006-09 → 2007-03
ended
|
KSP90,NCP9#,SCP90 ILL,RS | ¥726,000 | |
| 86100-52073 note |
Receiver Assy, Navigation
2007-04 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,RS | ¥726,000 | |
| 86100-52080 note |
Receiver Assy, Navigation
2005-12 → 2006-03
ended
|
KSP90,NCP95,SCP90 F | ¥726,000 | |
| 86100-52080 note |
Receiver Assy, Navigation
2005-12 → 2006-03
ended
|
NCP9#,SCP90 U,X | ¥726,000 | |
| 86100-52081 note |
Receiver Assy, Navigation
2006-04 → 2006-08
ended
|
KSP90,NCP95,SCP90 F | ¥726,000 | |
| 86100-52081 note |
Receiver Assy, Navigation
2006-04 → 2006-08
ended
|
NCP9#,SCP90 U,X | ¥726,000 | |
| 86100-52082 note |
Receiver Assy, Navigation
2006-09 → 2007-03
ended
|
KSP90,NCP95,SCP90 F | ¥726,000 | |
| 86100-52082 note |
Receiver Assy, Navigation
2006-09 → 2007-03
ended
|
NCP9#,SCP90 U,X | ¥726,000 | |
| 86100-52083 note |
Receiver Assy, Navigation
2007-04 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥726,000 | |
| 86100-52083 note |
Receiver Assy, Navigation
2007-04 → 2007-08
ended
|
KSP90,NCP95,SCP90 F | ¥726,000 | |
| 86120-52430 note |
Receiver Assy, Navigation
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥414,000 | |
| 86120-52430 note |
Receiver Assy, Navigation
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,X | ¥414,000 | |
| 86120-52520 note |
Receiver Assy, Navigation
2005-01 → 2007-08
ended
|
KSP90,NCP95,SCP90 F | ¥413,000 | |
| 86120-52520 note |
Receiver Assy, Navigation
2005-12 → 2007-08
ended
|
NCP91 X | ¥413,000 | |
| 86120-52520 note |
Receiver Assy, Navigation
2005-01 → 2005-12
ended
|
NCP91 X | ¥413,000 | |
| 86120-52520 note |
Receiver Assy, Navigation
2005-01 → 2007-08
ended
|
NCP95,SCP90 U | ¥413,000 | |
| 86120-52550 note |
Receiver Assy, Navigation
2005-01 → 2007-08
ended
|
NCP91 RS | ¥413,000 | |
| 86120-52770 note |
Receiver Assy, Navigation
2005-12 → 2006-07
ended
|
KSP90,NCP95,SCP90 ILL | ¥414,000 | |
| 86100-52074 note |
Receiver Assy, Navigation
2007-08 → 2008-03
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥726,000 | |
| 86100-52075 note |
Receiver Assy, Navigation
2008-04 → 2008-09
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥726,000 | |
| 86120-12A50 note |
Receiver Assy, Navigation
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥412,000 | |
| 86100-52076 note |
Receiver Assy, Navigation
2008-08 → 2009-03
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥726,000 | |
| 86100-52077 note |
Receiver Assy, Navigation
2009-04 → 2009-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥726,000 | |
| 86100-52078 note |
Receiver Assy, Navigation
2009-09 → 2010-03
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥726,000 | |
| 86100-52079 note |
Receiver Assy, Navigation
2010-04 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥726,000 | |
| 86120-12A50 note |
Receiver Assy, Navigation
2008-08 → 2010-02
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥412,000 | |
| 86250E — Microphone Assy, Amplifier | ||||
| 86250-52030 note |
Microphone Assy, Amplifier
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥5,100 | |
| 86250-52030 note |
Microphone Assy, Amplifier
2005-12 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥5,100 | |
| 86250-52030 note |
Microphone Assy, Amplifier
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS | ¥5,100 | |
| 86250-52030 note |
Microphone Assy, Amplifier
2005-12 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥5,100 | |
| 86250-52030 note |
Microphone Assy, Amplifier
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS | ¥5,100 | |
| 86250-52030 note |
Microphone Assy, Amplifier
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥5,100 | |
| 86250-52030 note |
Microphone Assy, Amplifier
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥5,100 | |
| 86250-52030 note |
Microphone Assy, Amplifier
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥5,100 | |
| 86250-52030 note |
Microphone Assy, Amplifier
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥5,100 | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-52020 note |
Microphone Assy, Telephone
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥5,700 | |
| 86730-52020 note |
Microphone Assy, Telephone
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥5,700 | |
| 86730-52020 note |
Microphone Assy, Telephone
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS | ¥5,700 | |
| 86730-52020 note |
Microphone Assy, Telephone
2005-12 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥5,700 | |
| 86730-52020 note |
Microphone Assy, Telephone
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS | ¥5,700 | |
| 86730-52020 note |
Microphone Assy, Telephone
2005-12 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥5,700 | |
| 86730-52020 note |
Microphone Assy, Telephone
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥5,700 | |
| 86730-52020 note |
Microphone Assy, Telephone
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥5,700 | |
| 86807 — Disc Kit, Cd-rom | ||||
| 86807-52041 note |
Disc Kit, Cd-rom
2005-01 → 2005-08
ended
|
NCP95,SCP90 U | ¥7,500 | |
| 86807-52041 note |
Disc Kit, Cd-rom
2005-01 → 2005-08
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥7,500 | |
| 86807-52042 note |
Disc Kit, Cd-rom
2005-09 → 2005-12
ended
|
NCP91 X | ¥7,500 | |
| 86807-52042 note |
Disc Kit, Cd-rom
2005-09 → 2006-03
ended
|
NCP95,SCP90 U | ¥7,500 | |
| 86807-52042 note |
Disc Kit, Cd-rom
2005-09 → 2006-03
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS | ¥7,500 | |
| 86807-52042 note |
Disc Kit, Cd-rom
2005-12 → 2006-03
ended
|
NCP91 X | ¥7,500 | |
| 86807-52043 note |
Disc Kit, Cd-rom
2006-04 → 2006-07
ended
|
KSP90,NCP95,SCP90 ILL | — | |
| 86807-52043 note |
Disc Kit, Cd-rom
2006-04 → 2006-08
ended
|
NCP9#,SCP90 U,X | — | |
| 86807-52043 note |
Disc Kit, Cd-rom
2006-04 → 2006-08
ended
|
KSP90,NCP9#,SCP90 F,RS | — | |
| 86807-52044 note |
Disc Kit, Cd-rom
2006-09 → 2007-03
ended
|
NCP9#,SCP90 U,X | — | |
| 86807-52044 note |
Disc Kit, Cd-rom
2006-09 → 2007-03
ended
|
KSP90,NCP9#,SCP90 F,RS | — | |
| 86807-52045 note |
Disc Kit, Cd-rom
2007-04 → 2007-08
ended
|
NCP9#,SCP90 U,X | — | |
| 86807-52045 note |
Disc Kit, Cd-rom
2007-04 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,RS | — | |
| 86845 — Card, Navigation | ||||
| 86845-52030 note |
Card, Navigation
2005-01 → 2005-08
ended
|
NCP95,SCP90 U | ¥60,100 | |
| 86845-52030 note |
Card, Navigation
2005-01 → 2005-08
ended
|
SCP90 F;KSP90,NCP9# F,RS,X | ¥60,100 | |
| 86845-52031 note |
Card, Navigation
2005-09 → 2005-12
ended
|
NCP95,SCP90 U | ¥60,100 | |
| 86845-52031 note |
Card, Navigation
2005-09 → 2005-12
ended
|
SCP90 F;KSP90,NCP9# F,RS,X | ¥60,100 | |
| 86860 — Antenna Assy, Navigation | ||||
| 86860-52080 note |
Antenna Assy, Navigation
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2005-01 → 2005-12
ended
|
NCP91 X | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2005-01 → 2006-07
ended
|
KSP90,NCP95,SCP90 ILL | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2005-01 → 2007-08
ended
|
NCP95,SCP90 U | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,RS | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2005-12 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2005-12 → 2007-08
ended
|
NCP91 X | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2005-12 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2005-12 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2005-12 → 2007-08
ended
|
NCP91 X | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2005-01 → 2006-07
ended
|
KSP90,NCP95,SCP90 ILL | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2005-01 → 2007-08
ended
|
NCP95,SCP90 U | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,RS,X | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2005-01 → 2005-12
ended
|
NCP91 X | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,RS | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2008-08 → 2010-02
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥37,300 | |
| 86860-52080 note |
Antenna Assy, Navigation
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2008-08 → 2010-02
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥37,300 | |
| 86870-52010 note |
Antenna Assy, Navigation
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,U | ¥37,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
