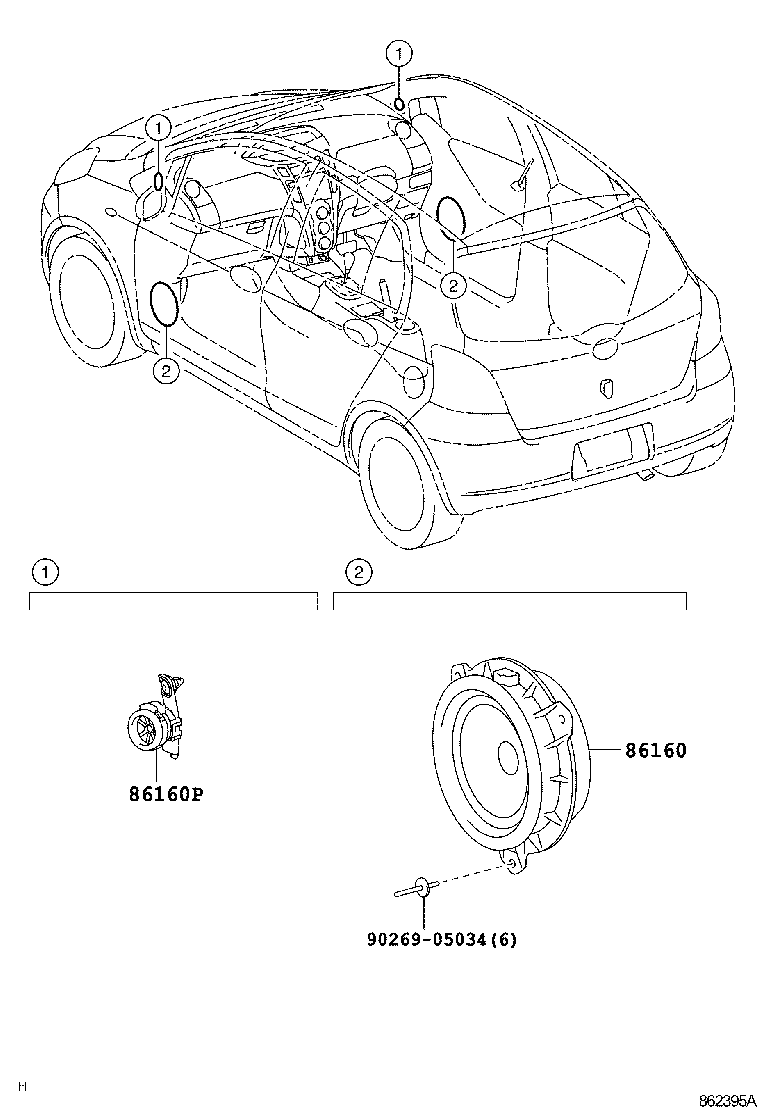

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

16 parts on this figure

Part number	Description	Fitment	Price
86160 — Speaker Assy, Front NO.1
86160-2B580	Speaker Assy, Front NO.1 2005-01 → 2007-08 ended	KSP90,NCP9#,SCP90	¥9,400
86160-2B580	Speaker Assy, Front NO.1 2007-08 → 2008-08 ended	KSP90,NCP9#,SCP90 B,F,ILL,U	¥9,400
86160-2B580	Speaker Assy, Front NO.1 2007-08 → 2008-09 ended	NCP91,SCP90 RS	¥9,400
86160-2B580	Speaker Assy, Front NO.1 2008-08 → 2010-11 ended	KSP90,NCP9#,SCP90	¥9,400
86160P — Speaker Assy, Front NO.2
86160-52230 note	Speaker Assy, Front NO.2 2006-05 → 2007-03 ended	SCP90 F	¥7,800
86160-52230 note	Speaker Assy, Front NO.2 2005-01 → 2007-08 ended	NCP95,SCP90 U	¥7,800
86160-52230 note	Speaker Assy, Front NO.2 2005-12 → 2007-08 ended	NCP91 X	¥7,800
86160-52240 note	Speaker Assy, Front NO.2 2006-05 → 2007-03 ended	SCP90 F	¥7,800
86160-52240 note	Speaker Assy, Front NO.2 2005-01 → 2007-08 ended	NCP95,SCP90 U	¥7,800
86160-52240 note	Speaker Assy, Front NO.2 2005-12 → 2007-08 ended	NCP91 X	¥7,800
86160-52230 note	Speaker Assy, Front NO.2 2007-08 → 2008-08 ended	KSP90,NCP9#,SCP90 F,ILL,U	¥7,800
86160-52230 note	Speaker Assy, Front NO.2 2007-08 → 2008-09 ended	NCP91,SCP90 RS	¥7,800
86160-52240 note	Speaker Assy, Front NO.2 2007-08 → 2008-08 ended	KSP90,NCP9#,SCP90 F,ILL,U	¥7,800
86160-52240 note	Speaker Assy, Front NO.2 2007-08 → 2008-09 ended	NCP91,SCP90 RS	¥7,800
86160-52230 note	Speaker Assy, Front NO.2 2008-08 → 2010-12 ended	KSP90,NCP9#,SCP90 F,ILL,RS,U	¥7,800
86160-52240 note	Speaker Assy, Front NO.2 2008-08 → 2010-12 ended	KSP90,NCP9#,SCP90 F,ILL,RS,U	¥7,800

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
