Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

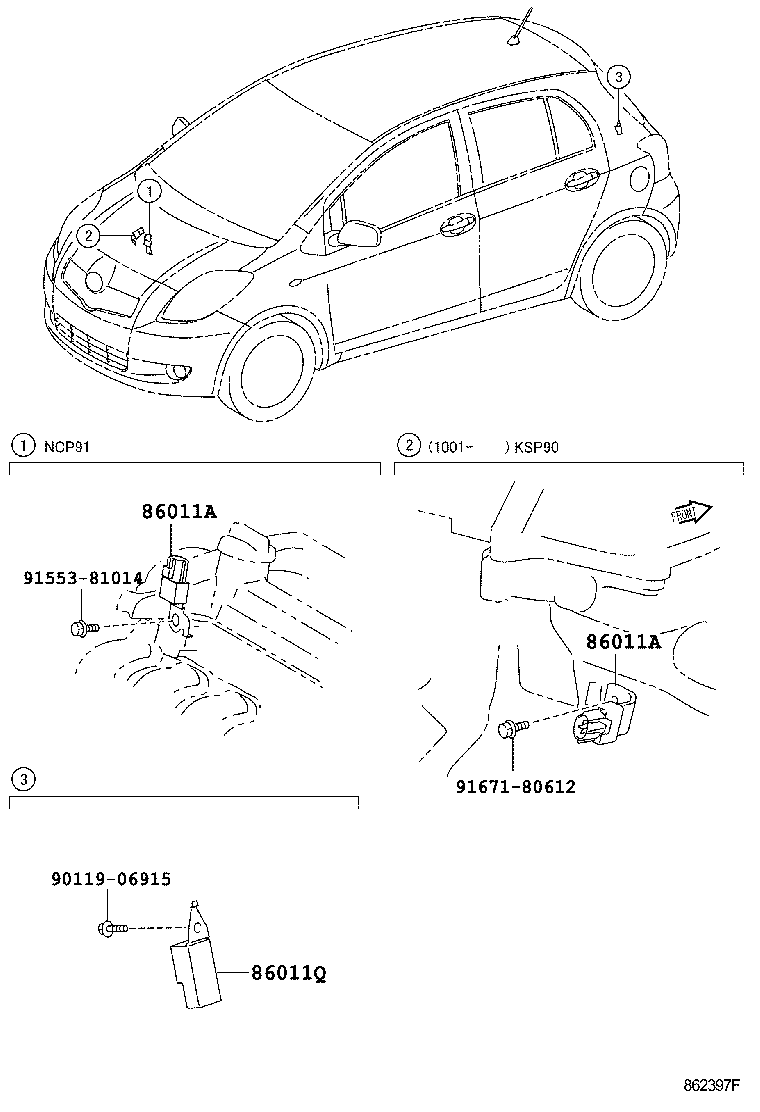

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04141 |
Condenser, Radio Setting
2005-01 → 2007-08
ended
|
NCP91 | ¥840 | |
| 90980-04141 |
Condenser, Radio Setting
2007-08 → 2008-08
ended
|
NCP91 ILL,U | ¥840 | |
| 90980-04141 |
Condenser, Radio Setting
2007-08 → 2008-09
ended
|
NCP91 RS | ¥840 | |
| 90980-04141 |
Condenser, Radio Setting
2008-08 → 2010-12
ended
|
NCP91 | ¥840 | |
| 90980-04185 |
Condenser, Radio Setting
2010-01 → 2010-07
ended
|
KSP90 | ¥680 | |
| 86011Q — Condenser, Radio Setting | ||||
| 90980-04148 |
Condenser, Radio Setting
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥930 | |
| 90980-04148 |
Condenser, Radio Setting
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥930 | |
| 90980-04148 |
Condenser, Radio Setting
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥930 | |
| 90980-04148 |
Condenser, Radio Setting
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥930 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
