Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

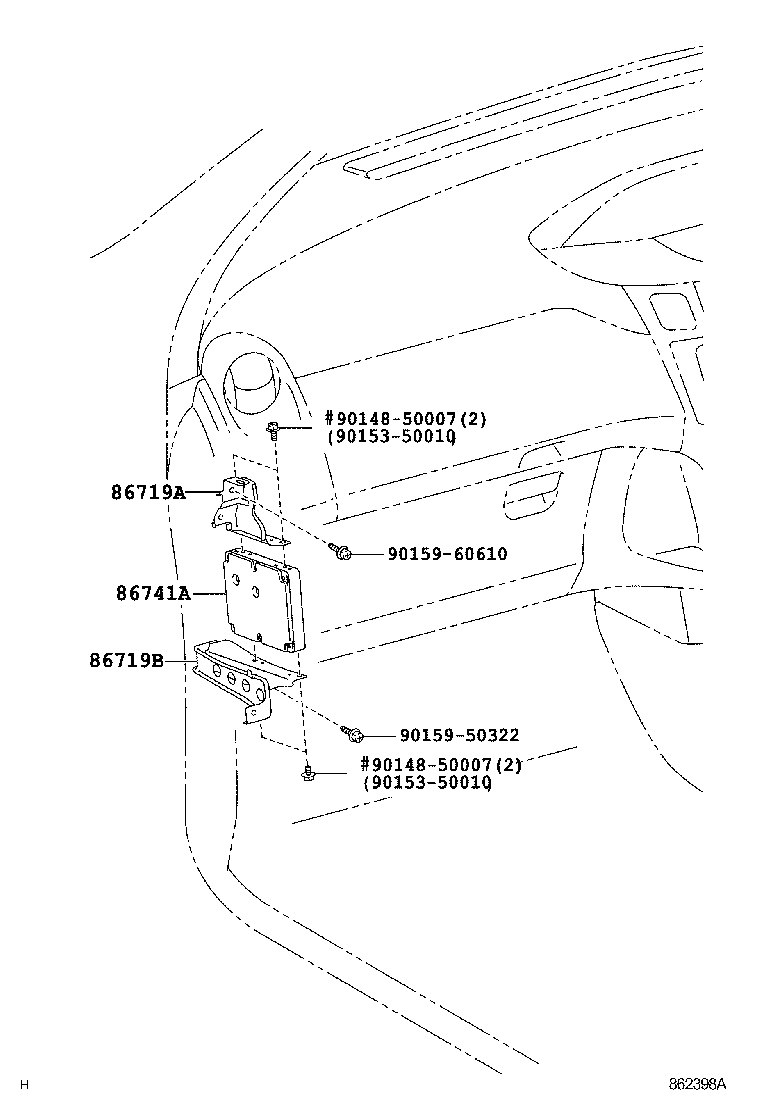

Exploded illustration 862398A 86719A — BRACKET, TELEPHONE NO.1 (2 parts) 86719B — BRACKET, TELEPHONE NO.2 (2 parts) 86741A — TRANSCEIVER, TELEMATICS (2 parts) 9014850007 — not listed in this catalogue 9015350010 — not listed in this catalogue 9015350010 — not listed in this catalogue 9014850007 — not listed in this catalogue 9015950322 — not listed in this catalogue 9015960610 — not listed in this catalogue
862398A · 3 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
6 parts on this figure
Part number Description Fitment Price
86719A — Bracket, Telephone NO.1
86719-52060 note Bracket, Telephone NO.1
2005-01 → 2005-12 ended
NCP95,SCP90 U ¥1,470
86719-52060 note Bracket, Telephone NO.1
2005-01 → 2005-12 ended
SCP90 F;KSP90,NCP9# F,RS,X ¥1,470
86719B — Bracket, Telephone NO.2
86719-52070 note Bracket, Telephone NO.2
2005-01 → 2005-12 ended
NCP95,SCP90 U ¥2,320
86719-52070 note Bracket, Telephone NO.2
2005-01 → 2005-12 ended
SCP90 F;KSP90,NCP9# F,RS,X ¥2,320
86741A — Transceiver, Telematics
86741-52020 note Transceiver, Telematics
2005-01 → 2005-12 ended
NCP95,SCP90 U ¥81,700
86741-52020 note Transceiver, Telematics
2005-01 → 2005-12 ended
SCP90 F;KSP90,NCP9# F,RS,X ¥81,700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
