Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

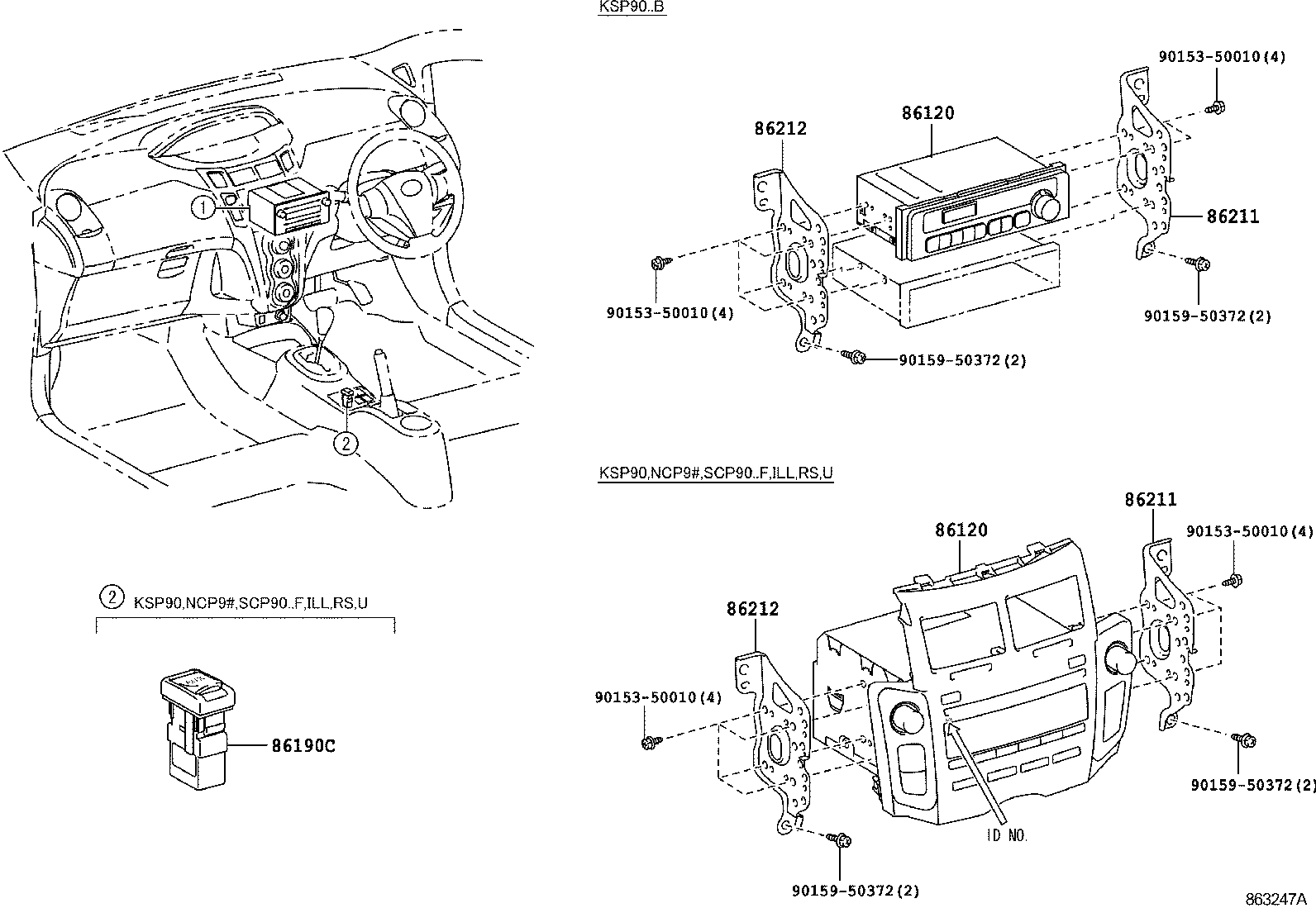

Exploded illustration 863247A 86190C — ADAPTER ASSY, STEREO JACK, NO.1 (2 parts) 86211 — BRACKET, RADIO, NO.1 (3 parts) 86212 — BRACKET, RADIO, NO.2 (3 parts) 86120 — RECEIVER ASSY, RADIO (63 parts) 9015350010 — not listed in this catalogue 9015350010 — not listed in this catalogue 9015950372 — not listed in this catalogue 9015950372 — not listed in this catalogue 9015950372 — not listed in this catalogue 9015950372 — not listed in this catalogue 86120 — RECEIVER ASSY, RADIO (63 parts) 86212 — BRACKET, RADIO, NO.2 (3 parts) 86211 — BRACKET, RADIO, NO.1 (3 parts) 9015350010 — not listed in this catalogue 9015350010 — not listed in this catalogue
863247A · 7 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
71 parts on this figure
Part number Description Fitment Price
86120 — Receiver Assy, Radio
00000-00000 note Receiver Assy, Radio
2005-12 → 2007-08 ended
NCP91 X —
00000-00000 note Receiver Assy, Radio
2005-01 → 2007-08 ended
NCP95,SCP90 U —
00000-00000 note Receiver Assy, Radio
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS —
00000-00000 note Receiver Assy, Radio
2005-01 → 2007-08 ended
KSP90 B —
00000-00000 note Receiver Assy, Radio
2005-01 → 2005-12 ended
NCP91 X —
86120-52041 note Receiver Assy, Radio
2005-01 → 2007-08 ended
KSP90 B ¥27,900
86120-52460 note Receiver Assy, Radio
2005-01 → 2005-06 ended
NCP9#,SCP90 U,X ¥92,400
86120-52460 note Receiver Assy, Radio
2005-01 → 2005-06 ended
KSP90,NCP9#,SCP90 F,U,X ¥92,400
86120-52460 note Receiver Assy, Radio
2005-01 → 2005-06 ended
NCP9#,SCP90 U,X ¥92,400
86120-52460 note Receiver Assy, Radio
2005-01 → 2005-06 ended
NCP9#,SCP90 U,X ¥92,400
86120-52460 note Receiver Assy, Radio
2005-01 → 2005-06 ended
KSP90,NCP95,SCP90 F ¥92,400
86120-52460 note Receiver Assy, Radio
2005-01 → 2005-06 ended
KSP90,NCP9#,SCP90 F,X ¥92,400
86120-52460 note Receiver Assy, Radio
2005-01 → 2005-06 ended
KSP90,NCP9#,SCP90 F,X ¥92,400
86120-52461 note Receiver Assy, Radio
2005-07 → 2007-08 ended
NCP9#,SCP90 U,X ¥92,400
86120-52461 note Receiver Assy, Radio
2005-07 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥92,400
86120-52461 note Receiver Assy, Radio
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥92,400
86120-52461 note Receiver Assy, Radio
2005-07 → 2007-08 ended
NCP9#,SCP90 U,X ¥92,400
86120-52461 note Receiver Assy, Radio
2005-07 → 2007-08 ended
NCP9#,SCP90 U,X ¥92,400
86120-52461 note Receiver Assy, Radio
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 F,X ¥92,400
86120-52461 note Receiver Assy, Radio
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 F,X ¥92,400
86120-52540 note Receiver Assy, Radio
2005-01 → 2005-06 ended
NCP91 RS ¥92,400
86120-52540 note Receiver Assy, Radio
2005-01 → 2005-06 ended
NCP91 RS ¥92,400
86120-52540 note Receiver Assy, Radio
2005-01 → 2005-06 ended
NCP91 RS ¥92,400
86120-52540 note Receiver Assy, Radio
2005-01 → 2005-06 ended
NCP91 RS ¥92,400
86120-52541 note Receiver Assy, Radio
2005-07 → 2007-08 ended
NCP91 RS ¥92,400
86120-52541 note Receiver Assy, Radio
2005-07 → 2007-08 ended
NCP91 RS ¥92,400
86120-52541 note Receiver Assy, Radio
2005-07 → 2007-08 ended
NCP91 RS ¥92,400
86120-52541 note Receiver Assy, Radio
2005-07 → 2007-08 ended
NCP91 RS ¥92,400
86120-52730 note Receiver Assy, Radio
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥92,400
86120-52730 note Receiver Assy, Radio
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥92,400
86120-52730 note Receiver Assy, Radio
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥92,400
86120-52730 note Receiver Assy, Radio
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥92,400
86120-52760 note Receiver Assy, Radio
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥92,400
86120-52840 note Receiver Assy, Radio
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥92,300
86120-52850 note Receiver Assy, Radio
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥92,300
86120-52860 note Receiver Assy, Radio
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥92,300
86120-52840 note Receiver Assy, Radio
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,U ¥92,300
86120-52850 note Receiver Assy, Radio
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥92,300
86120-52860 note Receiver Assy, Radio
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥92,300
00000-00000 note Receiver Assy, Radio
2005-12 → 2007-08 ended
NCP91 X —
00000-00000 note Receiver Assy, Radio
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS —
00000-00000 note Receiver Assy, Radio
2005-01 → 2007-08 ended
KSP90 B —
00000-00000 note Receiver Assy, Radio
2005-01 → 2007-08 ended
NCP95,SCP90 U —
00000-00000 note Receiver Assy, Radio
2005-01 → 2005-12 ended
NCP91 X —
86120-52041 note Receiver Assy, Radio
2005-01 → 2007-08 ended
KSP90 B ¥27,900
86120-52460 note Receiver Assy, Radio
2005-01 → 2005-06 ended
KSP90,NCP9#,SCP90 F,U,X ¥92,400
86120-52460 note Receiver Assy, Radio
2005-01 → 2005-06 ended
KSP90,NCP95,SCP90 F ¥92,400
86120-52460 note Receiver Assy, Radio
2005-01 → 2005-06 ended
NCP9#,SCP90 U,X ¥92,400
86120-52460 note Receiver Assy, Radio
2005-01 → 2005-06 ended
KSP90,NCP9#,SCP90 F,X ¥92,400
86120-52461 note Receiver Assy, Radio
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 F,X ¥92,400
86120-52461 note Receiver Assy, Radio
2005-07 → 2007-08 ended
NCP9#,SCP90 U,X ¥92,400
86120-52461 note Receiver Assy, Radio
2005-07 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥92,400
86120-52461 note Receiver Assy, Radio
2005-07 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥92,400
86120-52540 note Receiver Assy, Radio
2005-01 → 2005-06 ended
NCP91 RS ¥92,400
86120-52541 note Receiver Assy, Radio
2005-07 → 2007-08 ended
NCP91 RS ¥92,400
86120-52730 note Receiver Assy, Radio
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥92,400
86120-52760 note Receiver Assy, Radio
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥92,400
86120-52840 note Receiver Assy, Radio
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥92,300
86120-52840 note Receiver Assy, Radio
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,U ¥92,300
86120-52850 note Receiver Assy, Radio
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥92,300
86120-52850 note Receiver Assy, Radio
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥92,300
86120-52860 note Receiver Assy, Radio
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥92,300
86120-52860 note Receiver Assy, Radio
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥92,300
86190C — Adapter Assy, Stereo Jack, NO.1
86190-52040 note Adapter Assy, Stereo Jack, NO.1
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥10,700
86190-52040 note Adapter Assy, Stereo Jack, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥10,700
86211 — Bracket, Radio, NO.1
86211-52190 Bracket, Radio, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥740
86211-52190 Bracket, Radio, NO.1
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥740
86211-52190 Bracket, Radio, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥740
86212 — Bracket, Radio, NO.2
86212-52200 Bracket, Radio, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥740
86212-52200 Bracket, Radio, NO.2
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥740
86212-52200 Bracket, Radio, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥740
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
