Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

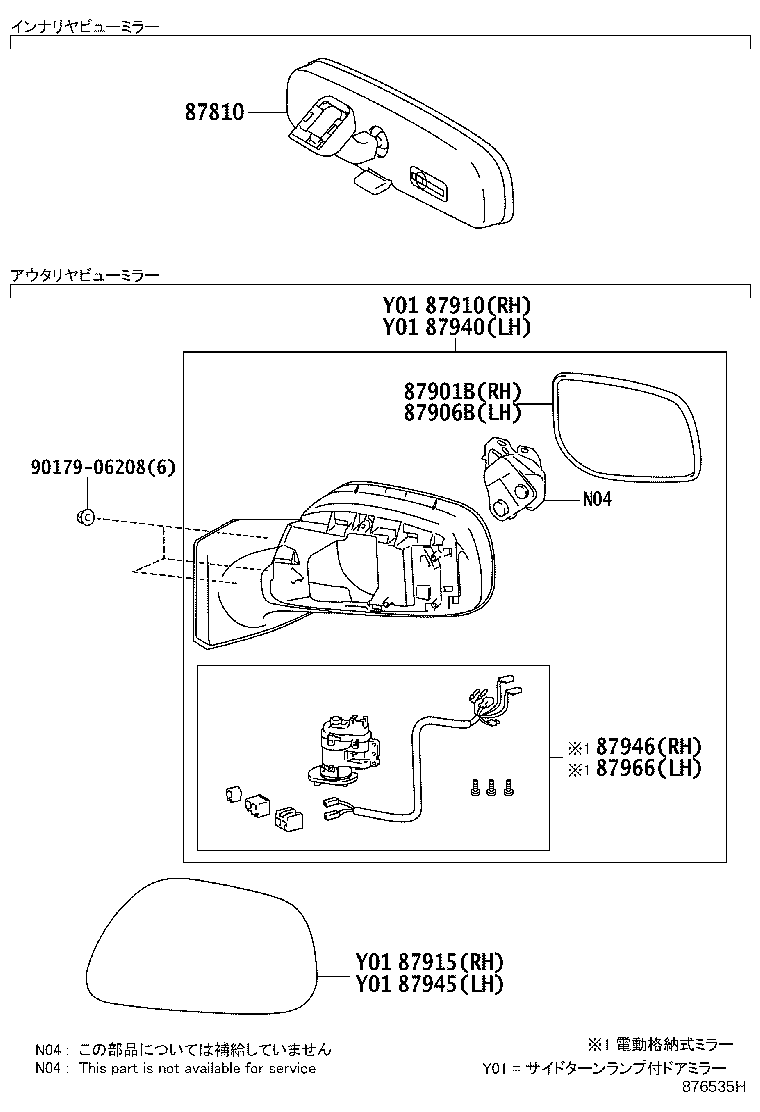

Exploded illustration 876535H 9017906208 — not listed in this catalogue 87910 — MIRROR ASSY, OUTER REAR VIEW, RH (7 parts) 87940 — MIRROR ASSY, OUTER REAR VIEW, LH (7 parts) 87915 — COVER, OUTER MIRROR, RH (63 parts) 87945 — COVER, OUTER MIRROR, LH (63 parts) 87901B — MIRROR SUB-ASSY, OUTER REAR VIEW, RH (3 parts) 87906B — MIRROR SUB-ASSY, OUTER REAR VIEW, LH (3 parts) 87810 — MIRROR ASSY, INNER REAR VIEW (4 parts) 87946 — RETRACTOR, OUTER MIRROR, RH (4 parts) 87966 — RETRACTOR, OUTER MIRROR, LH (4 parts)
876535H · 9 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
158 parts on this figure
Part number Description Fitment Price
87810 — Mirror Assy, Inner Rear View
87810-52040 Mirror Assy, Inner Rear View
2005-01 → 2006-11 ended
KSP90,NCP9#,SCP90 ¥10,100
87810-52041 Mirror Assy, Inner Rear View
2006-12 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥6,200
87810-52041 Mirror Assy, Inner Rear View
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥6,200
87810-52041 Mirror Assy, Inner Rear View
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥6,200
87901B — Mirror Sub-assy, Outer Rear View, RH
87931-52640 Mirror Sub-assy, Outer Rear View, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,290
87931-52A00 Mirror Sub-assy, Outer Rear View, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥3,290
87931-52A00 Mirror Sub-assy, Outer Rear View, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,290
87906B — Mirror Sub-assy, Outer Rear View, LH
87961-52620 Mirror Sub-assy, Outer Rear View, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,290
87961-52880 Mirror Sub-assy, Outer Rear View, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥3,290
87961-52880 Mirror Sub-assy, Outer Rear View, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,290
87910 — Mirror Assy, Outer Rear View, RH
87910-52560 note Mirror Assy, Outer Rear View, RH
2005-01 → 2007-08 ended
KSP90 B ¥12,500
87910-52630 note Mirror Assy, Outer Rear View, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X ¥31,200
87910-52A10 note Mirror Assy, Outer Rear View, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥39,700
87910-52A30 note Mirror Assy, Outer Rear View, RH
2007-08 → 2008-08 ended
KSP90 B ¥20,900
87910-52A10 note Mirror Assy, Outer Rear View, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥39,700
87910-52A10 note Mirror Assy, Outer Rear View, RH
2010-04 → 2010-12 ended
KSP90 B ¥39,700
87910-52A30 note Mirror Assy, Outer Rear View, RH
2008-08 → 2010-12 ended
KSP90 B ¥20,900
87915 — Cover, Outer Mirror, RH
87915-52030 note Cover, Outer Mirror, RH
2005-01 → 2007-08 ended
KSP90 B ¥2,790
87915-52060-A0 note Cover, Outer Mirror, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥3,700
87915-52060-B0 note Cover, Outer Mirror, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87915-52060-B1 note Cover, Outer Mirror, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X ¥3,700
87915-52060-B7 note Cover, Outer Mirror, RH
2007-01 → 2007-08 ended
NCP91 RS ¥3,700
87915-52060-C0 note Cover, Outer Mirror, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥3,700
87915-52060-D0 note Cover, Outer Mirror, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥3,700
87915-52060-D2 note Cover, Outer Mirror, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥3,700
87915-52060-D3 note Cover, Outer Mirror, RH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87915-52060-E0 note Cover, Outer Mirror, RH
2005-01 → 2005-12 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87915-52060-E1 note Cover, Outer Mirror, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,U,X ¥3,700
87915-52060-G0 note Cover, Outer Mirror, RH
2007-01 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥3,700
87915-52060-G1 note Cover, Outer Mirror, RH
2005-01 → 2005-12 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥3,700
87915-52060-G3 note Cover, Outer Mirror, RH
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87915-52060-J0 note Cover, Outer Mirror, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87915-52060-J1 note Cover, Outer Mirror, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87915-52060-J2 note Cover, Outer Mirror, RH
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥3,700
87915-52060-J3 note Cover, Outer Mirror, RH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥3,700
87915-52060-K0 note Cover, Outer Mirror, RH
2005-01 → 2006-09 ended
KSP90,NCP9#,SCP90 F,ILL,U,X ¥3,700
87915-12070-A2 note Cover, Outer Mirror, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87915-12070-B3 note Cover, Outer Mirror, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87915-12070-B4 note Cover, Outer Mirror, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥3,540
87915-12070-B5 note Cover, Outer Mirror, RH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,540
87915-12070-C0 note Cover, Outer Mirror, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,530
87915-12070-D2 note Cover, Outer Mirror, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87915-12070-D3 note Cover, Outer Mirror, RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥3,540
87915-12070-E1 note Cover, Outer Mirror, RH
2007-08 → 2008-03 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87915-12070-G1 note Cover, Outer Mirror, RH
2007-08 → 2008-07 ended
NCP9#,SCP90 ILL ¥3,540
87915-12070-H1 note Cover, Outer Mirror, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87915-12070-J2 note Cover, Outer Mirror, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87915-12070-J3 note Cover, Outer Mirror, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87915-12070-J4 note Cover, Outer Mirror, RH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥3,540
87915-12090-A1 note Cover, Outer Mirror, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥3,700
87915-12090-K0 note Cover, Outer Mirror, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,700
87915-52090 note Cover, Outer Mirror, RH
2007-08 → 2008-08 ended
KSP90 B ¥3,700
87915-12070-A0 note Cover, Outer Mirror, RH
2010-08 → 2010-12 ended
KSP90 B ¥3,530
87915-12070-A0 note Cover, Outer Mirror, RH
2010-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,530
87915-12070-A1 note Cover, Outer Mirror, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥3,540
87915-12070-A2 note Cover, Outer Mirror, RH
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87915-12070-A2 note Cover, Outer Mirror, RH
2010-04 → 2010-08 ended
KSP90 B ¥3,540
87915-12070-B0 note Cover, Outer Mirror, RH
2010-08 → 2010-12 ended
KSP90 B ¥3,530
87915-12070-B0 note Cover, Outer Mirror, RH
2010-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,U ¥3,530
87915-12070-B1 note Cover, Outer Mirror, RH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥3,540
87915-12070-B3 note Cover, Outer Mirror, RH
2010-04 → 2010-08 ended
KSP90 B ¥3,540
87915-12070-B3 note Cover, Outer Mirror, RH
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87915-12070-B4 note Cover, Outer Mirror, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥3,540
87915-12070-C0 note Cover, Outer Mirror, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,530
87915-12070-C0 note Cover, Outer Mirror, RH
2010-04 → 2010-12 ended
KSP90 B ¥3,530
87915-12070-D2 note Cover, Outer Mirror, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87915-12070-D3 note Cover, Outer Mirror, RH
2008-08 → 2010-11 ended
KSP90,NCP9#,SCP90 F,ILL ¥3,540
87915-12070-D3 note Cover, Outer Mirror, RH
2010-04 → 2010-11 ended
KSP90 B ¥3,540
87915-12070-D4 note Cover, Outer Mirror, RH
2010-04 → 2010-12 ended
KSP90 B ¥3,540
87915-12070-D4 note Cover, Outer Mirror, RH
2009-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥3,540
87915-12070-F1 note Cover, Outer Mirror, RH
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87915-12070-F2 note Cover, Outer Mirror, RH
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥3,540
87915-12070-H1 note Cover, Outer Mirror, RH
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87915-12070-H2 note Cover, Outer Mirror, RH
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥3,540
87915-12070-J2 note Cover, Outer Mirror, RH
2008-08 → 2009-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87915-12070-J3 note Cover, Outer Mirror, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87915-12070-J4 note Cover, Outer Mirror, RH
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥3,540
87915-12070-K1 note Cover, Outer Mirror, RH
2010-04 → 2010-11 ended
KSP90 B ¥3,540
87915-12070-K1 note Cover, Outer Mirror, RH
2008-08 → 2010-11 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87915-52090 note Cover, Outer Mirror, RH
2008-08 → 2010-12 ended
KSP90 B ¥3,700
87940 — Mirror Assy, Outer Rear View, LH
87940-52600 note Mirror Assy, Outer Rear View, LH
2005-01 → 2007-08 ended
KSP90 B ¥12,500
87940-52610 note Mirror Assy, Outer Rear View, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X ¥31,200
87940-52890 note Mirror Assy, Outer Rear View, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥39,700
87940-52A10 note Mirror Assy, Outer Rear View, LH
2007-08 → 2008-08 ended
KSP90 B ¥20,900
87940-52890 note Mirror Assy, Outer Rear View, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥39,700
87940-52890 note Mirror Assy, Outer Rear View, LH
2010-04 → 2010-12 ended
KSP90 B ¥39,700
87940-52A10 note Mirror Assy, Outer Rear View, LH
2008-08 → 2010-12 ended
KSP90 B ¥20,900
87945 — Cover, Outer Mirror, LH
87945-52050 note Cover, Outer Mirror, LH
2005-01 → 2007-08 ended
KSP90 B ¥2,790
87945-52060-A0 note Cover, Outer Mirror, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥3,700
87945-52060-B0 note Cover, Outer Mirror, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87945-52060-B1 note Cover, Outer Mirror, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X ¥3,700
87945-52060-B7 note Cover, Outer Mirror, LH
2007-01 → 2007-08 ended
NCP91 RS ¥3,700
87945-52060-C0 note Cover, Outer Mirror, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥3,700
87945-52060-D0 note Cover, Outer Mirror, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥3,700
87945-52060-D2 note Cover, Outer Mirror, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥3,700
87945-52060-D3 note Cover, Outer Mirror, LH
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87945-52060-E0 note Cover, Outer Mirror, LH
2005-01 → 2005-12 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87945-52060-E1 note Cover, Outer Mirror, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,U,X ¥3,700
87945-52060-G0 note Cover, Outer Mirror, LH
2007-01 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥3,700
87945-52060-G1 note Cover, Outer Mirror, LH
2005-01 → 2005-12 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥3,700
87945-52060-G3 note Cover, Outer Mirror, LH
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87945-52060-J0 note Cover, Outer Mirror, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87945-52060-J1 note Cover, Outer Mirror, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,U,X ¥3,700
87945-52060-J2 note Cover, Outer Mirror, LH
2005-12 → 2007-08 ended
KSP90,NCP9#,SCP90 F,RS,U,X ¥3,700
87945-52060-J3 note Cover, Outer Mirror, LH
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥3,700
87945-52060-K0 note Cover, Outer Mirror, LH
2005-01 → 2006-09 ended
KSP90,NCP9#,SCP90 F,ILL,U,X ¥3,700
87945-12070-A2 note Cover, Outer Mirror, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87945-12070-B3 note Cover, Outer Mirror, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87945-12070-B4 note Cover, Outer Mirror, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥3,540
87945-12070-B5 note Cover, Outer Mirror, LH
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,540
87945-12070-C0 note Cover, Outer Mirror, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,530
87945-12070-D2 note Cover, Outer Mirror, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87945-12070-D3 note Cover, Outer Mirror, LH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥3,540
87945-12070-E1 note Cover, Outer Mirror, LH
2007-08 → 2008-03 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87945-12070-G1 note Cover, Outer Mirror, LH
2007-08 → 2008-07 ended
NCP9#,SCP90 ILL ¥3,540
87945-12070-H1 note Cover, Outer Mirror, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87945-12070-J2 note Cover, Outer Mirror, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87945-12070-J3 note Cover, Outer Mirror, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87945-12070-J4 note Cover, Outer Mirror, LH
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥3,540
87945-12090-A1 note Cover, Outer Mirror, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥3,700
87945-12090-K0 note Cover, Outer Mirror, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,700
87945-52090 note Cover, Outer Mirror, LH
2007-08 → 2008-08 ended
KSP90 B ¥3,700
87945-12070-A0 note Cover, Outer Mirror, LH
2010-08 → 2010-12 ended
KSP90 B ¥3,530
87945-12070-A0 note Cover, Outer Mirror, LH
2010-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,530
87945-12070-A1 note Cover, Outer Mirror, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥3,540
87945-12070-A2 note Cover, Outer Mirror, LH
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87945-12070-A2 note Cover, Outer Mirror, LH
2010-04 → 2010-08 ended
KSP90 B ¥3,540
87945-12070-B0 note Cover, Outer Mirror, LH
2010-08 → 2010-12 ended
KSP90 B ¥3,530
87945-12070-B0 note Cover, Outer Mirror, LH
2010-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,U ¥3,530
87945-12070-B1 note Cover, Outer Mirror, LH
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥3,540
87945-12070-B3 note Cover, Outer Mirror, LH
2010-04 → 2010-08 ended
KSP90 B ¥3,540
87945-12070-B3 note Cover, Outer Mirror, LH
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87945-12070-B4 note Cover, Outer Mirror, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥3,540
87945-12070-C0 note Cover, Outer Mirror, LH
2010-04 → 2010-12 ended
KSP90 B ¥3,530
87945-12070-C0 note Cover, Outer Mirror, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,530
87945-12070-D2 note Cover, Outer Mirror, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87945-12070-D3 note Cover, Outer Mirror, LH
2010-04 → 2010-11 ended
KSP90 B ¥3,540
87945-12070-D3 note Cover, Outer Mirror, LH
2008-08 → 2010-11 ended
KSP90,NCP9#,SCP90 F,ILL ¥3,540
87945-12070-D4 note Cover, Outer Mirror, LH
2009-08 → 2010-12 ended
KSP90,NCP95,SCP90 F ¥3,540
87945-12070-D4 note Cover, Outer Mirror, LH
2010-04 → 2010-12 ended
KSP90 B ¥3,540
87945-12070-F1 note Cover, Outer Mirror, LH
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87945-12070-F2 note Cover, Outer Mirror, LH
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥3,540
87945-12070-H1 note Cover, Outer Mirror, LH
2008-08 → 2010-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87945-12070-H2 note Cover, Outer Mirror, LH
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥3,540
87945-12070-J2 note Cover, Outer Mirror, LH
2008-08 → 2009-08 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87945-12070-J3 note Cover, Outer Mirror, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,RS,U ¥3,540
87945-12070-J4 note Cover, Outer Mirror, LH
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥3,540
87945-12070-K1 note Cover, Outer Mirror, LH
2008-08 → 2010-11 ended
KSP90,NCP9#,SCP90 F,U ¥3,540
87945-12070-K1 note Cover, Outer Mirror, LH
2010-04 → 2010-11 ended
KSP90 B ¥3,540
87945-52090 note Cover, Outer Mirror, LH
2008-08 → 2010-12 ended
KSP90 B ¥3,700
87946 — Retractor, Outer Mirror, RH
87946-52630 Retractor, Outer Mirror, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X ¥17,500
87946-52A10 Retractor, Outer Mirror, RH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥17,400
87946-52A10 Retractor, Outer Mirror, RH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥17,400
87946-52A10 note Retractor, Outer Mirror, RH
2010-04 → 2010-12 ended
KSP90 B ¥17,400
87966 — Retractor, Outer Mirror, LH
87966-52610 Retractor, Outer Mirror, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U,X ¥17,500
87966-52890 Retractor, Outer Mirror, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥17,400
87966-52890 Retractor, Outer Mirror, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,ILL,RS,U ¥17,400
87966-52890 note Retractor, Outer Mirror, LH
2010-04 → 2010-12 ended
KSP90 B ¥17,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
