Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

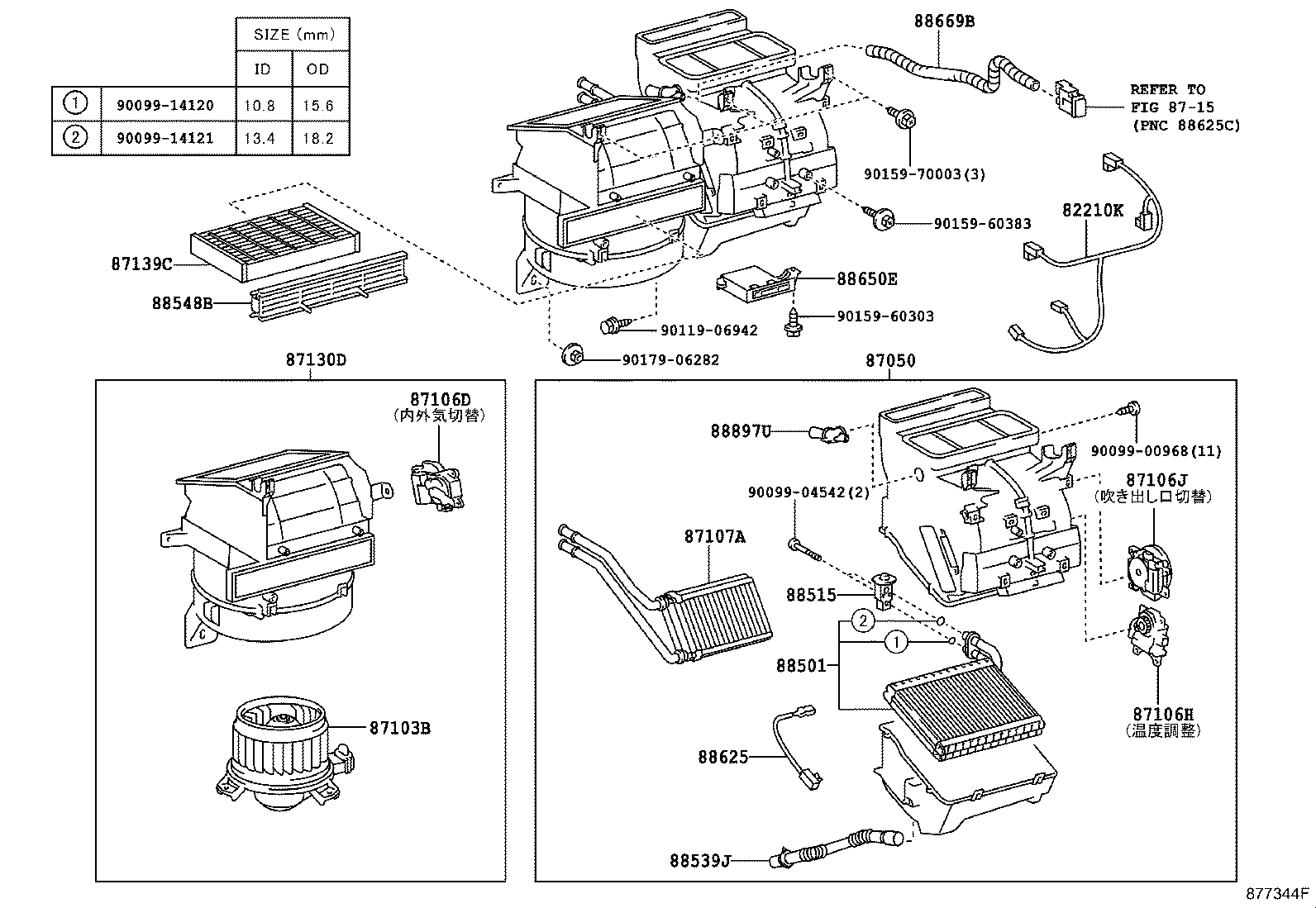

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82210K — Harness Assy, Air Conditioner | ||||
| 82212-52010 note |
Harness Assy, Air Conditioner
2005-04 → 2007-08
ended
|
KSP90 B,F | — | |
| 82212-52010 |
Harness Assy, Air Conditioner
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 82212-52010 note |
Harness Assy, Air Conditioner
2007-08 → 2008-08
ended
|
KSP90 B,F | — | |
| 82212-52010 |
Harness Assy, Air Conditioner
2007-08 → 2008-08
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 82212-52030 |
Harness Assy, Air Conditioner
2008-08 → 2008-09
ended
|
NCP91 RS | ¥0 | |
| 82212-52030 note |
Harness Assy, Air Conditioner
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥0 | |
| 82212-52030 |
Harness Assy, Air Conditioner
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | ¥0 | |
| 87050 — Radiator Assy, Air Conditioner | ||||
| 87050-52011 |
Radiator Assy, Air Conditioner
2005-01 → 2005-02
ended
|
KSP90,NCP9#,SCP90 B,F,RS | ¥79,700 | |
| 87050-52012 |
Radiator Assy, Air Conditioner
2005-03 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,RS | ¥79,600 | |
| 87050-52020 |
Radiator Assy, Air Conditioner
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | ¥101,000 | |
| 87050-52020 note |
Radiator Assy, Air Conditioner
2005-04 → 2007-08
ended
|
KSP90 B,F | ¥101,000 | |
| 87050-52032 note |
Radiator Assy, Air Conditioner
2005-01 → 2005-02
ended
|
KSP90,NCP9#,SCP90 B,F,RS | — | |
| 87050-52033 note |
Radiator Assy, Air Conditioner
2005-03 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,RS | ¥102,000 | |
| 87050-52041 note |
Radiator Assy, Air Conditioner
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | ¥124,000 | |
| 87050-52012 |
Radiator Assy, Air Conditioner
2007-08 → 2008-09
ended
|
KSP90,NCP95,SCP90 B,F,RS | ¥79,600 | |
| 87050-52020 note |
Radiator Assy, Air Conditioner
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥101,000 | |
| 87050-52020 |
Radiator Assy, Air Conditioner
2007-08 → 2008-09
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | ¥101,000 | |
| 87050-52033 note |
Radiator Assy, Air Conditioner
2007-08 → 2008-09
ended
|
KSP90,NCP95,SCP90 B,F,RS | ¥102,000 | |
| 87050-52041 note |
Radiator Assy, Air Conditioner
2007-08 → 2008-09
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | ¥124,000 | |
| 87050-52012 |
Radiator Assy, Air Conditioner
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 B,F,RS | ¥79,600 | |
| 87050-52020 |
Radiator Assy, Air Conditioner
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | ¥101,000 | |
| 87050-52020 note |
Radiator Assy, Air Conditioner
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥101,000 | |
| 87050-52033 note |
Radiator Assy, Air Conditioner
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 B,F,RS | ¥102,000 | |
| 87050-52041 note |
Radiator Assy, Air Conditioner
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | ¥124,000 | |
| 87103B — Motor Sub-assy, Blower W/Fan | ||||
| 87103-52120 |
Motor Sub-assy, Blower W/Fan
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,RS | — | |
| 87103-52130 |
Motor Sub-assy, Blower W/Fan
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 87103-52130 note |
Motor Sub-assy, Blower W/Fan
2005-04 → 2007-08
ended
|
KSP90 B,F | — | |
| 87103-52120 |
Motor Sub-assy, Blower W/Fan
2007-08 → 2008-09
ended
|
KSP90,NCP95,SCP90 B,F,RS | — | |
| 87103-52130 |
Motor Sub-assy, Blower W/Fan
2007-08 → 2008-08
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 87103-52130 note |
Motor Sub-assy, Blower W/Fan
2007-08 → 2008-08
ended
|
KSP90 B,F | — | |
| 87103-52131 |
Motor Sub-assy, Blower W/Fan
2008-08 → 2008-09
ended
|
NCP91 RS | — | |
| 87103-52120 |
Motor Sub-assy, Blower W/Fan
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 B,F,RS | — | |
| 87103-52120 note |
Motor Sub-assy, Blower W/Fan
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 B,F,RS | — | |
| 87103-52131 note |
Motor Sub-assy, Blower W/Fan
2008-08 → 2010-08
ended
|
KSP90 B,F | — | |
| 87103-52131 |
Motor Sub-assy, Blower W/Fan
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 87103-52131 note |
Motor Sub-assy, Blower W/Fan
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 87106D — Servo Sub-assy, Damper, NO.1 | ||||
| 87106-52100 |
Servo Sub-assy, Damper, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 87106-52100 note |
Servo Sub-assy, Damper, NO.1
2005-04 → 2007-08
ended
|
KSP90 B,F | — | |
| 87106-52100 note |
Servo Sub-assy, Damper, NO.1
2007-08 → 2008-08
ended
|
KSP90 B,F | — | |
| 87106-52100 |
Servo Sub-assy, Damper, NO.1
2007-08 → 2008-09
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 87106-52100 note |
Servo Sub-assy, Damper, NO.1
2008-08 → 2010-08
ended
|
KSP90 B,F | — | |
| 87106-52100 |
Servo Sub-assy, Damper, NO.1
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 87106H — Servo Sub-assy, Damper(FOR AIRMIX) | ||||
| 87106-52080 |
Servo Sub-assy, Damper(FOR AIRMIX)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 87106-52080 note |
Servo Sub-assy, Damper(FOR AIRMIX)
2005-04 → 2007-08
ended
|
KSP90 B,F | — | |
| 87106-52080 |
Servo Sub-assy, Damper(FOR AIRMIX)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | — | |
| 87106-52080 note |
Servo Sub-assy, Damper(FOR AIRMIX)
2007-08 → 2008-08
ended
|
KSP90 B,F | — | |
| 87106-52080 |
Servo Sub-assy, Damper(FOR AIRMIX)
2007-08 → 2008-09
ended
|
NCP91 RS | — | |
| 87106-52080 note |
Servo Sub-assy, Damper(FOR AIRMIX)
2008-08 → 2010-08
ended
|
KSP90 B,F | — | |
| 87106-52080 |
Servo Sub-assy, Damper(FOR AIRMIX)
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 87106J — Servo Sub-assy, Damper(FOR MODE) | ||||
| 87106-52090 |
Servo Sub-assy, Damper(FOR MODE)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 87106-52090 note |
Servo Sub-assy, Damper(FOR MODE)
2005-04 → 2007-08
ended
|
KSP90 B,F | — | |
| 87106-52090 |
Servo Sub-assy, Damper(FOR MODE)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | — | |
| 87106-52090 note |
Servo Sub-assy, Damper(FOR MODE)
2007-08 → 2008-08
ended
|
KSP90 B,F | — | |
| 87106-52090 |
Servo Sub-assy, Damper(FOR MODE)
2007-08 → 2008-09
ended
|
NCP91 RS | — | |
| 87106-52090 note |
Servo Sub-assy, Damper(FOR MODE)
2008-08 → 2010-08
ended
|
KSP90 B,F | — | |
| 87106-52090 |
Servo Sub-assy, Damper(FOR MODE)
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 87107A — Unit Sub-assy, Heater Radiator | ||||
| 87107-52060 |
Unit Sub-assy, Heater Radiator
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | — | |
| 87107-52060 |
Unit Sub-assy, Heater Radiator
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | — | |
| 87107-52060 |
Unit Sub-assy, Heater Radiator
2008-08 → 2009-02
ended
|
KSP90,NCP9#,SCP90 | — | |
| 87107-52061 |
Unit Sub-assy, Heater Radiator
2009-02 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥0 | |
| 87130D — Blower Assy | ||||
| 87130-52030 |
Blower Assy
2005-01 → 2007-01
ended
|
KSP90,NCP9#,SCP90 B,F,RS | — | |
| 87130-52031 |
Blower Assy
2007-02 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,RS | — | |
| 87130-52040 note |
Blower Assy
2005-04 → 2007-08
ended
|
KSP90 B,F | — | |
| 87130-52040 |
Blower Assy
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 87130-52050 note |
Blower Assy
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,RS | — | |
| 87130-52060 note |
Blower Assy
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 87130-52031 |
Blower Assy
2007-08 → 2008-07
ended
|
KSP90,NCP95,SCP90 B,F,RS | — | |
| 87130-52032 |
Blower Assy
2008-08 → 2008-09
ended
|
SCP90 RS | — | |
| 87130-52040 |
Blower Assy
2007-08 → 2008-08
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 87130-52040 note |
Blower Assy
2007-08 → 2008-08
ended
|
KSP90 B,F | — | |
| 87130-52042 |
Blower Assy
2008-08 → 2008-09
ended
|
NCP91 RS | — | |
| 87130-52050 note |
Blower Assy
2007-08 → 2008-09
ended
|
KSP90,NCP95,SCP90 B,F,RS | — | |
| 87130-52060 note |
Blower Assy
2007-08 → 2008-08
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 87130-52061 note |
Blower Assy
2008-08 → 2008-09
ended
|
NCP91 RS | — | |
| 87130-52032 |
Blower Assy
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 B,F,RS | — | |
| 87130-52042 note |
Blower Assy
2008-08 → 2010-08
ended
|
KSP90 B,F | — | |
| 87130-52042 |
Blower Assy
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 87130-52050 note |
Blower Assy
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 B,F,RS | — | |
| 87130-52061 note |
Blower Assy
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 87139C — Filter, Clean Air | ||||
| 87139-30040 note |
Filter, Clean Air
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥2,000 | |
| 87139-50100 note |
Filter, Clean Air
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥4,000 | |
| 87139-50100 note |
Filter, Clean Air
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 | ¥4,000 | |
| 87139-52020 note |
Filter, Clean Air
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 | ¥2,000 | |
| 87139-30040 note |
Filter, Clean Air
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥2,000 | |
| 87139-50100 note |
Filter, Clean Air
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥4,000 | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-52090 |
Evaporator Sub-assy, Cooler, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | — | |
| 88501-52090 |
Evaporator Sub-assy, Cooler, NO.1
2007-08 → 2008-05
ended
|
KSP90,NCP9#,SCP90 | — | |
| 88501-52091 |
Evaporator Sub-assy, Cooler, NO.1
2008-06 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | — | |
| 88501-52091 |
Evaporator Sub-assy, Cooler, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-26070 |
Valve, Cooler Expansion
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥8,600 | |
| 88515-26070 |
Valve, Cooler Expansion
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | ¥8,600 | |
| 88515-26070 |
Valve, Cooler Expansion
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥8,600 | |
| 88539J — Hose, Drain Cooler | ||||
| 88539-52020 |
Hose, Drain Cooler
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | — | |
| 88539-52020 |
Hose, Drain Cooler
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | — | |
| 88539-52020 |
Hose, Drain Cooler
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | — | |
| 88539-52020 |
Hose, Drain Cooler
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | — | |
| 88548B — Case, Air Filter | ||||
| 88548-52040 |
Case, Air Filter
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥0 | |
| 88548-52040 |
Case, Air Filter
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥0 | |
| 88548-52040 |
Case, Air Filter
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥0 | |
| 88548-52040 |
Case, Air Filter
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥0 | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88625-26090 |
Thermistor, Cooler, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | — | |
| 88625-26090 |
Thermistor, Cooler, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | — | |
| 88625-26090 |
Thermistor, Cooler, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | — | |
| 88625-26090 |
Thermistor, Cooler, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | — | |
| 88650E — Amplifier Assy, Air Conditioner, NO.1 | ||||
| 88650-52290 |
Amplifier Assy, Air Conditioner, NO.1
2005-01 → 2005-07
ended
|
KSP90,NCP9#,SCP90 B,F,RS | — | |
| 88650-52291 |
Amplifier Assy, Air Conditioner, NO.1
2005-08 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,RS | — | |
| 88650-52360 note |
Amplifier Assy, Air Conditioner, NO.1
2005-01 → 2005-07
ended
|
KSP90,NCP9#,SCP90 B,F,RS | — | |
| 88650-52361 note |
Amplifier Assy, Air Conditioner, NO.1
2005-08 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,RS | — | |
| 88650-52380 note |
Amplifier Assy, Air Conditioner, NO.1
2005-01 → 2005-07
ended
|
KSP90 | — | |
| 88650-52380 |
Amplifier Assy, Air Conditioner, NO.1
2005-01 → 2005-07
ended
|
NCP9#,SCP90 U,X | — | |
| 88650-52381 |
Amplifier Assy, Air Conditioner, NO.1
2005-08 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 88650-52381 note |
Amplifier Assy, Air Conditioner, NO.1
2005-08 → 2007-08
ended
|
KSP90 B,F | — | |
| 88650-52390 note |
Amplifier Assy, Air Conditioner, NO.1
2005-01 → 2005-07
ended
|
NCP9#,SCP90 U,X | — | |
| 88650-52391 note |
Amplifier Assy, Air Conditioner, NO.1
2005-08 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 88650-52291 |
Amplifier Assy, Air Conditioner, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP95,SCP90 B,F | — | |
| 88650-52291 |
Amplifier Assy, Air Conditioner, NO.1
2007-08 → 2008-09
ended
|
SCP90 RS | — | |
| 88650-52361 note |
Amplifier Assy, Air Conditioner, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP95,SCP90 B,F | — | |
| 88650-52361 note |
Amplifier Assy, Air Conditioner, NO.1
2007-08 → 2008-09
ended
|
SCP90 RS | — | |
| 88650-52590 |
Amplifier Assy, Air Conditioner, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | — | |
| 88650-52590 note |
Amplifier Assy, Air Conditioner, NO.1
2007-08 → 2008-08
ended
|
KSP90 B,F | — | |
| 88650-52590 |
Amplifier Assy, Air Conditioner, NO.1
2007-08 → 2008-09
ended
|
NCP91 RS | — | |
| 88650-52600 note |
Amplifier Assy, Air Conditioner, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | — | |
| 88650-52600 note |
Amplifier Assy, Air Conditioner, NO.1
2007-08 → 2008-09
ended
|
NCP91 RS | — | |
| 88650-52510 |
Amplifier Assy, Air Conditioner, NO.1
2009-08 → 2010-12
ended
|
KSP90,SCP90 ILL,U | — | |
| 88650-52520 note |
Amplifier Assy, Air Conditioner, NO.1
2009-08 → 2010-12
ended
|
KSP90,SCP90 ILL,U | — | |
| 88650-52610 |
Amplifier Assy, Air Conditioner, NO.1
2008-08 → 2009-08
ended
|
KSP90,SCP90 ILL,U | — | |
| 88650-52610 note |
Amplifier Assy, Air Conditioner, NO.1
2008-08 → 2010-08
ended
|
KSP90 B,F | — | |
| 88650-52610 |
Amplifier Assy, Air Conditioner, NO.1
2008-08 → 2010-12
ended
|
NCP9# ILL,RS,U | — | |
| 88650-52620 note |
Amplifier Assy, Air Conditioner, NO.1
2008-08 → 2010-12
ended
|
NCP9# ILL,RS,U | — | |
| 88650-52620 note |
Amplifier Assy, Air Conditioner, NO.1
2008-08 → 2009-08
ended
|
KSP90,SCP90 ILL,U | — | |
| 88650-52630 |
Amplifier Assy, Air Conditioner, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 B,F,RS | — | |
| 88650-52640 note |
Amplifier Assy, Air Conditioner, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP95,SCP90 B,F,RS | — | |
| 88669B — Hose, Cooler Air | ||||
| 88669-52050 |
Hose, Cooler Air
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 88669-52050 note |
Hose, Cooler Air
2005-04 → 2007-08
ended
|
KSP90 B,F | — | |
| 88669-52050 |
Hose, Cooler Air
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | — | |
| 88669-52050 note |
Hose, Cooler Air
2007-08 → 2008-08
ended
|
KSP90 B,F | — | |
| 88669-52050 |
Hose, Cooler Air
2007-08 → 2008-09
ended
|
NCP91 RS | — | |
| 88669-52050 note |
Hose, Cooler Air
2008-08 → 2010-08
ended
|
KSP90 B,F | — | |
| 88669-52050 |
Hose, Cooler Air
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
| 88897U — Pipe, Aspirator | ||||
| 88897-32090 |
Pipe, Aspirator
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 88897-32090 note |
Pipe, Aspirator
2005-04 → 2007-08
ended
|
KSP90 B,F | — | |
| 88897-32090 |
Pipe, Aspirator
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 ILL,U | — | |
| 88897-32090 note |
Pipe, Aspirator
2007-08 → 2008-08
ended
|
KSP90 B,F | — | |
| 88897-32090 |
Pipe, Aspirator
2007-08 → 2008-09
ended
|
NCP91 RS | — | |
| 88897-32090 note |
Pipe, Aspirator
2008-08 → 2010-08
ended
|
KSP90 B,F | — | |
| 88897-32090 |
Pipe, Aspirator
2008-08 → 2010-12
ended
|
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
