Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

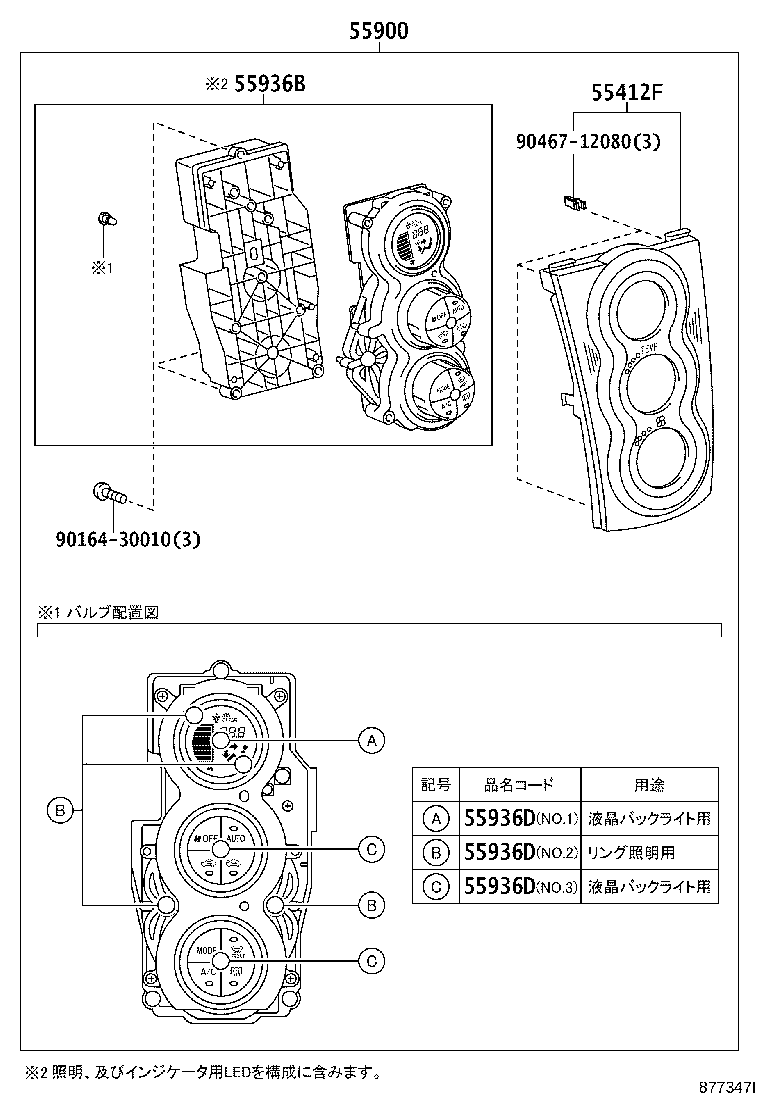

Exploded illustration 877347I 55412F — PANEL, INSTRUMENT CLUSTER FINISH, CENTER (11 parts) 55900 — CONTROL ASSY, AIR CONDITIONER (11 parts) 55936B — SWITCH, CENTER CLUSTER MODULE (10 parts) 55936D — BLUB, CENTER CLUSTER MODULE SWITCH (23 parts) 55936D — BLUB, CENTER CLUSTER MODULE SWITCH (23 parts) 55936D — BLUB, CENTER CLUSTER MODULE SWITCH (23 parts) 9016430010 — not listed in this catalogue 9046712080 — not listed in this catalogue
877347I · 6 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
55412F — Panel, Instrument Cluster Finish, Center
55410-52050-B0 note Panel, Instrument Cluster Finish, Center
2005-01 → 2007-08 ended
KSP90 B,F ¥6,000
55410-52050-B0 note Panel, Instrument Cluster Finish, Center
2005-01 → 2007-08 ended
NCP9#,SCP90 U,X ¥6,000
55410-52050-B1 note Panel, Instrument Cluster Finish, Center
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥6,000
55410-52100-B0 note Panel, Instrument Cluster Finish, Center
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥6,000
55410-52100-C0 note Panel, Instrument Cluster Finish, Center
2007-08 → 2008-09 ended
NCP91 RS ¥6,000
55410-52110-B0 note Panel, Instrument Cluster Finish, Center
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥6,000
55410-52110-B0 note Panel, Instrument Cluster Finish, Center
2007-08 → 2008-08 ended
KSP90 B,F ¥6,000
55410-52100-B0 note Panel, Instrument Cluster Finish, Center
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥6,000
55410-52100-C0 note Panel, Instrument Cluster Finish, Center
2008-09 → 2010-12 ended
NCP91 RS ¥6,000
55410-52110-B0 note Panel, Instrument Cluster Finish, Center
2008-08 → 2010-08 ended
KSP90 B,F ¥6,000
55410-52110-B0 note Panel, Instrument Cluster Finish, Center
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥6,000
55900 — Control Assy, Air Conditioner
55900-52390-B0 note Control Assy, Air Conditioner
2005-01 → 2007-08 ended
NCP9#,SCP90 U,X ¥55,000
55900-52390-B0 note Control Assy, Air Conditioner
2005-01 → 2007-08 ended
KSP90 B,F ¥55,000
55900-52430-B0 note Control Assy, Air Conditioner
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥55,000
55900-52540-B1 note Control Assy, Air Conditioner
2007-08 → 2008-08 ended
KSP90 B,F ¥54,900
55900-52540-B1 note Control Assy, Air Conditioner
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥54,900
55900-52550-B1 note Control Assy, Air Conditioner
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥54,900
55900-52550-C0 note Control Assy, Air Conditioner
2007-08 → 2008-09 ended
NCP91 RS ¥54,900
55900-52541-B1 note Control Assy, Air Conditioner
2008-08 → 2010-08 ended
KSP90 B,F ¥54,900
55900-52541-B1 note Control Assy, Air Conditioner
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥54,900
55900-52550-C0 note Control Assy, Air Conditioner
2008-09 → 2010-12 ended
NCP91 RS ¥54,900
55900-52650-B0 note Control Assy, Air Conditioner
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥54,900
55936B — Switch, Center Cluster Module
55936-52180 Switch, Center Cluster Module
2005-01 → 2007-08 ended
NCP9#,SCP90 U,X ¥53,400
55936-52180 note Switch, Center Cluster Module
2005-01 → 2007-08 ended
KSP90 B,F ¥53,400
55936-52190 Switch, Center Cluster Module
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥53,400
55936-52230 Switch, Center Cluster Module
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥53,200
55936-52230 note Switch, Center Cluster Module
2007-08 → 2008-08 ended
KSP90 B,F ¥53,200
55936-52240 Switch, Center Cluster Module
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥53,200
55936-52240 Switch, Center Cluster Module
2007-08 → 2008-09 ended
NCP91 RS ¥53,200
55936-52230 note Switch, Center Cluster Module
2008-08 → 2010-08 ended
KSP90 B,F ¥53,200
55936-52230 Switch, Center Cluster Module
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥53,200
55936-52240 Switch, Center Cluster Module
2008-08 → 2010-12 ended
SCP90 ILL;NCP9# ILL,RS ¥53,200
55936D — Blub, Center Cluster Module Switch
90010-01097 note Blub, Center Cluster Module Switch
2005-01 → 2007-08 ended
NCP9#,SCP90 U,X ¥520
90010-01097 note Blub, Center Cluster Module Switch
2005-01 → 2007-08 ended
KSP90 B,F ¥520
90010-01114 note Blub, Center Cluster Module Switch
2005-01 → 2007-08 ended
NCP9#,SCP90 U,X ¥520
90010-01114 note Blub, Center Cluster Module Switch
2005-01 → 2007-08 ended
KSP90 B,F ¥520
90010-01115 note Blub, Center Cluster Module Switch
2005-01 → 2007-08 ended
NCP9#,SCP90 U,X ¥520
90010-01115 note Blub, Center Cluster Module Switch
2005-01 → 2007-08 ended
KSP90 B,F ¥520
90010-01124 note Blub, Center Cluster Module Switch
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥540
90010-01131 note Blub, Center Cluster Module Switch
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥520
90010-01132 note Blub, Center Cluster Module Switch
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥520
90010-01124 note Blub, Center Cluster Module Switch
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 U ¥540
90010-01124 note Blub, Center Cluster Module Switch
2007-08 → 2008-08 ended
KSP90 B,F ¥540
90010-01131 note Blub, Center Cluster Module Switch
2007-08 → 2008-08 ended
KSP90 B,F ¥520
90010-01131 note Blub, Center Cluster Module Switch
2007-08 → 2008-09 ended
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U ¥520
90010-01132 note Blub, Center Cluster Module Switch
2007-08 → 2008-08 ended
KSP90 B,F ¥520
90010-01132 note Blub, Center Cluster Module Switch
2007-08 → 2008-09 ended
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U ¥520
90010-01144 note Blub, Center Cluster Module Switch
2007-08 → 2008-09 ended
SCP90 ILL;NCP9# ILL,RS ¥590
90010-01124 note Blub, Center Cluster Module Switch
2008-08 → 2010-08 ended
KSP90 B,F ¥540
90010-01124 note Blub, Center Cluster Module Switch
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 U ¥540
90010-01131 note Blub, Center Cluster Module Switch
2008-08 → 2010-08 ended
KSP90 B,F ¥520
90010-01131 note Blub, Center Cluster Module Switch
2008-08 → 2010-12 ended
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U ¥520
90010-01132 note Blub, Center Cluster Module Switch
2008-08 → 2010-08 ended
KSP90 B,F ¥520
90010-01132 note Blub, Center Cluster Module Switch
2008-08 → 2010-12 ended
SCP90 ILL,U;KSP90,NCP9# ILL,RS,U ¥520
90010-01144 note Blub, Center Cluster Module Switch
2008-08 → 2010-12 ended
SCP90 ILL;NCP9# ILL,RS ¥590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
