Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 877348G 9356855014 — not listed in this catalogue 9356855014 — not listed in this catalogue 9356855014 — not listed in this catalogue 9011906942 — not listed in this catalogue 55843A — DUCT, HEATER TO REGISTER, NO.1 (6 parts) 87211 — DUCT, AIR, NO.1 (3 parts) 87212 — DUCT, AIR, REAR NO.1 (4 parts) 87216B — DUCT, AIR, REAR NO.4 (4 parts) 87213 — DUCT, AIR, REAR NO.2 (4 parts) 87215F — DUCT, AIR, REAR NO.3 (4 parts) 87211A — DUCT, AIR, NO.2 (3 parts) 55843A — DUCT, HEATER TO REGISTER, NO.1 (6 parts) 55844 — DUCT, HEATER TO REGISTER, NO.2 (5 parts) 55082E — DUCT SUB-ASSY, COWL TO REGISTER, NO.2 (3 parts) 87201 — DUCT SUB-ASSY, AIR, NO.1 (4 parts) 55950G — NOZZLE ASSY, DEFROSTER (5 parts) 55840C — DUCT ASSY, HEATER TO REGISTER, NO.6 (5 parts) 55871A — SEAL, AIR DUCT, NO.1 (5 parts) 8714 — not listed in this catalogue 8724 — not listed in this catalogue

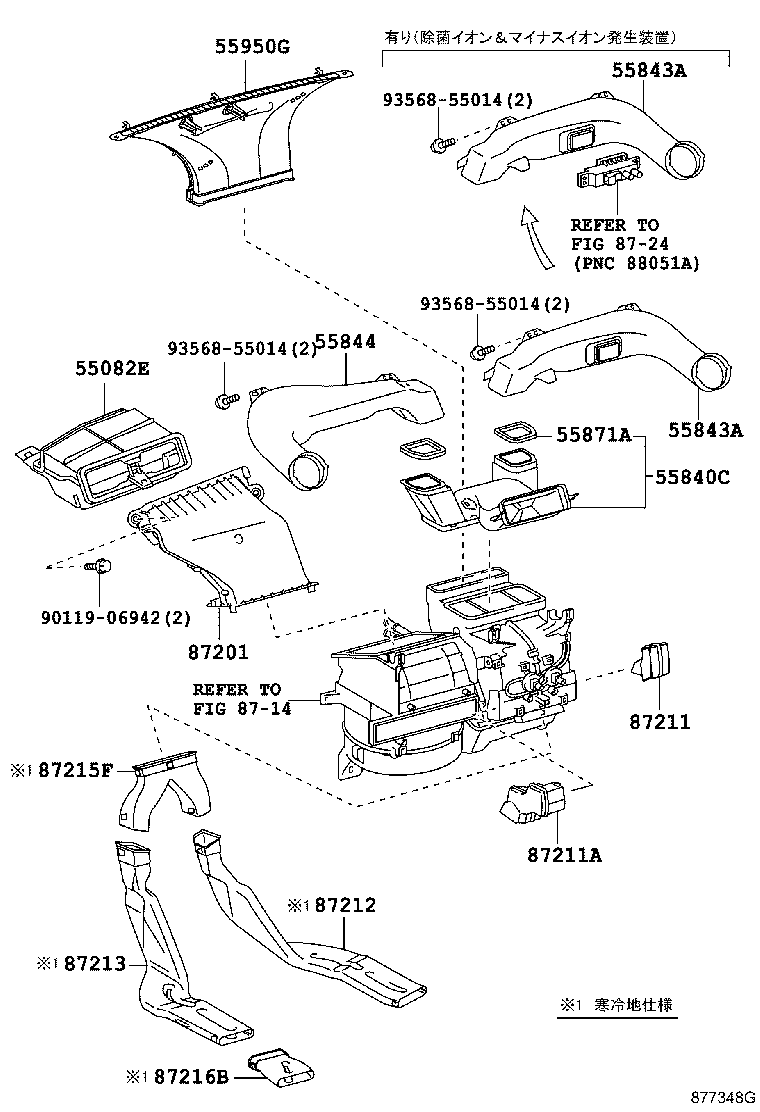

877348G · 14 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
55082E — Duct Sub-assy, Cowl TO Register, NO.2
55082-52010 Duct Sub-assy, Cowl TO Register, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥6,400
55082-52010 Duct Sub-assy, Cowl TO Register, NO.2
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥6,400
55082-52010 Duct Sub-assy, Cowl TO Register, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥6,400
55840C — Duct Assy, Heater TO Register, NO.6
55840-52020 Duct Assy, Heater TO Register, NO.6
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,590
55840-52020 Duct Assy, Heater TO Register, NO.6
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,590
55840-52020 Duct Assy, Heater TO Register, NO.6
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,590
55840-52020 Duct Assy, Heater TO Register, NO.6
2008-08 → 2010-07 ended
NCP91 5F ¥3,590
55840-52020 Duct Assy, Heater TO Register, NO.6
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥3,590
55843A — Duct, Heater TO Register, NO.1
55843-52180 Duct, Heater TO Register, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,RS ¥3,180
55843-52190 Duct, Heater TO Register, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ILL,U,X ¥3,170
55843-52190 note Duct, Heater TO Register, NO.1
2005-01 → 2007-08 ended
KSP90 B,F ¥3,170
55843-52180 Duct, Heater TO Register, NO.1
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥3,180
55843-52180 Duct, Heater TO Register, NO.1
2008-08 → 2010-07 ended
NCP91 5F ¥3,180
55843-52180 Duct, Heater TO Register, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥3,180
55844 — Duct, Heater TO Register, NO.2
55843-52170 Duct, Heater TO Register, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,560
55843-52170 Duct, Heater TO Register, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,560
55843-52170 Duct, Heater TO Register, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,560
55843-52170 Duct, Heater TO Register, NO.2
2008-08 → 2010-07 ended
NCP91 5F ¥3,560
55843-52170 Duct, Heater TO Register, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥3,560
55871A — Seal, Air Duct, NO.1
55871-52040 Seal, Air Duct, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥300
55871-52040 Seal, Air Duct, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥300
55871-52040 Seal, Air Duct, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥300
55871-52040 Seal, Air Duct, NO.1
2008-08 → 2010-07 ended
NCP91 5F ¥300
55871-52040 Seal, Air Duct, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥300
55950G — Nozzle Assy, Defroster
55950-52120 Nozzle Assy, Defroster
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥5,100
55950-52120 Nozzle Assy, Defroster
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥5,100
55950-52120 Nozzle Assy, Defroster
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥5,100
55950-52120 Nozzle Assy, Defroster
2008-08 → 2010-07 ended
NCP91 5F ¥5,100
55950-52120 Nozzle Assy, Defroster
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥5,100
87201 — Duct Sub-assy, Air, NO.1
87201-52020 Duct Sub-assy, Air, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
87201-52020 Duct Sub-assy, Air, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U —
87201-52020 Duct Sub-assy, Air, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS —
87201-52020 Duct Sub-assy, Air, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
87211 — Duct, Air, NO.1
87211-52010 Duct, Air, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
87211-52010 Duct, Air, NO.1
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 —
87211-52010 Duct, Air, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
87211A — Duct, Air, NO.2
87211-52020 Duct, Air, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
87211-52020 Duct, Air, NO.2
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 —
87211-52020 Duct, Air, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
87212 — Duct, Air, Rear NO.1
87212-52100 note Duct, Air, Rear NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,470
87212-52100 note Duct, Air, Rear NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,470
87212-52100 note Duct, Air, Rear NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,470
87212-52100 note Duct, Air, Rear NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,470
87213 — Duct, Air, Rear NO.2
87213-52070 note Duct, Air, Rear NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥3,470
87213-52070 note Duct, Air, Rear NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,470
87213-52070 note Duct, Air, Rear NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,470
87213-52070 note Duct, Air, Rear NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥3,470
87215F — Duct, Air, Rear NO.3
87215-52050 note Duct, Air, Rear NO.3
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥940
87215-52050 note Duct, Air, Rear NO.3
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥940
87215-52050 note Duct, Air, Rear NO.3
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥940
87215-52050 note Duct, Air, Rear NO.3
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥940
87216B — Duct, Air, Rear NO.4
87216-52040 note Duct, Air, Rear NO.4
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥660
87216-52040 note Duct, Air, Rear NO.4
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥660
87216-52040 note Duct, Air, Rear NO.4
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥660
87216-52040 note Duct, Air, Rear NO.4
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥660
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
