Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

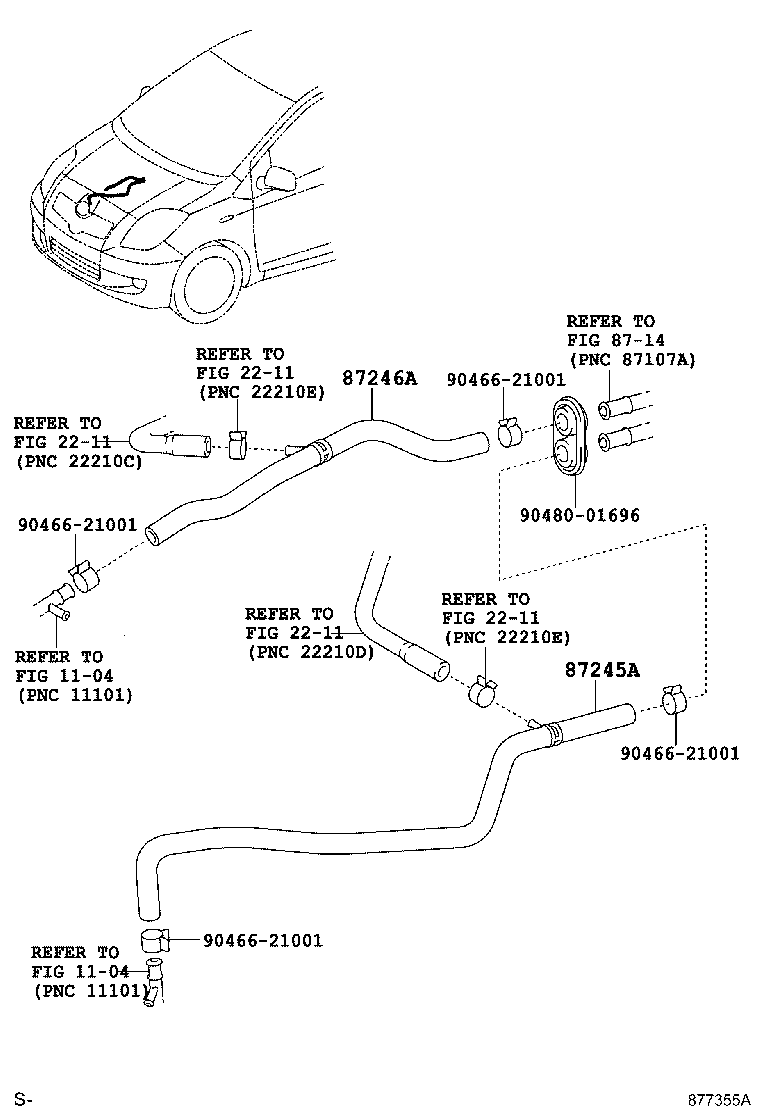

Exploded illustration 877355A 87245A — HOSE, HEATER WATER, INLET A (20 parts) 87246A — HOSE, HEATER WATER, OUTLET A (17 parts) 9046621001 — not listed in this catalogue 9046621001 — not listed in this catalogue 9046621001 — not listed in this catalogue 9046621001 — not listed in this catalogue 9048001696 — not listed in this catalogue 8714 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 1104 — not listed in this catalogue 1104 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue
877355A · 2 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
87245A — Hose, Heater Water, Inlet A
87209-52120 note Hose, Heater Water, Inlet A
2005-04 → 2007-08 ended
KSP90 B,F ¥650
87209-52140 Hose, Heater Water, Inlet A
2005-01 → 2007-08 ended
KSP90 ¥870
87209-52170 Hose, Heater Water, Inlet A
2005-01 → 2007-08 ended
SCP90 ¥2,440
87209-52191 Hose, Heater Water, Inlet A
2005-01 → 2007-08 ended
NCP91 CVFC ¥5,900
87245-52080 Hose, Heater Water, Inlet A
2005-01 → 2007-08 ended
NCP95 ¥1,610
87245-52120 Hose, Heater Water, Inlet A
2005-01 → 2007-08 ended
NCP91 5F ¥1,050
87209-52120 note Hose, Heater Water, Inlet A
2007-08 → 2008-08 ended
KSP90 B,F ¥650
87209-52140 Hose, Heater Water, Inlet A
2007-08 → 2008-08 ended
KSP90 ¥870
87209-52170 Hose, Heater Water, Inlet A
2007-08 → 2008-08 ended
SCP90 F,ILL,U ¥2,440
87209-52170 Hose, Heater Water, Inlet A
2007-08 → 2008-09 ended
SCP90 RS ¥2,440
87209-52191 Hose, Heater Water, Inlet A
2007-08 → 2008-08 ended
NCP91 ILL,U ¥5,900
87209-52191 Hose, Heater Water, Inlet A
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥5,900
87245-52080 Hose, Heater Water, Inlet A
2007-08 → 2008-08 ended
NCP95 ¥1,610
87245-52120 Hose, Heater Water, Inlet A
2007-08 → 2008-09 ended
NCP91 5F ¥1,050
87209-52120 note Hose, Heater Water, Inlet A
2008-08 → 2010-08 ended
KSP90 B,F ¥650
87209-52140 Hose, Heater Water, Inlet A
2008-08 → 2010-12 ended
KSP90 ¥870
87209-52170 Hose, Heater Water, Inlet A
2008-08 → 2010-12 ended
SCP90 ¥2,440
87209-52191 Hose, Heater Water, Inlet A
2008-08 → 2010-12 ended
NCP91 CVFC ¥5,900
87245-52080 Hose, Heater Water, Inlet A
2008-08 → 2010-12 ended
NCP95 ¥1,610
87245-52120 Hose, Heater Water, Inlet A
2008-09 → 2010-08 ended
NCP91 5F ¥1,050
87246A — Hose, Heater Water, Outlet A
87209-52130 Hose, Heater Water, Outlet A
2005-01 → 2007-08 ended
KSP90 ¥1,240
87209-52130 note Hose, Heater Water, Outlet A
2005-04 → 2007-08 ended
KSP90 B,F ¥1,240
87209-52180 Hose, Heater Water, Outlet A
2005-01 → 2007-08 ended
SCP90 ¥2,130
87245-52100 Hose, Heater Water, Outlet A
2005-01 → 2007-08 ended
NCP95 ¥1,540
87245-52110 Hose, Heater Water, Outlet A
2005-01 → 2007-08 ended
NCP91 ¥1,070
87209-52130 Hose, Heater Water, Outlet A
2007-08 → 2008-08 ended
KSP90 ¥1,240
87209-52130 note Hose, Heater Water, Outlet A
2007-08 → 2008-08 ended
KSP90 B,F ¥1,240
87209-52180 Hose, Heater Water, Outlet A
2007-08 → 2008-08 ended
SCP90 F,ILL,U ¥2,130
87209-52180 Hose, Heater Water, Outlet A
2007-08 → 2008-09 ended
SCP90 RS ¥2,130
87245-52100 Hose, Heater Water, Outlet A
2007-08 → 2008-08 ended
NCP95 ¥1,540
87245-52110 Hose, Heater Water, Outlet A
2007-08 → 2008-08 ended
NCP91 ILL,U ¥1,070
87245-52110 Hose, Heater Water, Outlet A
2007-08 → 2008-09 ended
NCP91 RS ¥1,070
87209-52130 note Hose, Heater Water, Outlet A
2008-08 → 2010-08 ended
KSP90 B,F ¥1,240
87209-52130 Hose, Heater Water, Outlet A
2008-08 → 2010-12 ended
KSP90 ¥1,240
87209-52180 Hose, Heater Water, Outlet A
2008-08 → 2010-12 ended
SCP90 ¥2,130
87245-52100 Hose, Heater Water, Outlet A
2008-08 → 2010-12 ended
NCP95 ¥1,540
87245-52110 Hose, Heater Water, Outlet A
2008-08 → 2010-12 ended
NCP91 ¥1,070
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
