Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

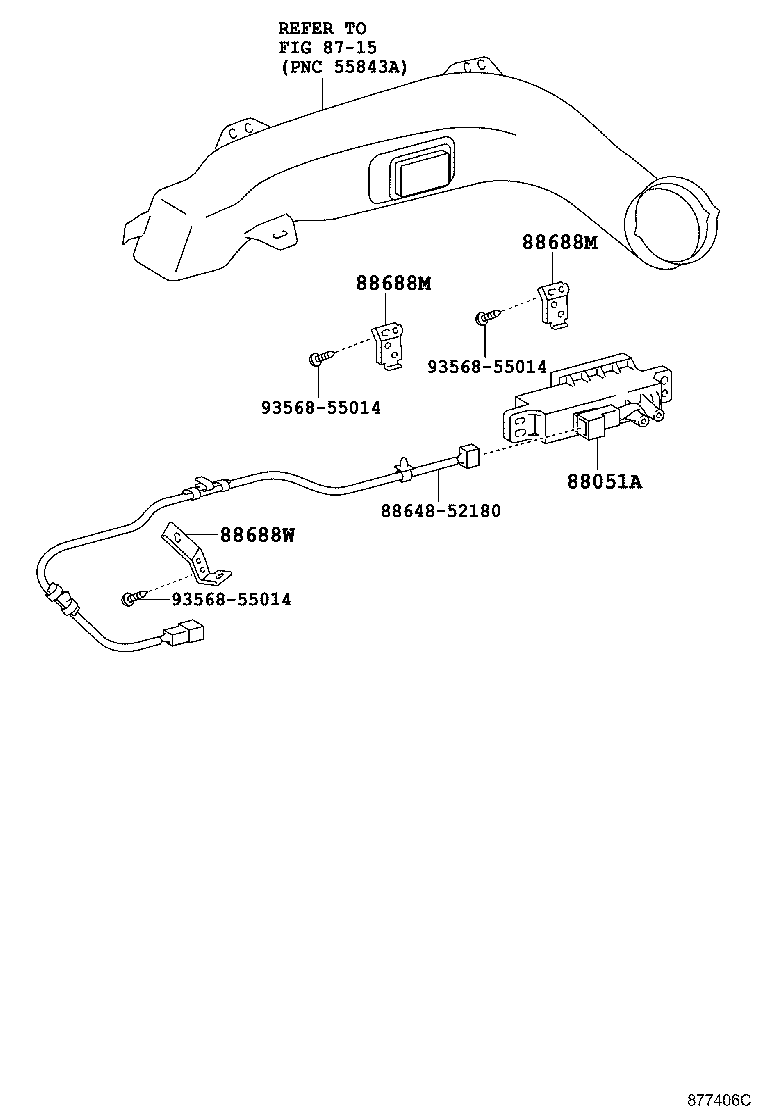

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88051A — Generator Sub-assy,Ion | ||||
| 88051-22010 |
Generator Sub-assy,Ion
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 88051-22010 note |
Generator Sub-assy,Ion
2005-01 → 2007-08
ended
|
KSP90 B,F | — | |
| 88688M — Bracket, Air Purifier, NO.2 | ||||
| 88688-52280 |
Bracket, Air Purifier, NO.2
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 88688-52280 note |
Bracket, Air Purifier, NO.2
2005-01 → 2007-08
ended
|
KSP90 B,F | — | |
| 88688W — Bracket, Air Purifier, NO.1 | ||||
| 88688-52250 |
Bracket, Air Purifier, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ILL,U,X | — | |
| 88688-52250 note |
Bracket, Air Purifier, NO.1
2005-01 → 2007-08
ended
|
KSP90 B,F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
