Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

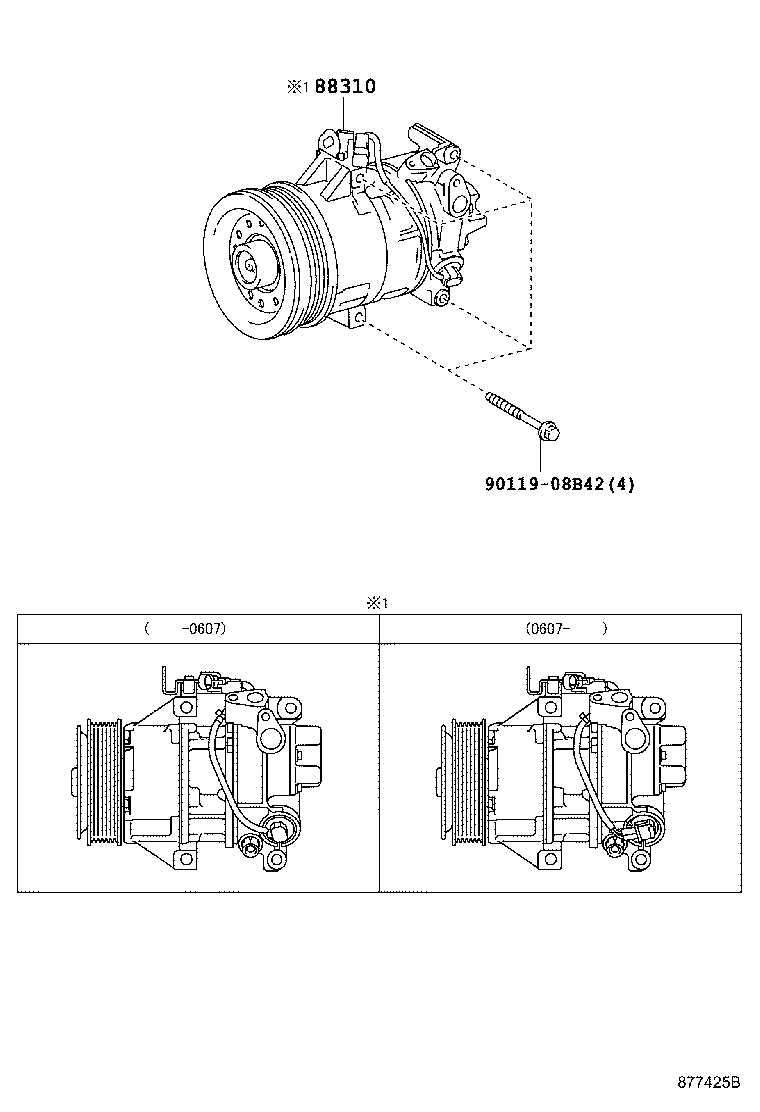

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88310 — Compressor Assy, W/Pulley | ||||
| 88310-52510 |
Compressor Assy, W/Pulley
2005-01 → 2006-07
ended
|
SCP90 | — | |
| 88310-52511 |
Compressor Assy, W/Pulley
2006-07 → 2007-08
ended
|
SCP90 | — | |
| 88310-52550 |
Compressor Assy, W/Pulley
2005-01 → 2006-07
ended
|
NCP9# | — | |
| 88310-52551 |
Compressor Assy, W/Pulley
2006-07 → 2007-08
ended
|
NCP9# | — | |
| 88310-52590 |
Compressor Assy, W/Pulley
2005-01 → 2006-07
ended
|
KSP90 | — | |
| 88310-52591 |
Compressor Assy, W/Pulley
2006-07 → 2007-01
ended
|
KSP90 | — | |
| 88310-52592 |
Compressor Assy, W/Pulley
2007-02 → 2007-08
ended
|
KSP90 | — | |
| 88310-52511 |
Compressor Assy, W/Pulley
2007-08 → 2008-09
ended
|
SCP90 | — | |
| 88310-52551 |
Compressor Assy, W/Pulley
2007-08 → 2008-09
ended
|
NCP9# | — | |
| 88310-52592 |
Compressor Assy, W/Pulley
2007-08 → 2008-08
ended
|
KSP90 | — | |
| 88310-52511 |
Compressor Assy, W/Pulley
2008-08 → 2010-12
ended
|
SCP90 | — | |
| 88310-52551 |
Compressor Assy, W/Pulley
2008-08 → 2010-12
ended
|
NCP9# | — | |
| 88310-52592 |
Compressor Assy, W/Pulley
2008-08 → 2010-12
ended
|
KSP90 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
