Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

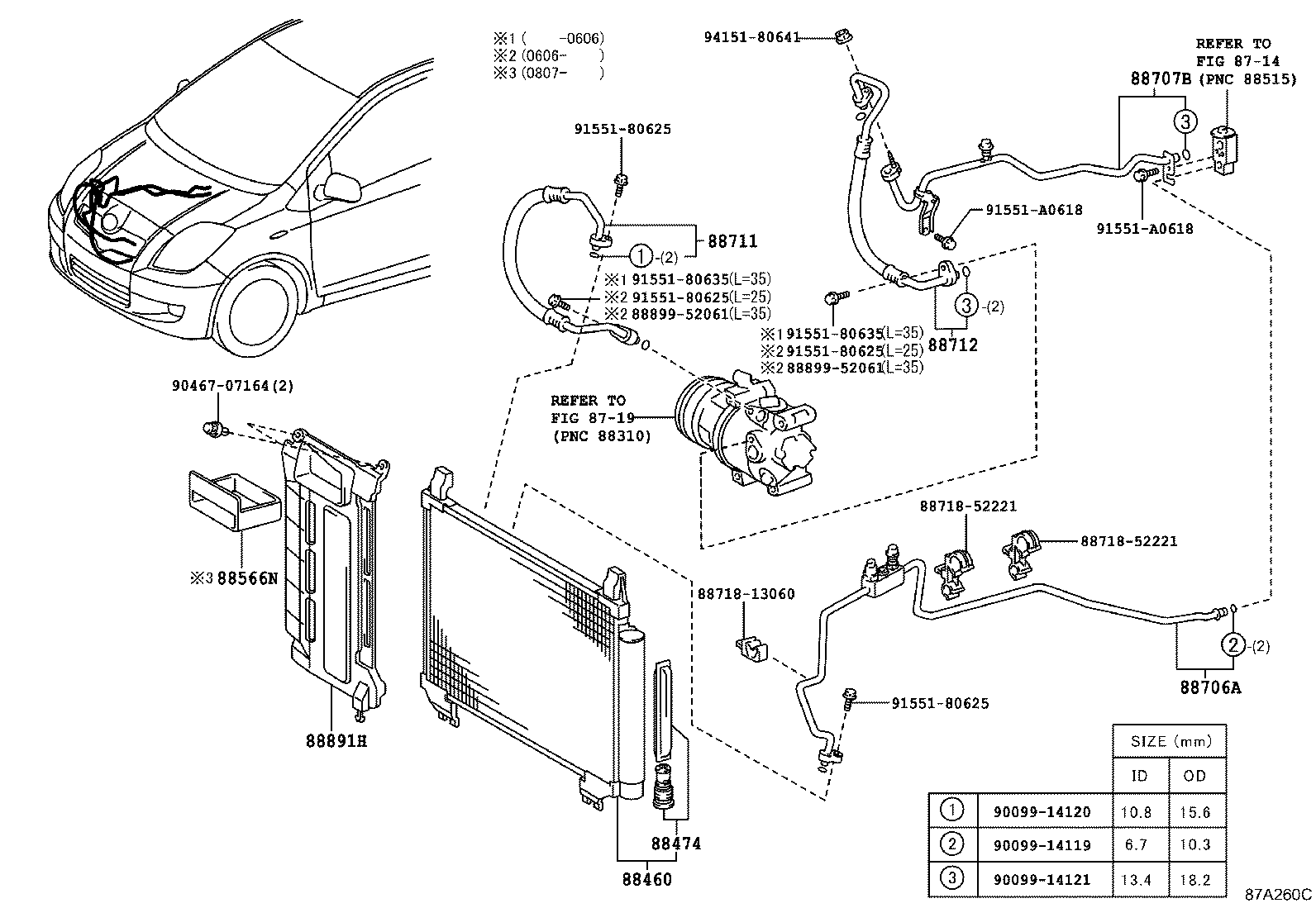

Exploded illustration 87A260C 91551A0618 — not listed in this catalogue 9155180625 — not listed in this catalogue 9155180625 — not listed in this catalogue 8871813060 — not listed in this catalogue 9046707164 — not listed in this catalogue 8871852221 — not listed in this catalogue 8871852221 — not listed in this catalogue 9155180635 — not listed in this catalogue 8889952061 — not listed in this catalogue 8889952061 — not listed in this catalogue 9155180635 — not listed in this catalogue 9415180641 — not listed in this catalogue 91551A0618 — not listed in this catalogue 88707B — TUBE SUB-ASSY, SUCTION, B (4 parts) 88712 — HOSE, COOLER REFRIGERANT SUCTION, NO.1 (11 parts) 88706A — TUBE SUB-ASSY, LIQUID, A (5 parts) 88460 — CONDENSER ASSY, COOLER (5 parts) 88474 — DRYER, COOLER (4 parts) 88891H — COVER, COOLER, NO.1 (12 parts) 88566N — DUCT, COOLER AIR, NO.1 (2 parts) 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (13 parts) 9155180625 — not listed in this catalogue 9155180625 — not listed in this catalogue 8714 — not listed in this catalogue 8719 — not listed in this catalogue 9009914121 — not listed in this catalogue 9009914120 — not listed in this catalogue 9009914119 — not listed in this catalogue
87A260C · 8 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
88460 — Condenser Assy, Cooler
88460-52090 Condenser Assy, Cooler
2005-01 → 2005-04 ended
KSP90,NCP9#,SCP90 ¥51,400
88460-52110 Condenser Assy, Cooler
2005-05 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥51,400
88460-52130 Condenser Assy, Cooler
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥42,800
88460-52130 Condenser Assy, Cooler
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥42,800
88460-52130 Condenser Assy, Cooler
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥42,800
88474 — Dryer, Cooler
88474-17010 Dryer, Cooler
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 —
88474-17010 Dryer, Cooler
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U —
88474-17010 Dryer, Cooler
2007-08 → 2008-09 ended
NCP91,SCP90 RS —
88474-17010 Dryer, Cooler
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 —
88566N — Duct, Cooler Air, NO.1
88566-52100 Duct, Cooler Air, NO.1
2008-07 → 2008-09 ended
KSP90,SCP90 ¥0
88566-52100 Duct, Cooler Air, NO.1
2008-08 → 2010-12 ended
KSP90,SCP90 ¥0
88706A — Tube Sub-assy, Liquid, A
88706-52370 Tube Sub-assy, Liquid, A
2005-01 → 2005-04 ended
KSP90,NCP9#,SCP90 ¥25,700
88706-52440 Tube Sub-assy, Liquid, A
2005-05 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥27,900
88706-52440 Tube Sub-assy, Liquid, A
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥27,900
88706-52440 Tube Sub-assy, Liquid, A
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥27,900
88706-52440 Tube Sub-assy, Liquid, A
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥27,900
88707B — Tube Sub-assy, Suction, B
88707-52100 Tube Sub-assy, Suction, B
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥16,000
88707-52100 Tube Sub-assy, Suction, B
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥16,000
88707-52100 Tube Sub-assy, Suction, B
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥16,000
88707-52100 Tube Sub-assy, Suction, B
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥16,000
88711 — Hose, Cooler Refrigerant Discharge, NO.1
88711-52190 Hose, Cooler Refrigerant Discharge, NO.1
2005-01 → 2005-04 ended
KSP90 ¥12,400
88711-52200 Hose, Cooler Refrigerant Discharge, NO.1
2005-01 → 2005-04 ended
SCP90 ¥12,100
88711-52210 Hose, Cooler Refrigerant Discharge, NO.1
2005-01 → 2005-04 ended
NCP9# ¥12,400
88711-52250 Hose, Cooler Refrigerant Discharge, NO.1
2005-05 → 2007-08 ended
SCP90 ¥12,600
88711-52260 Hose, Cooler Refrigerant Discharge, NO.1
2005-05 → 2007-08 ended
NCP9# ¥12,500
88711-52290 Hose, Cooler Refrigerant Discharge, NO.1
2005-05 → 2007-08 ended
KSP90 ¥12,600
88711-52250 Hose, Cooler Refrigerant Discharge, NO.1
2007-08 → 2008-09 ended
SCP90 ¥12,600
88711-52260 Hose, Cooler Refrigerant Discharge, NO.1
2007-08 → 2008-09 ended
NCP9# ¥12,500
88711-52290 Hose, Cooler Refrigerant Discharge, NO.1
2007-08 → 2008-06 ended
KSP90 ¥12,600
88711-52350 Hose, Cooler Refrigerant Discharge, NO.1
2008-07 → 2008-08 ended
KSP90 ¥12,600
88711-52250 Hose, Cooler Refrigerant Discharge, NO.1
2008-08 → 2010-12 ended
SCP90 ¥12,600
88711-52260 Hose, Cooler Refrigerant Discharge, NO.1
2008-08 → 2010-12 ended
NCP9# ¥12,500
88711-52350 Hose, Cooler Refrigerant Discharge, NO.1
2008-08 → 2010-12 ended
KSP90 ¥12,600
88712 — Hose, Cooler Refrigerant Suction, NO.1
88712-52260 Hose, Cooler Refrigerant Suction, NO.1
2005-01 → 2007-08 ended
KSP90 ¥13,300
88712-52270 Hose, Cooler Refrigerant Suction, NO.1
2005-01 → 2007-08 ended
SCP90 ¥13,500
88712-52280 Hose, Cooler Refrigerant Suction, NO.1
2005-01 → 2007-08 ended
NCP9# ¥13,600
88712-52260 Hose, Cooler Refrigerant Suction, NO.1
2007-08 → 2008-08 ended
KSP90 ¥13,300
88712-52270 Hose, Cooler Refrigerant Suction, NO.1
2007-08 → 2008-08 ended
SCP90 F,ILL,U ¥13,500
88712-52270 Hose, Cooler Refrigerant Suction, NO.1
2007-08 → 2008-09 ended
SCP90 RS ¥13,500
88712-52280 Hose, Cooler Refrigerant Suction, NO.1
2007-08 → 2008-08 ended
NCP9# F,ILL,U ¥13,600
88712-52280 Hose, Cooler Refrigerant Suction, NO.1
2007-08 → 2008-09 ended
NCP91 RS ¥13,600
88712-52260 Hose, Cooler Refrigerant Suction, NO.1
2008-08 → 2010-12 ended
KSP90 ¥13,300
88712-52270 Hose, Cooler Refrigerant Suction, NO.1
2008-08 → 2010-12 ended
SCP90 ¥13,500
88712-52280 Hose, Cooler Refrigerant Suction, NO.1
2008-08 → 2010-12 ended
NCP9# ¥13,600
88891H — Cover, Cooler, NO.1
88891-52030 Cover, Cooler, NO.1
2005-01 → 2007-01 ended
KSP90 —
88891-52031 Cover, Cooler, NO.1
2007-02 → 2007-08 ended
KSP90 —
88891-52040 Cover, Cooler, NO.1
2005-01 → 2007-01 ended
SCP90 —
88891-52041 Cover, Cooler, NO.1
2007-02 → 2007-08 ended
SCP90 —
88891-52050 Cover, Cooler, NO.1
2005-01 → 2007-01 ended
NCP9# —
88891-52051 Cover, Cooler, NO.1
2007-02 → 2007-08 ended
NCP9# ¥0
88891-52031 Cover, Cooler, NO.1
2007-08 → 2008-09 ended
KSP90 —
88891-52031 Cover, Cooler, NO.1
2008-01 → 2008-09 ended
SCP90 —
88891-52041 Cover, Cooler, NO.1
2007-08 → 2008-01 ended
SCP90 —
88891-52051 Cover, Cooler, NO.1
2007-08 → 2008-09 ended
NCP9# ¥0
88891-52032 Cover, Cooler, NO.1
2008-08 → 2010-12 ended
KSP90,SCP90 —
88891-52051 Cover, Cooler, NO.1
2008-08 → 2010-12 ended
NCP9# ¥0
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
