Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04
Mat & Carpet
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55214C | Pad, Dash Panel Insulator, NO.2 |
| 55215D | Pad, Dash Panel Insulator, NO.3 |
| 55216C | Pad, Dash Panel Insulator, NO.4 |
| 58442F | Cover, Jack |
| 58510C | Carpet Assy, Front Floor, Front |
| 58511E | Clip(FOR FRONT FLOOR MAT) |

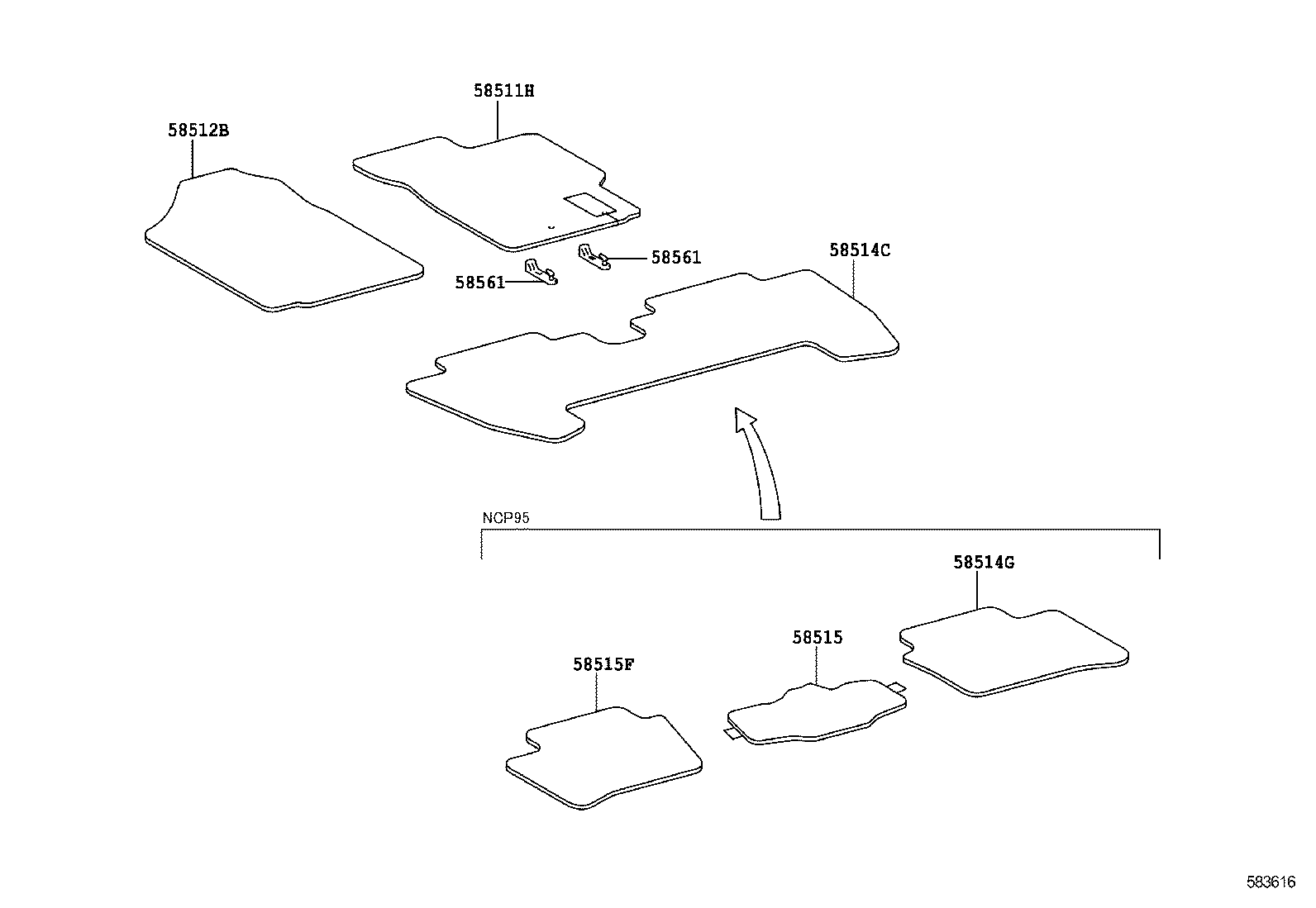

| 58511H | Mat, Floor, Front RH |
| 58512B | Mat, Floor, Front LH |
| 58514C | Mat, Froor, Rear |
| 58514G | Mat, Floor, Rear RH |
| 58515 | Mat, Floor, Center |
| 58515F | Mat, Floor, Rear LH |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58533A | Cover, Floor Carpet, Center RH |
| 58533B | Clip(FOR FLOOR CARPET COVER) |
| 58534B | Clip(FOR FLOOR CARPET CENTER COVER) |
| 58534D | Cover, Floor Carpet, Center LH |
| 58561 | Retainer, Floor Mat, NO.1 |
| 58561C | Silencer, Front Floor, NO.1 |
| 58562C | Silencer, Front Floor, NO.2 |
| 58563Q | Silencer, Front Floor, NO.3 |
| 58564A | Silencer, Front Floor, NO.4 |
| 58569D | Cover, Front Floor Caution Plate |
| 58570C | Carpet Assy, Rear Floor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
