Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

17 part groups · 9 illustrations

Illustrations

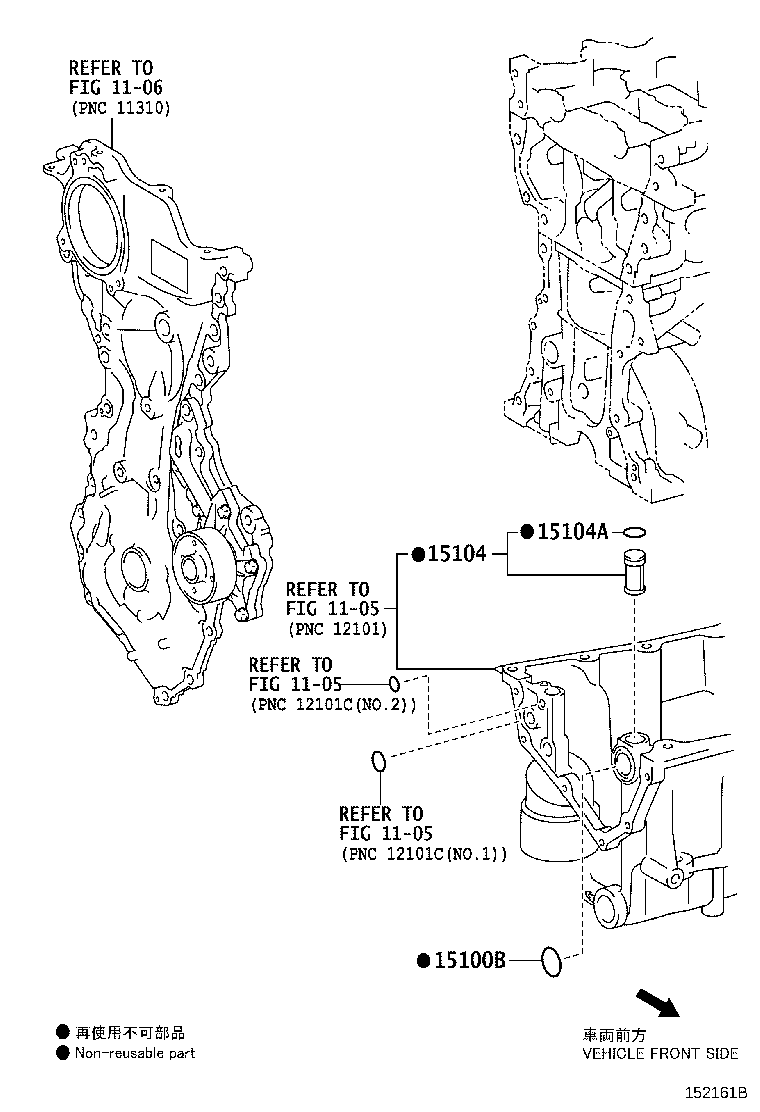

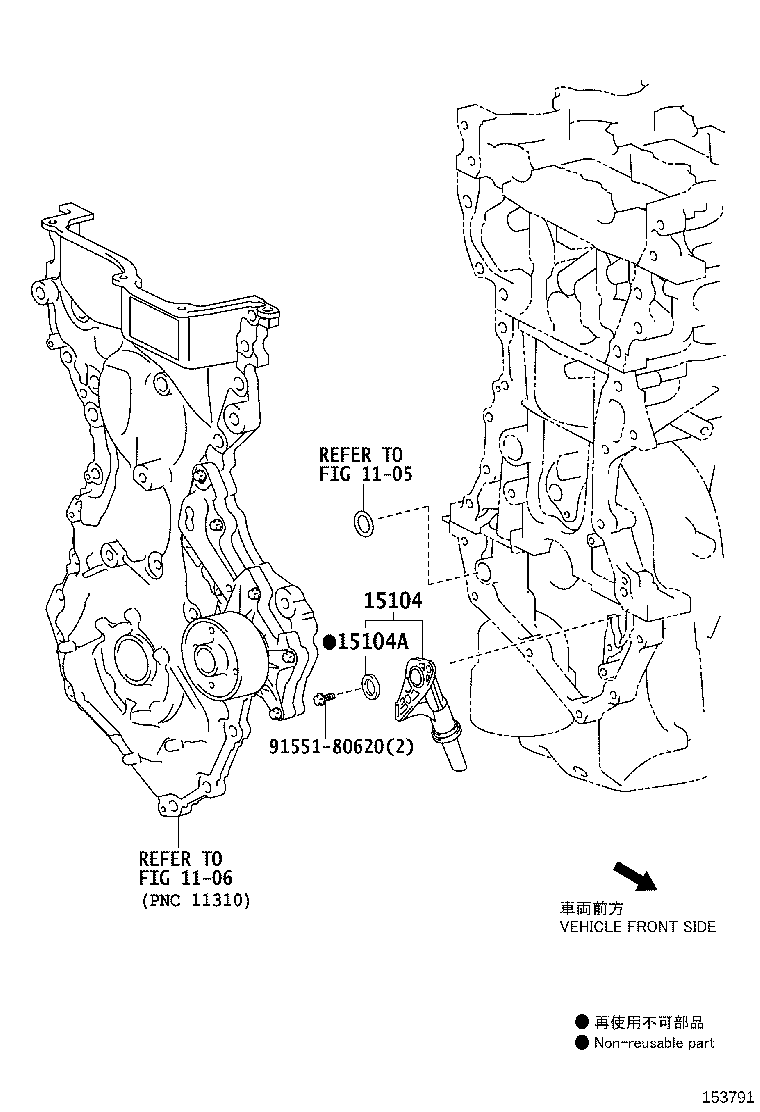

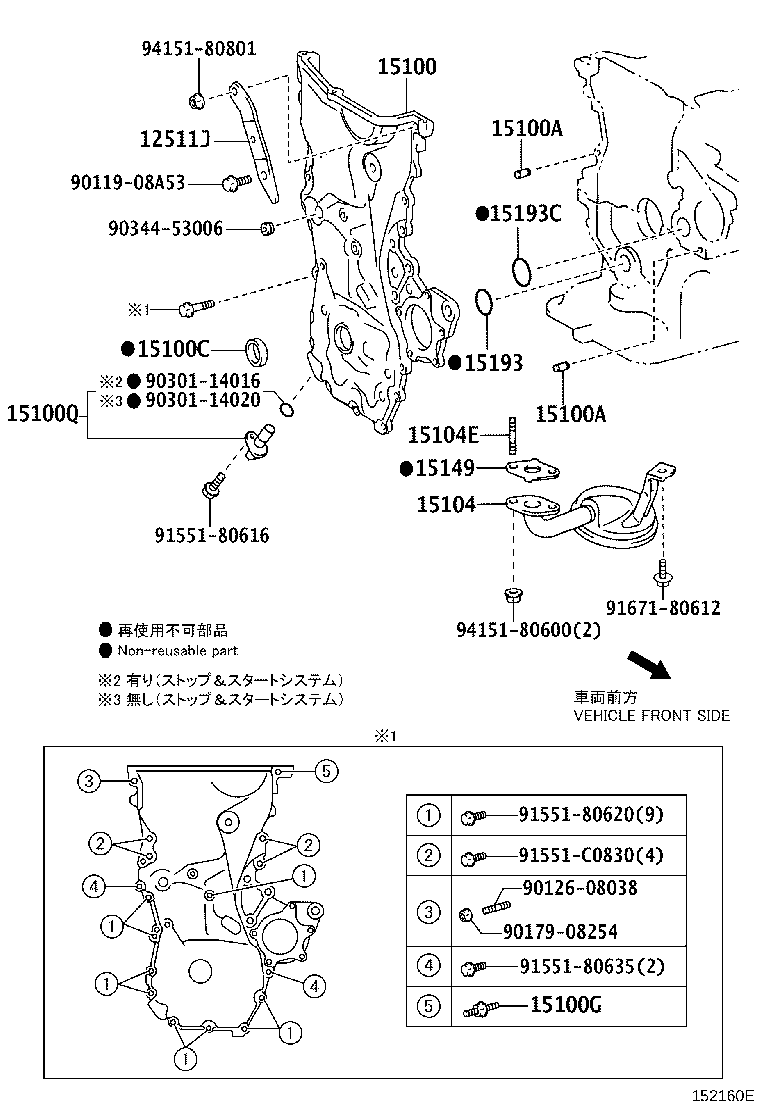

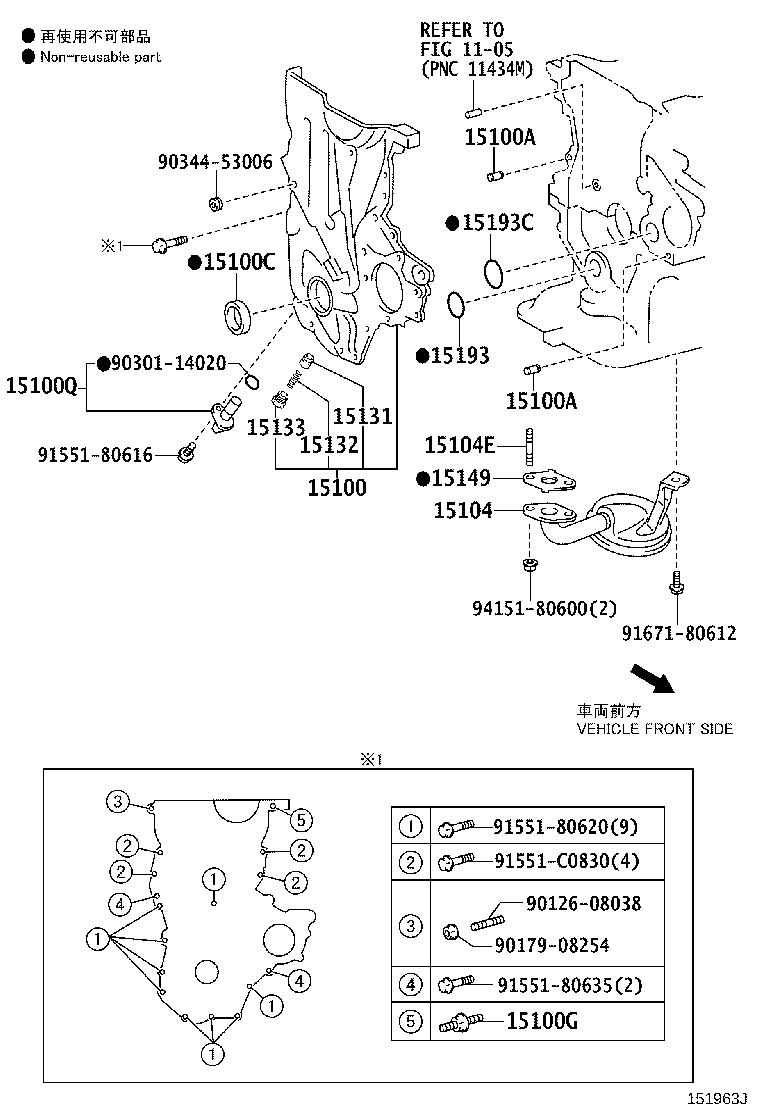

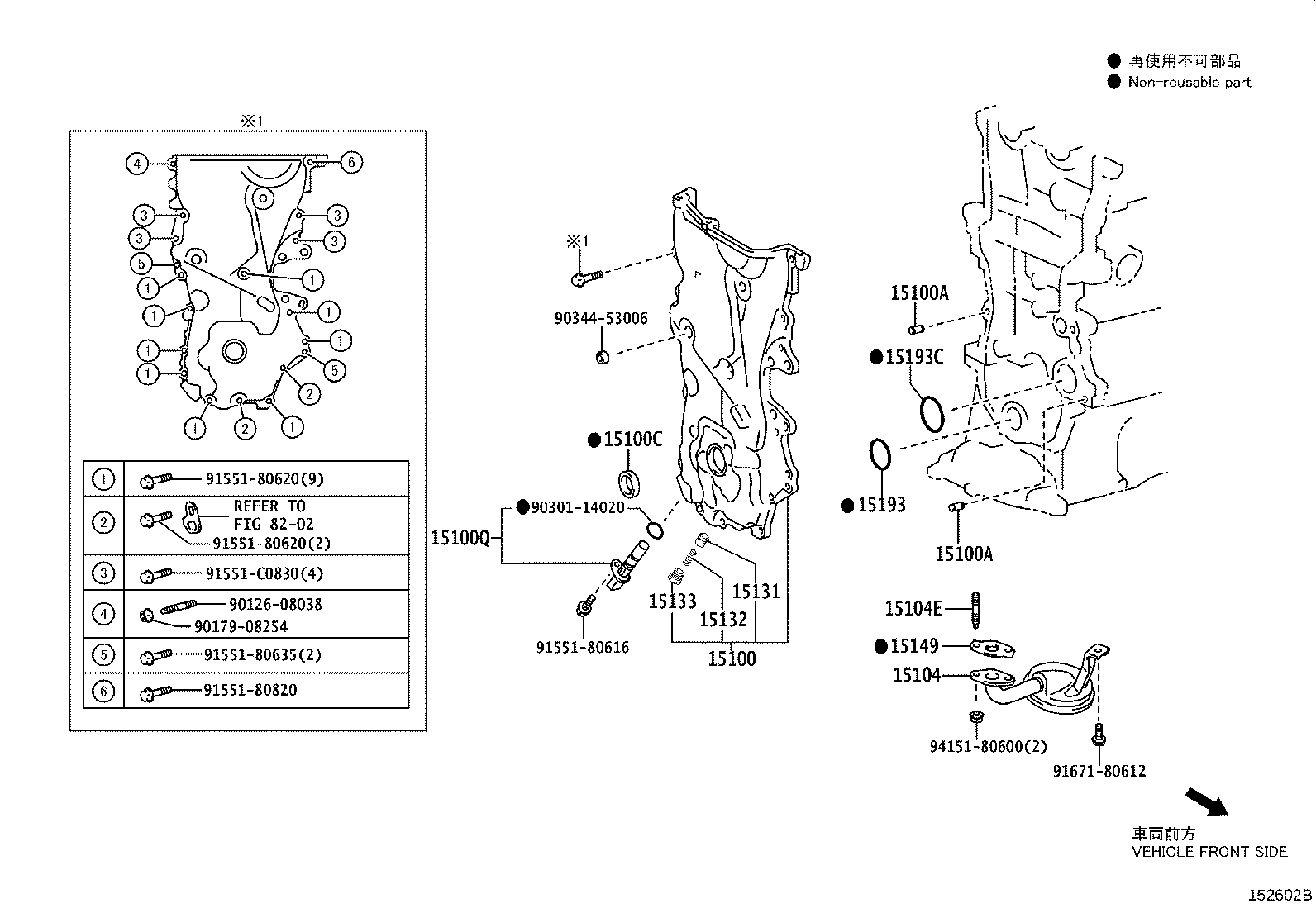

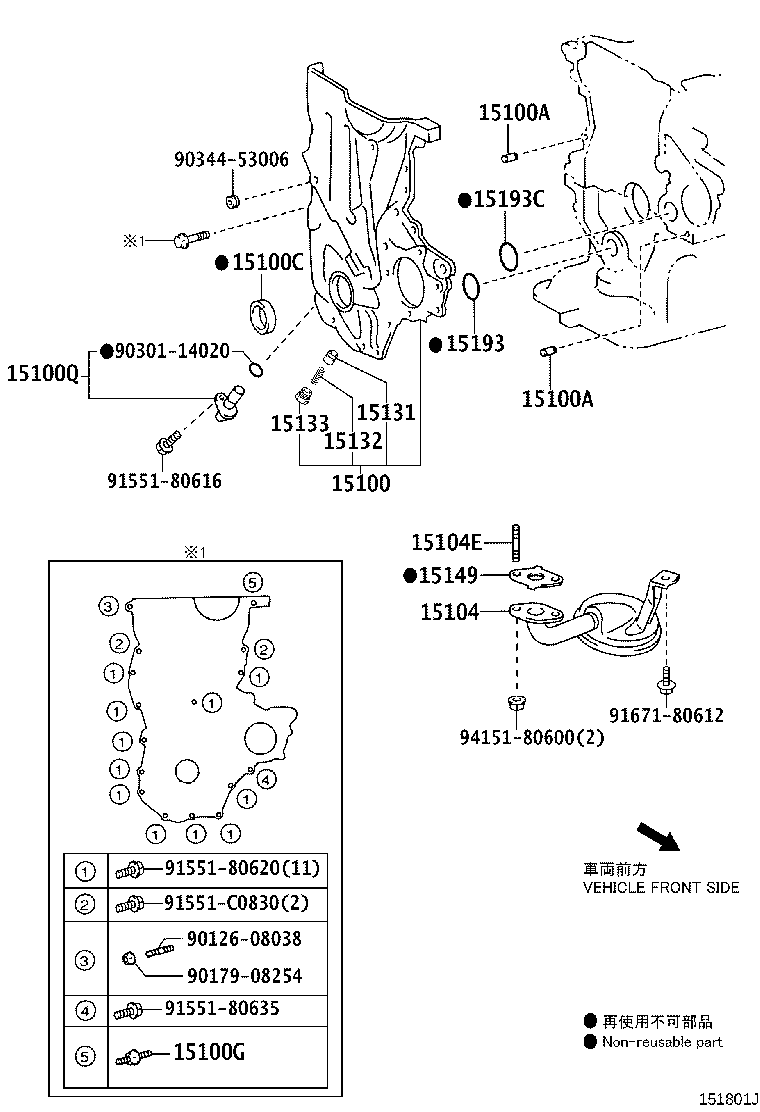

Figure 152807A 152807A 2010-12 → 2014-04 Figure 152159B 152159B 2014-04 → — Figure 151801J 151801J 2010-12 → 2012-04 Figure 151963J 151963J 2012-04 → 2014-04 Figure 151963J 151963J 2014-04 → — Figure 152160E 152160E 2014-04 → — Figure 153791 153791 2010-12 → — Figure 152161B 152161B 2014-04 → — Figure 152602B 152602B 2017-01 → —

Part groups

PNCDescription
12511J Bracket, Alternator
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100G Bolt,Stud(FOR OIL PUMP)
15100Q Sensor, Crank Position
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15149 Gasket, Oil Strainer Flange
15193 Gasket, Oil Pump
15193C Gasket, Oil Pump NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
