Toyota Vitz
2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan
Supported model
Data version 2020-02

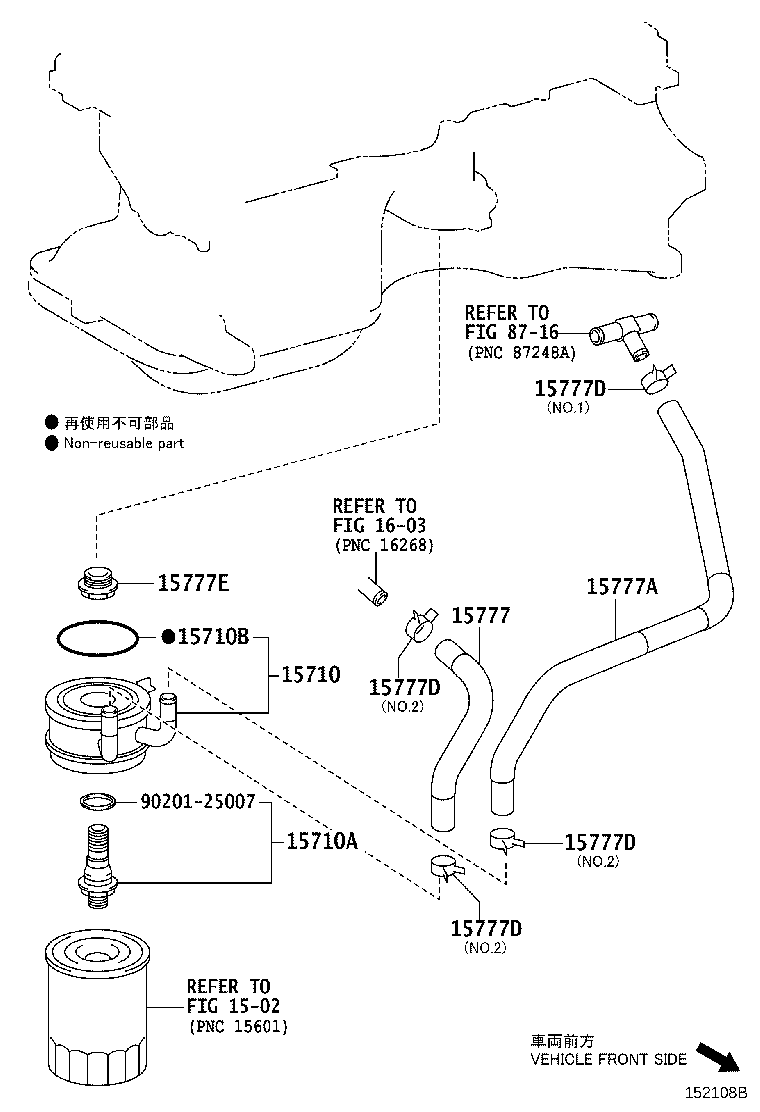

Engine Oil Cooler
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15710 | Cooler Assy, Oil |
| 15710A | Bolt, Union(FOR OIL COOLER) |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15771 | Pipe, Oil, NO.1 |
| 15771E | Bolt, Union(FOR OIL PIPE) |
| 15771G | Gasket |
| 15777 | Hose, Oil Cooler |
| 15777A | Hose, Oil Cooler |
| 15777D | Clamp OR Clip, Hose(FOR OIL COOLER HOSE) |
| 15777E | Union |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
