Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

4 part groups · 6 illustrations

Illustrations

Figure 164342C

164342C 2010-12 → 2014-04

Figure 165631B

165631B 2014-04 → —

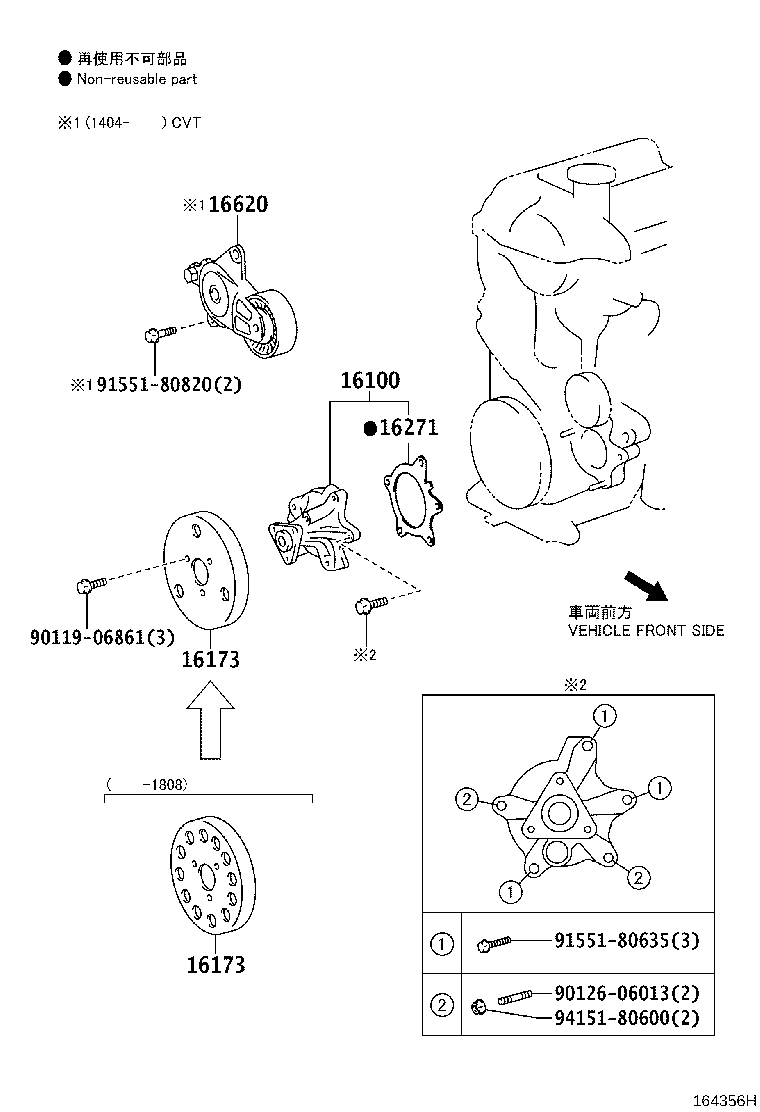

Figure 164356H

164356H 2010-12 → —

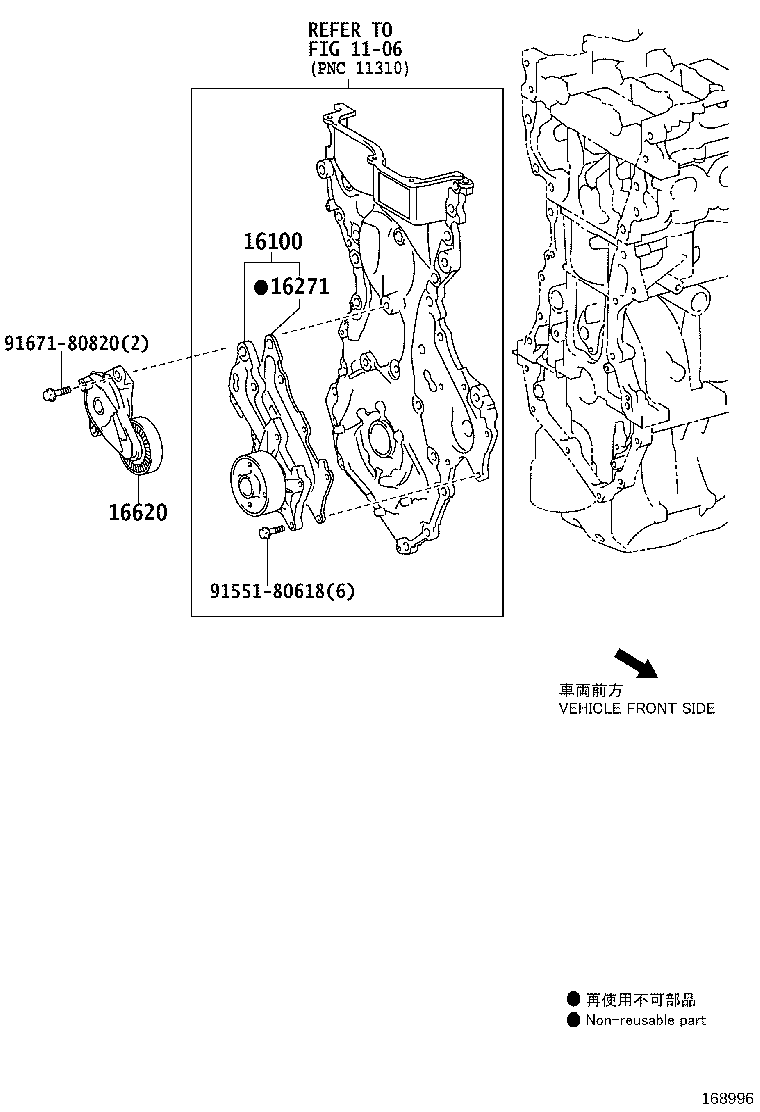

168996 2010-12 → —

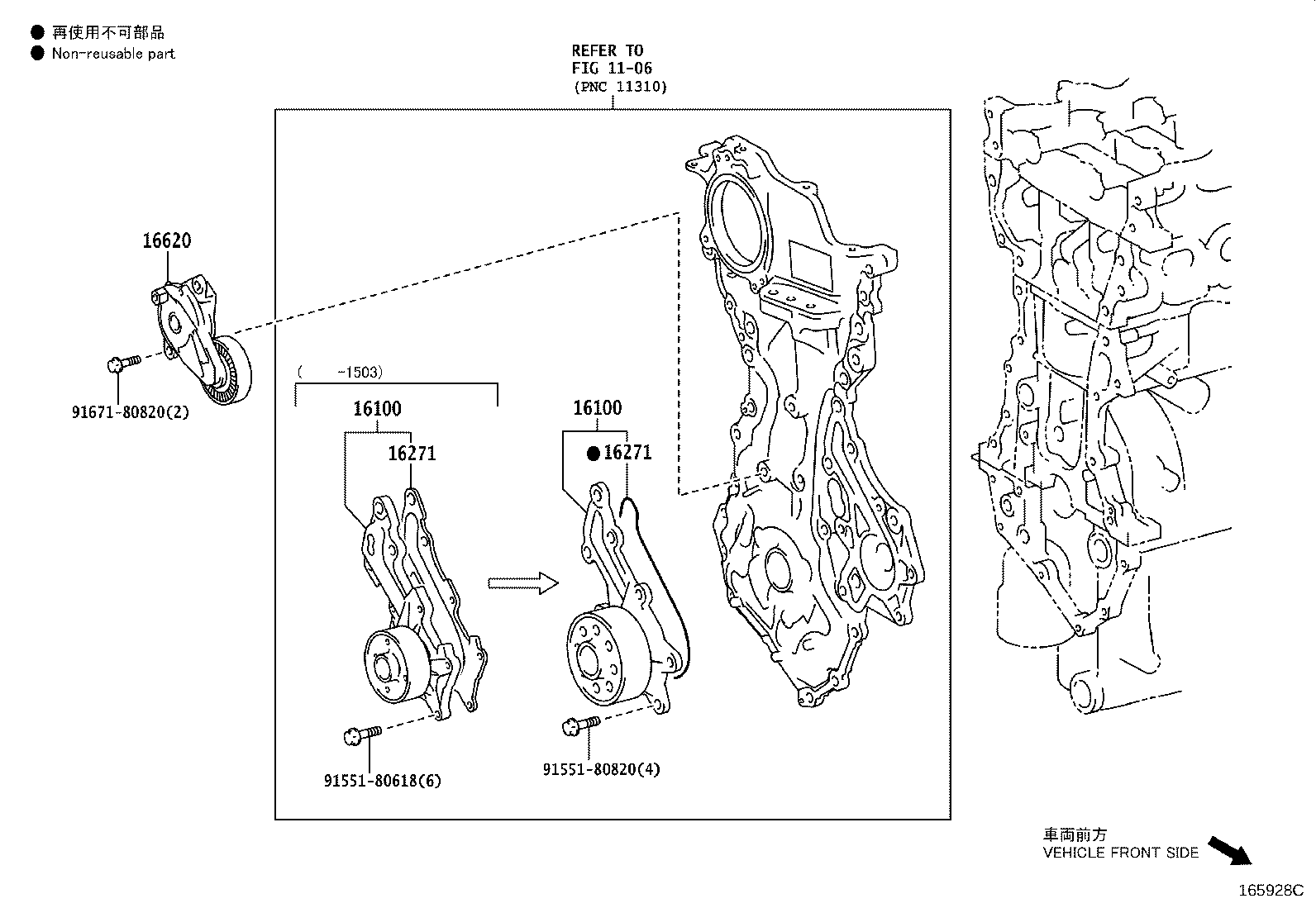

Figure 165928C

165928C 2014-04 → —

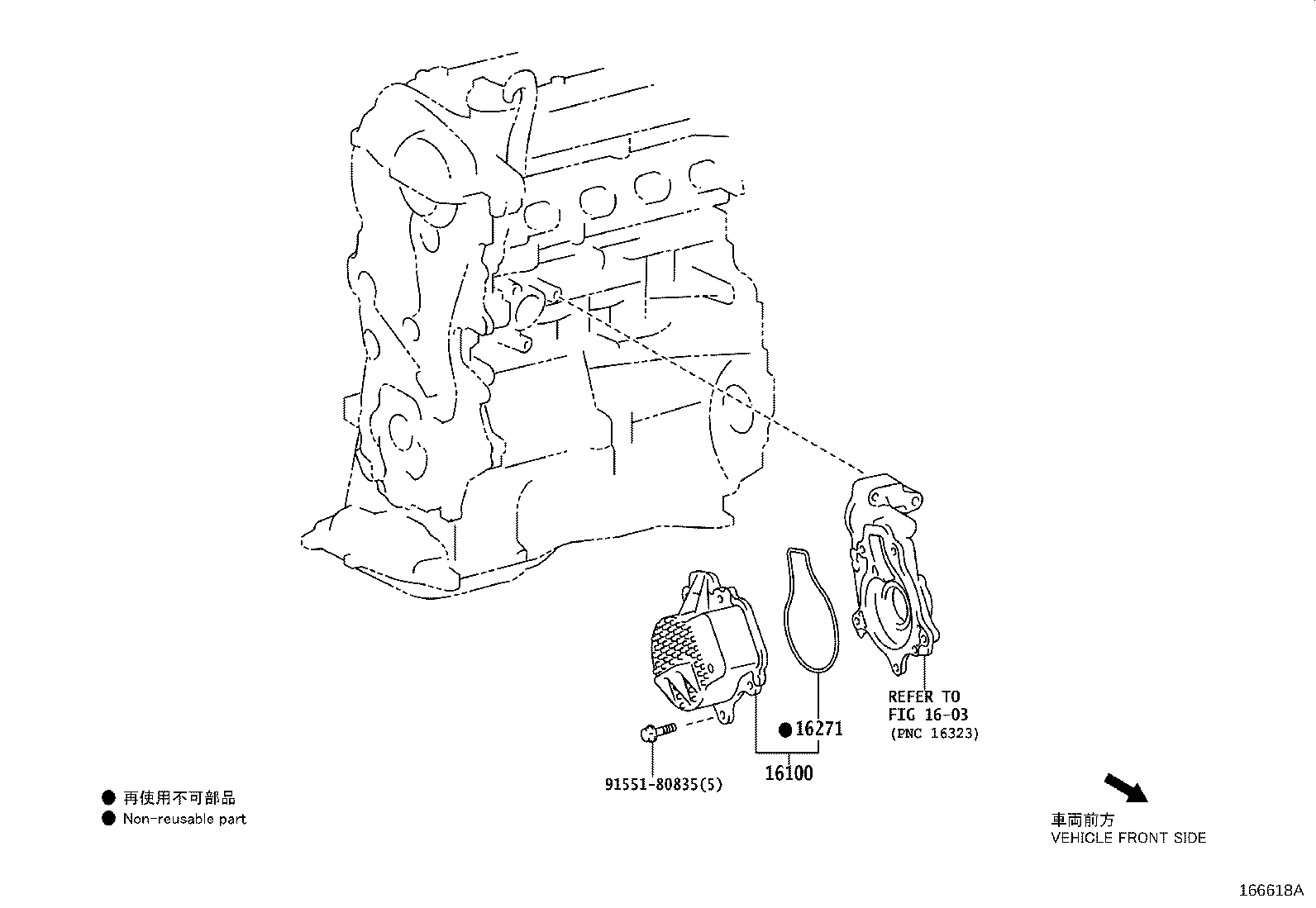

Figure 166618A

166618A 2017-01 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
