Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

7 part groups · 7 illustrations

Illustrations

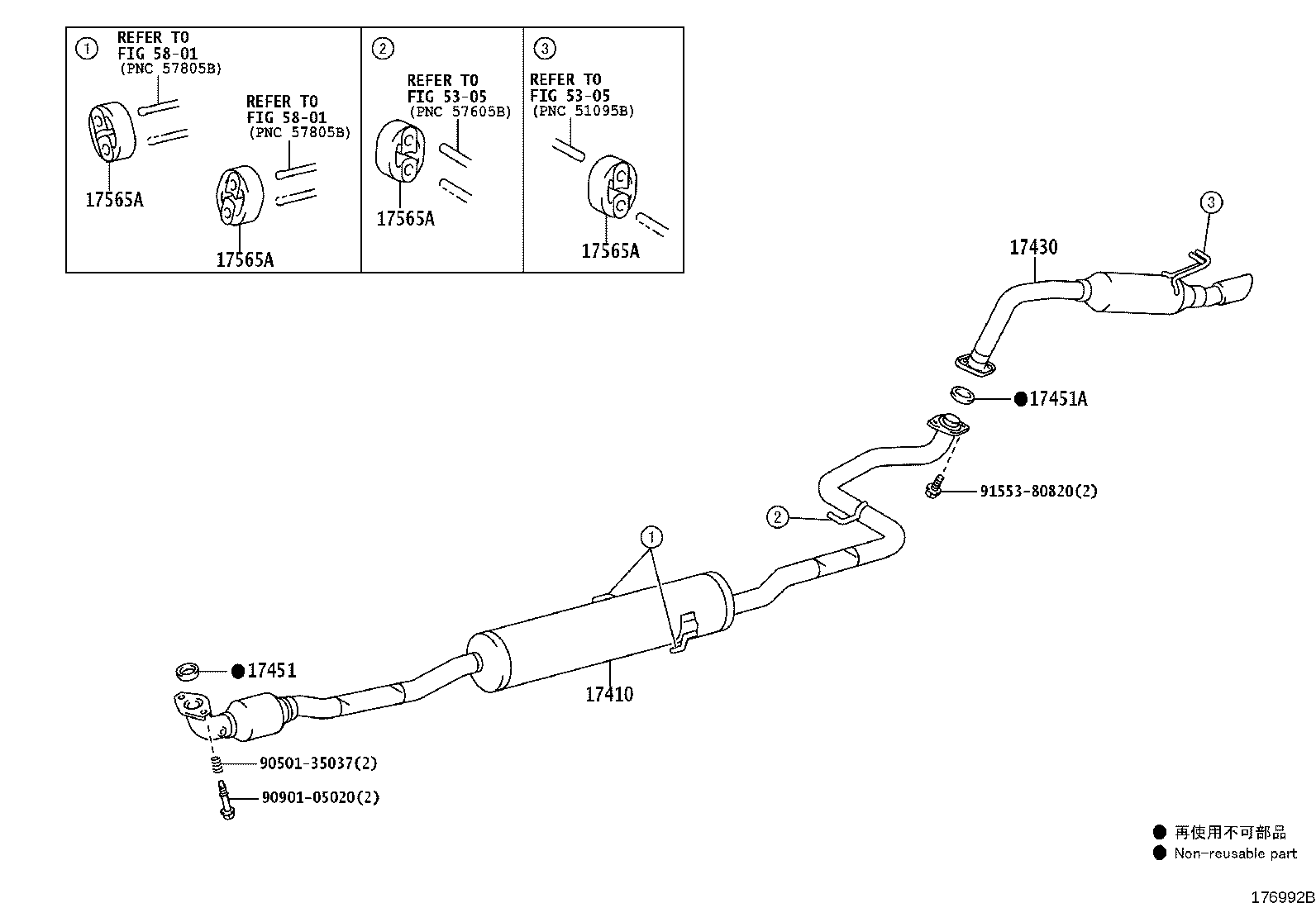

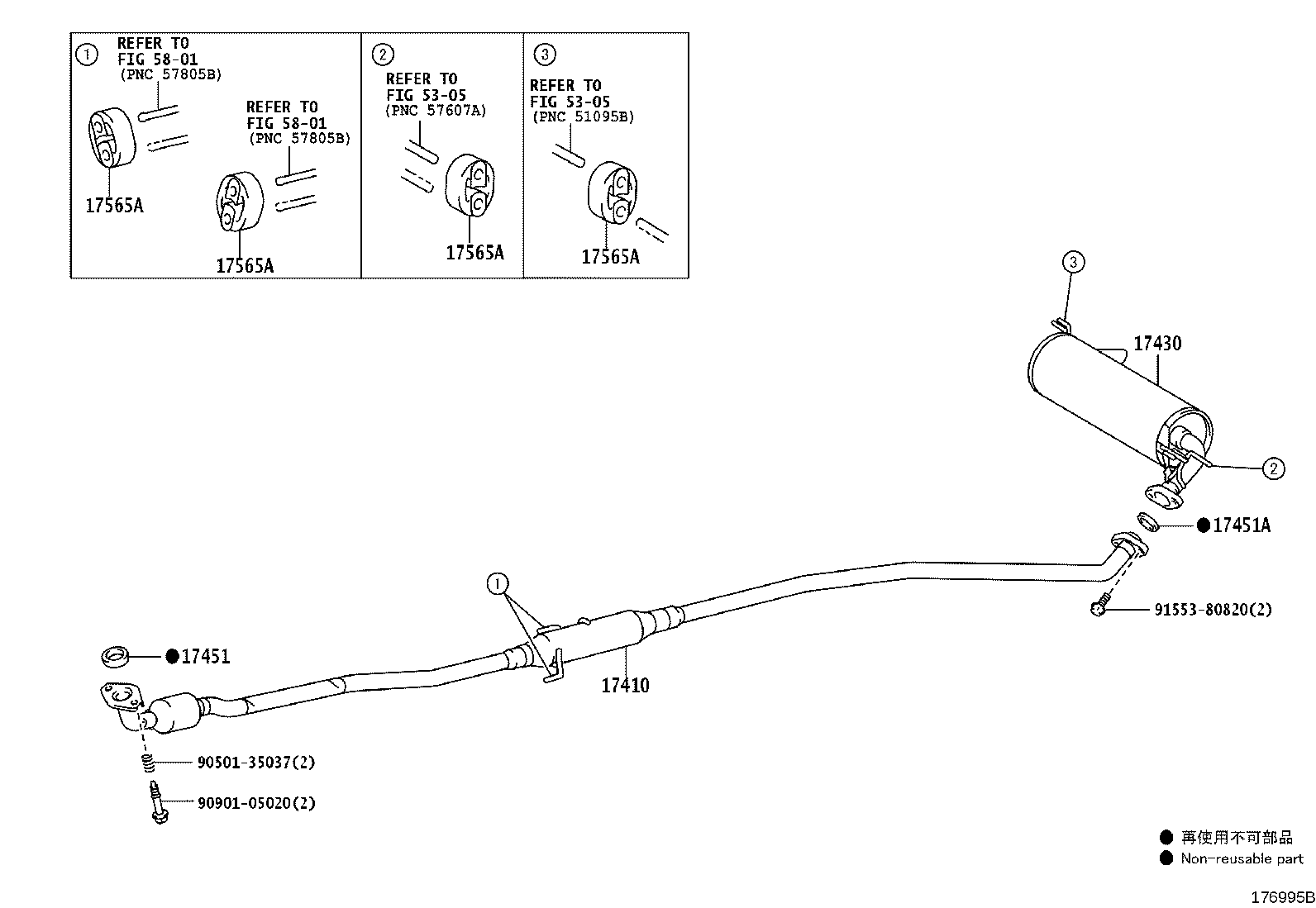

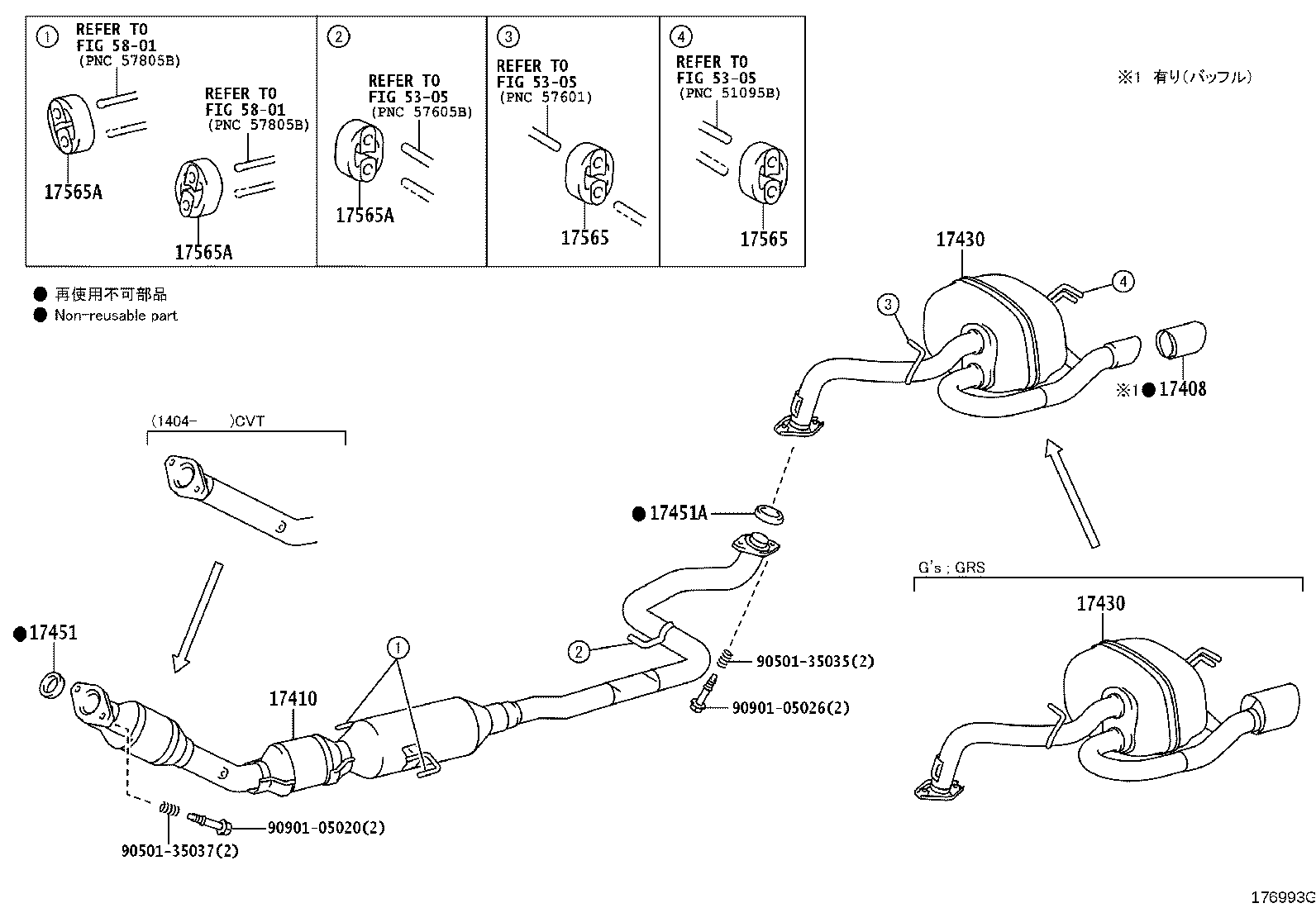

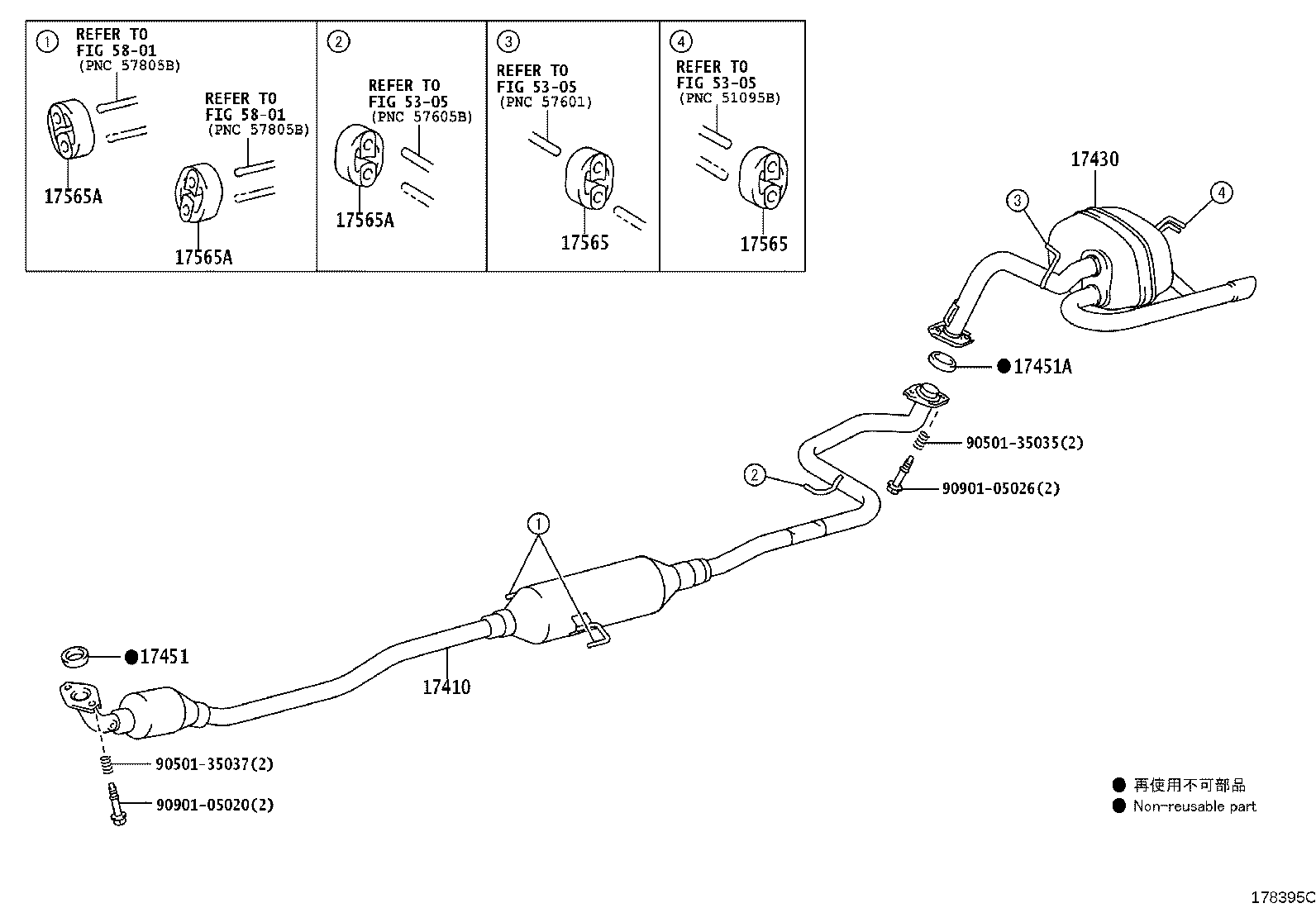

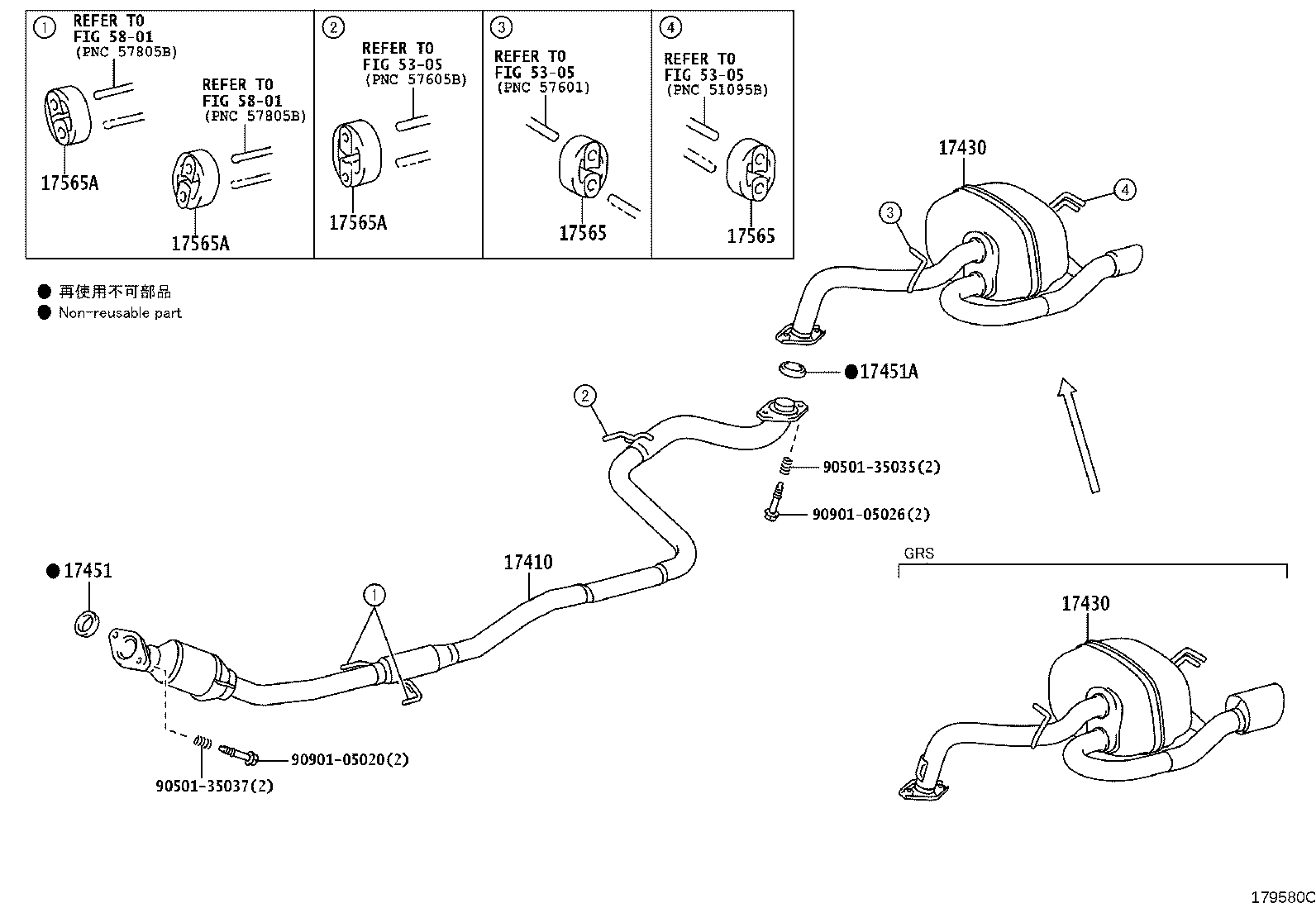

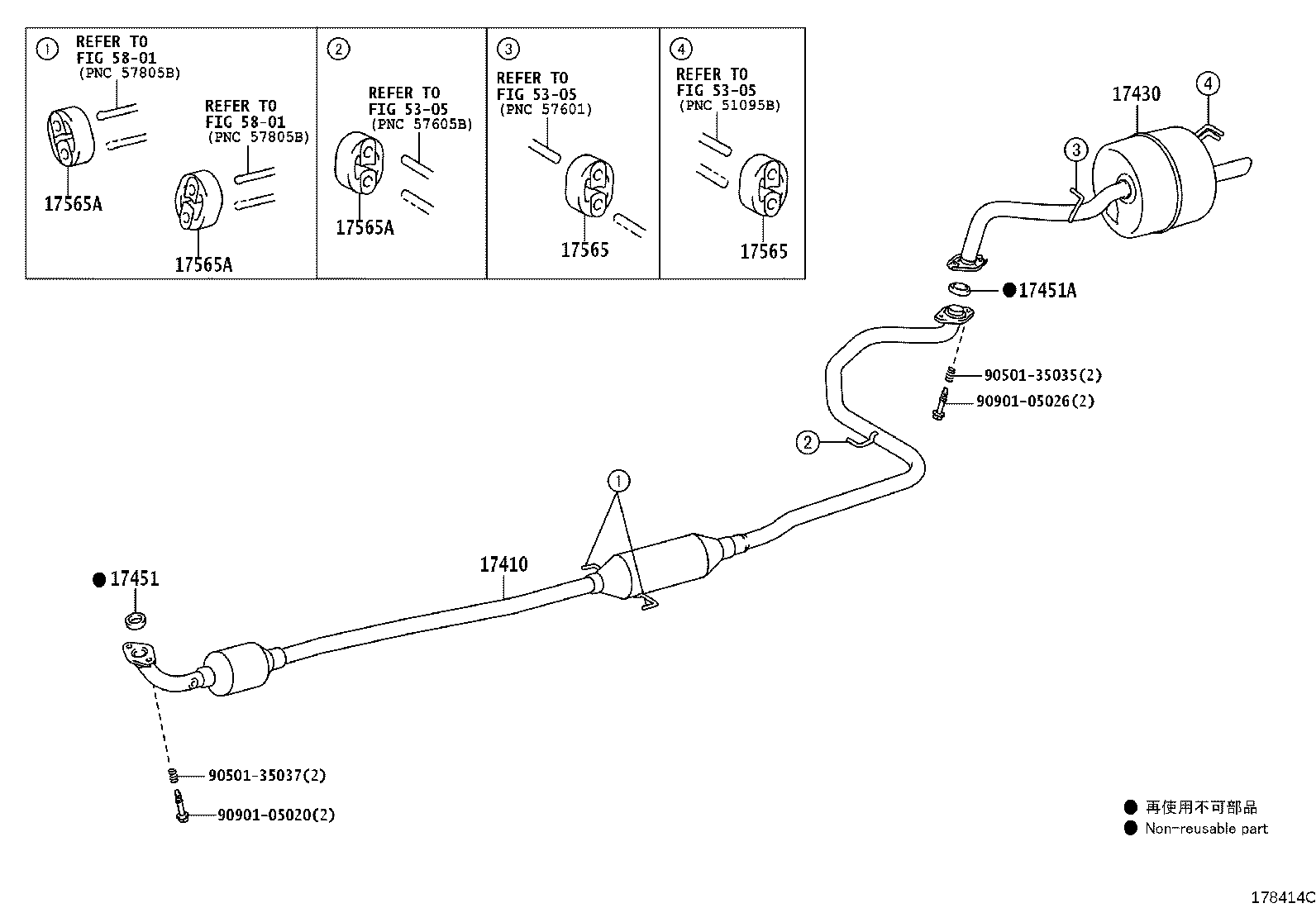

Figure 176994B 176994B 2010-12 → 2014-04 Figure 176992B 176992B 2010-12 → — Figure 176995B 176995B 2010-12 → — Figure 179580C 179580C 2017-01 → — Figure 176993G 176993G 2010-12 → — Figure 178414C 178414C 2014-04 → — Figure 178395C 178395C 2014-04 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
