Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

14 part groups · 6 illustrations

Illustrations

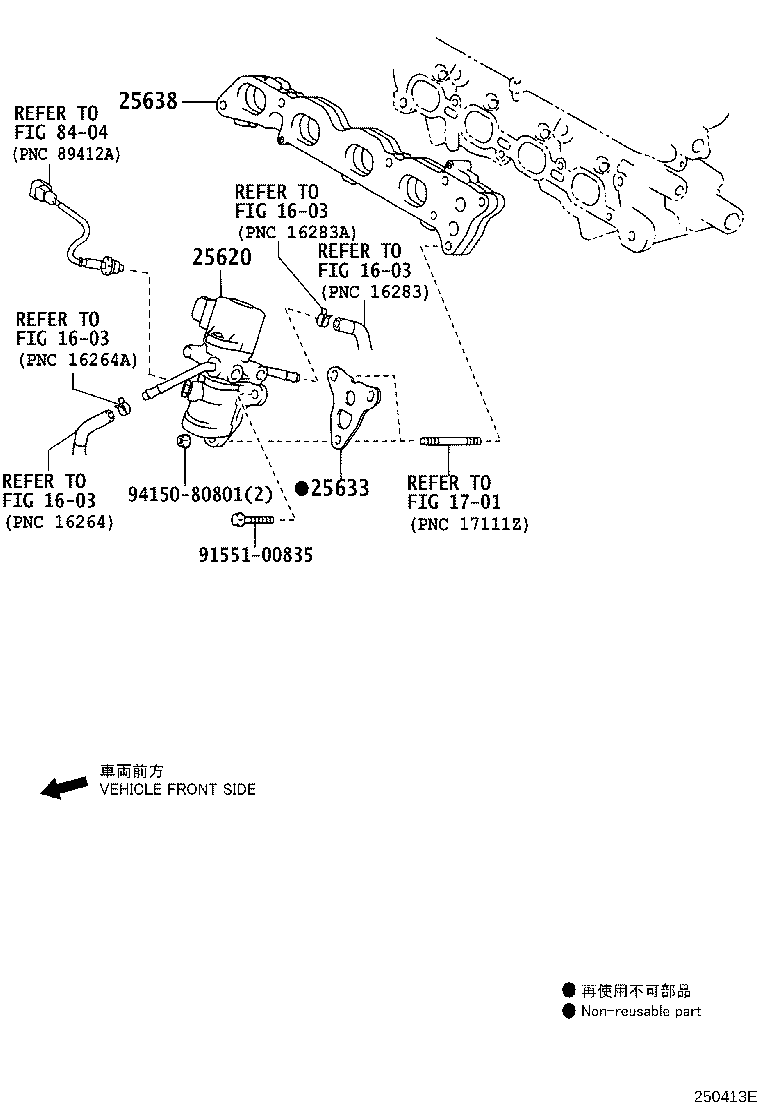

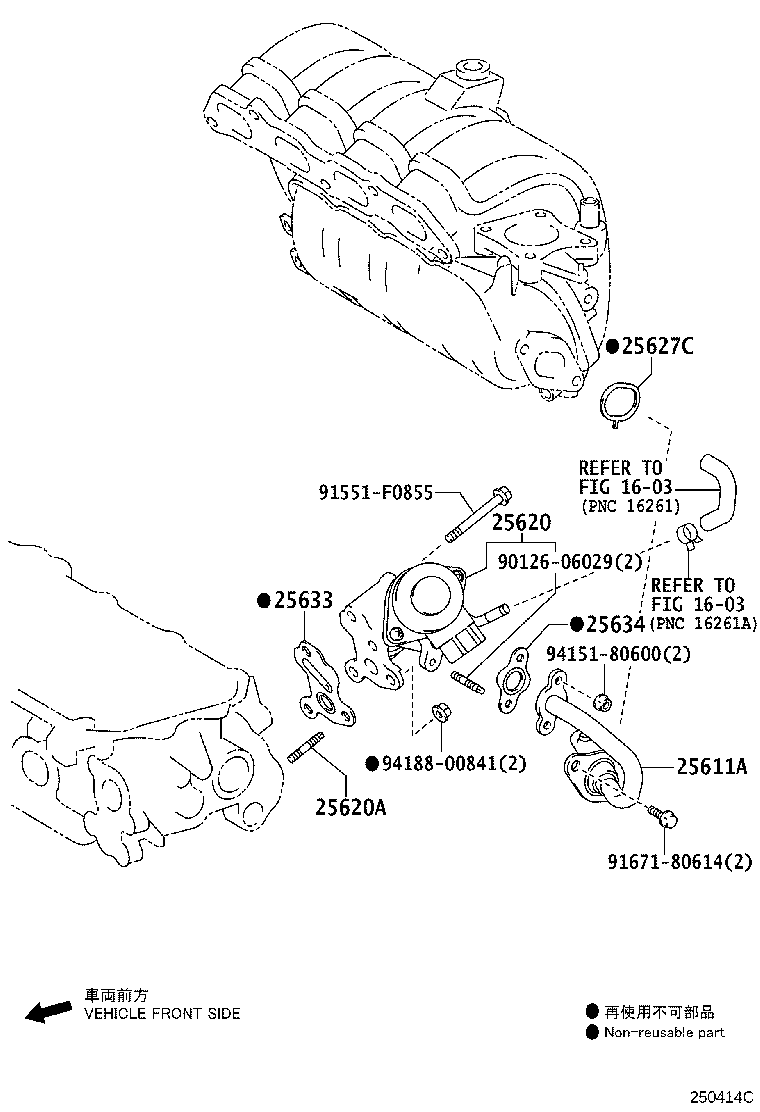

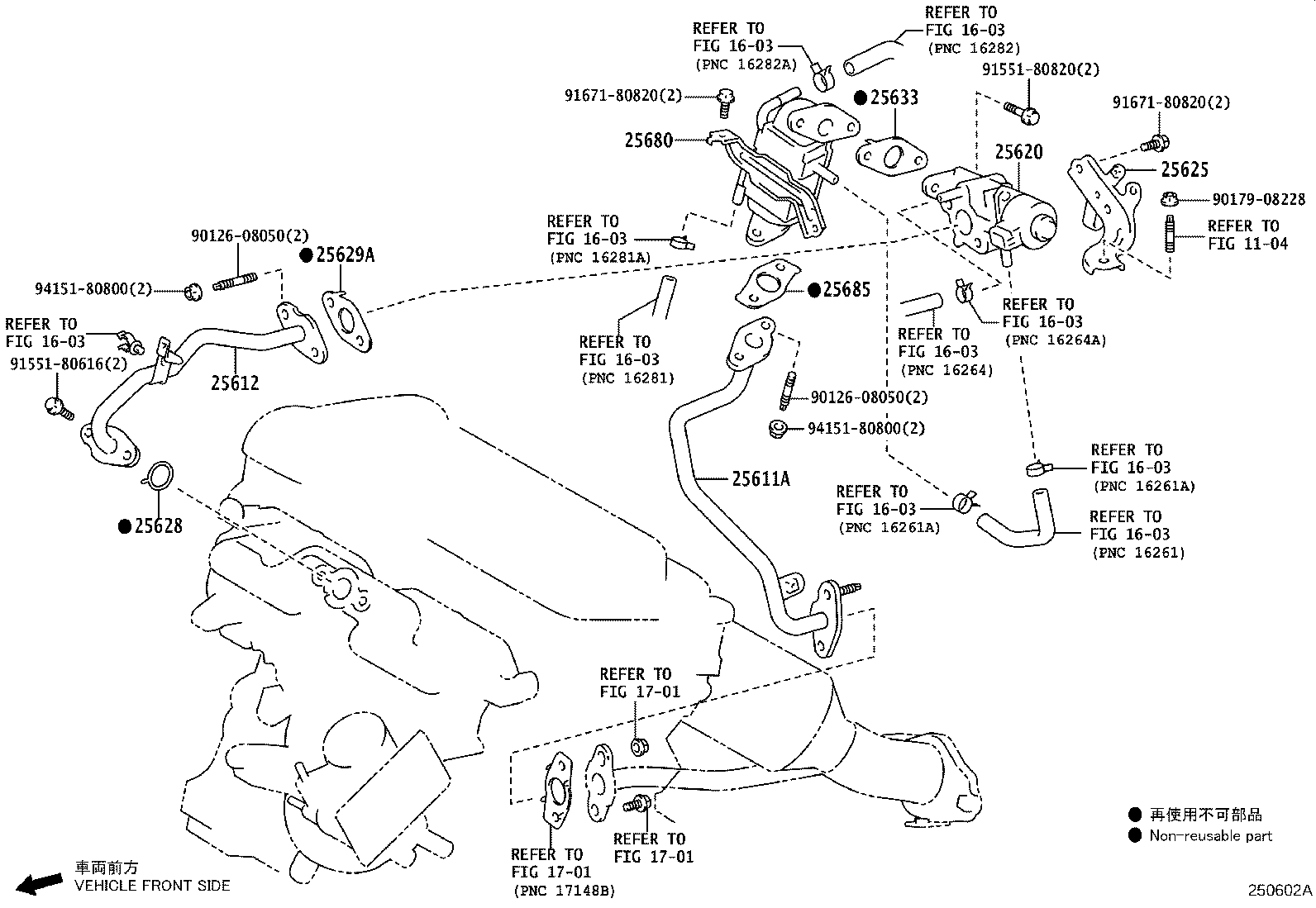

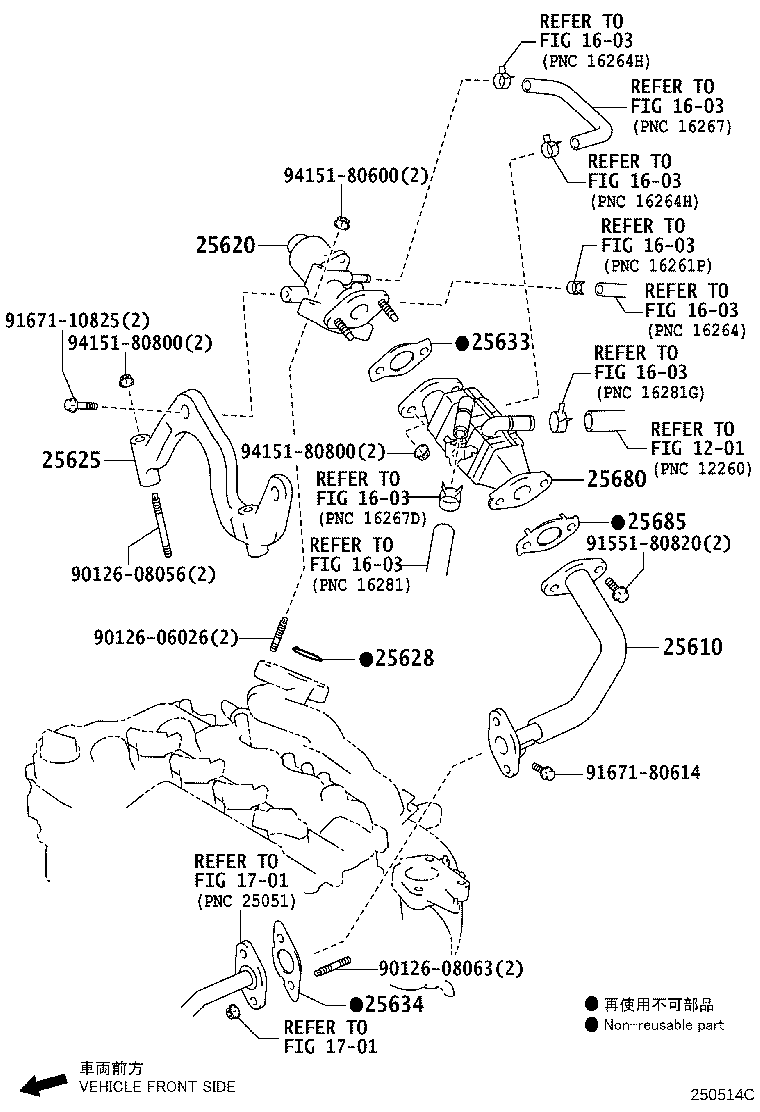

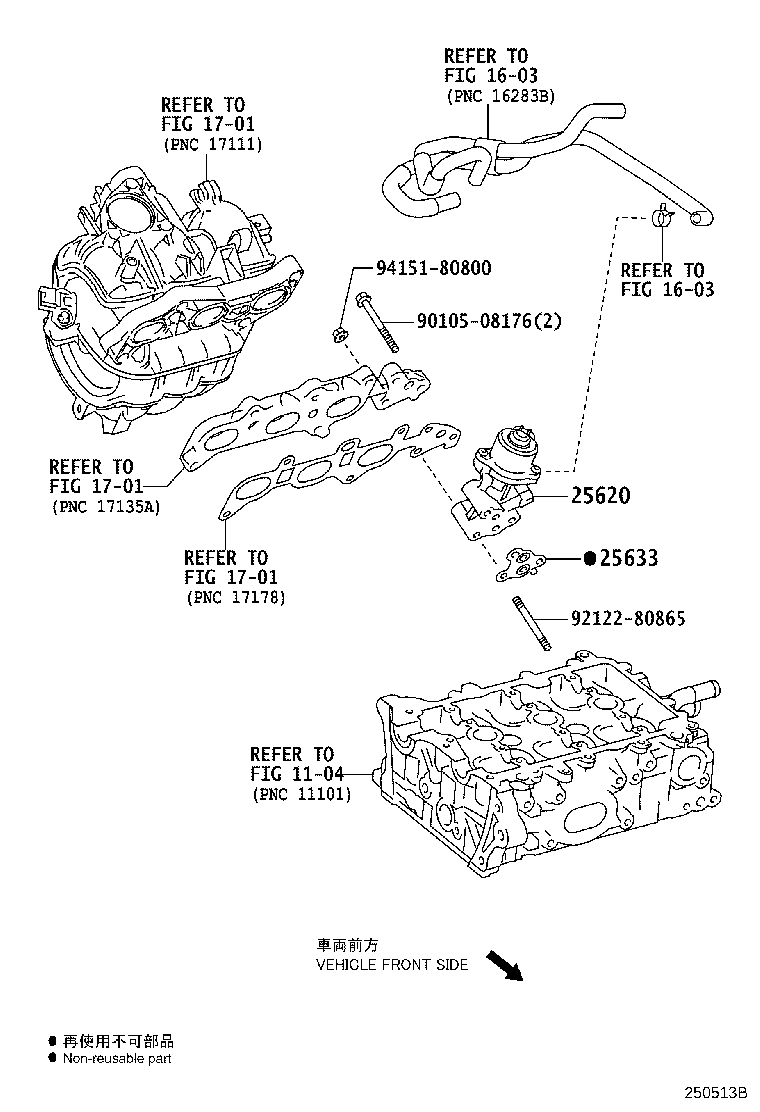

Figure 250412D 250412D 2010-12 → 2014-04 Figure 250513B 250513B 2014-04 → — Figure 250413E 250413E 2010-12 → — Figure 250414C 250414C 2010-12 → — Figure 250514C 250514C 2014-04 → — Figure 250602A 250602A 2017-01 → —

Part groups

PNCDescription
25610 Pipe Assy, Egr
25611A Pipe, Egr, NO.1
25612 Pipe, Egr, NO.2
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25625 Bracket, Egr Valve
25627C Gasket(FOR EGR PIPE NO.2)
25628 Gasket, Egr Inlet
25629A Gasket, Egr Pipe, NO.2
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25638 Chamber, Egr Delivery
25680 Cooler Assy, Egr
25685 Gasket, Egr Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
