Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

8 part groups · 3 illustrations

Illustrations

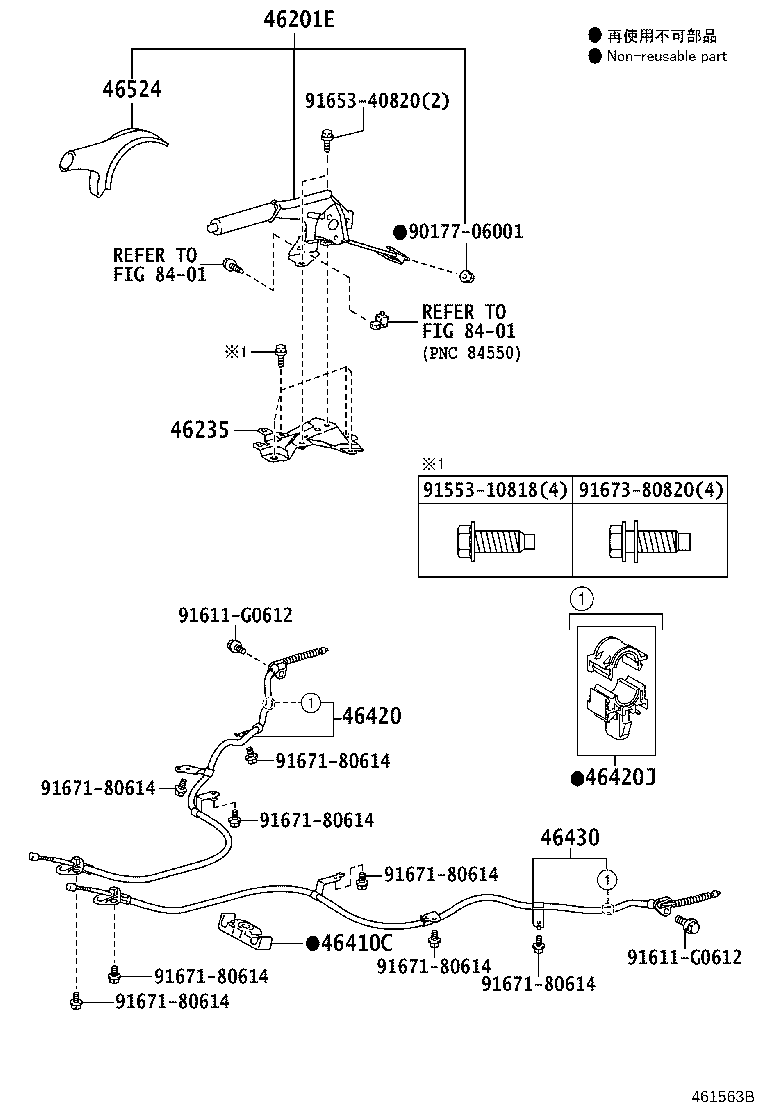

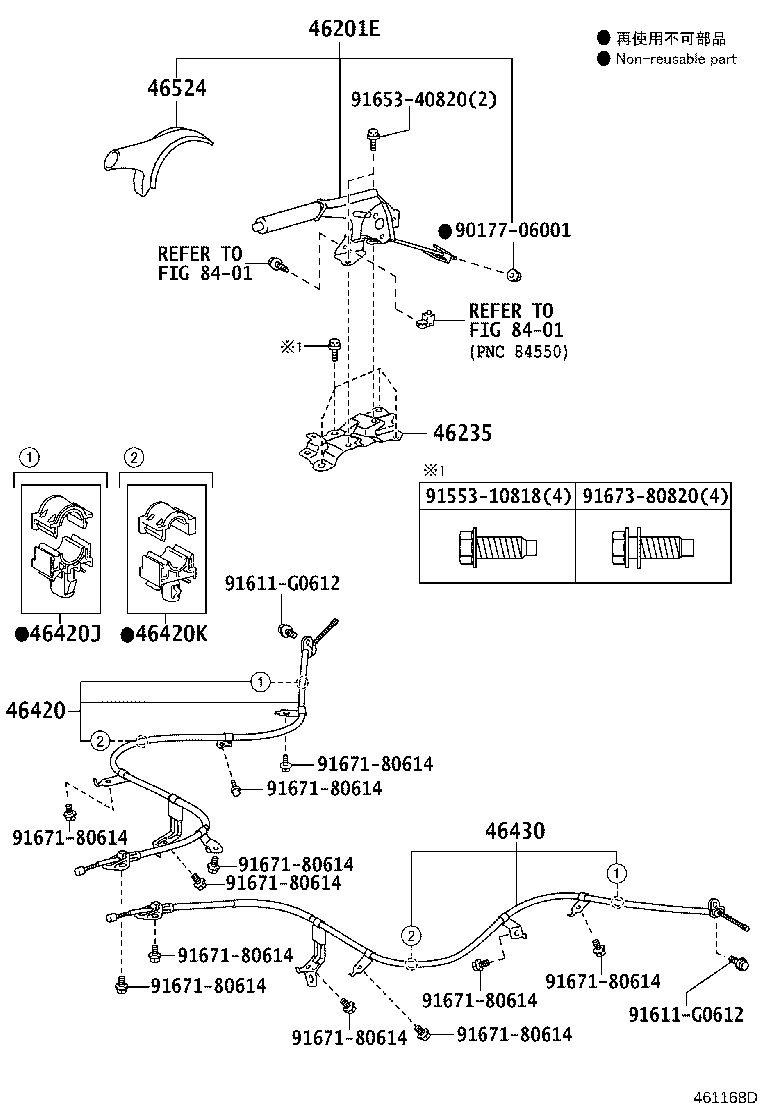

Figure 461167D 461167D 2010-12 → — Figure 461168D 461168D 2010-12 → — Figure 461563B 461563B 2017-01 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46235 Bracket, Parking Brake Lever Support
46410C Clamp(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46420J Clamp, NO.3(FOR PARKING BRAKE CABLE)
46420K Clamp, NO.4(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46524 Cover, Parking Brake Dust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
