Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

21 part groups · 6 illustrations

Illustrations

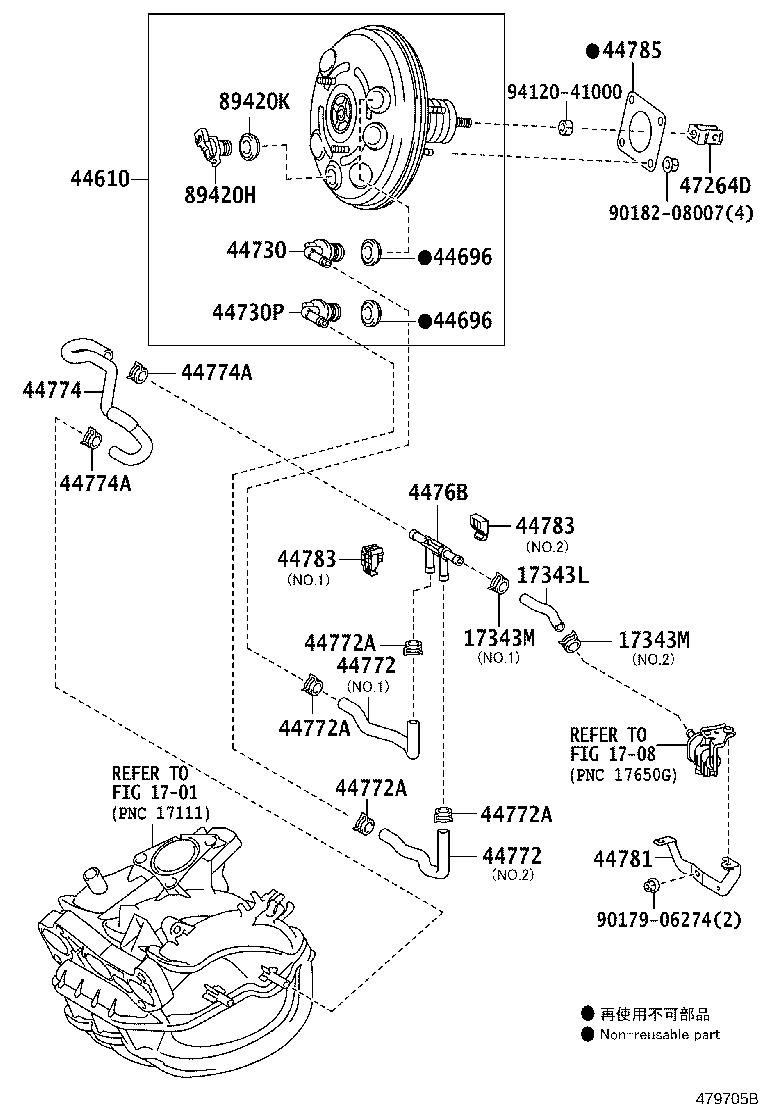

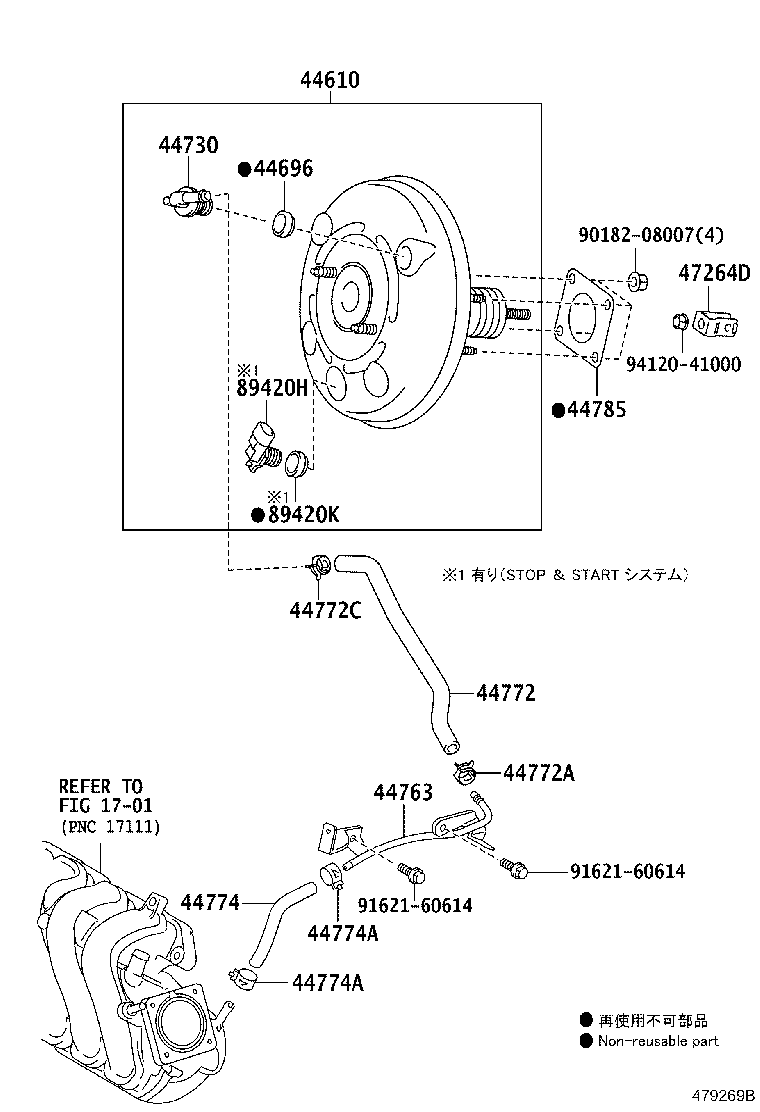

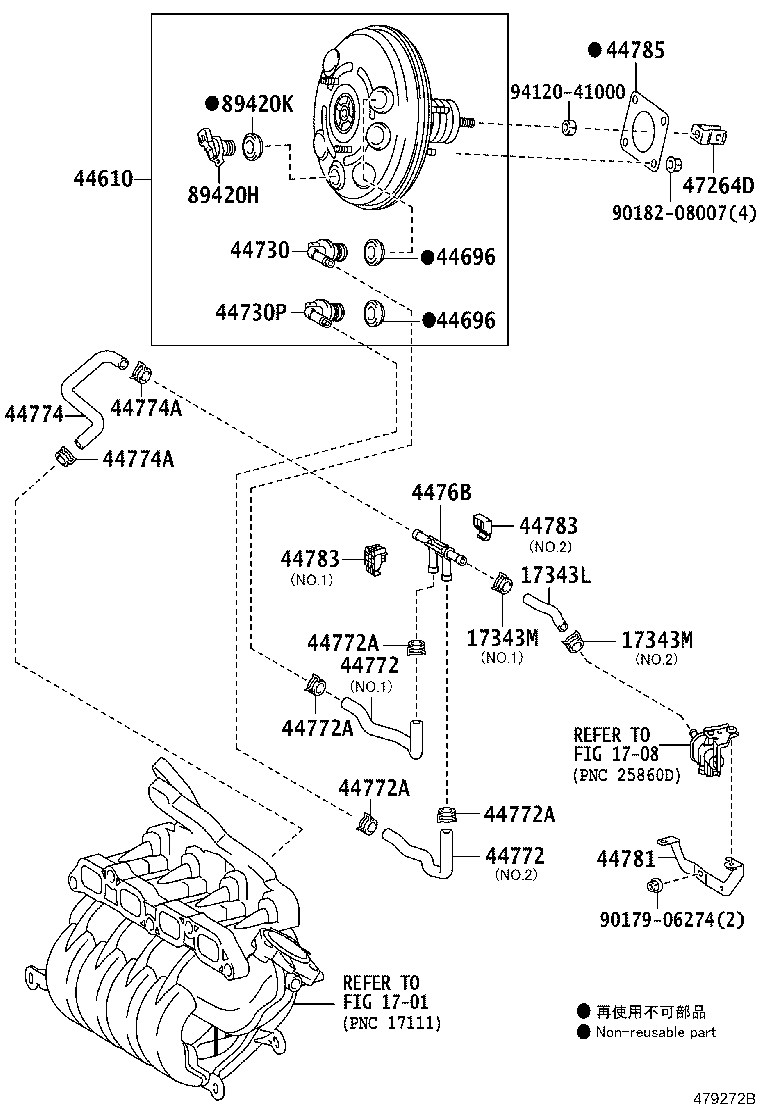

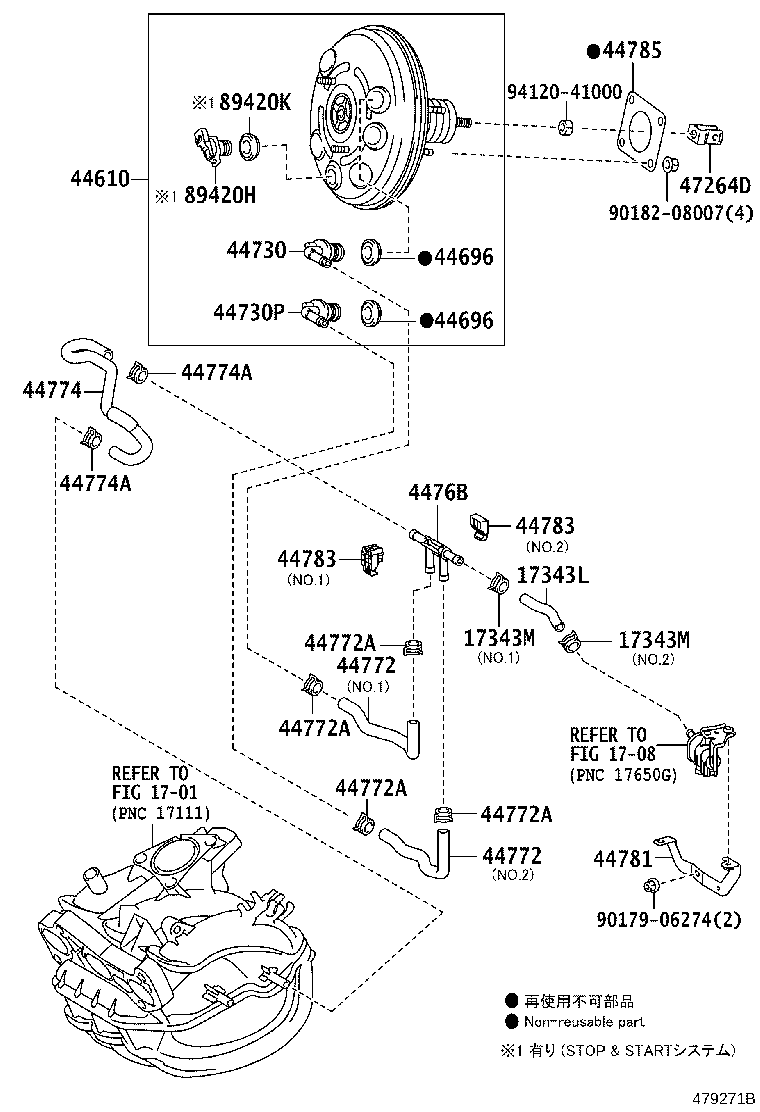

Figure 477444E 477444E 2010-12 → 2014-04 Figure 479271B 479271B 2014-04 → 2015-07 Figure 479705B 479705B 2015-07 → — Figure 479269B 479269B 2010-12 → — Figure 479272B 479272B 2014-04 → — Figure 479270A 479270A 2014-04 → —

Part groups

PNCDescription
17343L Hose, Air, NO.3
17343M Clip(FOR AIR HOSE NO.3)
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730P Valve Assy, Vacuum Check, NO.1
44763 Tube, Booster Vacuum
4476B Ejector, Brake Booster Vacuum
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44781 Bracket, Hose
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
89420H Sensor Assy, Vacuum
89420K Grommet, Vacuum Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
