Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

52 part groups · 10 illustrations

Illustrations

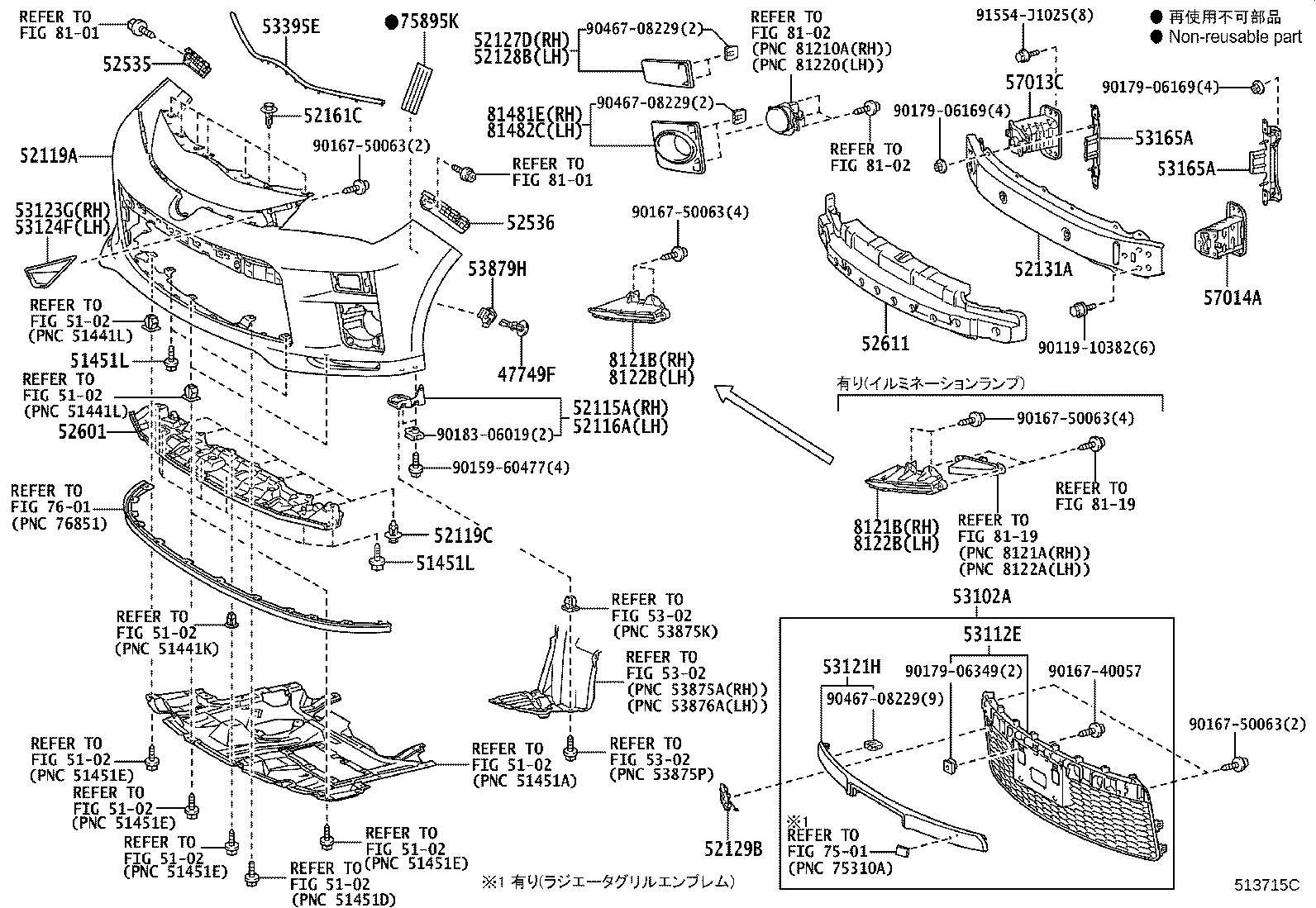

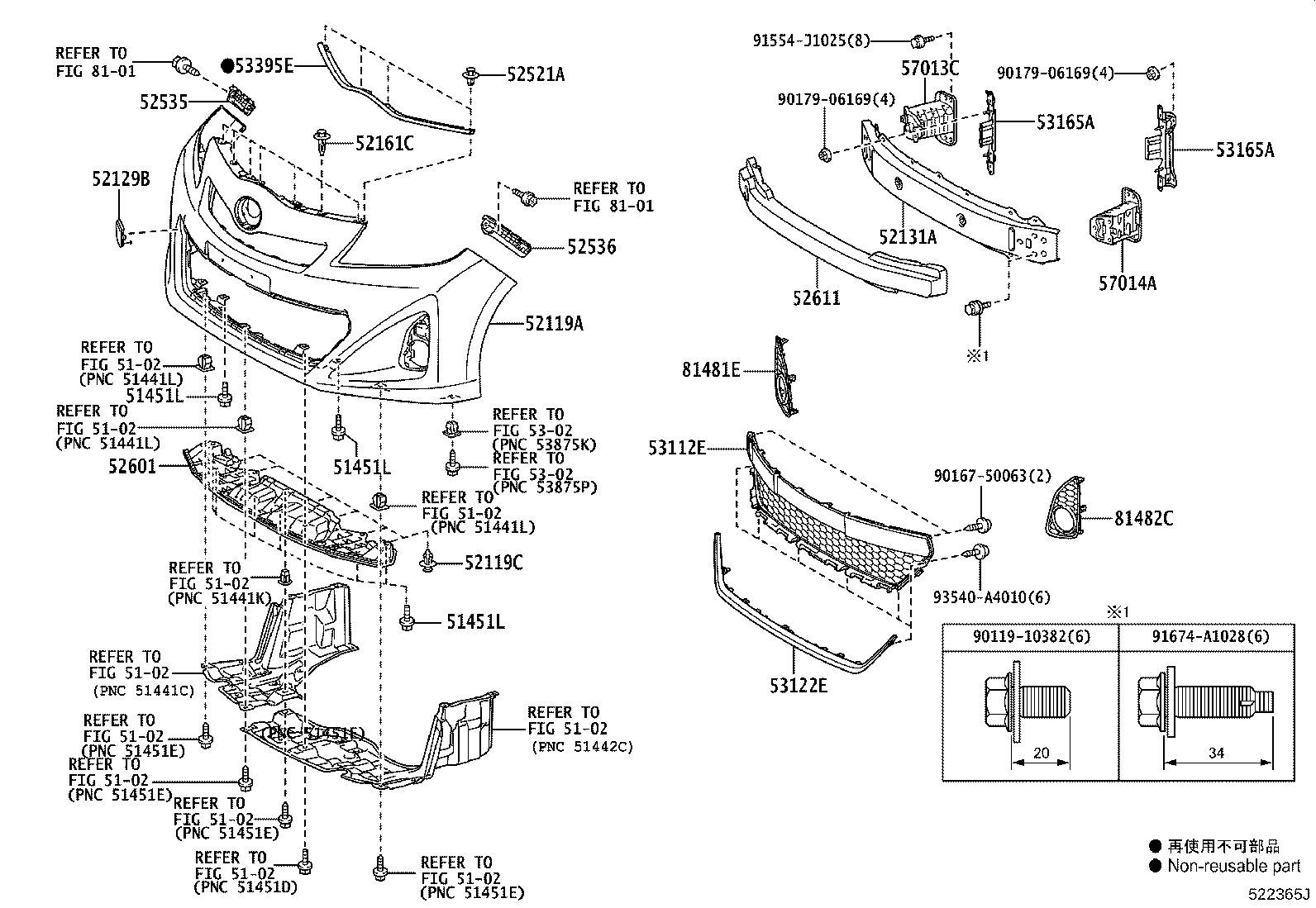

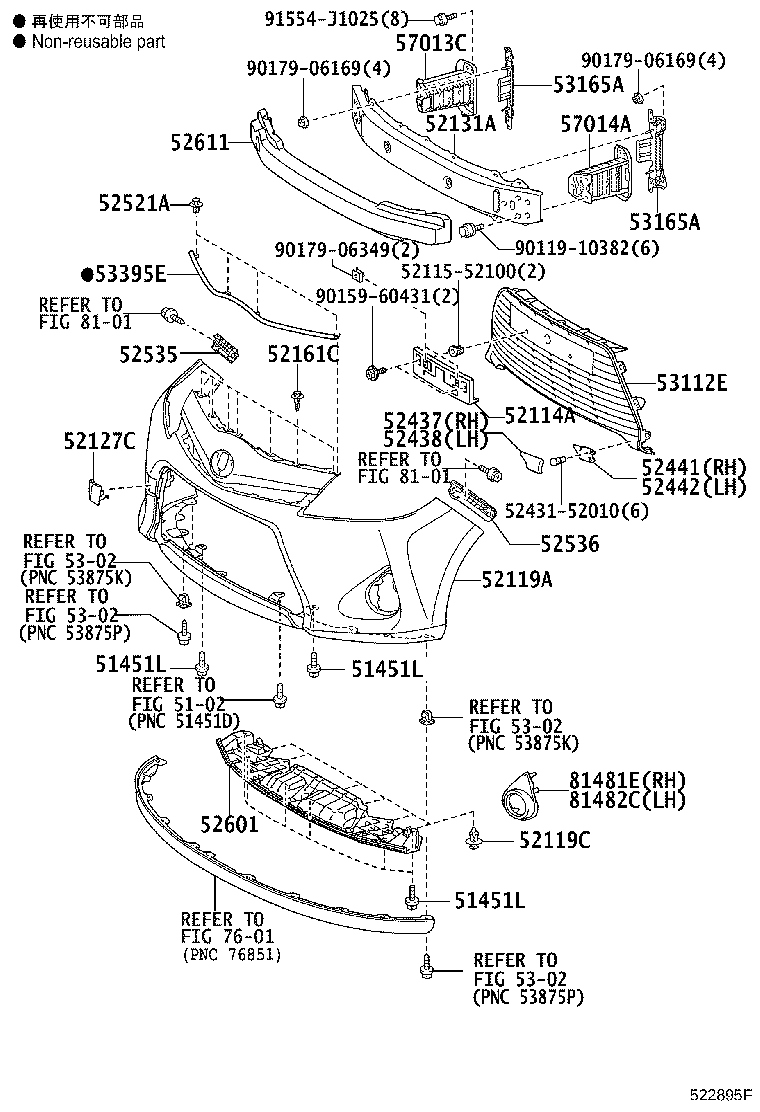

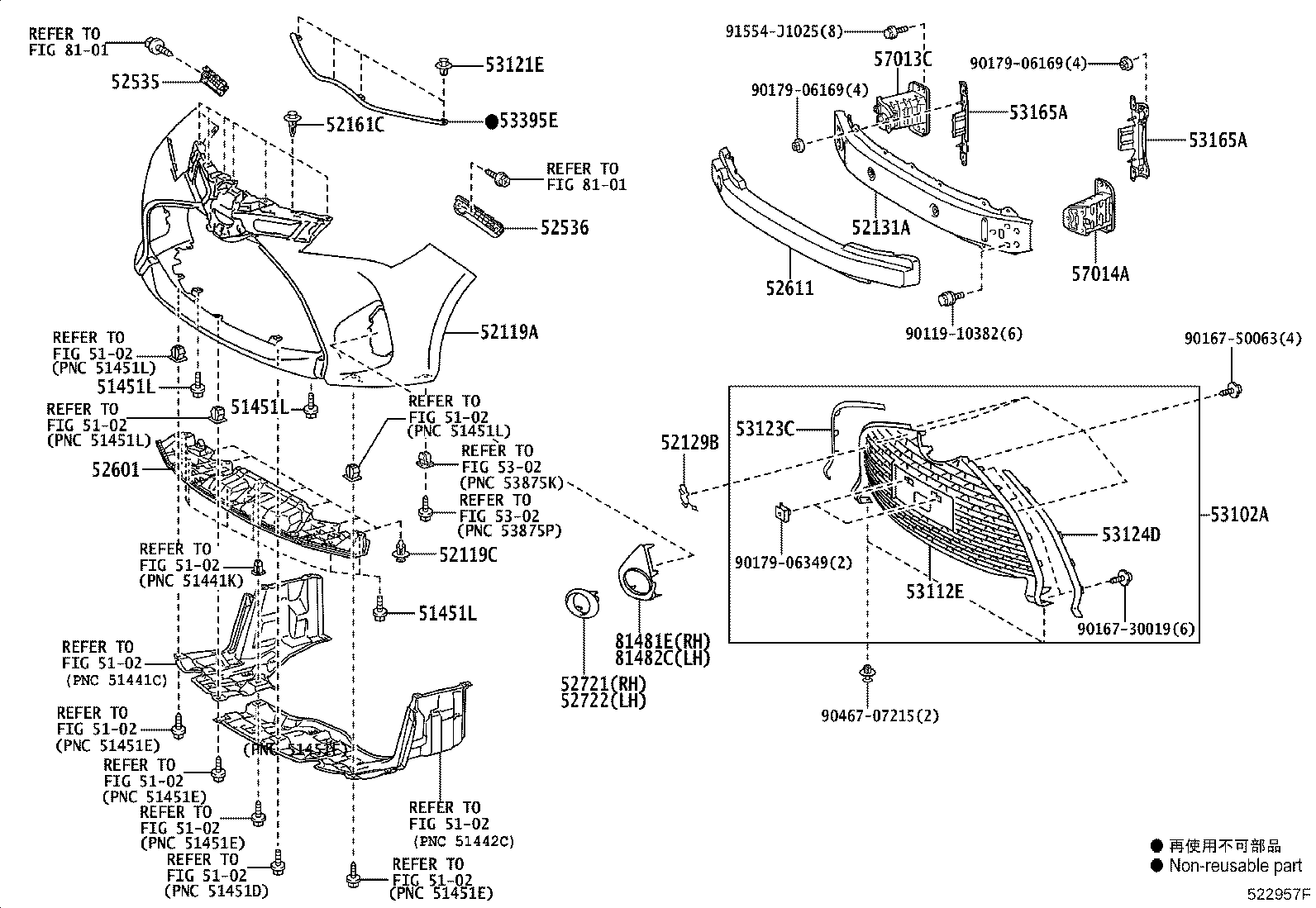

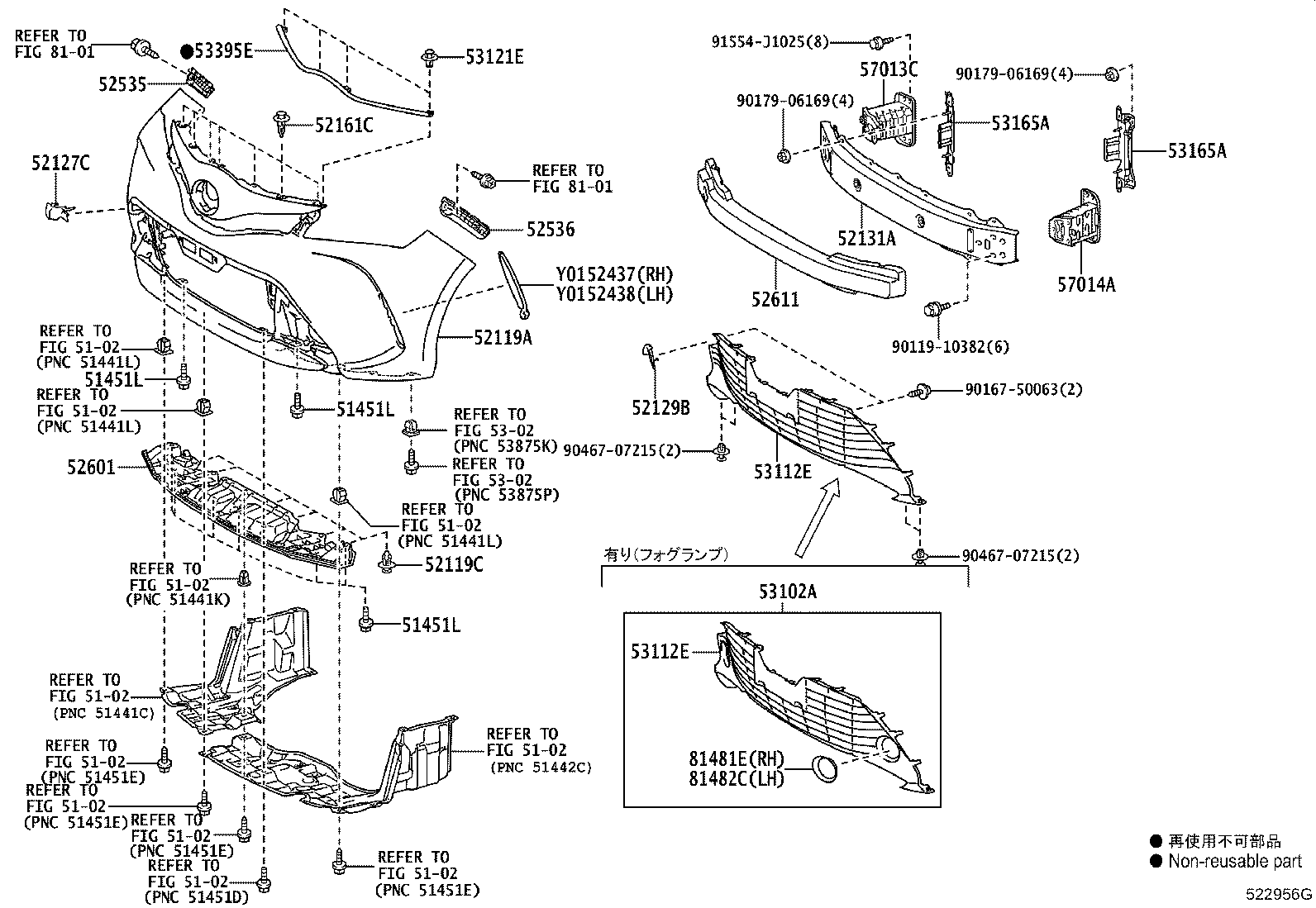

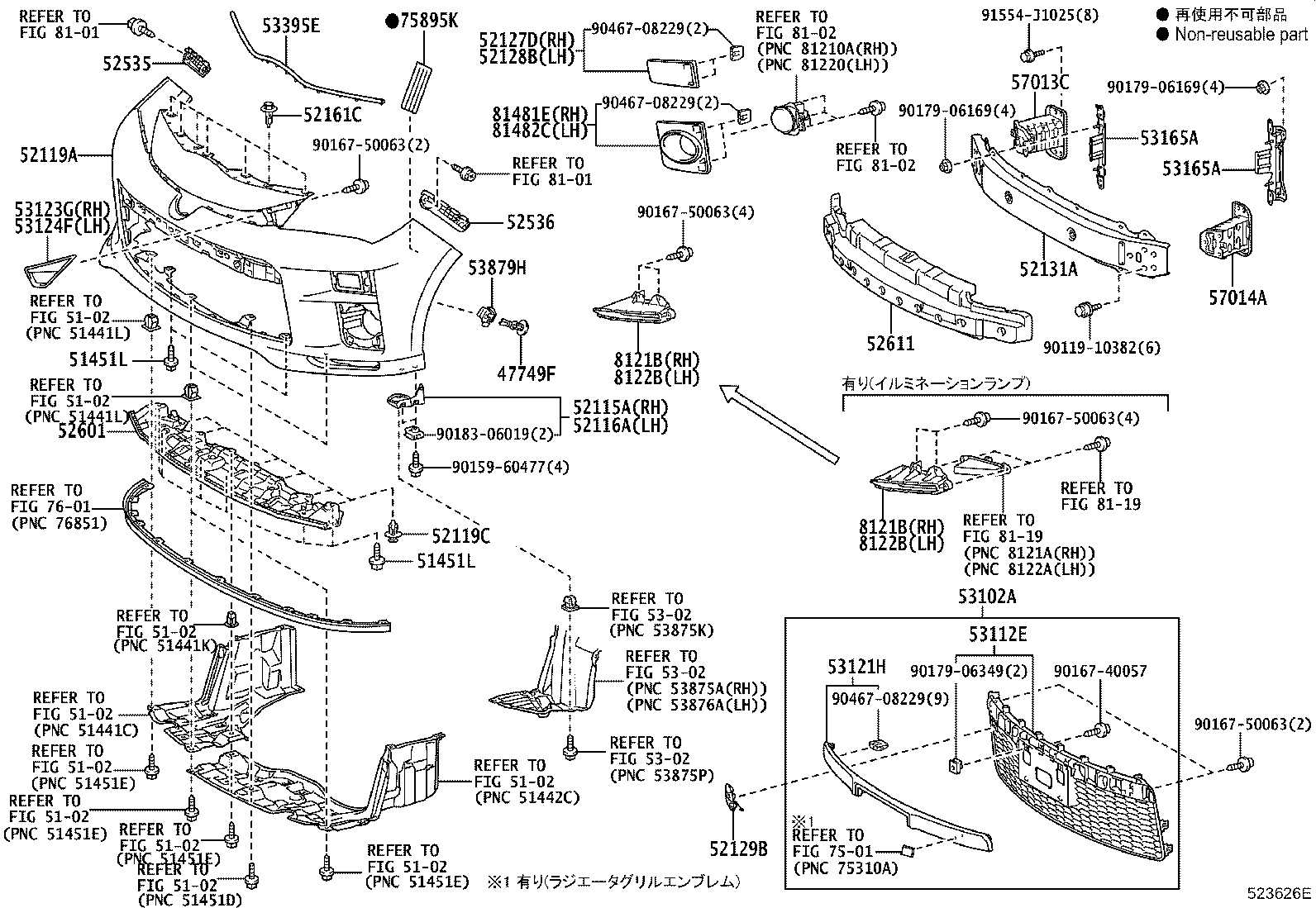

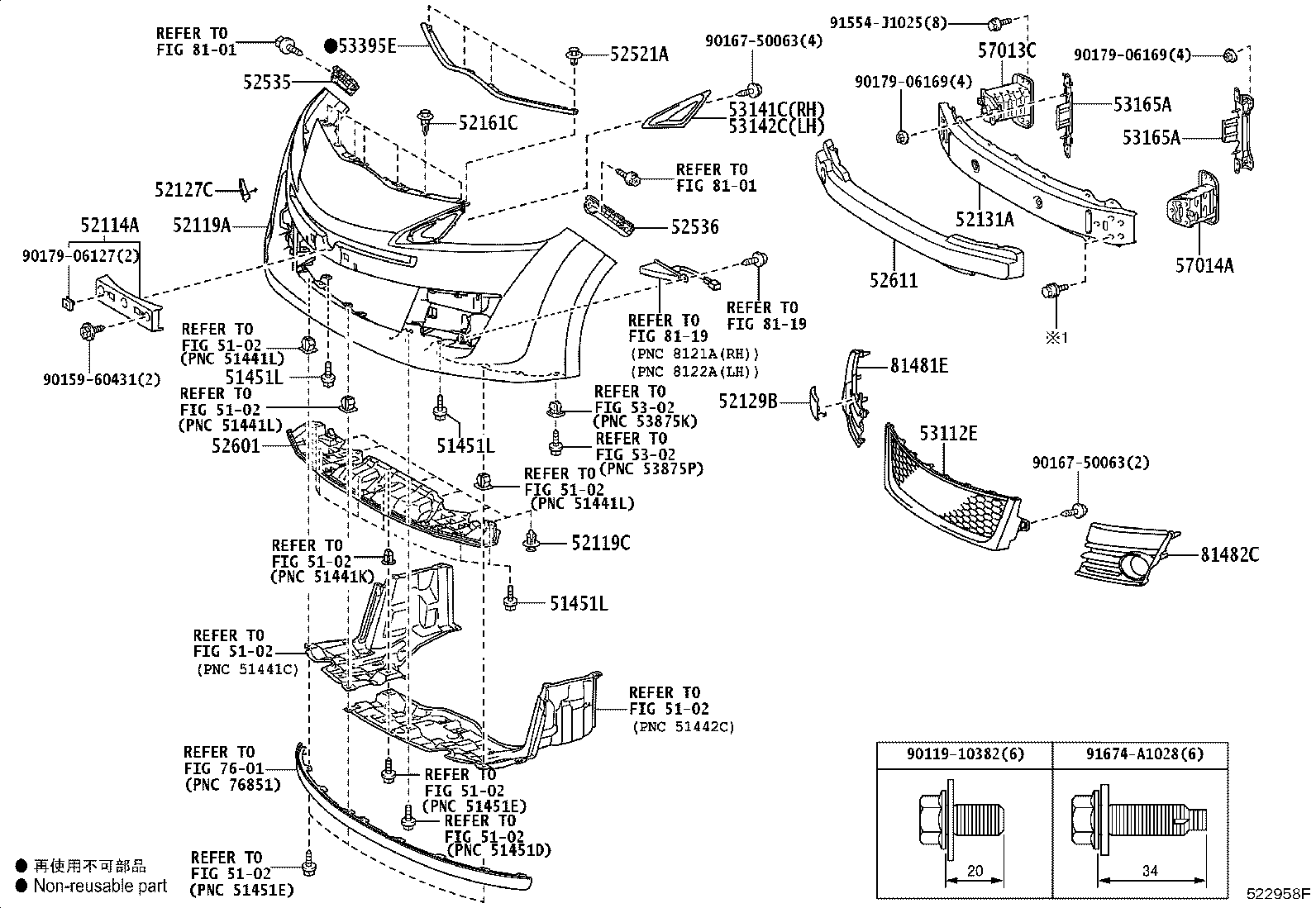

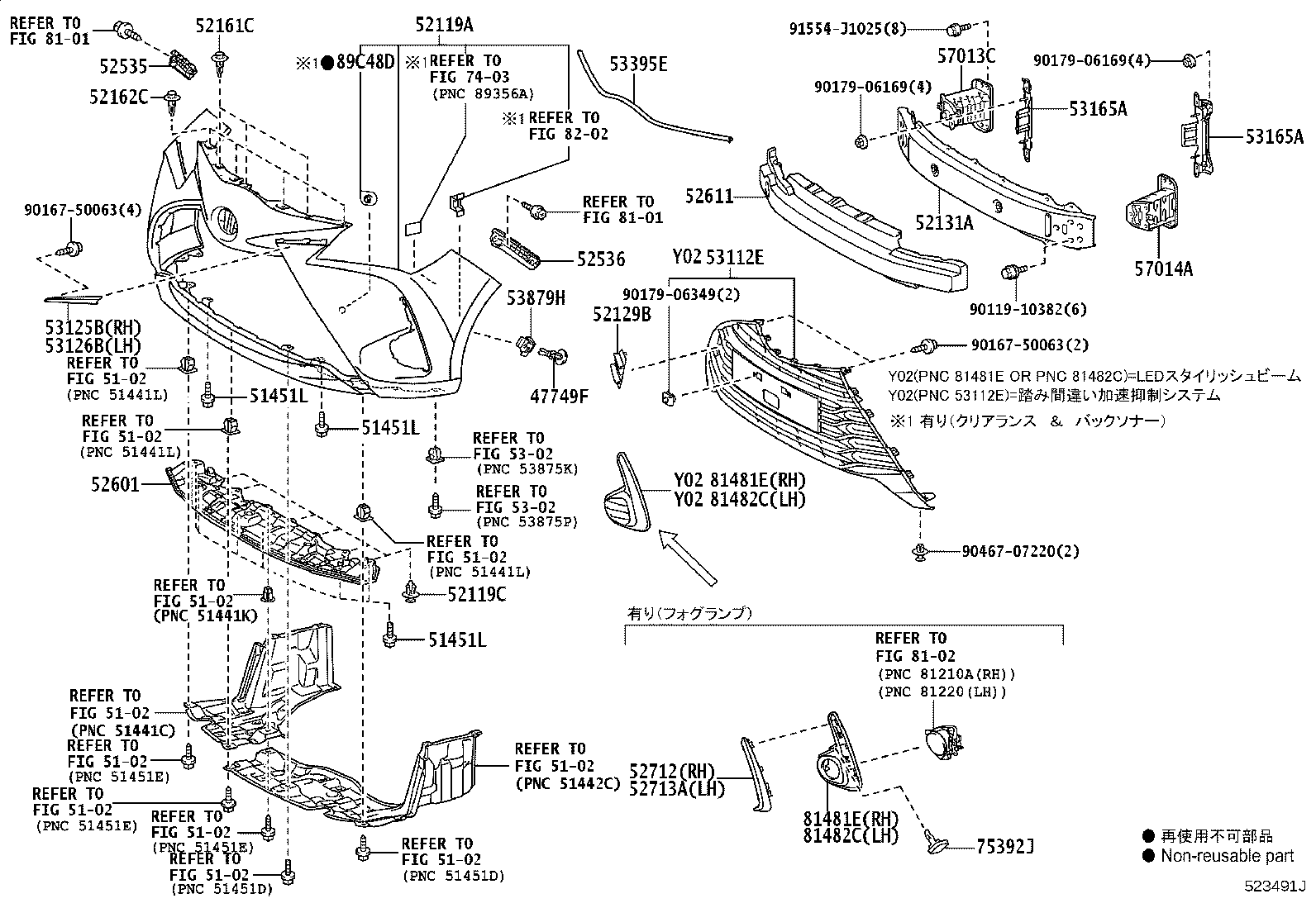

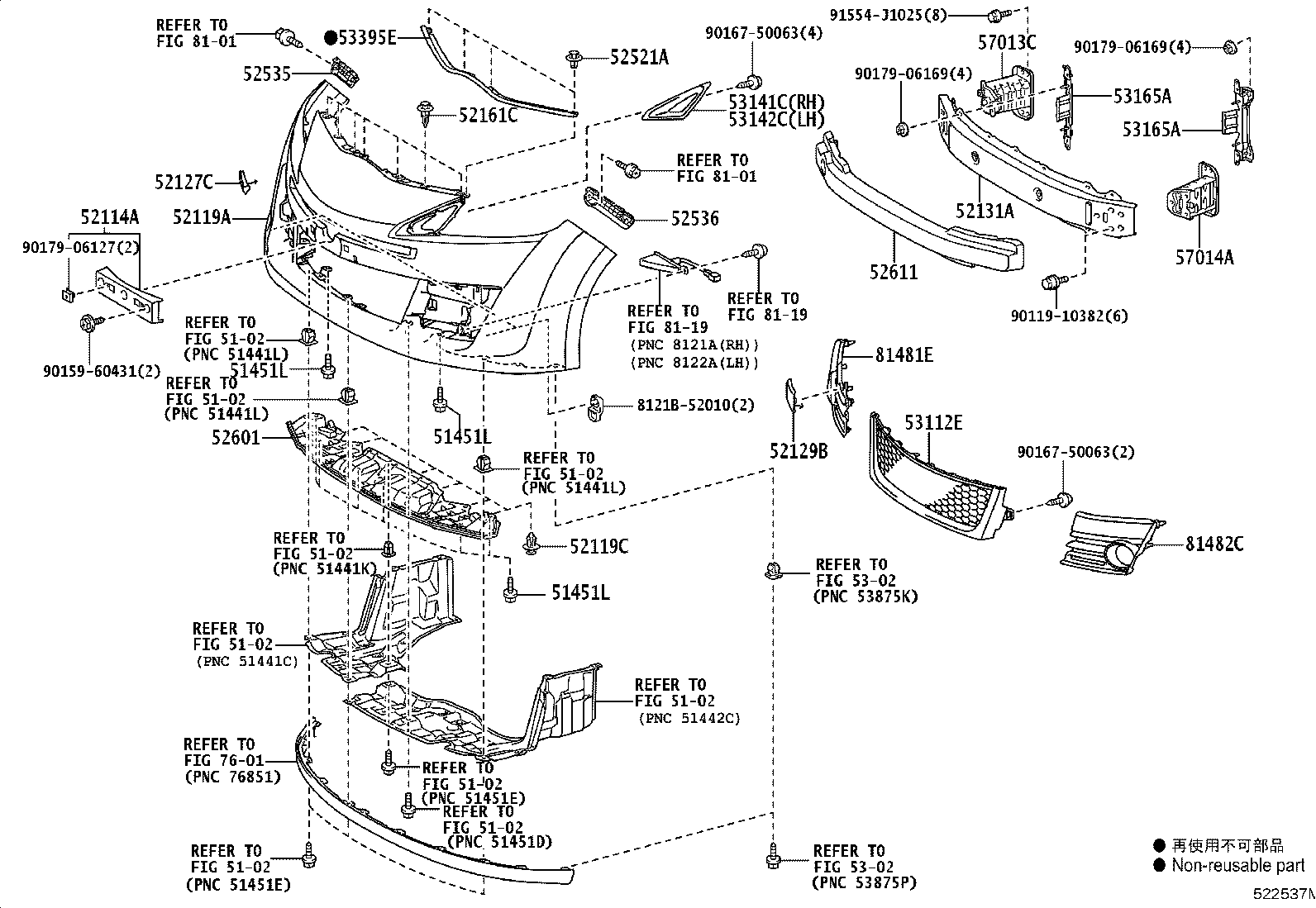

Figure 522369H 522369H 2010-12 → 2014-04 Figure 522956G 522956G 2014-04 → 2017-01 Figure 522365J 522365J 2010-12 → 2014-04 Figure 522957F 522957F 2014-04 → 2017-01 Figure 522958F 522958F 2010-12 → 2014-04 Figure 522537M 522537M 2014-04 → 2017-01 Figure 522895F 522895F 2013-09 → 2014-02 Figure 523491J 523491J 2017-01 → — Figure 523626E 523626E 2017-09 → — Figure 523715C 523715C 2017-09 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451L Bolt, NO.1
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52162C Piece, Front Bumper
52437 Cover, Front Bumper Guard, RH
52438 Cover, Front Bumper Guard, LH
52441 Base, Front Bumper Guard, NO.1 RH
52442 Base, Front Bumper Guard, NO.1 LH
52521A Clip(FOR FRONT BUMPER RETAINER)
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52601 Absorber Sub-assy, Front Bumper Energy
52611 Absorber, Front Bumper Energy
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
53102A Grille Sub-assy, Radiator, Lwr
53112E Grille, Radiator, Lower NO.1
53121E Clip(FOR FRONT BUMPER), NO.1
53121H Moulding, Radiator Grille, NO.1
53122E Moulding, Radiator Grille, Lower
53123C Moulding, Radiator Grille, Lower RH
53123G Moulding, Radiator Grille Side, RH
53124D Moulding, Radiator Grille, Lower LH
53124F Moulding, Radiator Grille Side, LH
53125B Moulding, Radiator Grille, Center RH
53126B Moulding, Radiator Grille, Center LH
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
53165A Bracket, Front Bumper Stone Deflector, NO.1
53395E Seal, Hood TO Front End Panel
53879H Retainer, Front Fender Liner
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
75392J Retainer, Outside Moulding
75895K Tape, Moulding, NO.1
8121B Bracket, Illumination Lamp, RH
8122B Bracket, Illumination Lamp, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
