Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

20 part groups · 5 illustrations

Illustrations

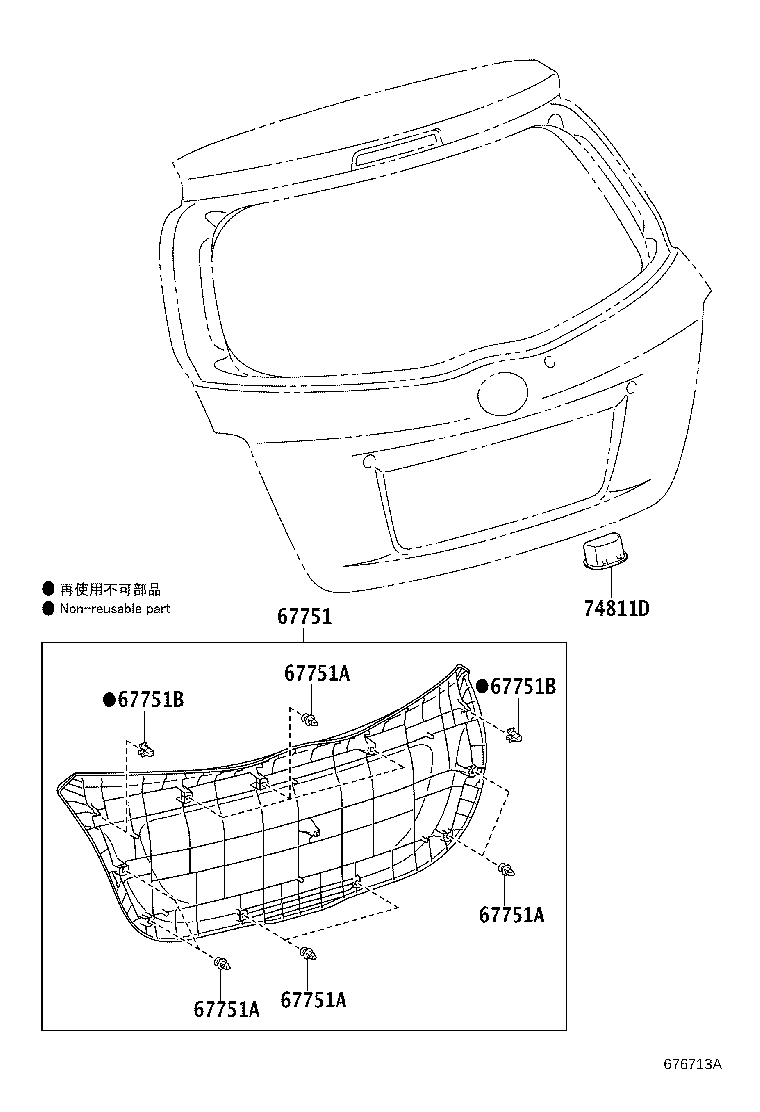

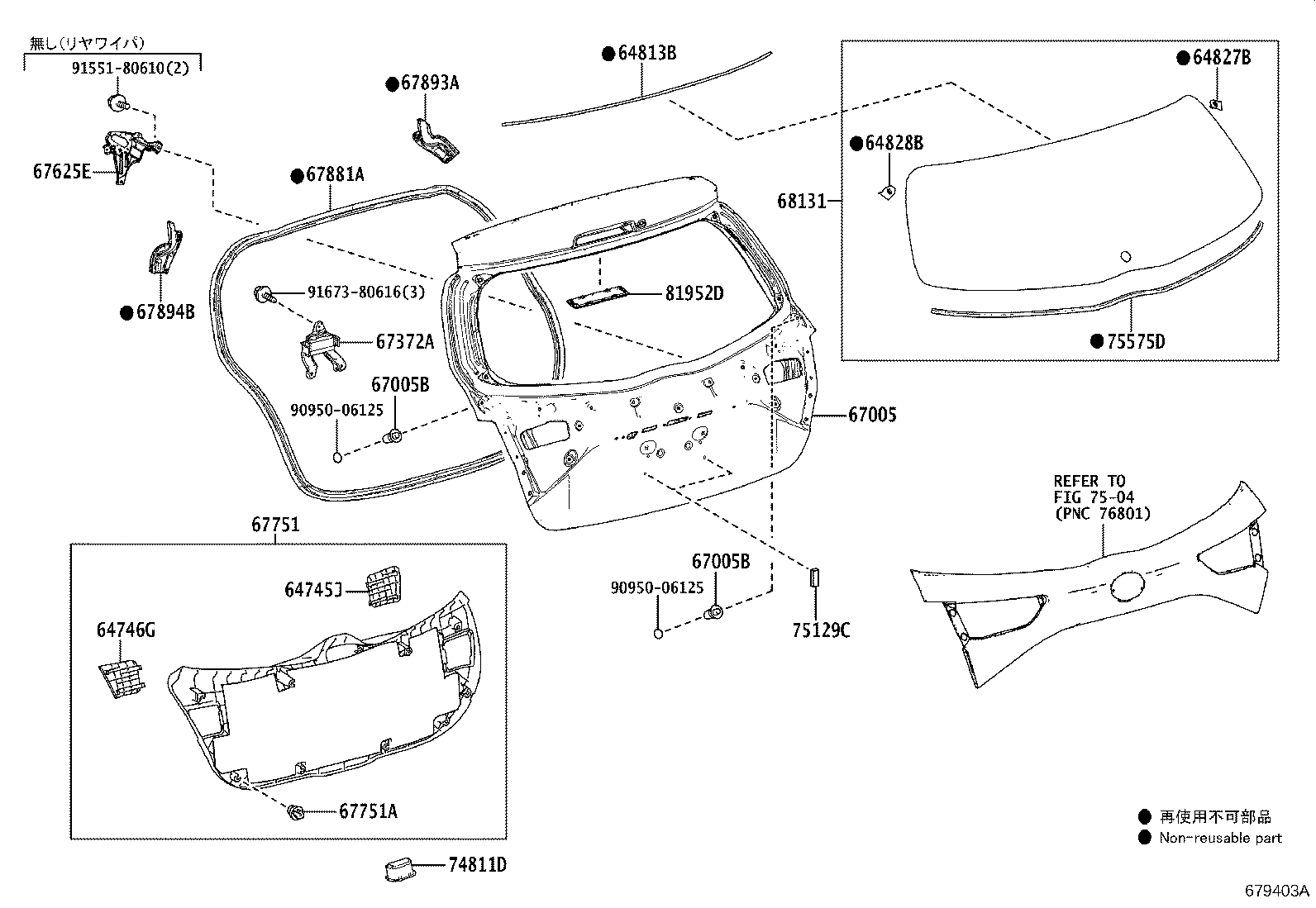

Figure 676712D 676712D 2010-12 → 2017-01 Figure 676712D 676712D 2017-09 → — Figure 676713A 676713A 2010-12 → 2017-01 Figure 676713A 676713A 2017-09 → — Figure 679403A 679403A 2017-01 → —

Part groups

PNCDescription
64745J Cover, Rear Combination Lamp Service, RH
64746G Cover, Rear Combination Lamp Service, LH
64813B Dam, Back Window Glass Adhesive
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67372A Weight, Back Door
67625E Bracket, Back Door
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67751B Retainer(FOR BACK DOOR TRIM BOARD)
67881A Weatherstrip, Back Door
67893A Protector, Back Door Panel, NO.1
67894B Protector, Back Door Panel, NO.2
68131 Glass, Back Door
74811D Handle, Door Pull
75129C Cushion, Rear Licence Plate
75575D Moulding, Back Window, Lower
81952D Cover, Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
