Toyota Vitz
2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan
Supported model
Data version 2020-02

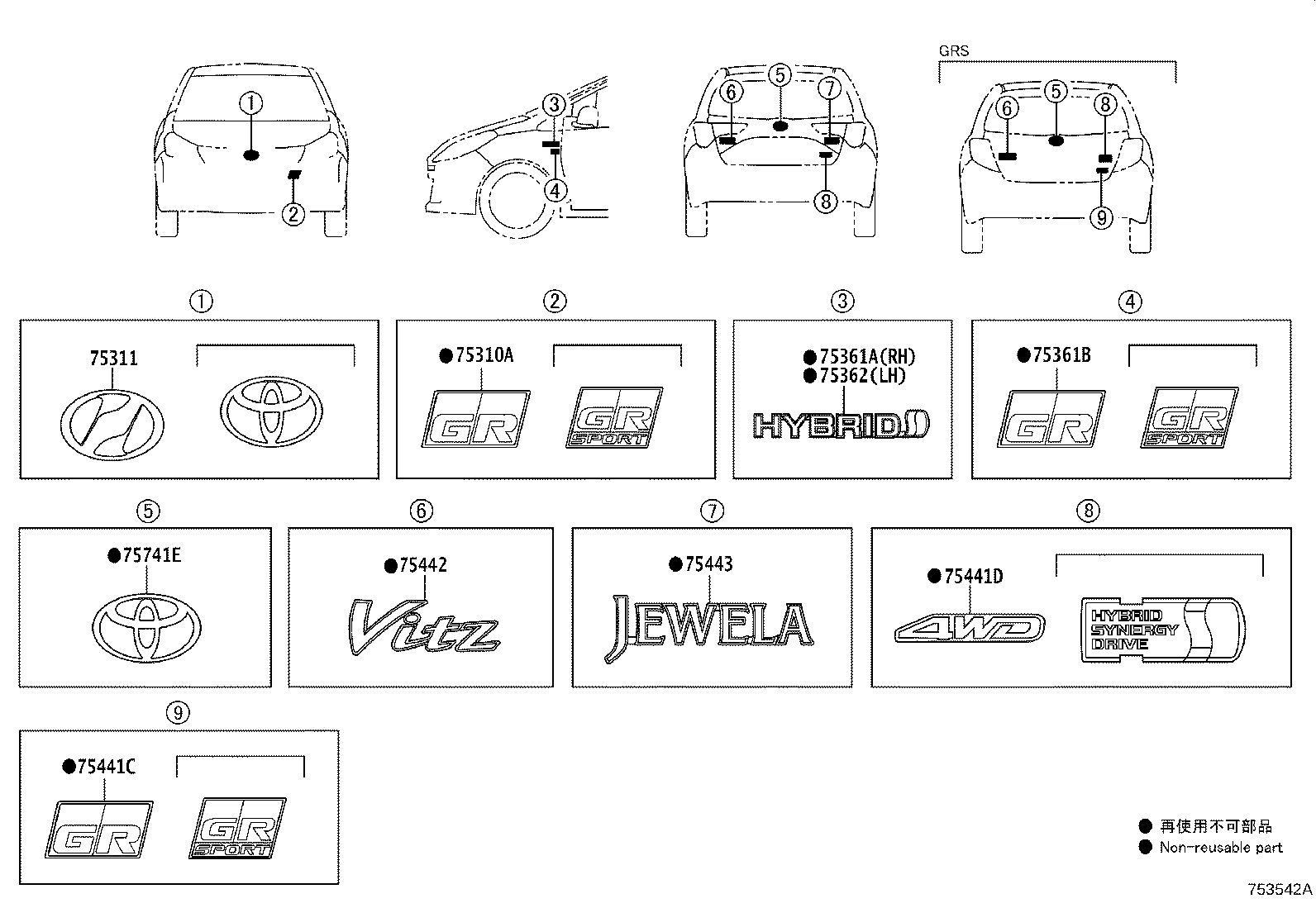

Emblem & Name Plate (EXTERIOR & INTERIOR)
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75310A | Emblem Assy, Radiator Grille |
| 75311 | Emblem, Radiator Grille (OR FRONT PANEL) |
| 75361A | Plate, Front Fender Name, NO.1 |
| 75361B | Plate, Side Panel Name |
| 75362 | Plate, Front Fender Name, NO.2 |
| 75441C | Plate, Back Door Name |
| 75441D | Plate, Luggage Compartment Door Name, NO.1 |
| 75442 | Plate, Luggage Compartment Door Name, NO.2 |
| 75443 | Plate, Back Door Name, NO.3 |
| 75741E | Emblem, Symbol |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
