Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

37 part groups · 9 illustrations

Illustrations

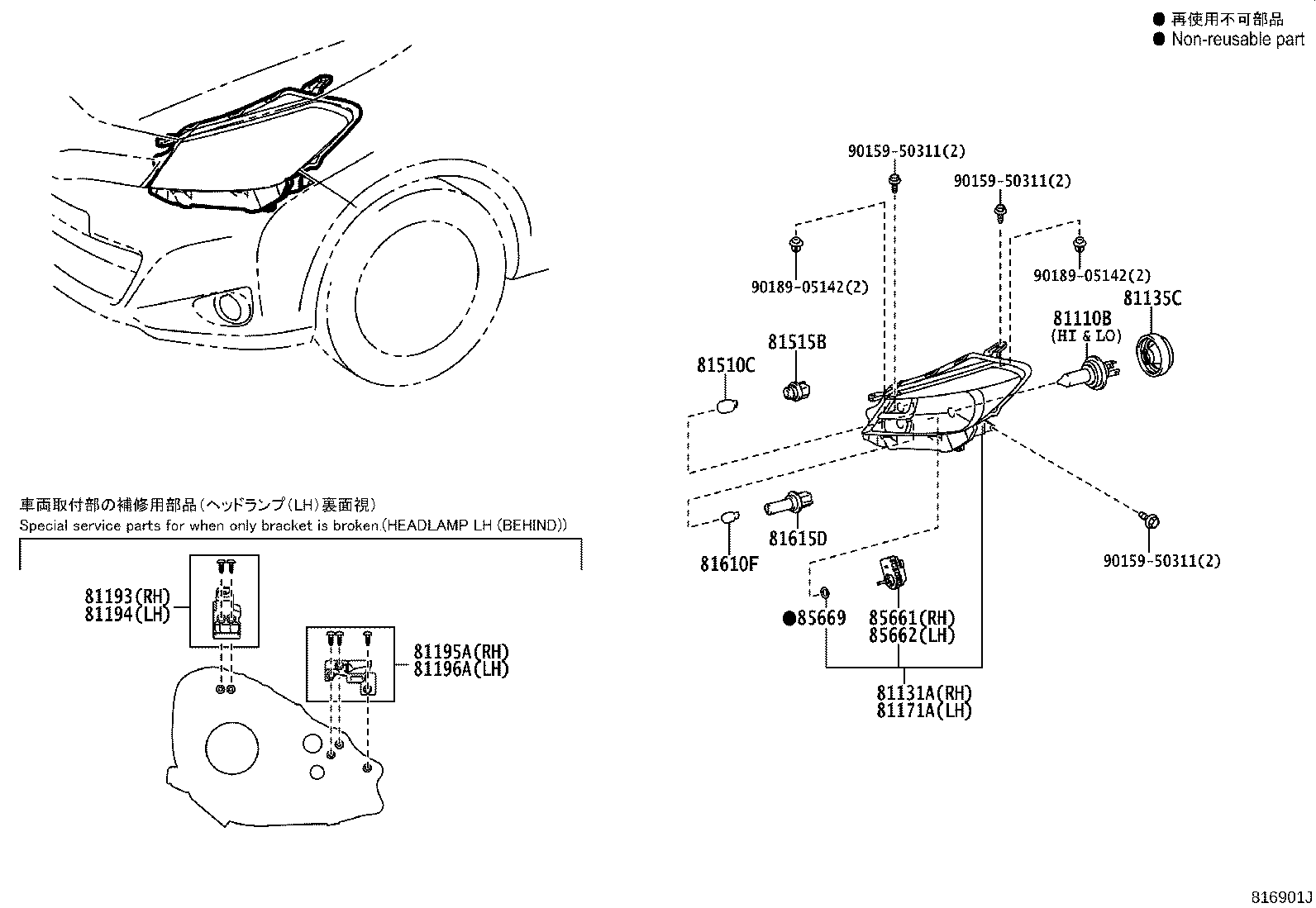

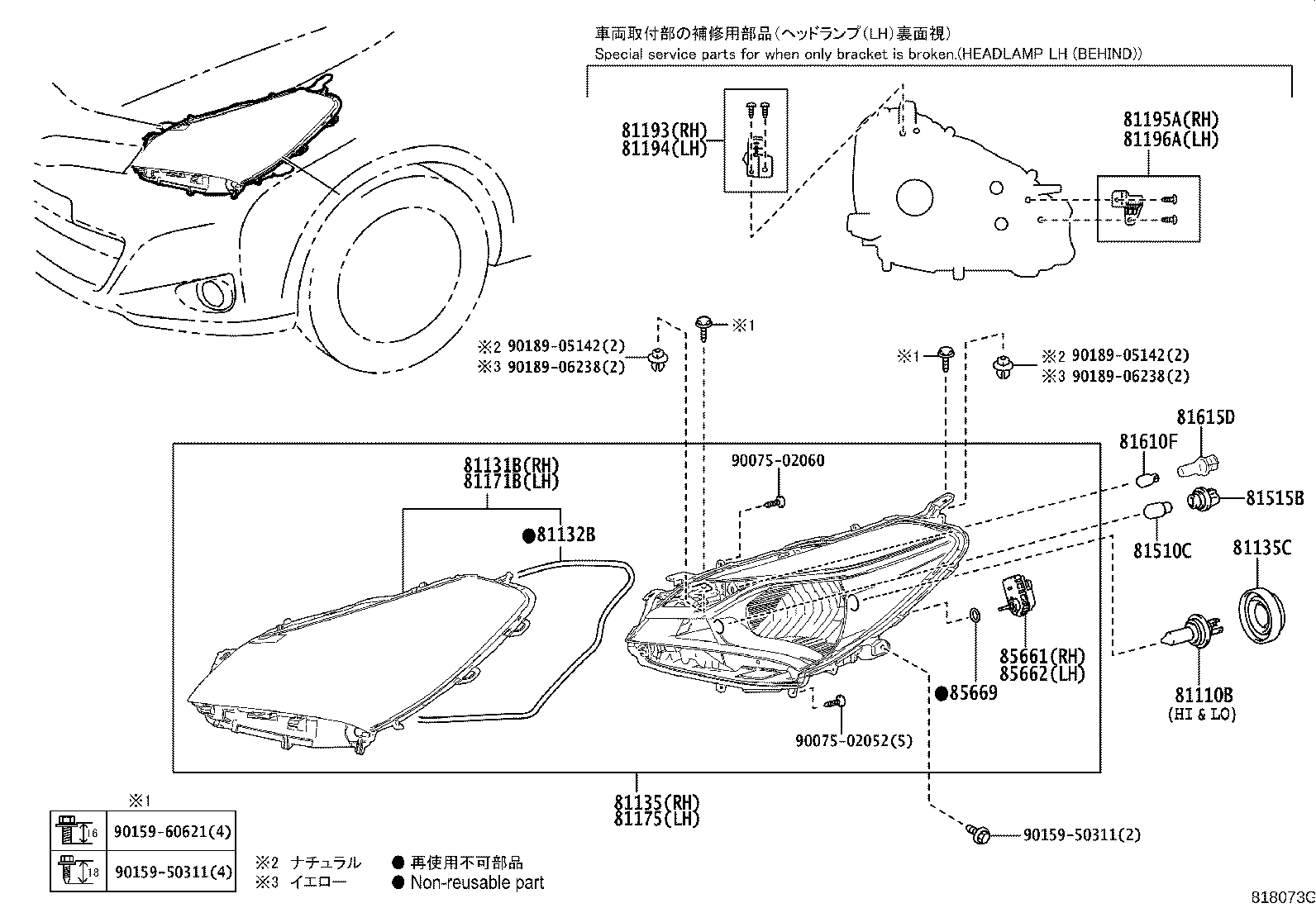

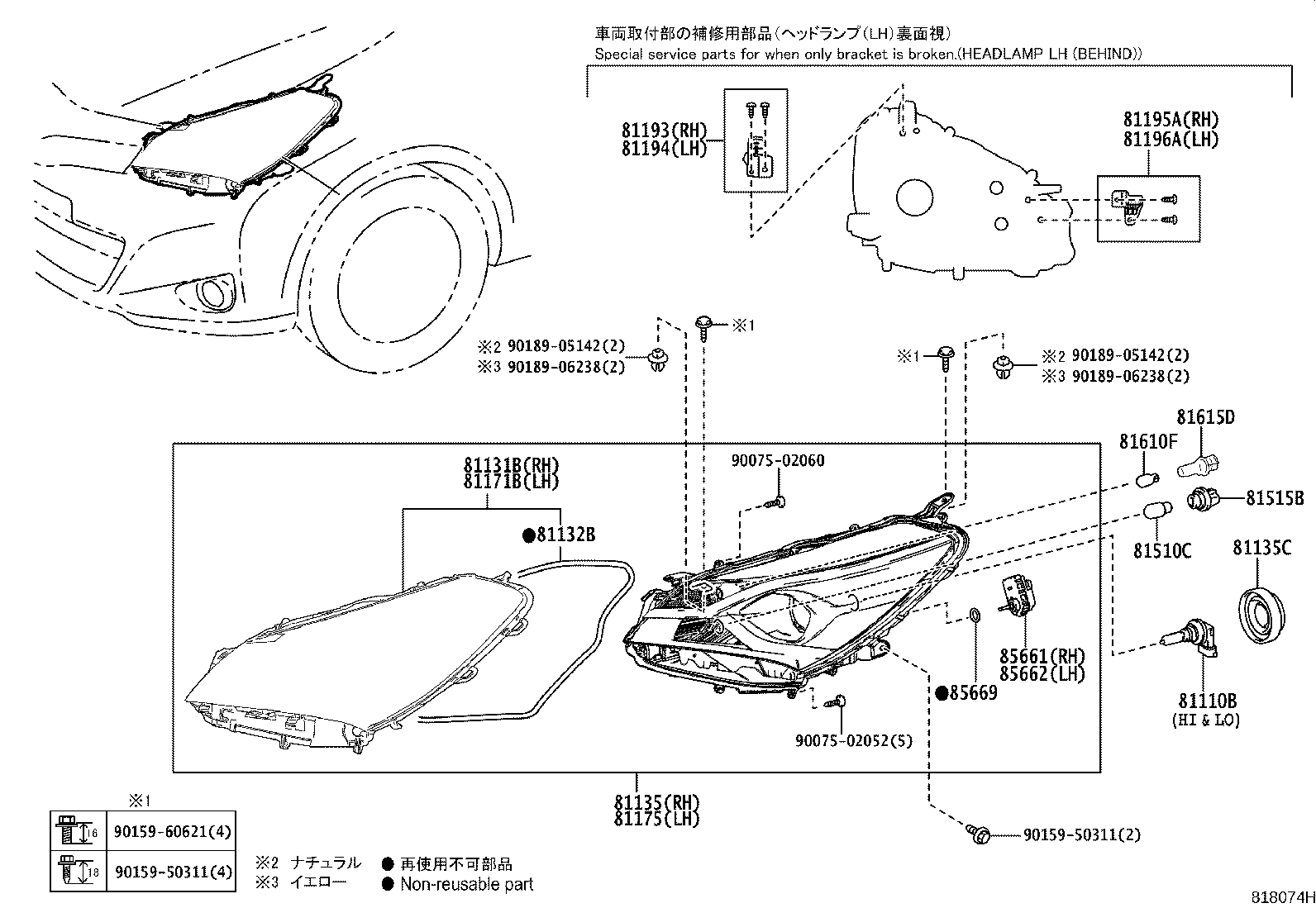

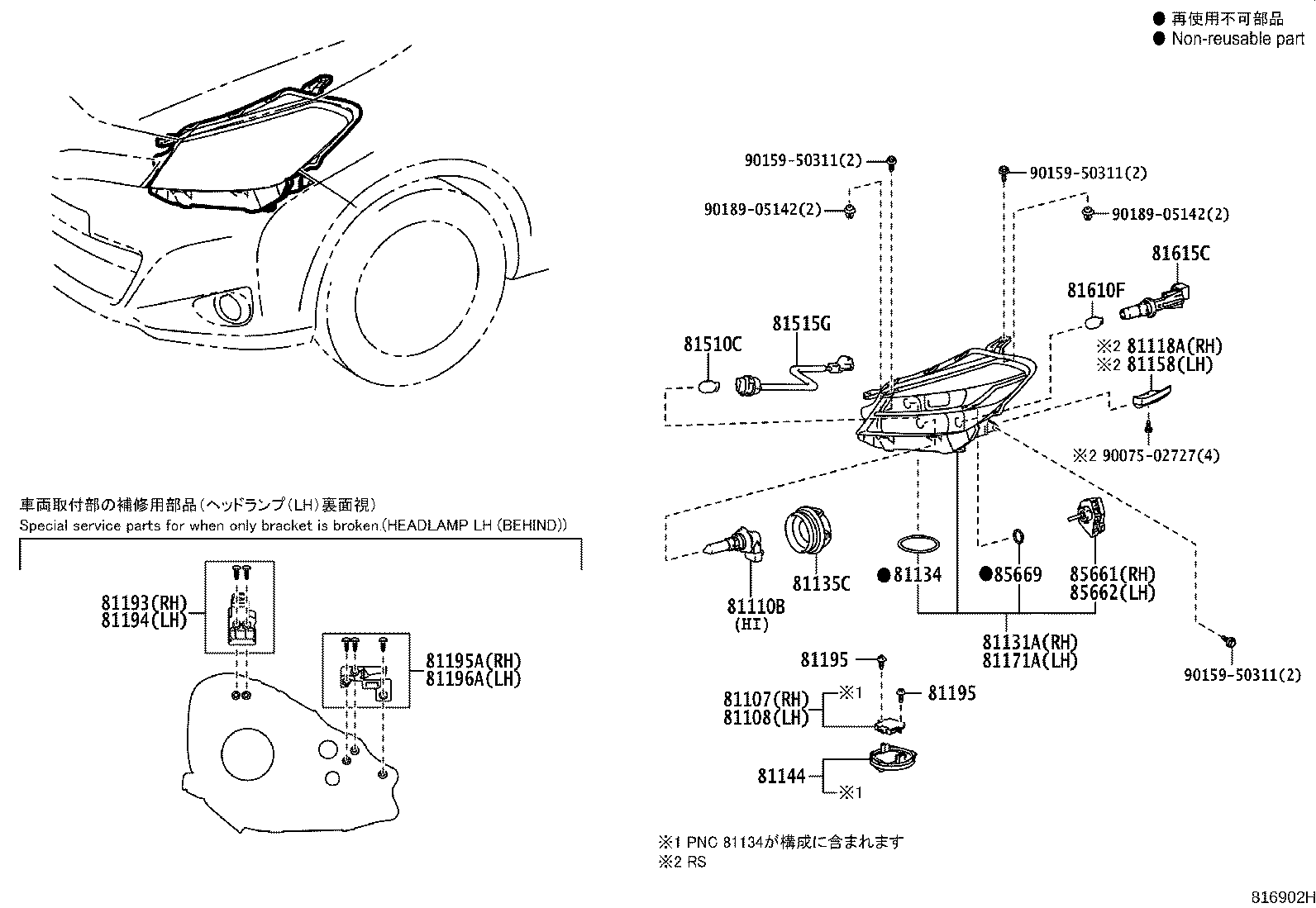

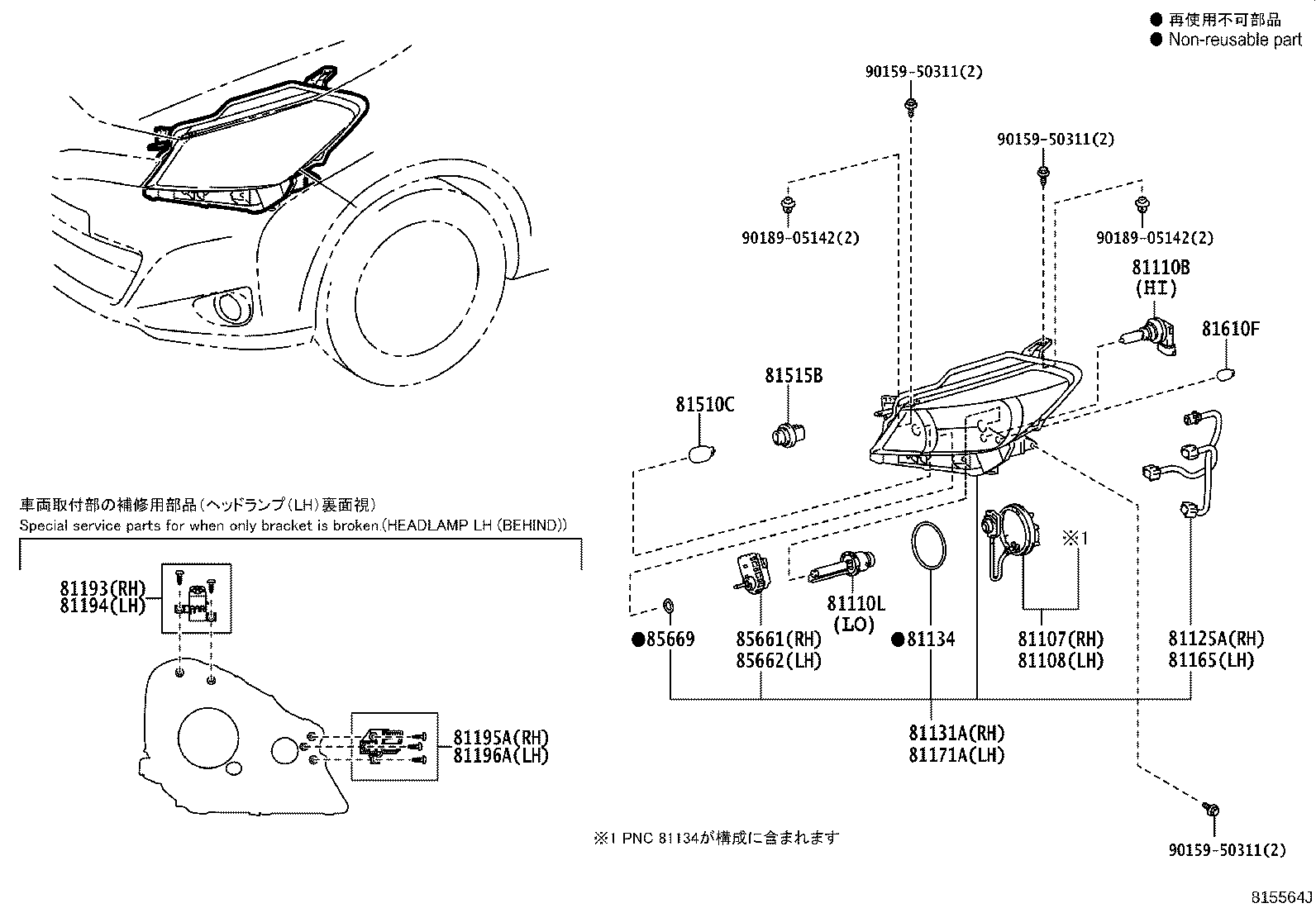

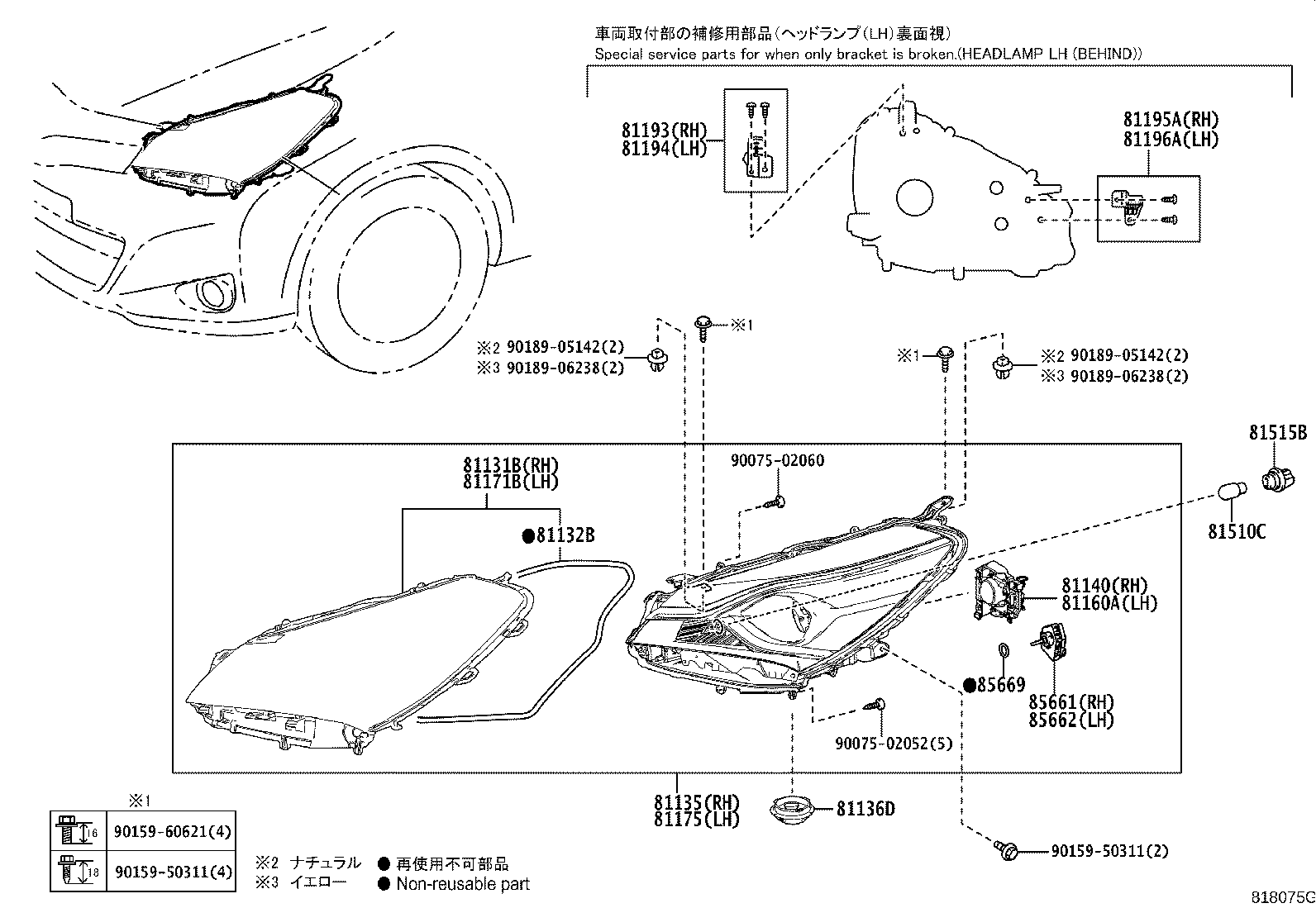

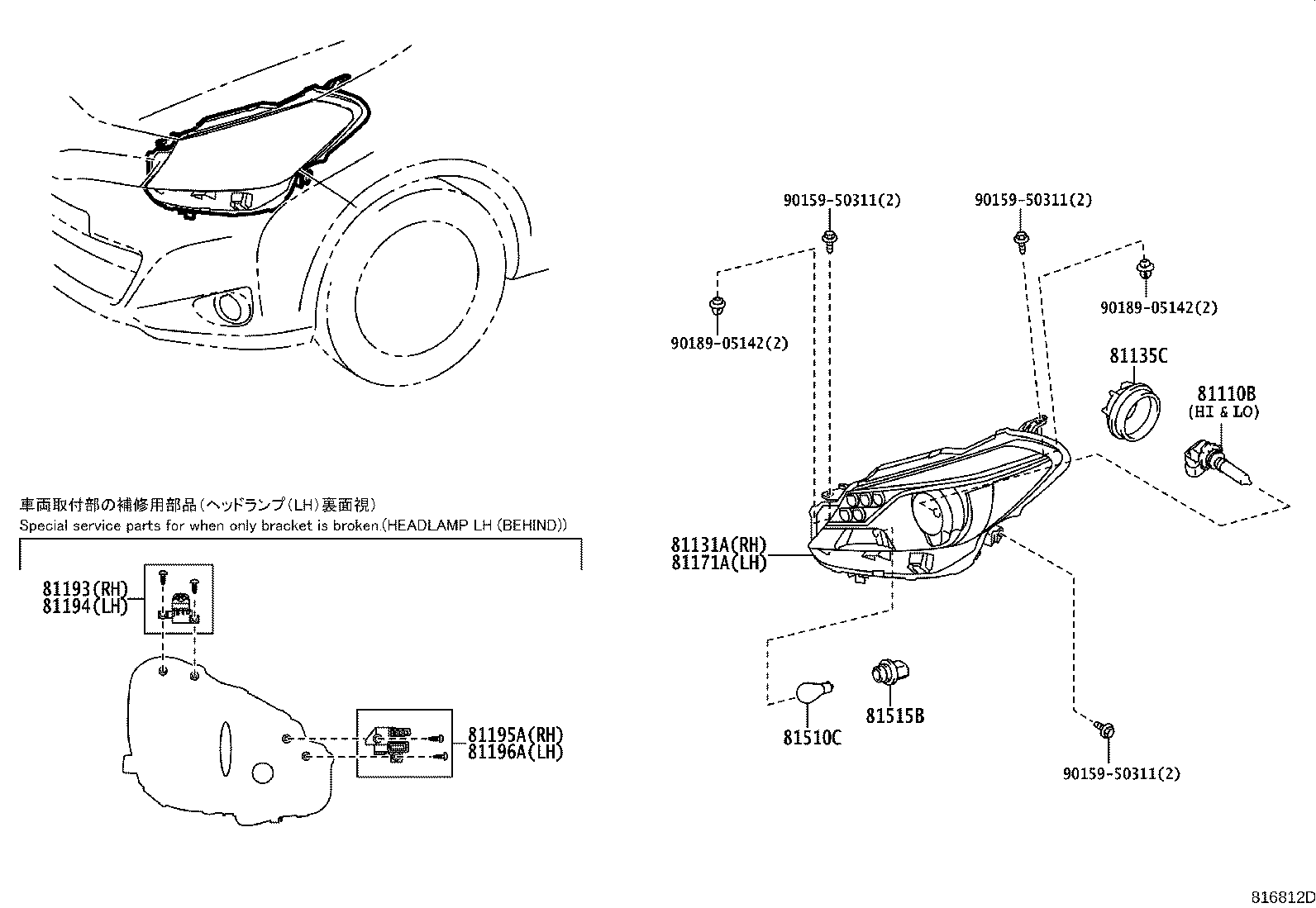

Figure 815563G 815563G 2010-12 → 2014-04 Figure 815564J 815564J 2010-12 → 2014-04 Figure 815564J 815564J 2014-04 → 2017-01 Figure 816812D 816812D 2013-09 → 2014-02 Figure 816901J 816901J 2014-04 → 2017-01 Figure 816902H 816902H 2014-04 → 2017-01 Figure 818073G 818073G 2017-01 → — Figure 818074H 818074H 2017-01 → — Figure 818075G 818075G 2017-01 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110L Bulb, Discharge Headlamp
81118A Bracket, Headlamp, RH
81125A Cord, Headlamp, RH
81131A Unit, Headlamp, RH
81131B Head Lamp Lens, RH
81132B Gasket, Headlamp Lens
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81136D Cover, Headlamp
81140 Unit Assy, Headlamp Led, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81158 Bracket, Headlamp, LH
81160A Unit Assy, Headlamp Led, LH
81165 Cord, Headlamp, LH
81171A Unit, Headlamp, LH
81171B Head Lamp Lens, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195 Screw, Headlamp
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81515G Socket & Wire, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615C Socket & Wire, Clearance Lamp
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
