Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Fog Lamp

9 part groups · 5 illustrations

Illustrations

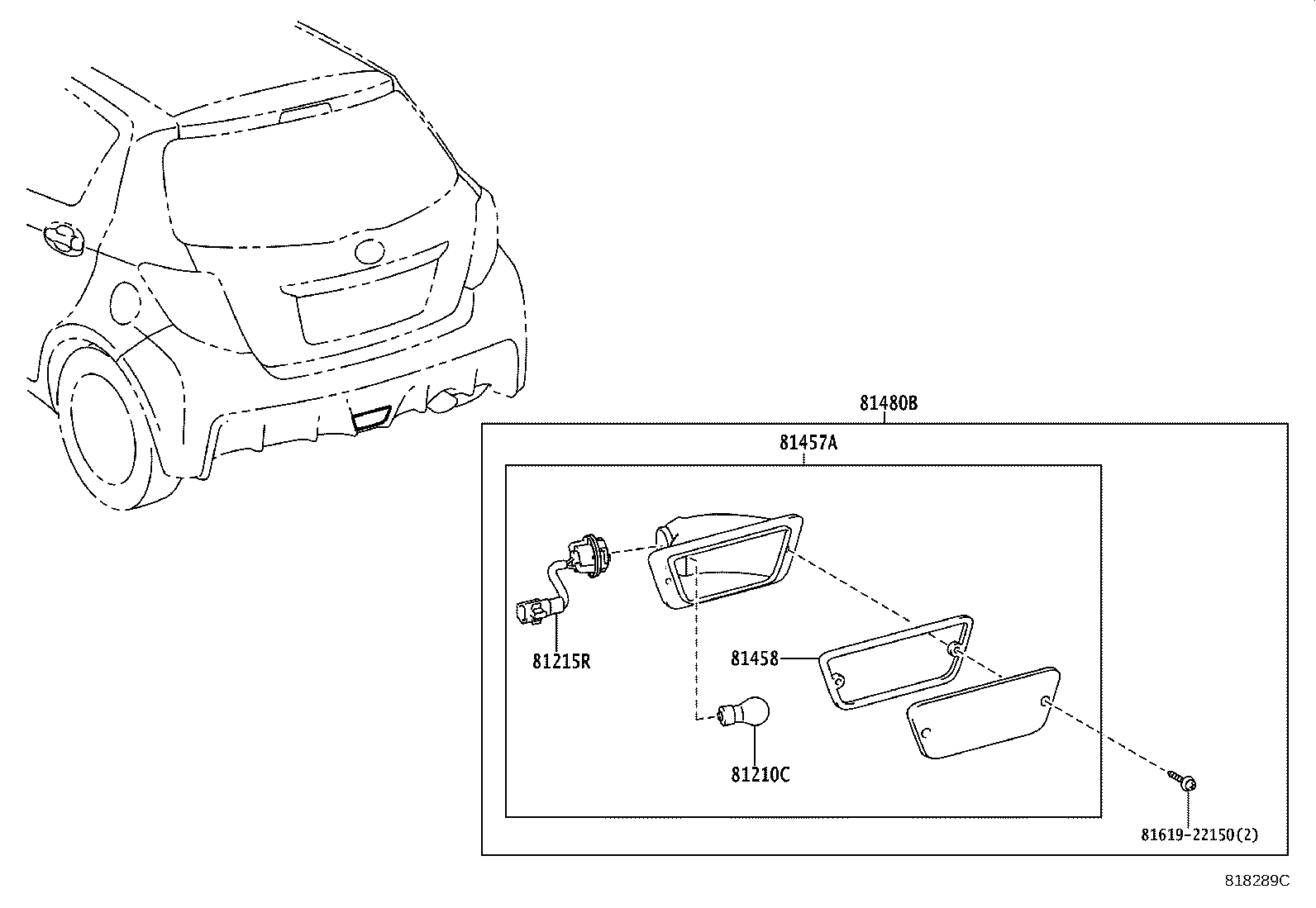

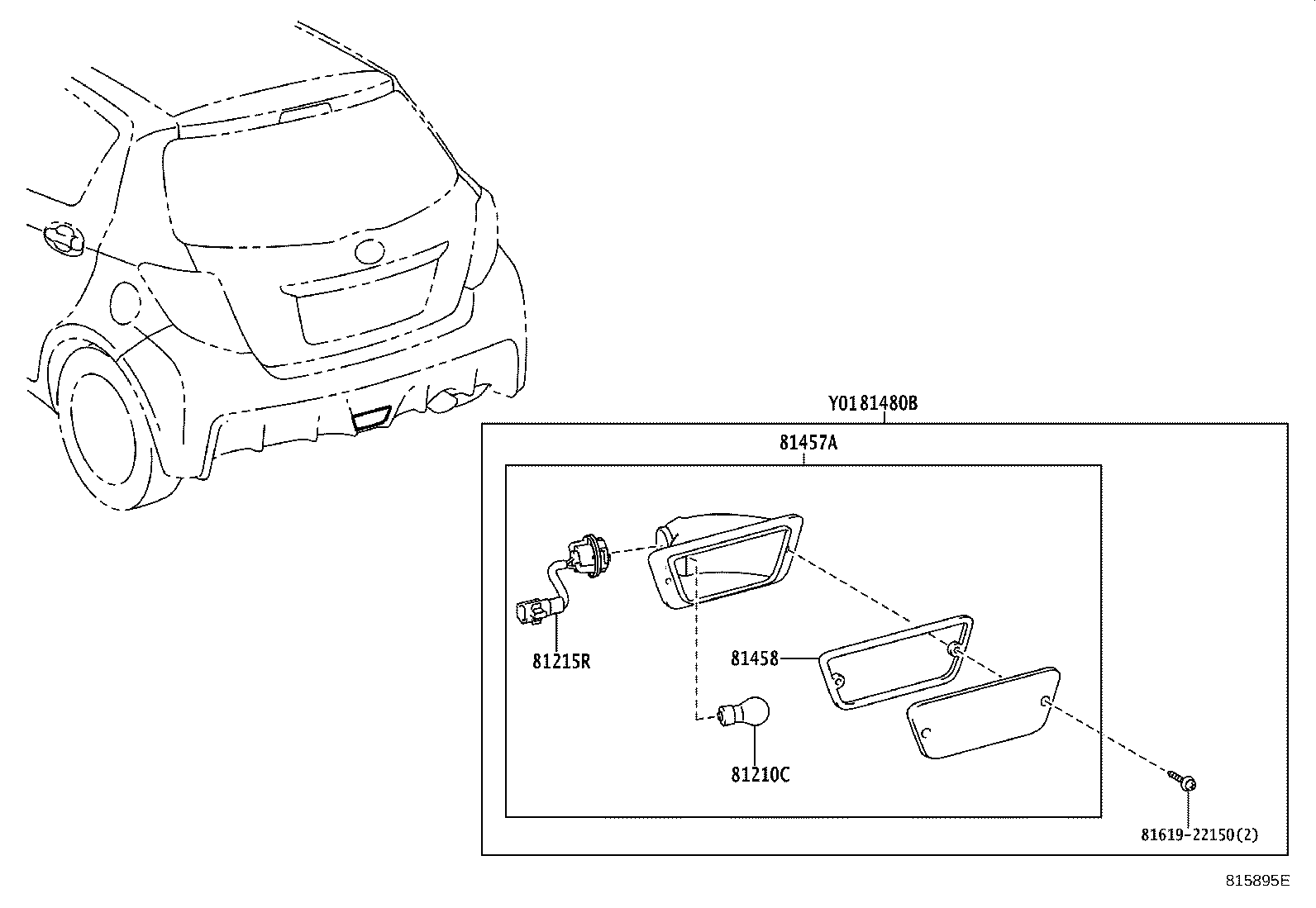

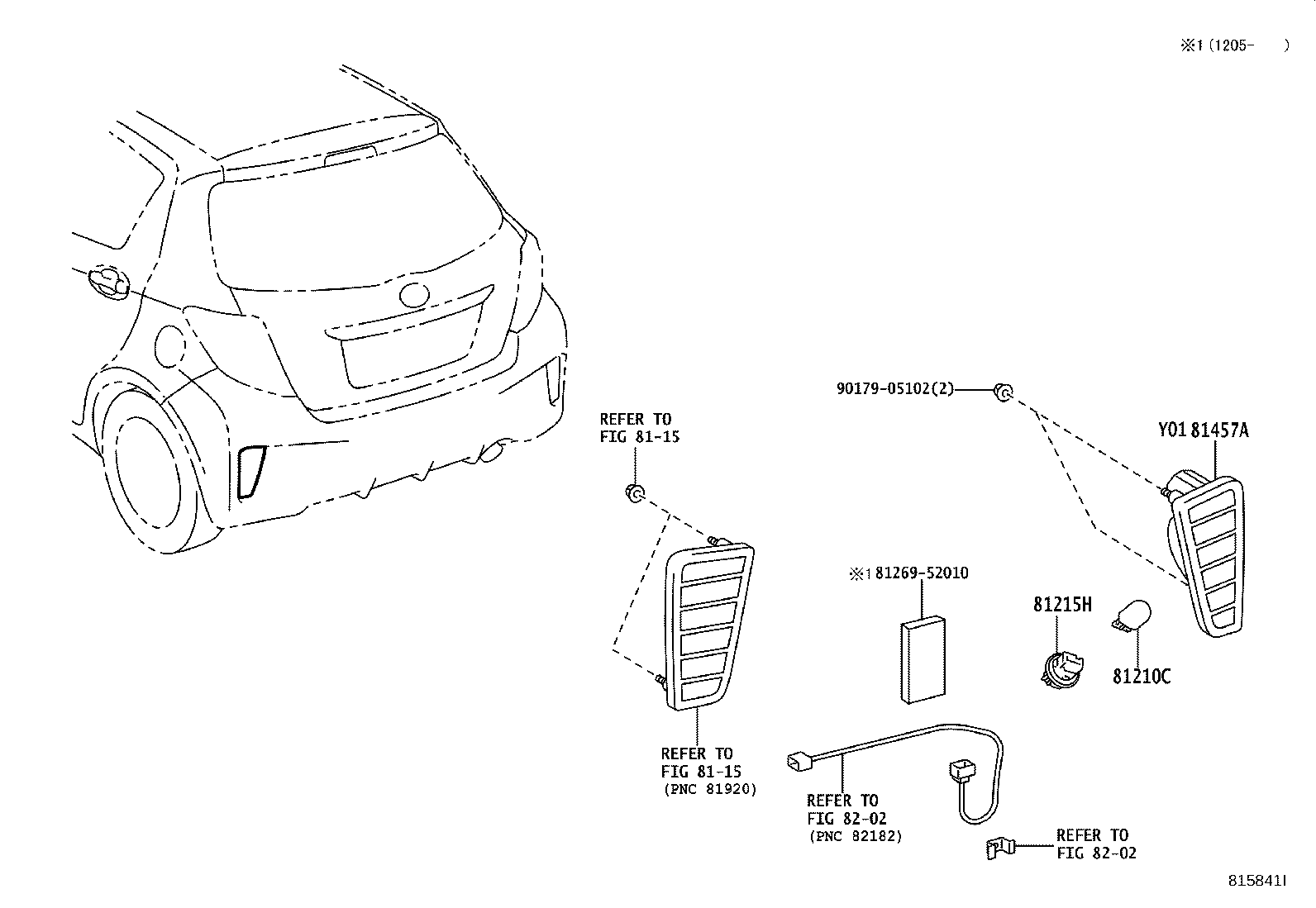

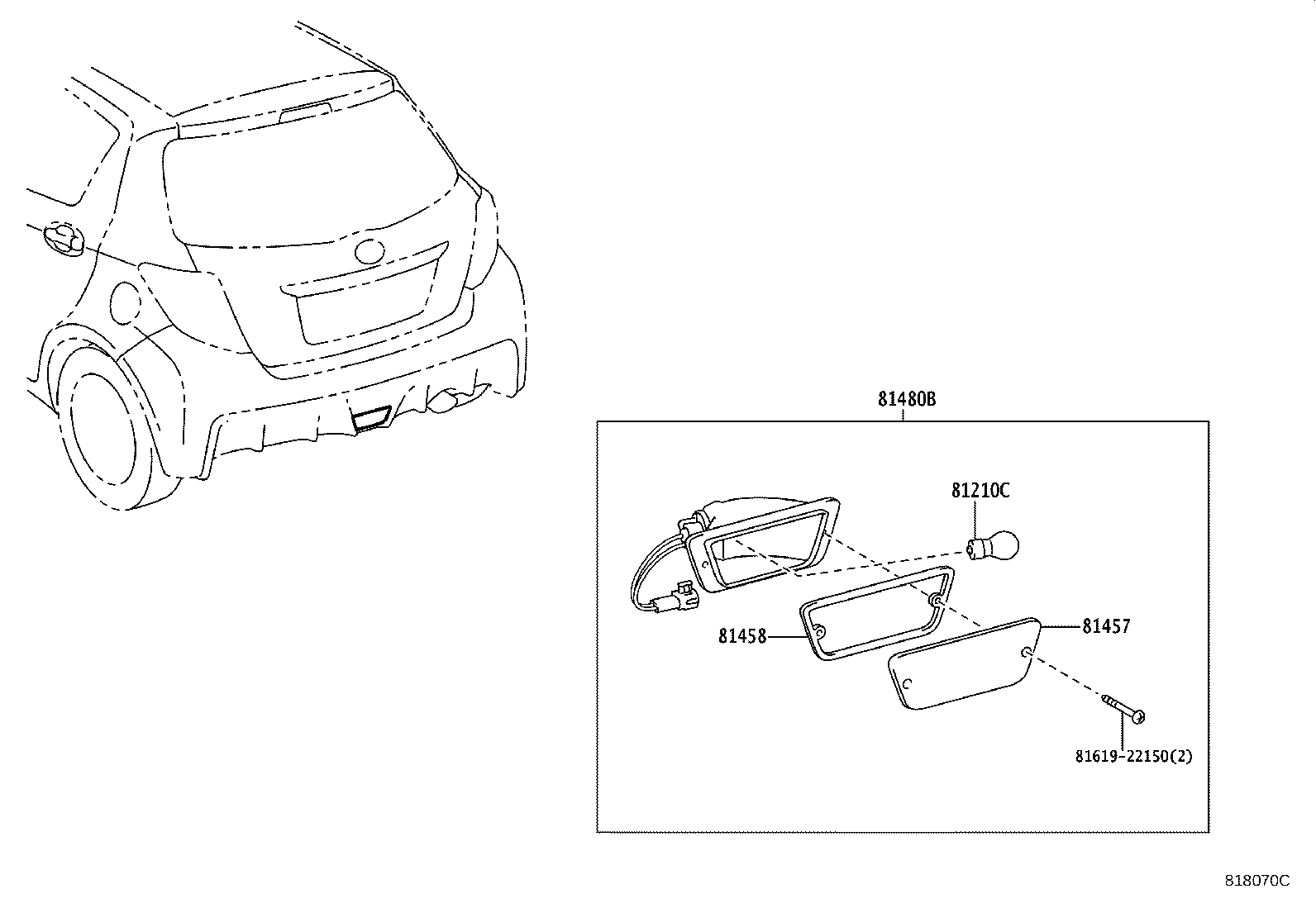

Figure 815840F 815840F 2010-12 → 2017-01 Figure 815841I 815841I 2010-12 → 2017-01 Figure 815895E 815895E 2011-10 → 2017-01 Figure 818070C 818070C 2017-01 → — Figure 818289C 818289C 2017-09 → —

Part groups

PNCDescription
81210C Bulb, Rear Fog Lamp
81215H Socket, Rear Fog Lamp
81215R Socket & Wire, Rear Fog Lamp
81401B Bracket Sub-assy, Fog Lamp
81457 Lens, Rear Fog Lamp
81457A Lens & Body, Rear Fog Lamp, RH
81458 Packing, Rear Fog Lamp
81480B Lamp Assy, Rear Fog
81483H Protector, Rear Fog Lamp, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
