Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

6 part groups · 3 illustrations

Illustrations

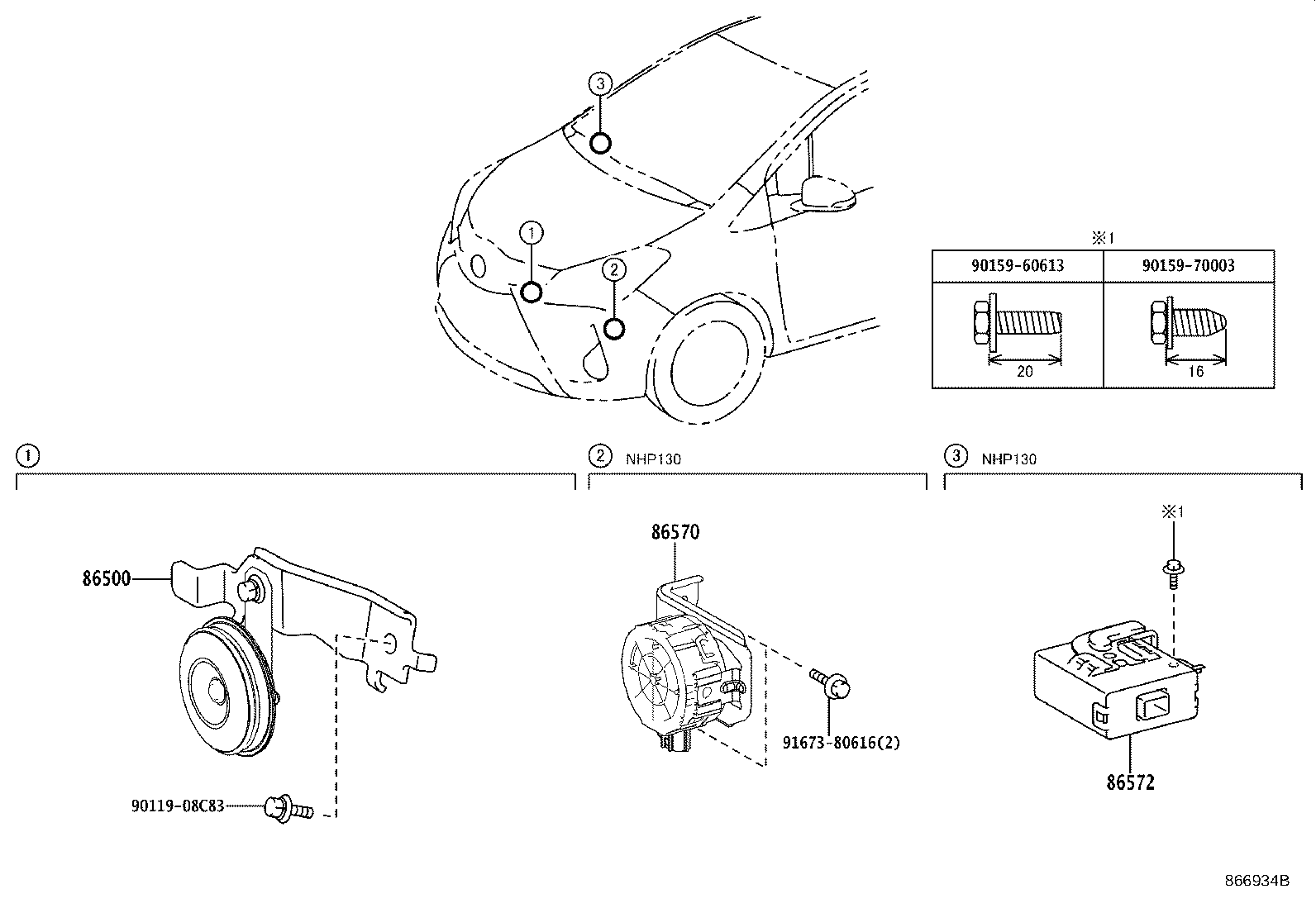

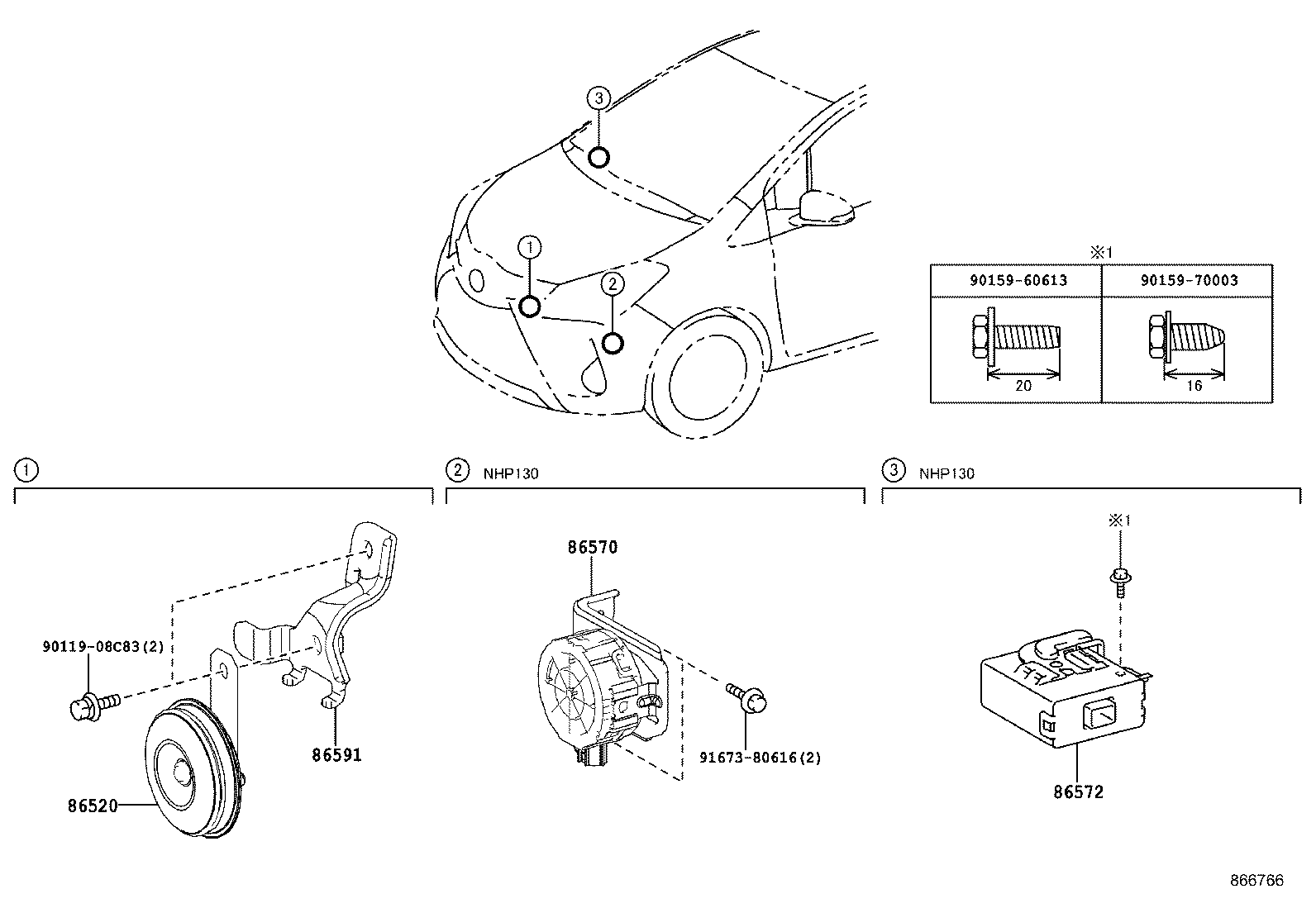

Figure 864454B 864454B 2010-12 → 2017-01 Figure 866766 866766 2017-01 → — Figure 866934B 866934B 2017-09 → —

Part groups

PNCDescription
86500 Horn Assy
86510 Horn Assy, High Pitched
86520 Horn Assy, Low Pitched
86570 Speaker Assy, Vehicle Approaching
86572 Controller, Vehicle Approaching Speaker
86591 Bracket, Horn
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
