Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

11 part groups · 9 illustrations

Illustrations

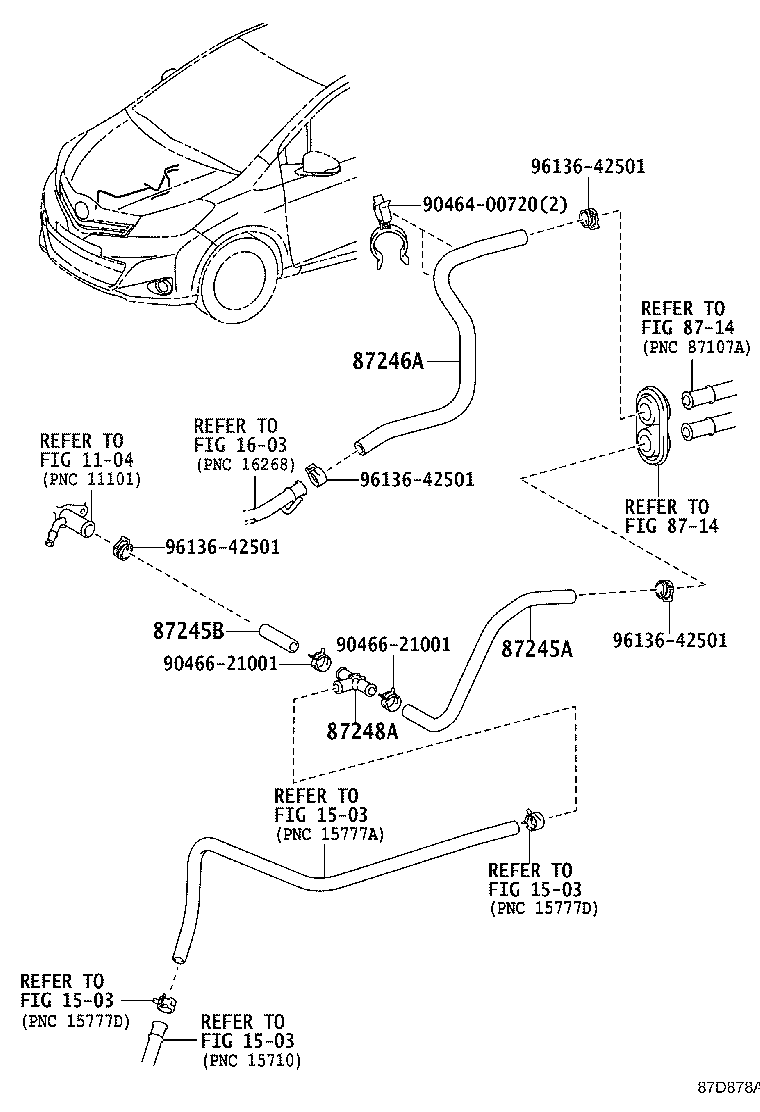

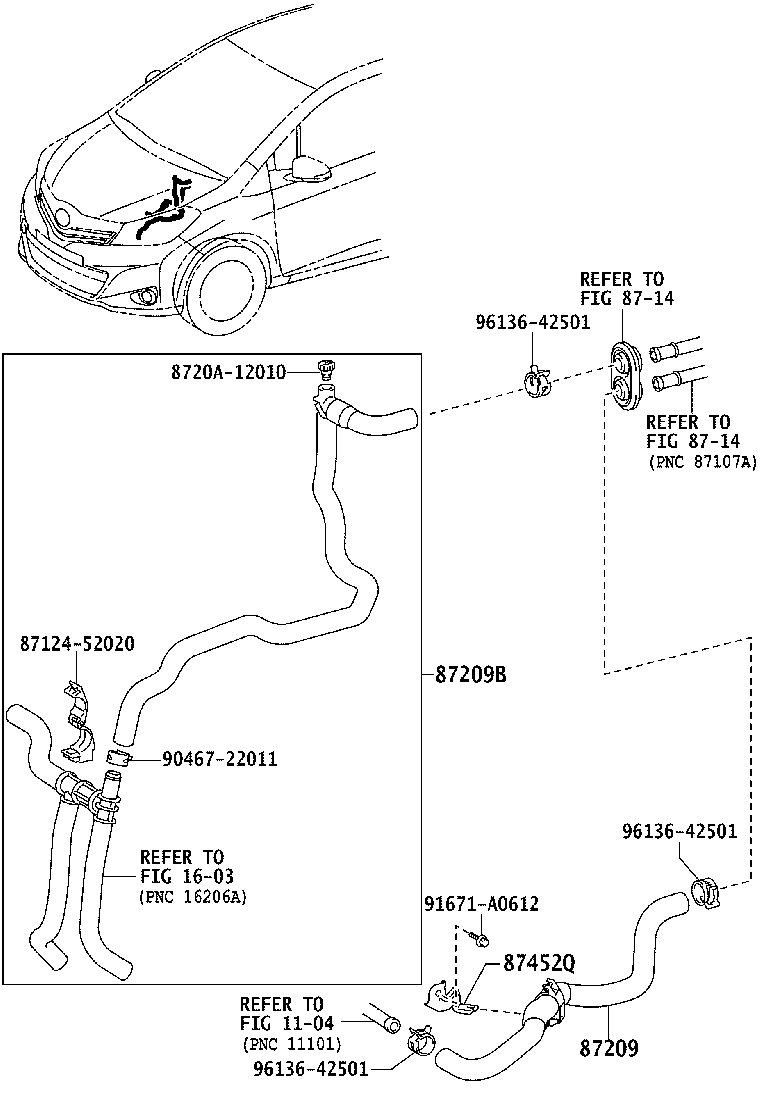

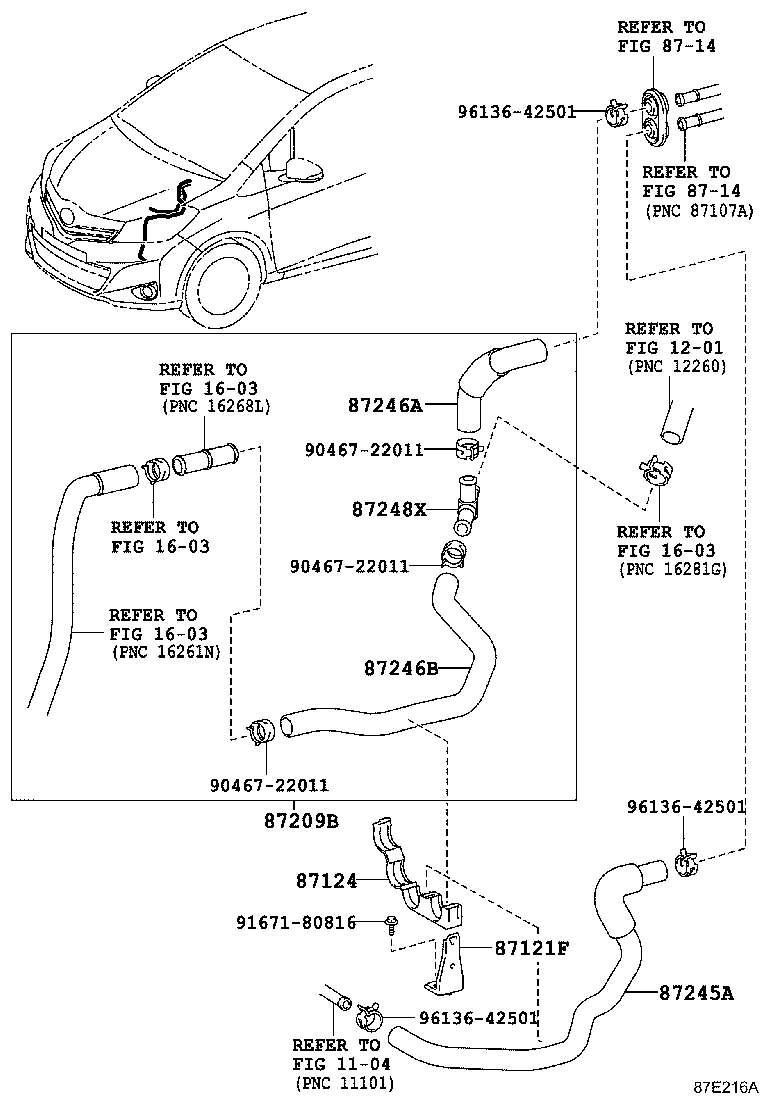

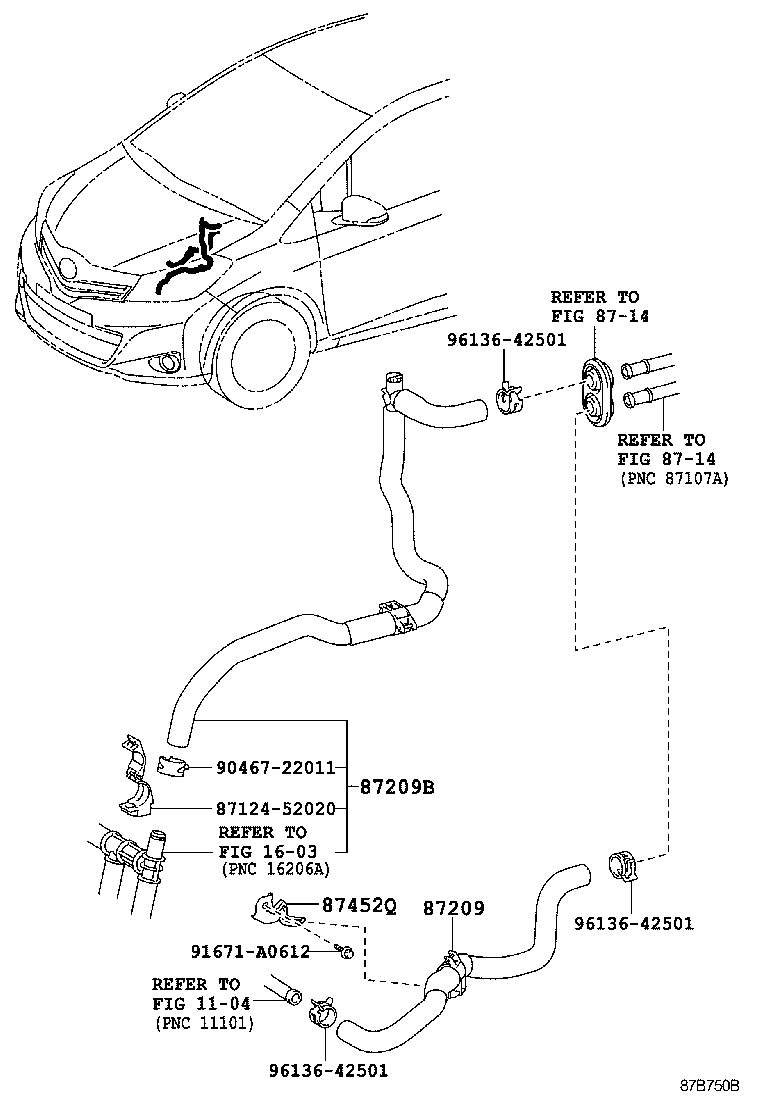

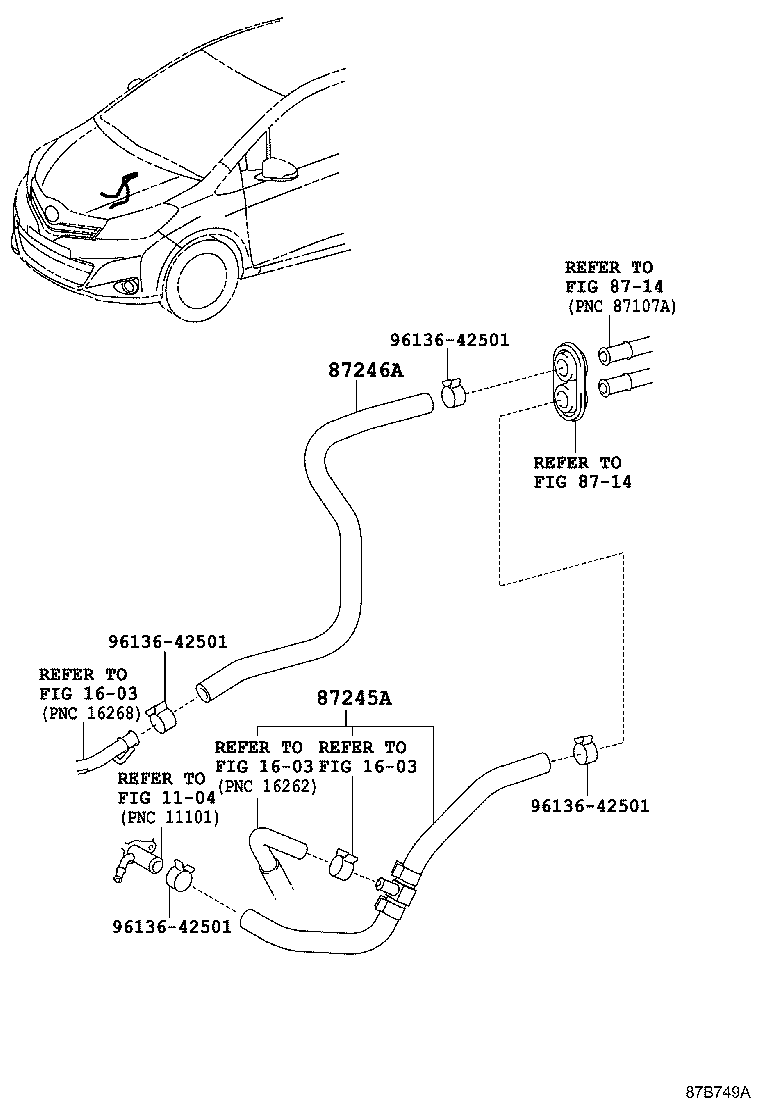

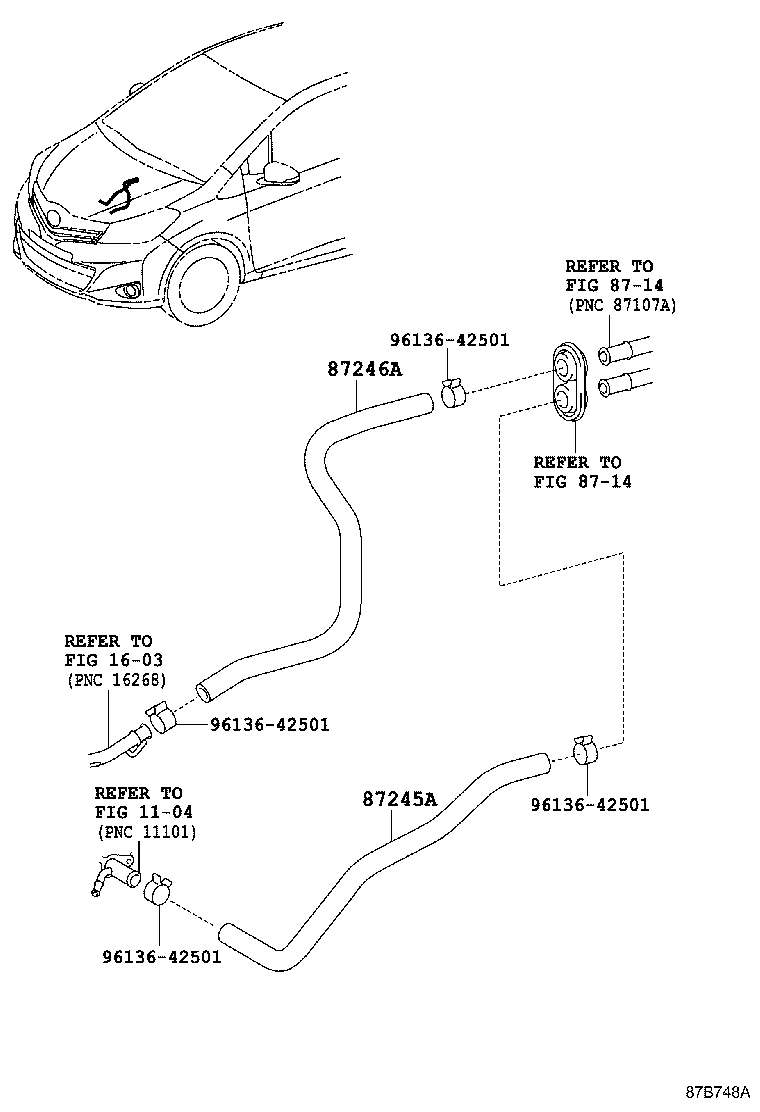

Figure 87B747A 87B747A 2010-12 → 2014-04 Figure 87E212 87E212 2014-04 → — Figure 87B748A 87B748A 2010-12 → — Figure 87B749A 87B749A 2010-12 → — Figure 87B746C 87B746C 2010-12 → 2014-04 Figure 87E216A 87E216A 2014-04 → — Figure 87B750B 87B750B 2010-12 → — Figure 87D878A 87D878A 2013-09 → 2014-02 Figure 87G217 87G217 2017-01 → —

Part groups

PNCDescription
87121F Bracket, Heater
87124 Clamp, Heater
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248A Pipe, Heater Water Inlet, A
87248X Pipe, Heater Water
87452Q Bracket, Heater, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
