Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01

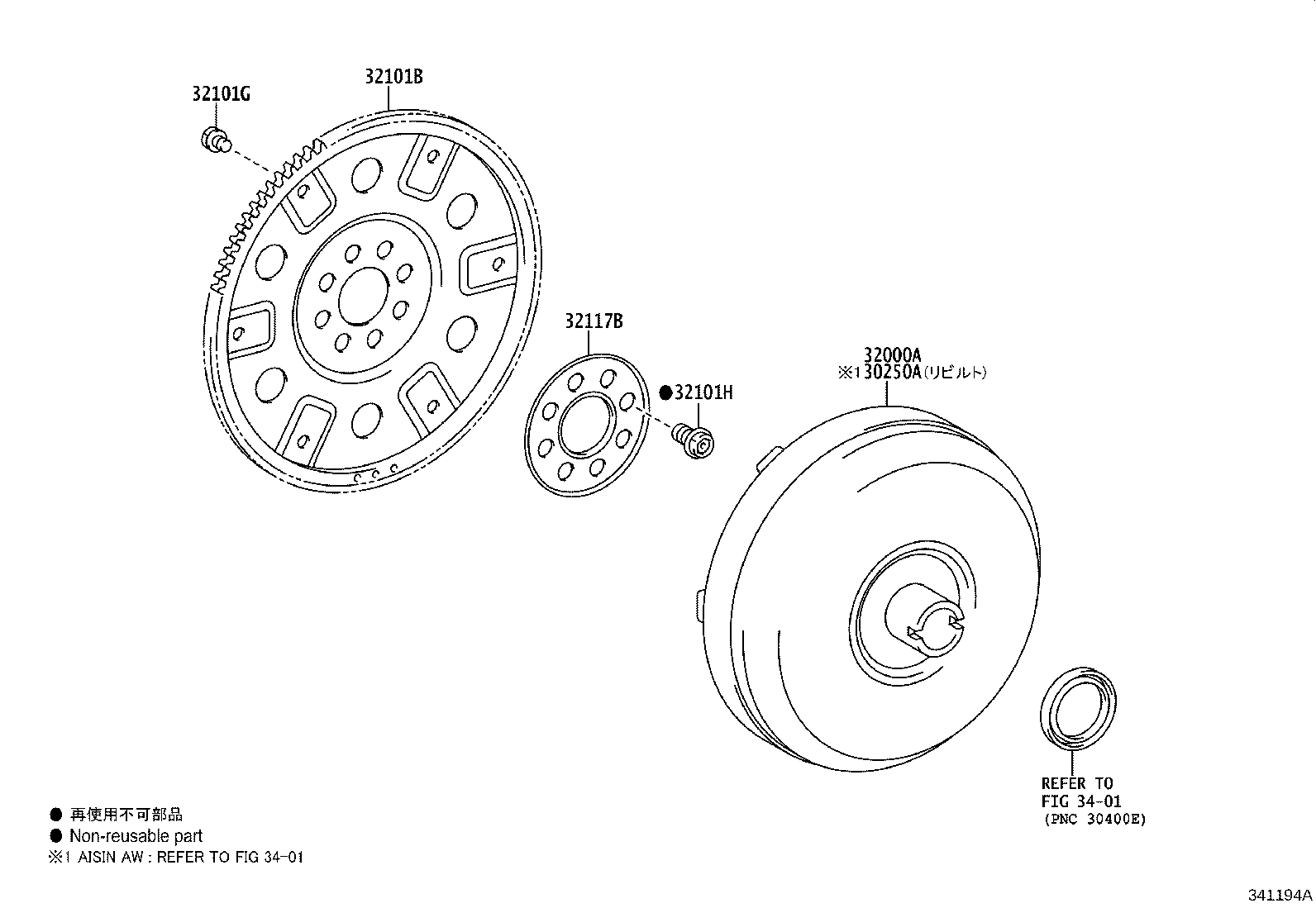

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30250A — Converter Assy, Torque, Rebuilt | ||||
| 30250-52250 |
Converter Assy, Torque, Rebuilt
2020-02 → 2024-01
ended
|
KSP210 | ¥46,700 | |
| 30250-52260 |
Converter Assy, Torque, Rebuilt
2020-02 → 2021-12
ended
|
MXPA1# CVT | ¥57,100 | |
| 30250-K0010 |
Converter Assy, Torque, Rebuilt
2021-12 → 2024-01
ended
|
MXPA1# CVT | ¥51,900 | |
| 30250-52250 |
Converter Assy, Torque, Rebuilt
2024-01 → —
|
KSP210 | ¥46,700 | |
| 30250-K0010 |
Converter Assy, Torque, Rebuilt
2024-01 → —
|
MXPA1# CVT | ¥51,900 | |
| 32000A — Converter Assy, Torque | ||||
| 32000-52250 |
Converter Assy, Torque
2020-02 → 2024-01
ended
|
KSP210 | ¥66,700 | |
| 32000-52260 |
Converter Assy, Torque
2020-02 → 2021-12
ended
|
MXPA1# CVT | ¥81,500 | |
| 32000-K0010 |
Converter Assy, Torque
2021-12 → 2024-01
ended
|
MXPA1# CVT | ¥74,000 | |
| 32000-52250 |
Converter Assy, Torque
2024-01 → —
|
KSP210 | ¥66,700 | |
| 32000-K0010 |
Converter Assy, Torque
2024-01 → —
|
MXPA1# CVT | ¥74,000 | |
| 32101B — Gear Sub-assy, Drive Plate & Ring | ||||
| 32101-52080 |
Gear Sub-assy, Drive Plate & Ring
2020-02 → 2024-01
ended
|
KSP210 | ¥3,810 | |
| 32101-52100 |
Gear Sub-assy, Drive Plate & Ring
2020-02 → 2024-01
ended
|
MXPA1# CVT | ¥11,600 | |
| 32101-52080 |
Gear Sub-assy, Drive Plate & Ring
2024-01 → —
|
KSP210 | ¥3,810 | |
| 32101-52100 |
Gear Sub-assy, Drive Plate & Ring
2024-01 → —
|
MXPA1# CVT | ¥11,600 | |
| 32101G — Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-08113 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2020-02 → 2024-01
ended
|
KSP210,MXPA1# CVT | ¥80 | |
| 90119-08498 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2020-02 → 2024-01
ended
|
KSP210,MXPA1# CVT | ¥80 | |
| 90109-08113 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2024-01 → —
|
KSP210,MXPA1# CVT | ¥80 | |
| 90119-08498 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2024-01 → —
|
KSP210,MXPA1# CVT | ¥80 | |
| 32101H — Bolt, Hexagon(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2020-02 → 2024-01
ended
|
KSP210 | ¥130 | |
| 90105-12404 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2020-02 → 2024-01
ended
|
MXPA1# CVT | ¥100 | |
| 90105-10048 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2024-01 → —
|
KSP210 | ¥130 | |
| 90105-12404 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2024-01 → —
|
MXPA1# CVT | ¥100 | |
| 32117B — Spacer, Drive Plate, Rear | ||||
| 32117-33010 |
Spacer, Drive Plate, Rear
2020-02 → 2024-01
ended
|
MXPA1# CVT | ¥920 | |
| 32117-52010 |
Spacer, Drive Plate, Rear
2020-02 → 2024-01
ended
|
KSP210 | ¥930 | |
| 32117-33010 |
Spacer, Drive Plate, Rear
2024-01 → —
|
MXPA1# CVT | ¥920 | |
| 32117-52010 |
Spacer, Drive Plate, Rear
2024-01 → —
|
KSP210 | ¥930 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
