Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01

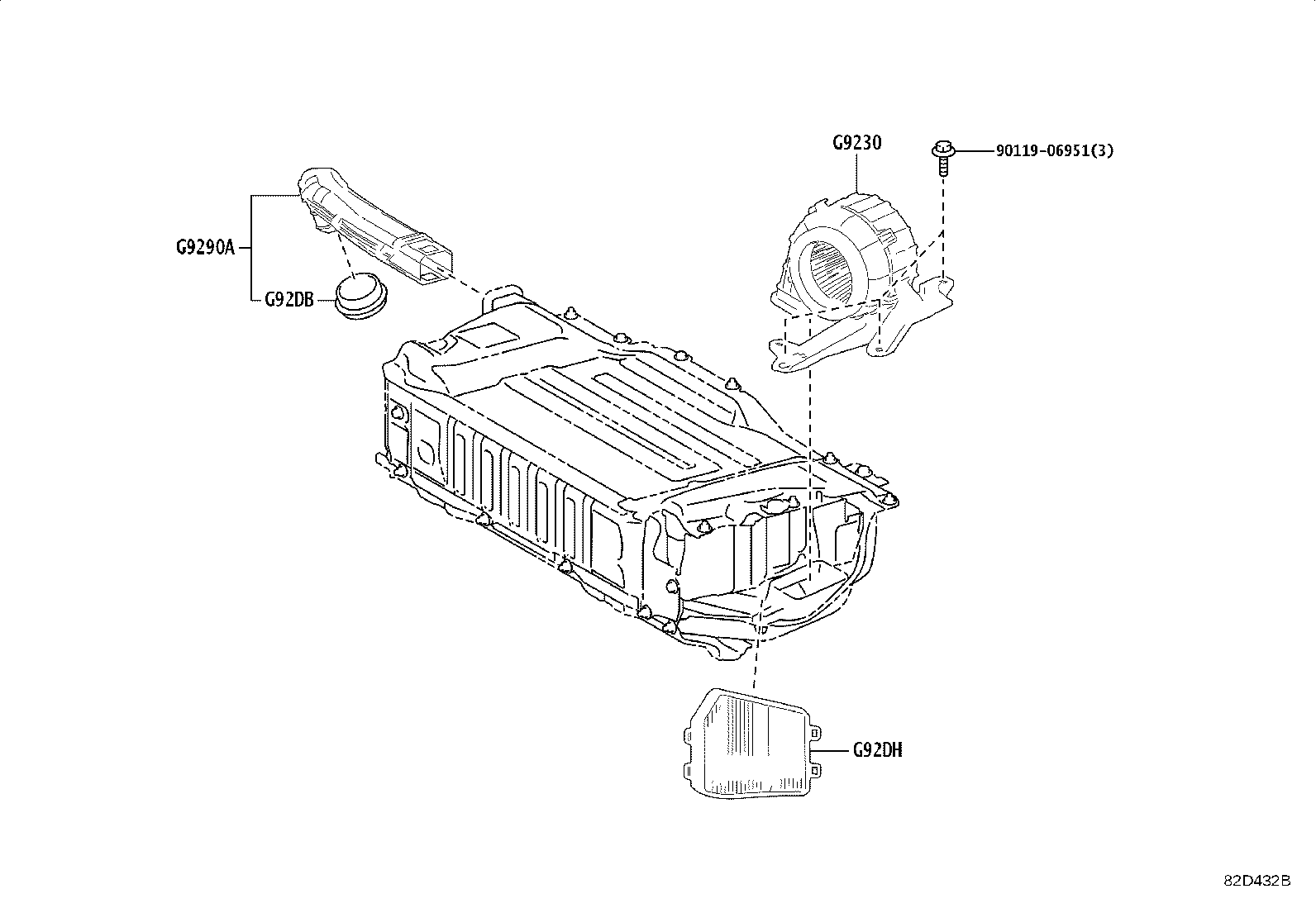

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

8 parts on this figure

Part number	Description	Fitment	Price
G9230 — Blower Assy, Battery Cooling
G9230-K0021	Blower Assy, Battery Cooling 2020-02 → —	MXPH10,15	¥16,200
G9230-K0021	Blower Assy, Battery Cooling 2024-01 → —	MXPH14,17	¥16,200
G9290A — Hose Assy, Hybrid Battery
G9290-K0010	Hose Assy, Hybrid Battery 2020-02 → —	MXPH10,15	¥1,150
G9290-K0010	Hose Assy, Hybrid Battery 2024-01 → —	MXPH14,17	¥1,150
G92DB — Seal, Hybrid Battery, NO.1
G92DB-47030	Seal, Hybrid Battery, NO.1 2020-02 → —	MXPH10,15	¥510
G92DB-47030	Seal, Hybrid Battery, NO.1 2024-01 → —	MXPH14,17	¥510
G92DH — Filter, HV Battery Intake, NO.1
G92DH-K0010	Filter, HV Battery Intake, NO.1 2020-02 → —	MXPH10,15	¥320
G92DH-K0010	Filter, HV Battery Intake, NO.1 2024-01 → —	MXPH14,17	¥320

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
