Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01

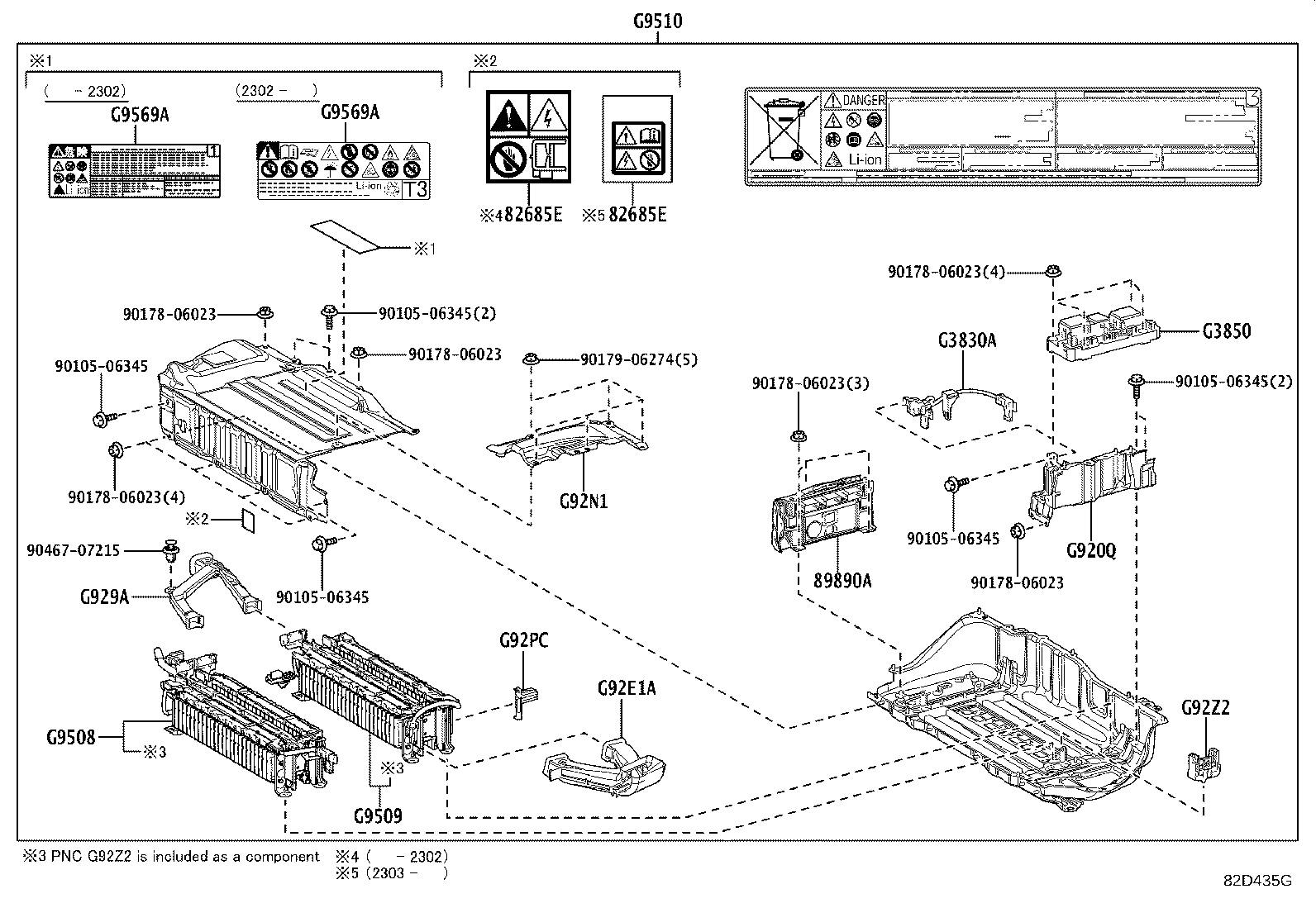

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82685E — Plate, Service Plug Caution | ||||
| 82685-47110 |
Plate, Service Plug Caution
2020-02 → 2023-02
ended
|
MXPH10,15 | ¥160 | |
| G9118-33030 |
Plate, Service Plug Caution
2023-03 → —
|
MXPH10,15 | ¥110 | |
| G9118-33030 |
Plate, Service Plug Caution
2024-01 → —
|
MXPH14,17 | ¥110 | |
| 89890A — Computer Assy, Battery | ||||
| 89890-52050 note |
Computer Assy, Battery
2023-03 → 2024-01
ended
|
MXPH1# | ¥43,800 | |
| 89890-52051 note |
Computer Assy, Battery
2024-02 → —
|
MXPH10,15 | ¥39,800 | |
| 89890-K0010 note |
Computer Assy, Battery
2020-02 → 2023-02
ended
|
MXPH1# | ¥43,800 | |
| 89890-52050 note |
Computer Assy, Battery
2024-01 → 2024-02
ended
|
MXPH14,17 | ¥43,800 | |
| 89890-52051 note |
Computer Assy, Battery
2024-02 → —
|
MXPH14,17 | ¥39,800 | |
| G3830A — Plug Assy, Electric Vehicle Battery | ||||
| G3830-K0010 |
Plug Assy, Electric Vehicle Battery
2020-02 → —
|
MXPH10,15 | ¥3,480 | |
| G3830-K0010 |
Plug Assy, Electric Vehicle Battery
2024-01 → —
|
MXPH14,17 | ¥3,480 | |
| G3850 — Box Assy, Traction Battery Device, NO.1 | ||||
| G3850-52020 |
Box Assy, Traction Battery Device, NO.1
2020-02 → —
|
MXPH10,15 | ¥24,700 | |
| G3850-52020 |
Box Assy, Traction Battery Device, NO.1
2024-01 → —
|
MXPH14,17 | ¥24,700 | |
| G920Q — Shield Sub-assy, Hybrid Battery, NO.1 | ||||
| G920Q-K0010 |
Shield Sub-assy, Hybrid Battery, NO.1
2020-02 → —
|
MXPH10,15 | ¥1,870 | |
| G920Q-K0010 |
Shield Sub-assy, Hybrid Battery, NO.1
2024-01 → —
|
MXPH14,17 | ¥1,870 | |
| G929A — Hose, HV Battery, NO.1 | ||||
| G929A-K0010 |
Hose, HV Battery, NO.1
2020-02 → —
|
MXPH10,15 | ¥1,150 | |
| G929A-K0010 |
Hose, HV Battery, NO.1
2024-01 → —
|
MXPH14,17 | ¥1,150 | |
| G92E1A — Duct, HV Battery Intake, NO.1 LH | ||||
| G92E1-K0010 |
Duct, HV Battery Intake, NO.1 LH
2020-02 → —
|
MXPH10,15 | ¥1,520 | |
| G92E1-K0010 |
Duct, HV Battery Intake, NO.1 LH
2024-01 → —
|
MXPH14,17 | ¥1,520 | |
| G92N1 — Panel, HV Battery Upper Cover | ||||
| G92NE-K0010 |
Panel, HV Battery Upper Cover
2020-02 → —
|
MXPH10,15 | ¥1,220 | |
| G92NE-K0010 |
Panel, HV Battery Upper Cover
2024-01 → —
|
MXPH14,17 | ¥1,220 | |
| G92PC — Protector, HV Battery, NO.1 | ||||
| G92PC-52010 |
Protector, HV Battery, NO.1
2020-02 → —
|
MXPH10,15 | ¥340 | |
| G92PC-52010 |
Protector, HV Battery, NO.1
2024-01 → —
|
MXPH14,17 | ¥340 | |
| G92Z2 — Block, Hybrid Battery Terminal | ||||
| G92Z2-47070 |
Block, Hybrid Battery Terminal
2020-02 → —
|
MXPH10,15 | ¥2,510 | |
| G92Z2-47070 |
Block, Hybrid Battery Terminal
2024-01 → —
|
MXPH14,17 | ¥2,510 | |
| G9508 — Stack Sub-assy, HV Supply, NO.1 | ||||
| G9509-52010 |
Stack Sub-assy, HV Supply, NO.1
2020-02 → —
|
MXPH10,15 | ¥129,000 | |
| G9509-52010 |
Stack Sub-assy, HV Supply, NO.1
2024-01 → —
|
MXPH14,17 | ¥129,000 | |
| G9509 — Stack Sub-assy, HV Supply, NO.2 | ||||
| G9508-52010 |
Stack Sub-assy, HV Supply, NO.2
2020-02 → —
|
MXPH10,15 | ¥127,000 | |
| G9508-52010 |
Stack Sub-assy, HV Supply, NO.2
2024-01 → —
|
MXPH14,17 | ¥127,000 | |
| G9510 — Battery Assy, HV Supply | ||||
| G9510-52080 |
Battery Assy, HV Supply
2020-02 → 2023-02
ended
|
MXPH10,15 | ¥281,000 | |
| G9510-52081 |
Battery Assy, HV Supply
2023-03 → —
|
MXPH10,15 | ¥281,000 | |
| G9510-52081 |
Battery Assy, HV Supply
2024-01 → 2024-02
ended
|
MXPH14,17 | ¥281,000 | |
| G9510-52082 |
Battery Assy, HV Supply
2024-02 → —
|
MXPH14,17 | ¥255,000 | |
| G9569A — Label, Lithium Ion Battery Caution | ||||
| G9569-47100 |
Label, Lithium Ion Battery Caution
2020-02 → 2023-02
ended
|
MXPH10,15 | ¥320 | |
| G9569-48010 |
Label, Lithium Ion Battery Caution
2023-02 → —
|
MXPH10,15 | ¥200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
