Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01

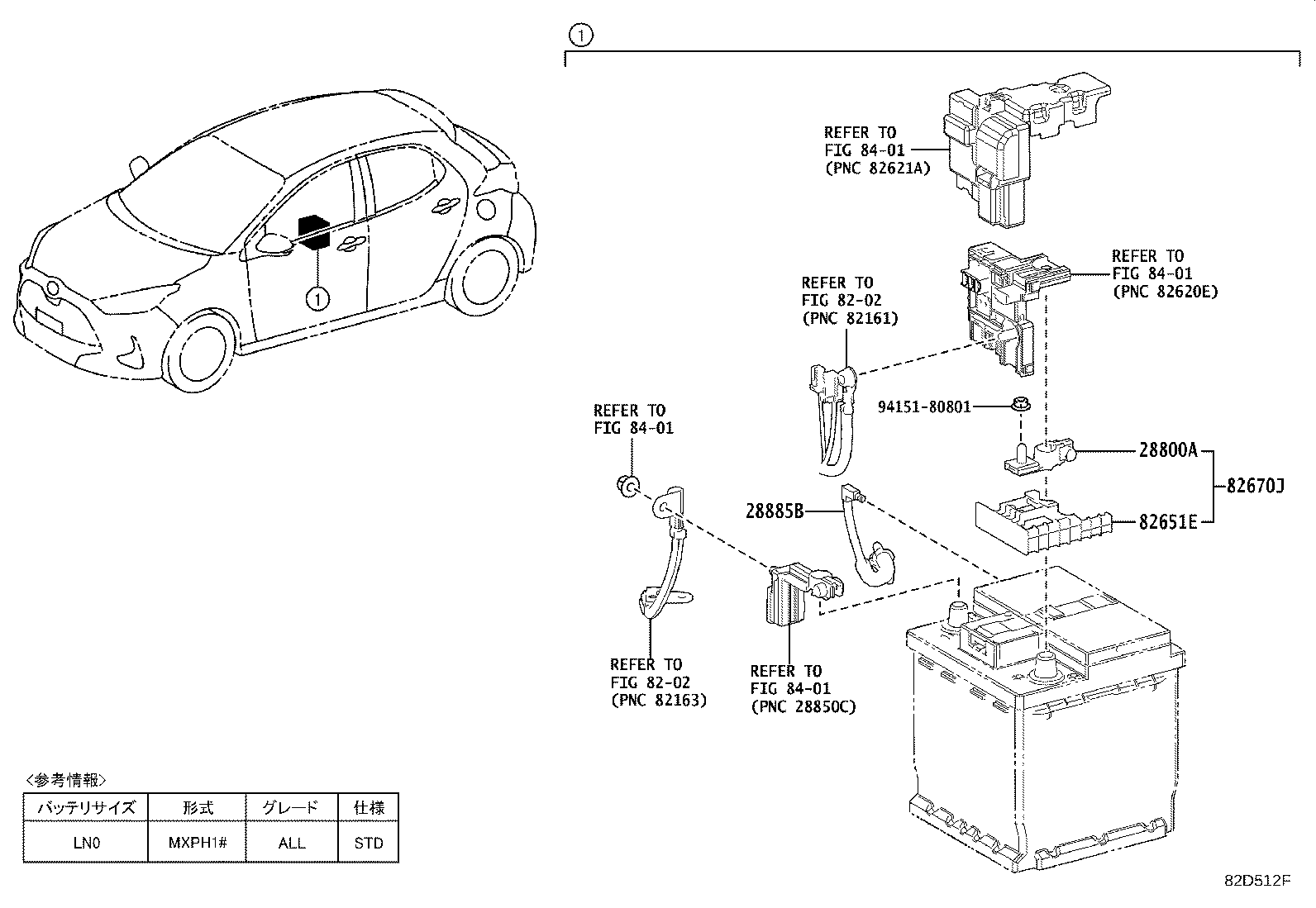

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800A — Terminal, Battery Positive | ||||
| 90982-05053 |
Terminal, Battery Positive
2020-02 → —
|
M15AFXE MXPH10,15 | ¥860 | |
| 90982-05053 |
Terminal, Battery Positive
2024-01 → —
|
M15AFXE MXPH14,17 | ¥860 | |
| 28885B — Hose, Battery | ||||
| 28885-K0010 |
Hose, Battery
2020-02 → 2024-04
ended
|
M15AFXE MXPH10,15 | ¥1,120 | |
| 28885-K0010 |
Hose, Battery
2024-04 → —
|
M15AFXE MXPH10,15 | ¥1,120 | |
| 28885-K0010 |
Hose, Battery
2024-01 → —
|
M15AFXE MXPH14,17 | ¥1,120 | |
| 82651E — Block, Terminal | ||||
| 82671-33090 |
Block, Terminal
2020-02 → —
|
MXPH10,15 | ¥710 | |
| 82671-33090 |
Block, Terminal
2024-01 → —
|
MXPH14,17 | ¥710 | |
| 82670J — Block Assy, Junction | ||||
| 82670-33140 |
Block Assy, Junction
2020-02 → —
|
MXPH10,15 | ¥1,670 | |
| 82670-52050 |
Block Assy, Junction
2020-02 → 2024-01
ended
|
MXPA1# | ¥1,760 | |
| 82670-K0010 |
Block Assy, Junction
2020-02 → 2024-01
ended
|
KSP210 | ¥1,620 | |
| 82670-K0010 note |
Block Assy, Junction
2020-02 → 2024-01
ended
|
MXPA1# | ¥1,620 | |
| 82670-33140 |
Block Assy, Junction
2024-01 → —
|
MXPH14,17 | ¥1,670 | |
| 82670-K0010 |
Block Assy, Junction
2024-01 → —
|
KSP210,MXPA1# | ¥1,620 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
