Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01
Standard Tool
20 part groups · 3 illustrations

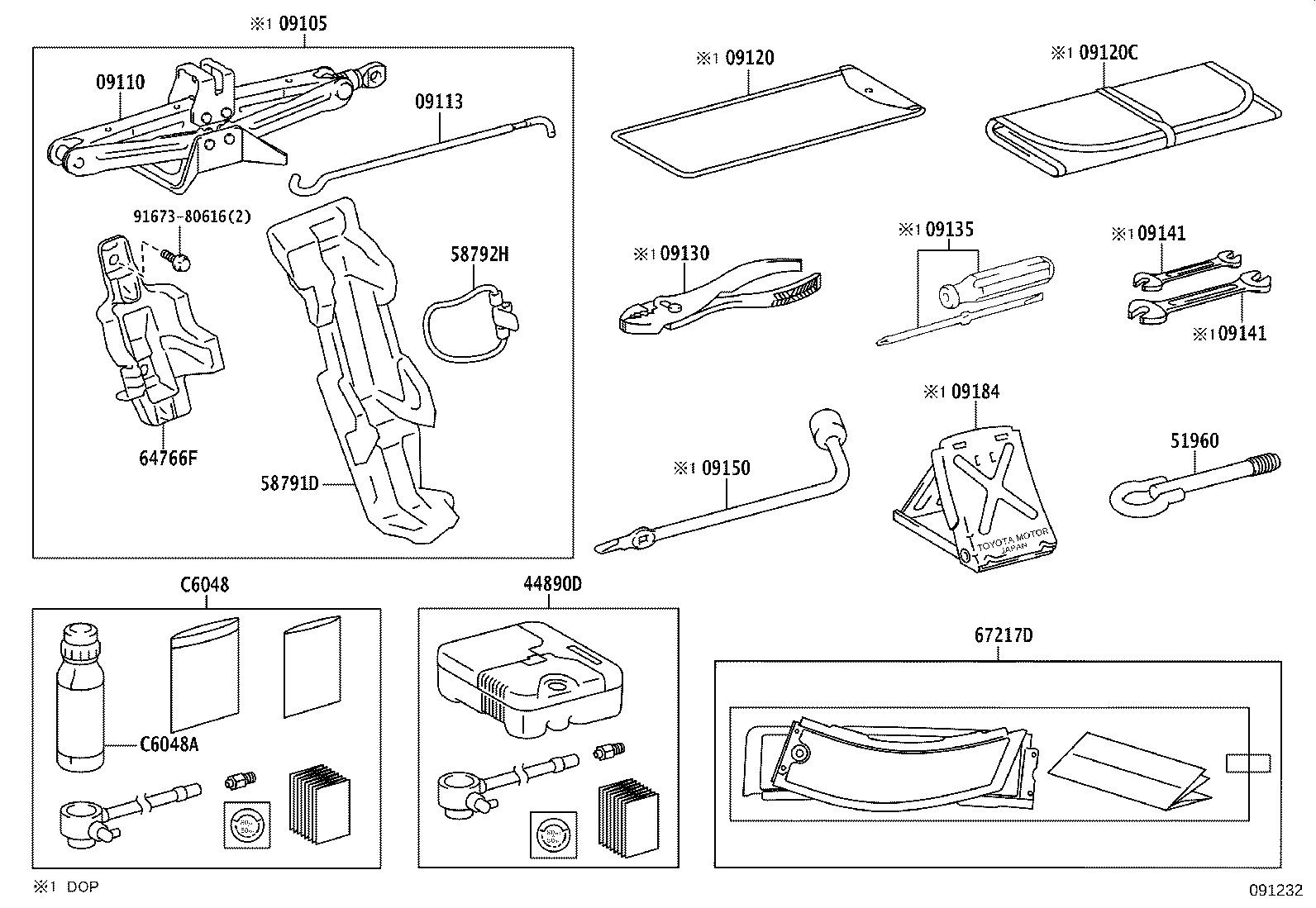

Part groups
| PNC | Description |
|---|---|
| 09105 | Box Set, Jack |
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09120 | Bag, Tool |
| 09120C | Bag,Tool, NO.2 |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09141 | Spanner |
| 09150 | Wrench, Hub Nut Box |
| 09184 | Stopper, Wheel |
| 44890D | Compressor Assy, Air |
| 51960 | Hook Assy, Front |
| 58780G | Band Assy, Tool Box |
| 58791D | Carrier, Jack |
| 58792H | Support, Jack Carrier |
| 64766F | Bezel, Jack Cover, Lower |
| 67217D | Stopper, Rear Door Glass |
| 75231A | Box, Tool Bag |
| C6048 | Repair Set, Tire |
| C6048A | Sealant, Repair Tire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
