Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

15 part groups · 3 illustrations

Illustrations

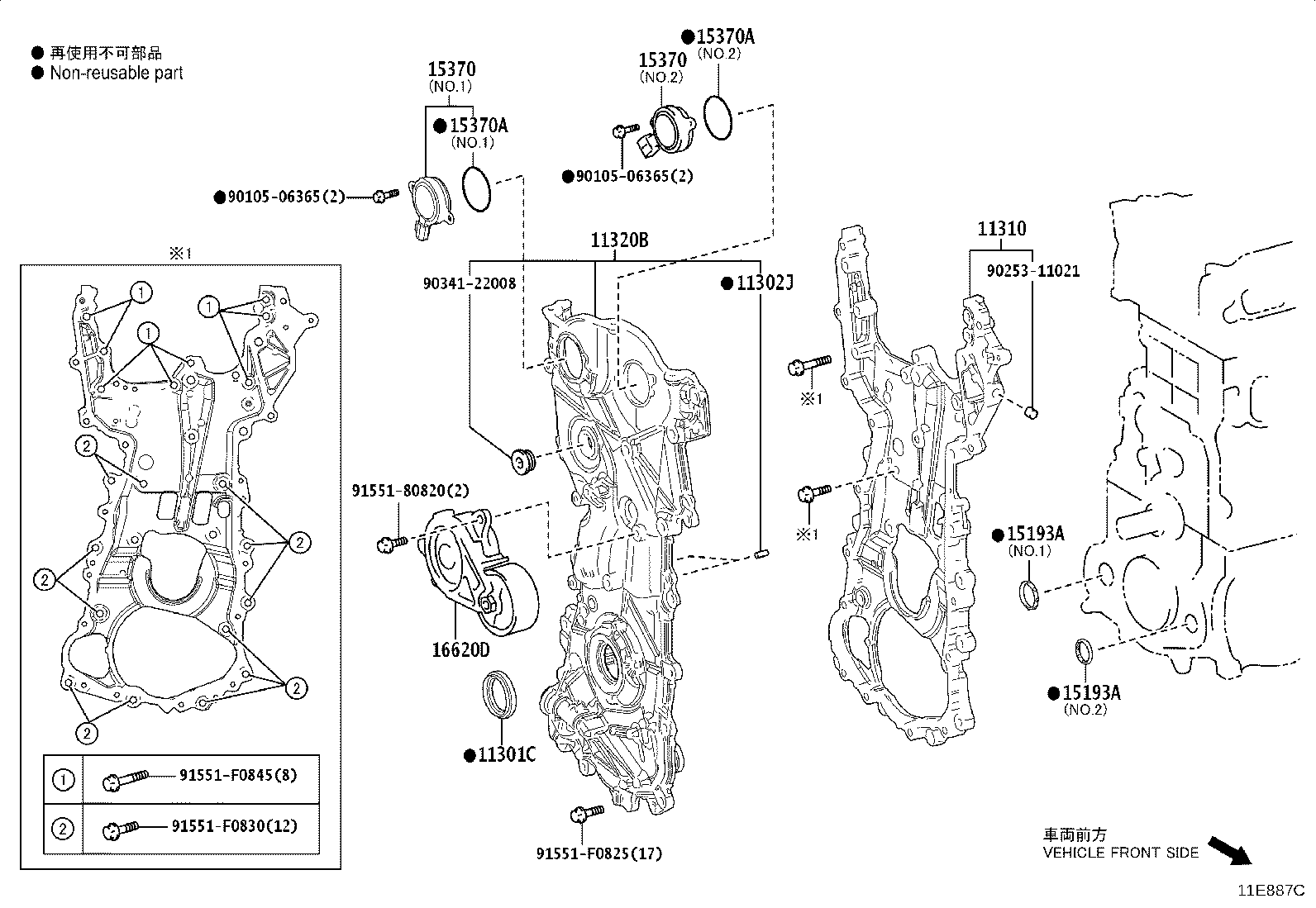

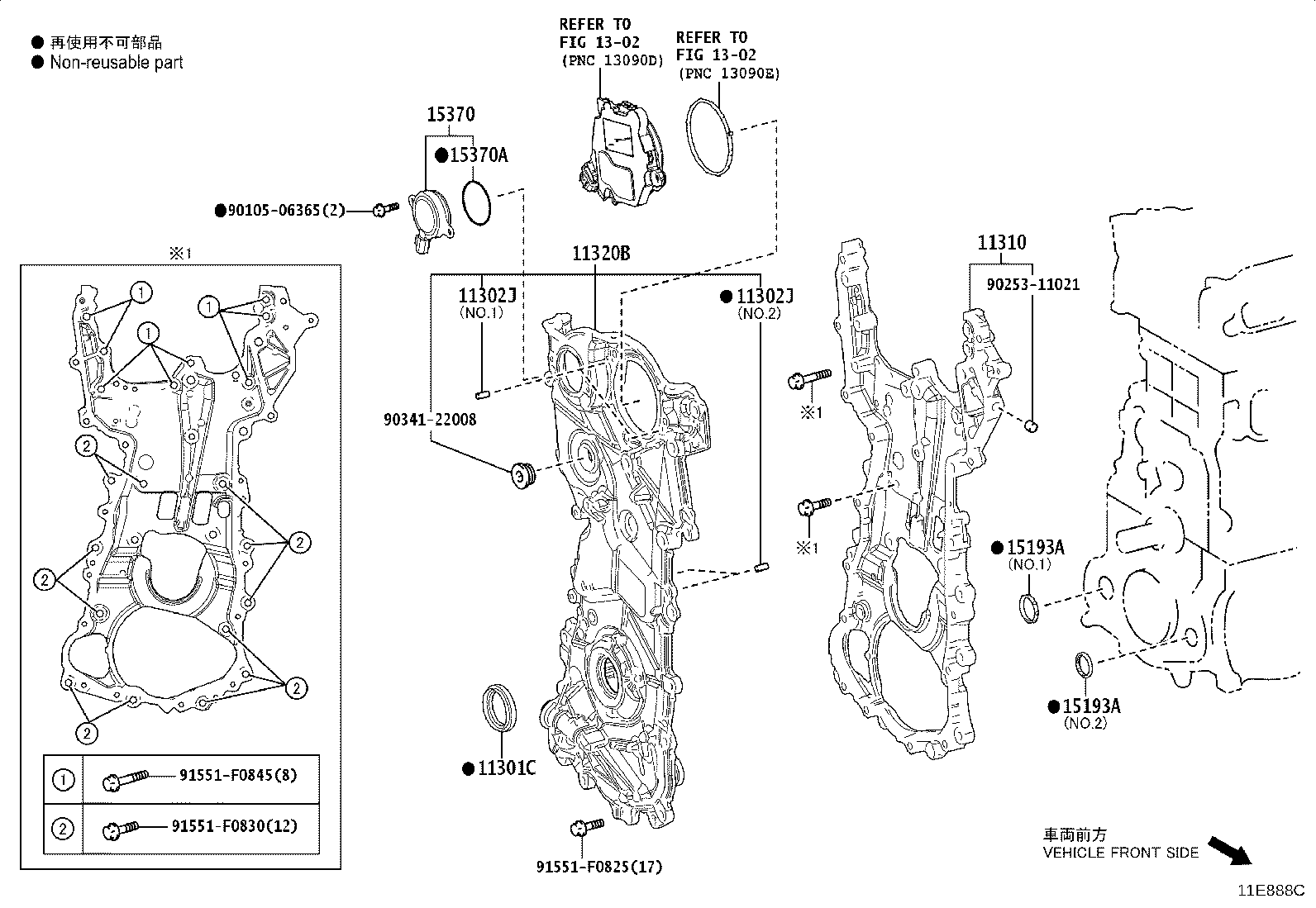

Figure 11E855B 11E855B 2020-02 → — Figure 11E887C 11E887C 2020-02 → — Figure 11E888C 11E888C 2020-02 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11301P O Ring, Crank Position Sensor
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11310 Cover Assy, Timing Chain
11320B Cover Assy, Timing Chain, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12511C Bracket, Alternator
15193A Gasket, Oil Pump
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
