Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01
Mounting
10 part groups · 5 illustrations
Part groups

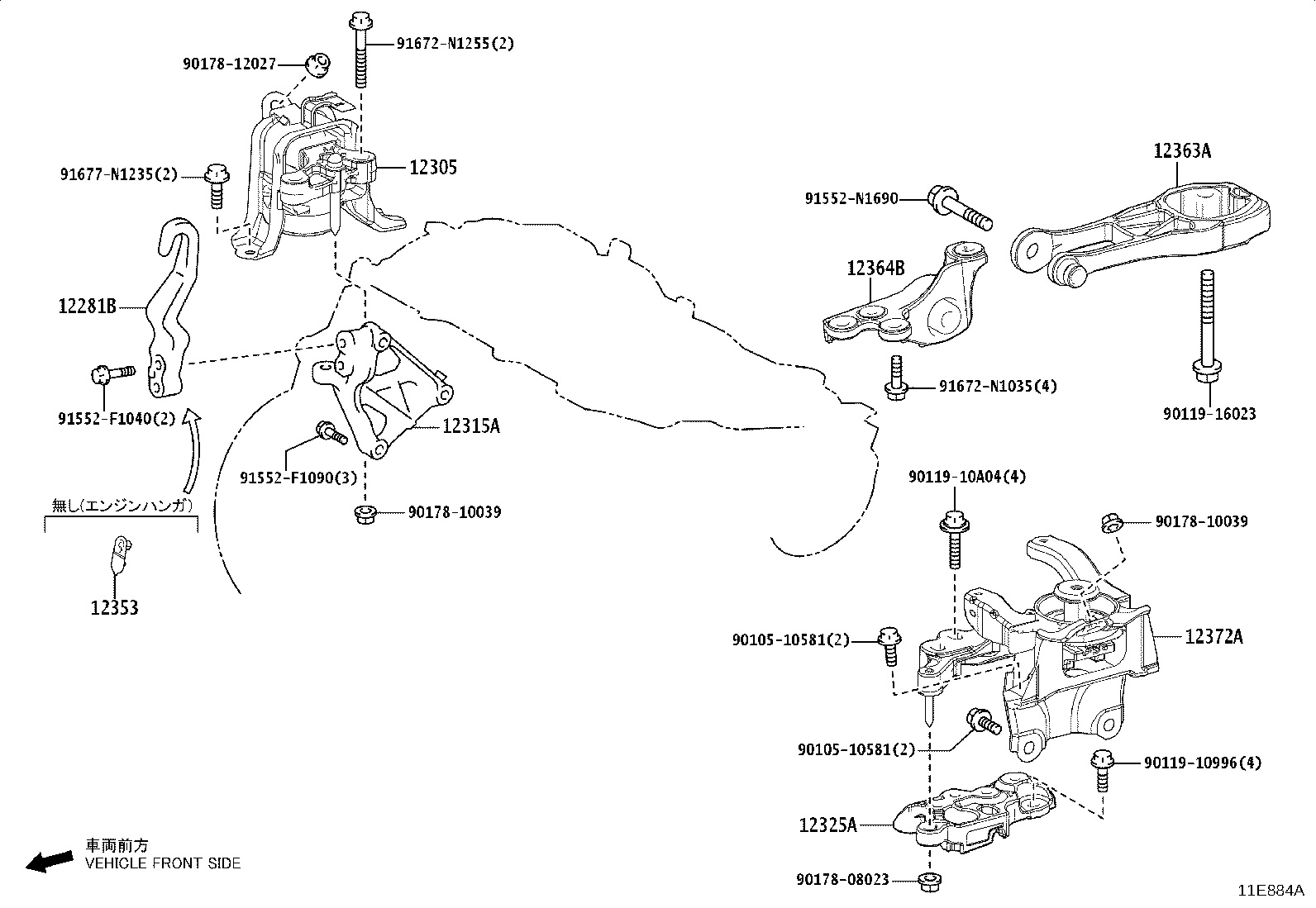

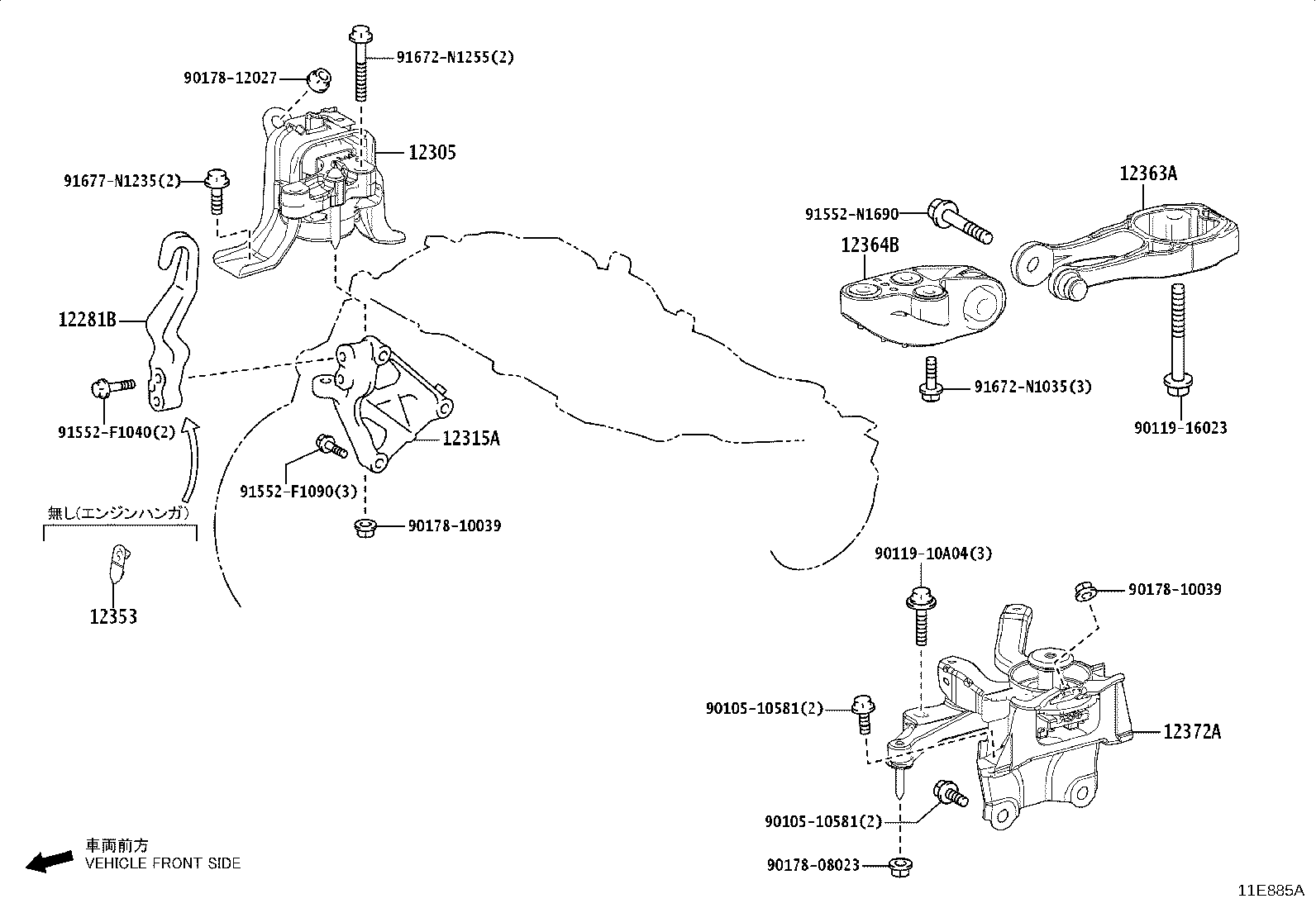

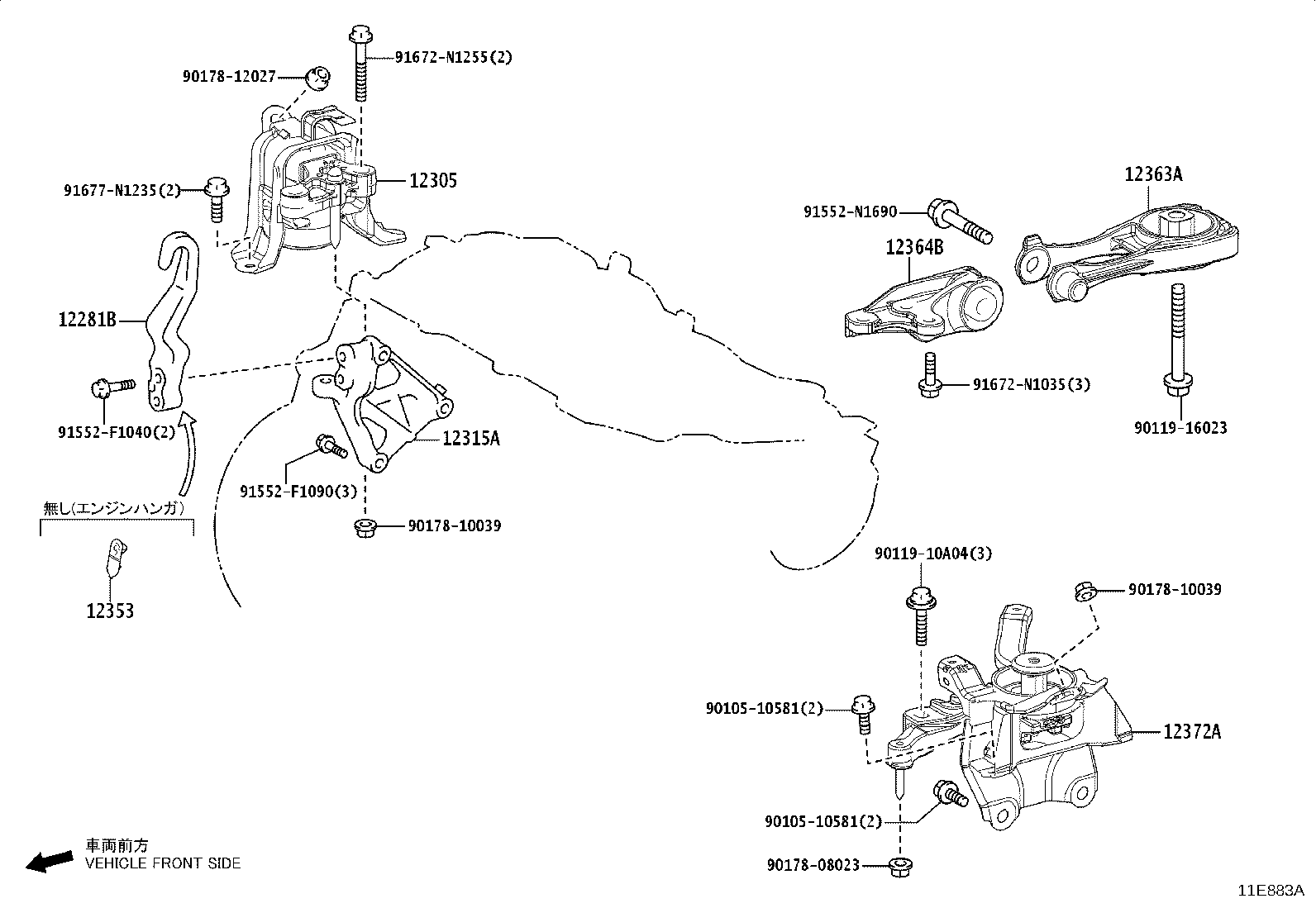

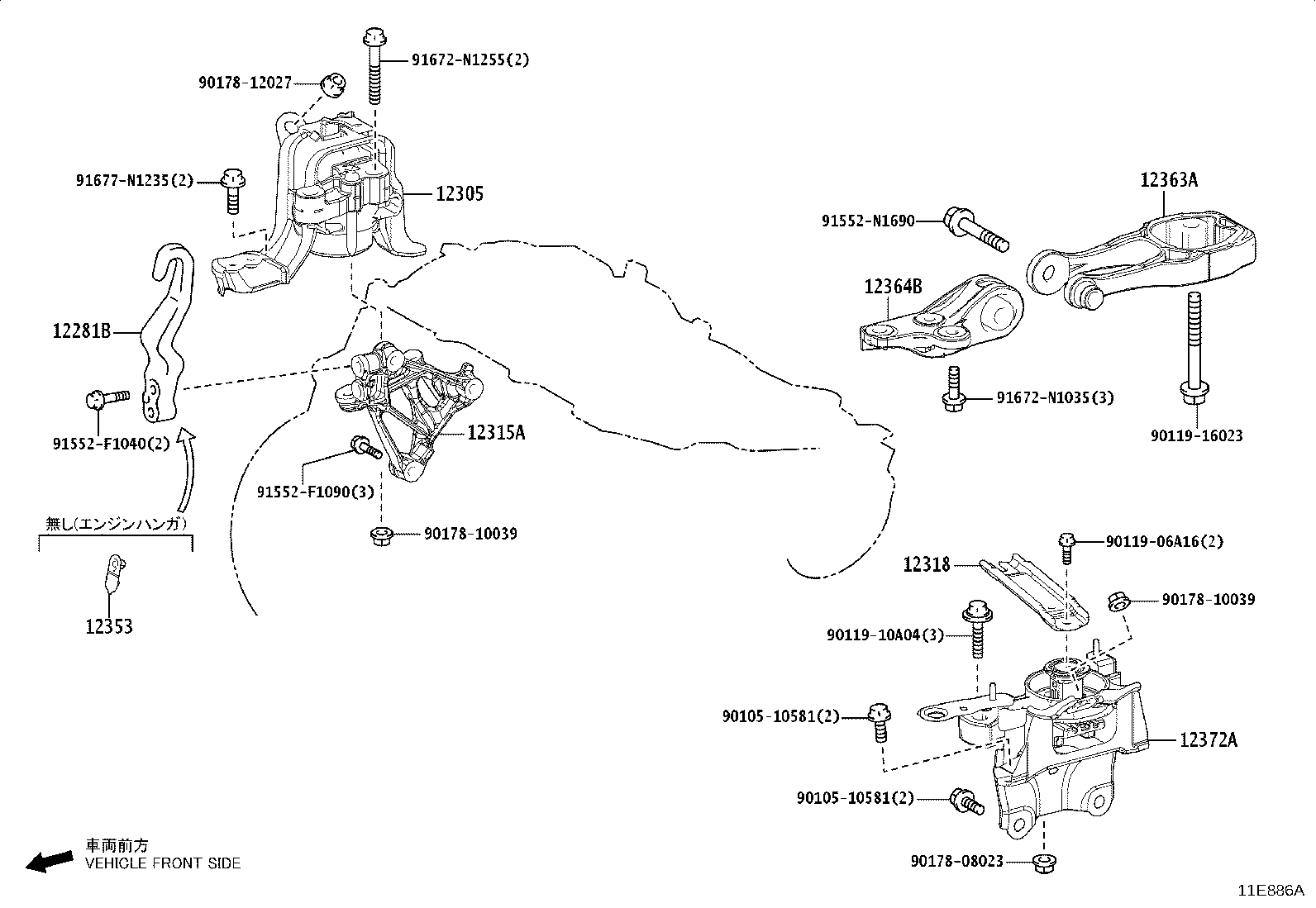

| PNC | Description |
|---|---|
| 12281B | Hanger, Engine, NO.1 |
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12315A | Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12318 | Stay, Engine Mounting, LH |
| 12325A | Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12353 | Cap, Engine Mounting Bracket |
| 12363A | Rod, Engine Moving Control |
| 12364B | Rod, Engine Moving Control, NO.2 |
| 12372A | Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 43498A | Insulator, Drive Shaft Heat, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
