Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01
Radiator & Water Outlet
59 part groups · 7 illustrations
Part groups

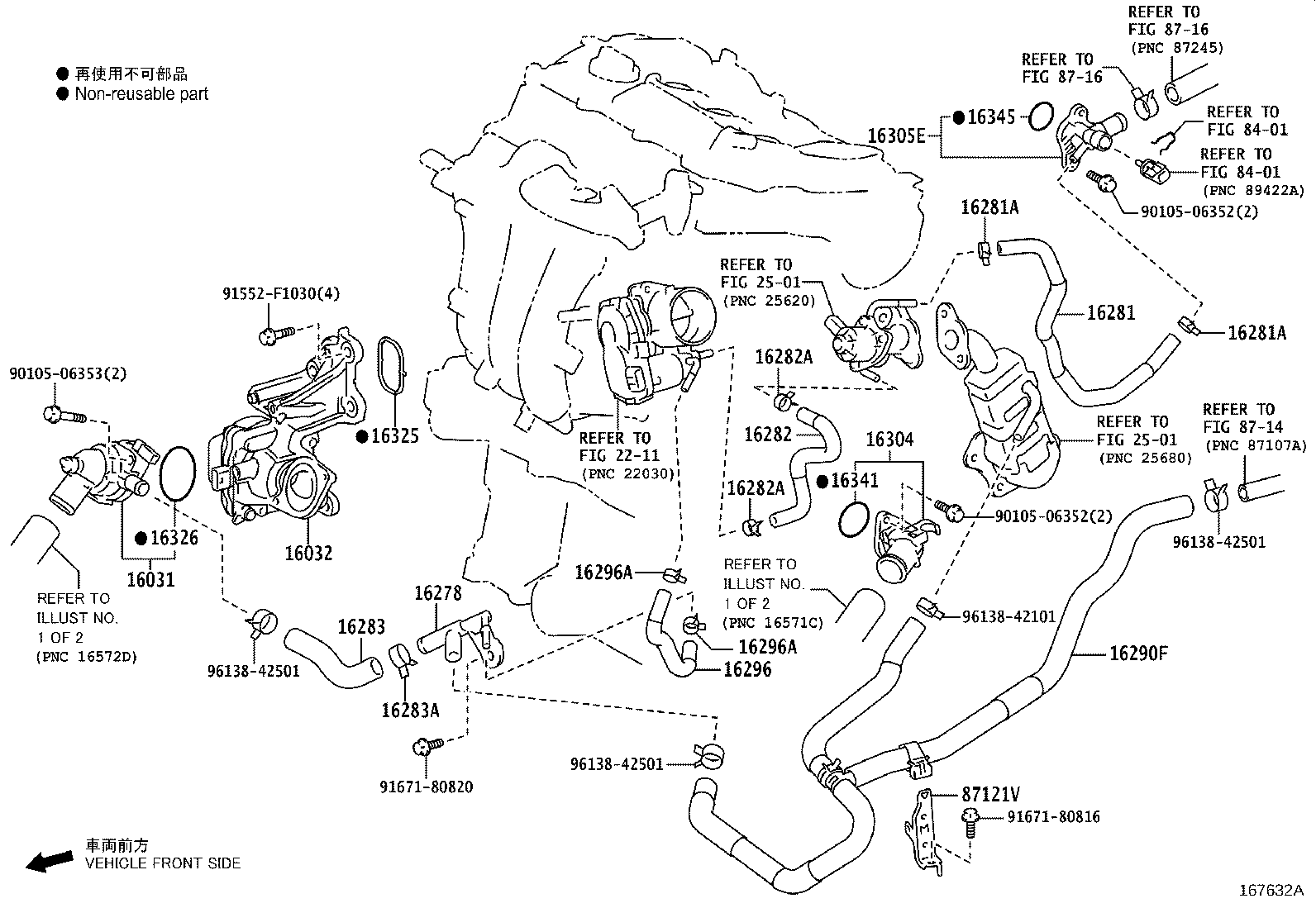

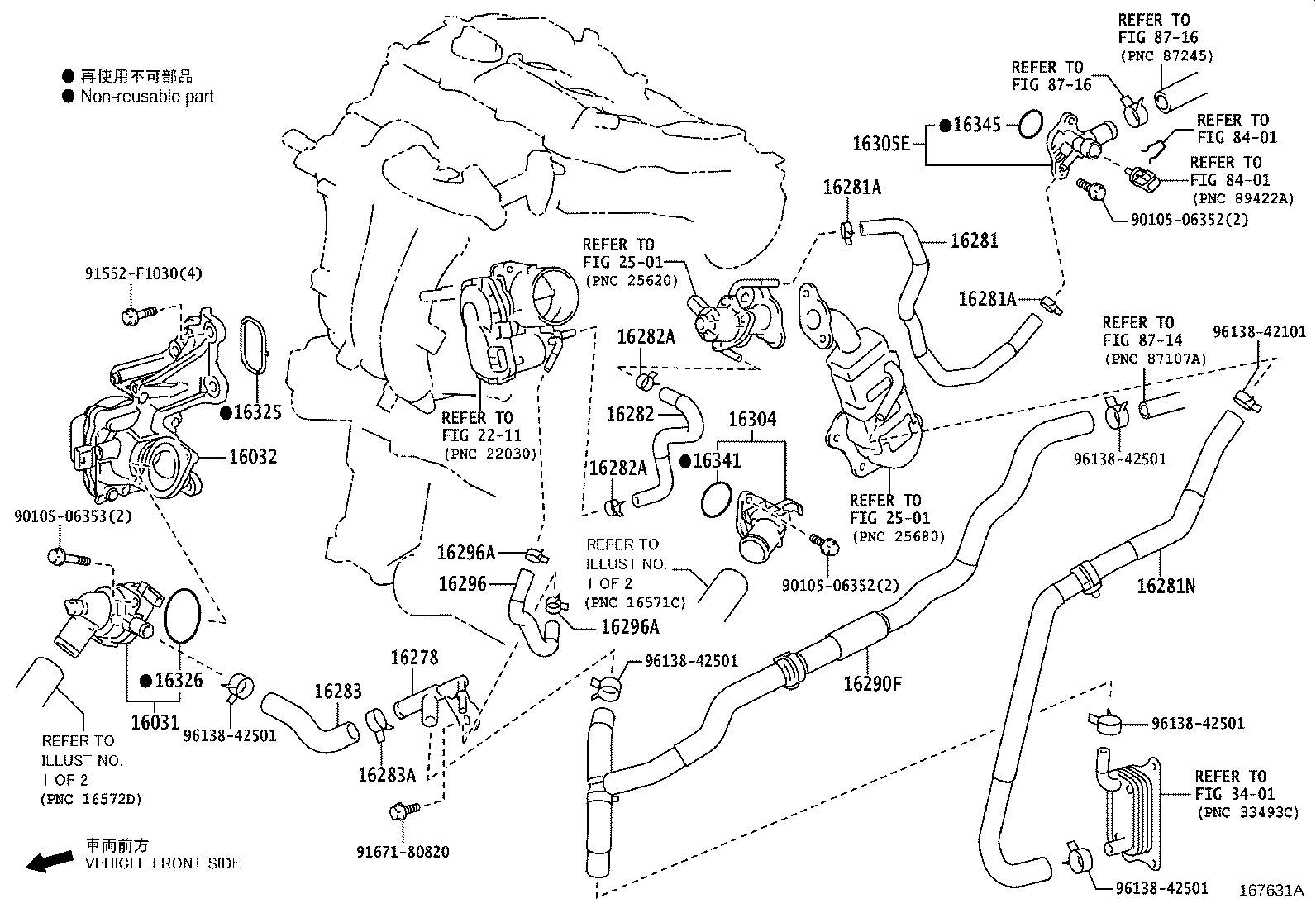

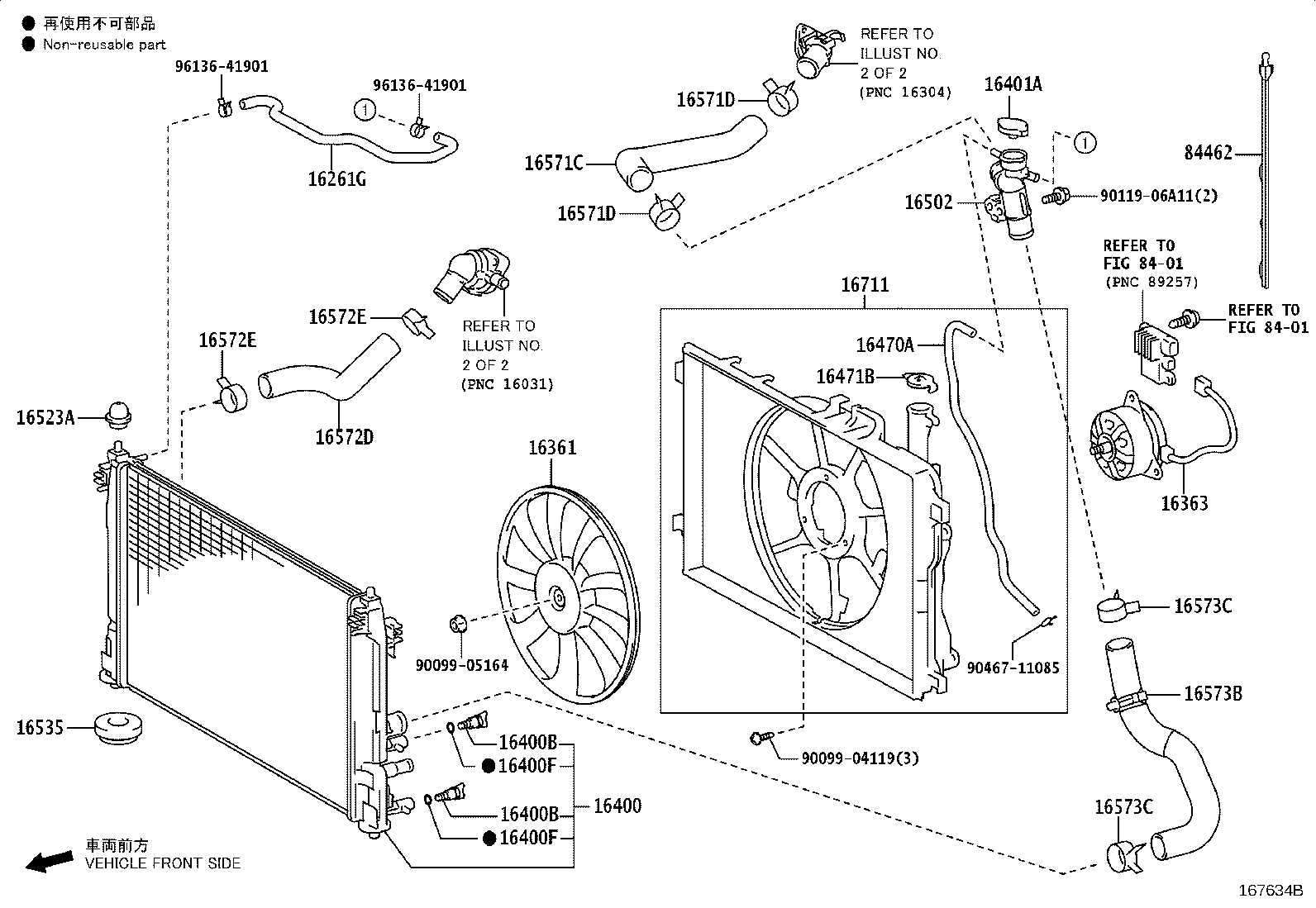

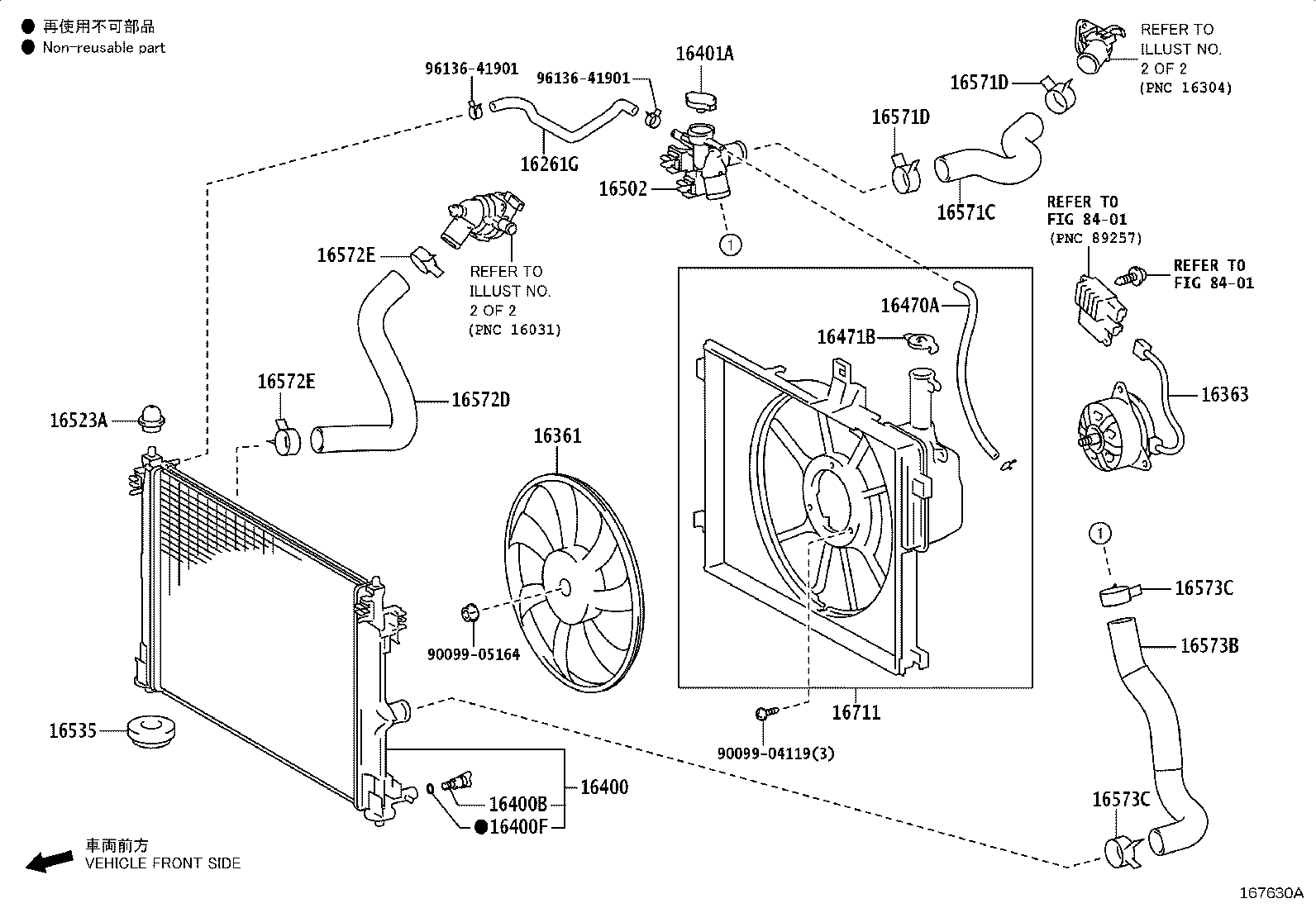

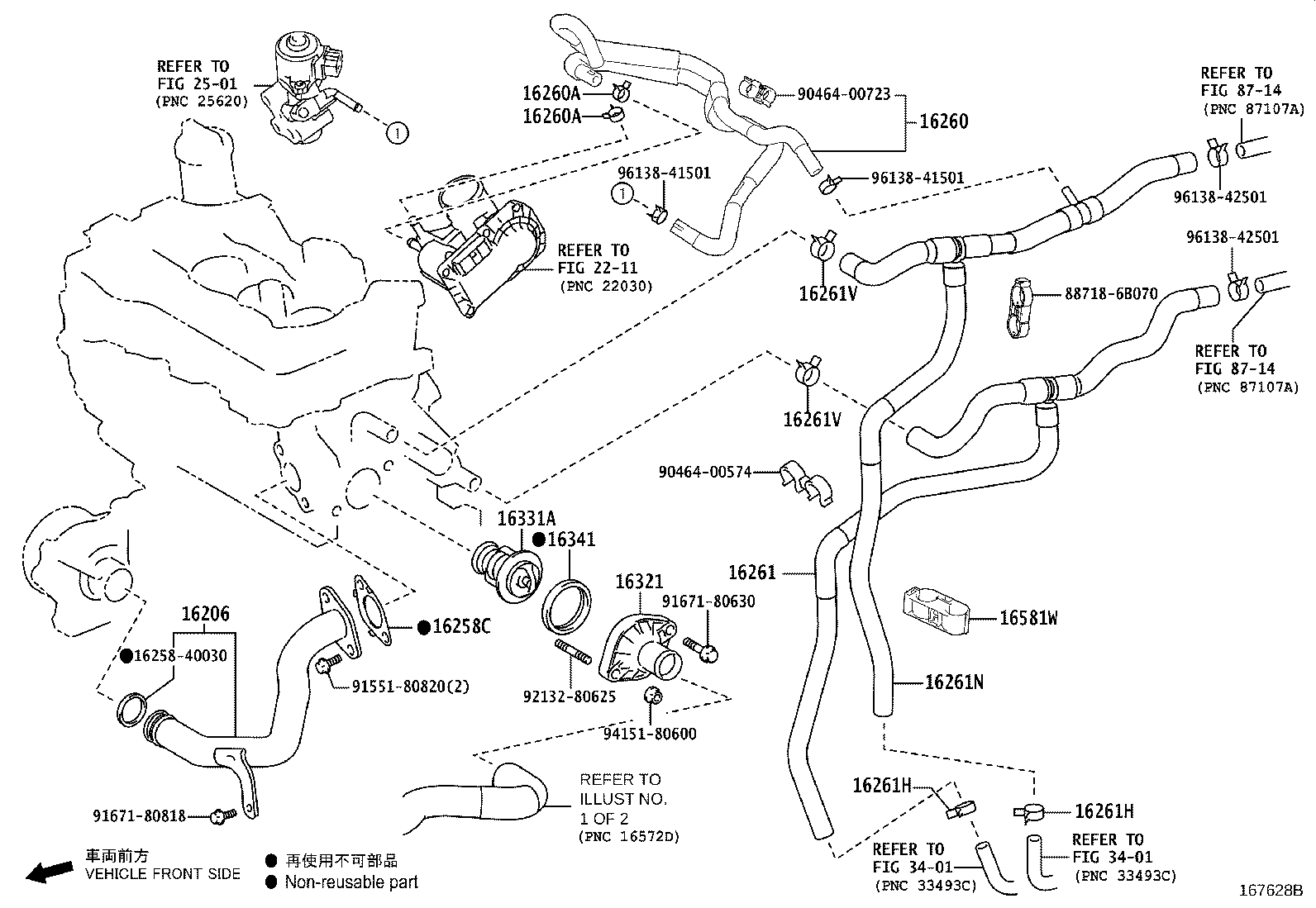

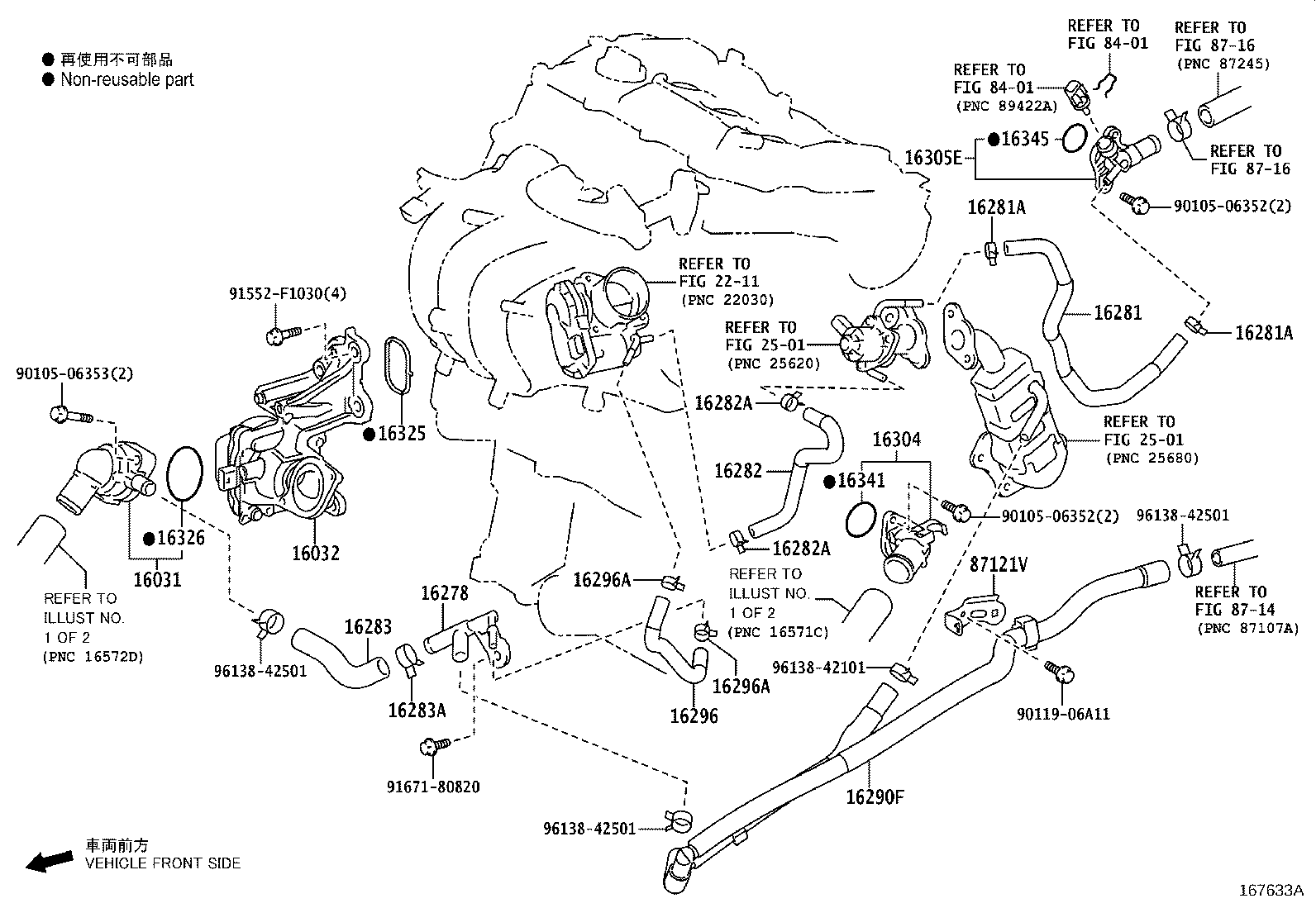

| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16032 | Housing Sub-assy, Water Inlet W/Water Pump |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16260 | Hose Assy, Water By-pass |
| 16260A | Clip(FOR WATER BY-PASS HOSE ASSY) |
| 16261 | Hose, Water By-pass |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261V | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281N | Hose, Water By-pass, NO.4 |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16290F | Hose Assy, Water By-pass, NO.3 |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16304 | Outlet Sub-assy, Water |
| 16305E | Outlet Sub-assy, Water By-pass |
| 16321 | Inlet, Water |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16345 | Gasket, Water Outlet Pipe |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16363J | Bolt(FOR COOLING FAN MOTOR) |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401A | Cap Sub-assy, Radiator Reserve Tank |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16471B | Cap, Reserve Tank |
| 16502 | Filler Sub-assy, Water |
| 16523A | Cushion, Radiator Support |
| 16535 | Support, Radiator, Lower |
| 16571B | Hose, Slit(FOR RADIATOR HOSE) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16574 | Hose, Radiator, NO.4 |
| 16574A | Clip, Radiator Hose, NO.4 |
| 16577C | Pipe, Radiator |
| 16581C | Clamp, Hose(FOR RADIATOR HOSE NO.2) |
| 16581W | Clamp, Hose(FOR WATER HOSE) |
| 16711 | Shroud, Fan |
| 84462 | Float, Level Warning |
| 87121V | Bracket, Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
