Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01

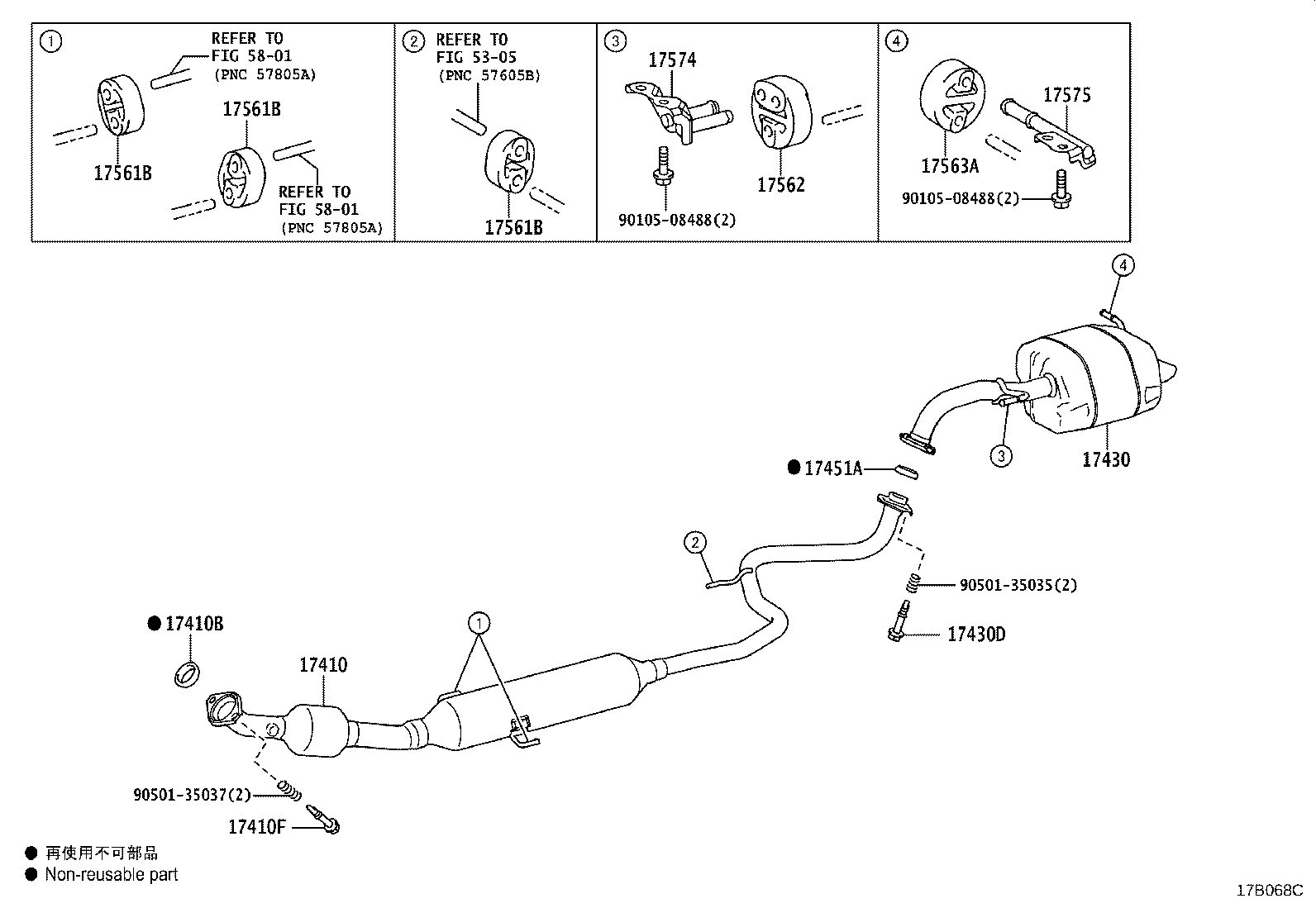

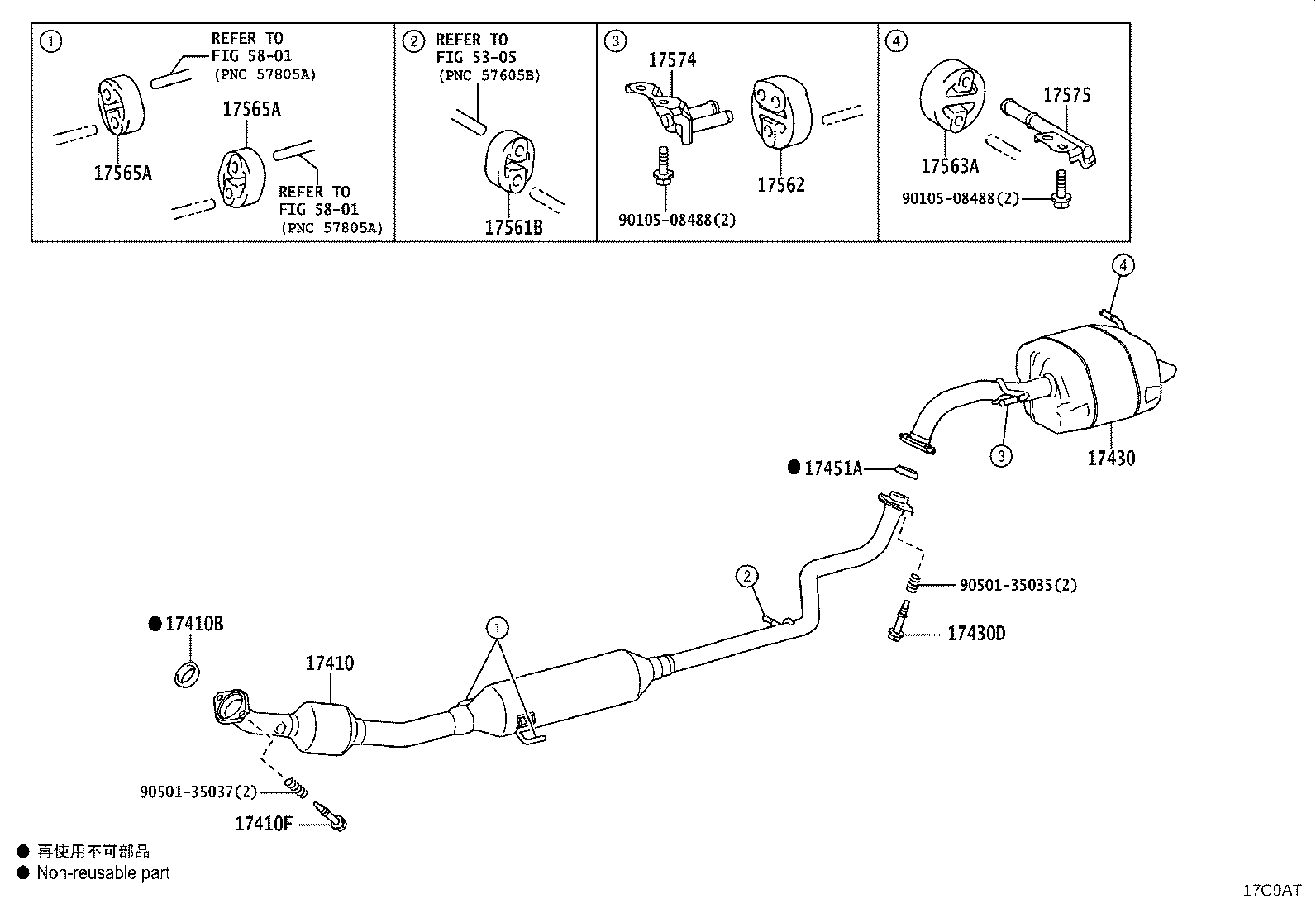

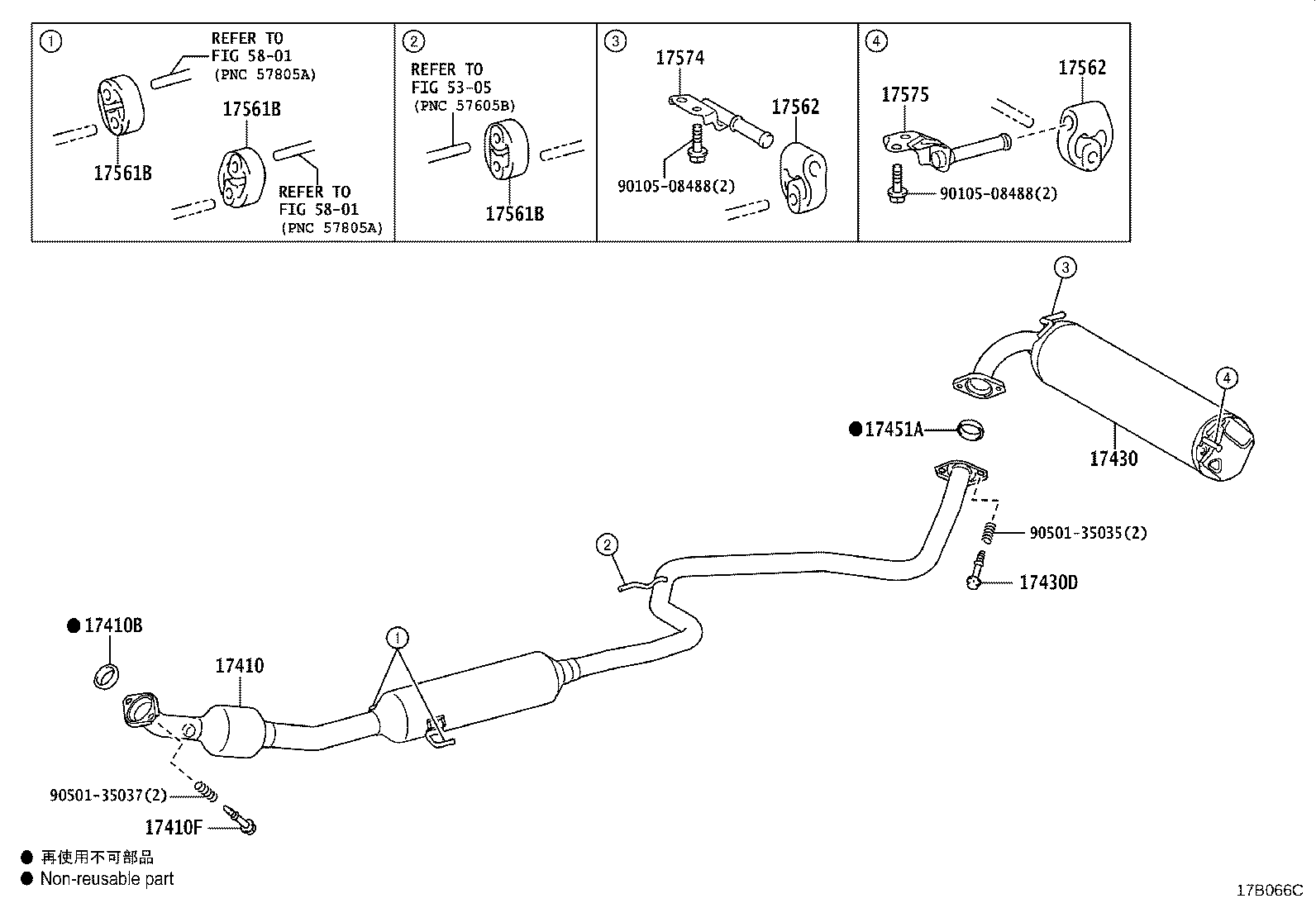

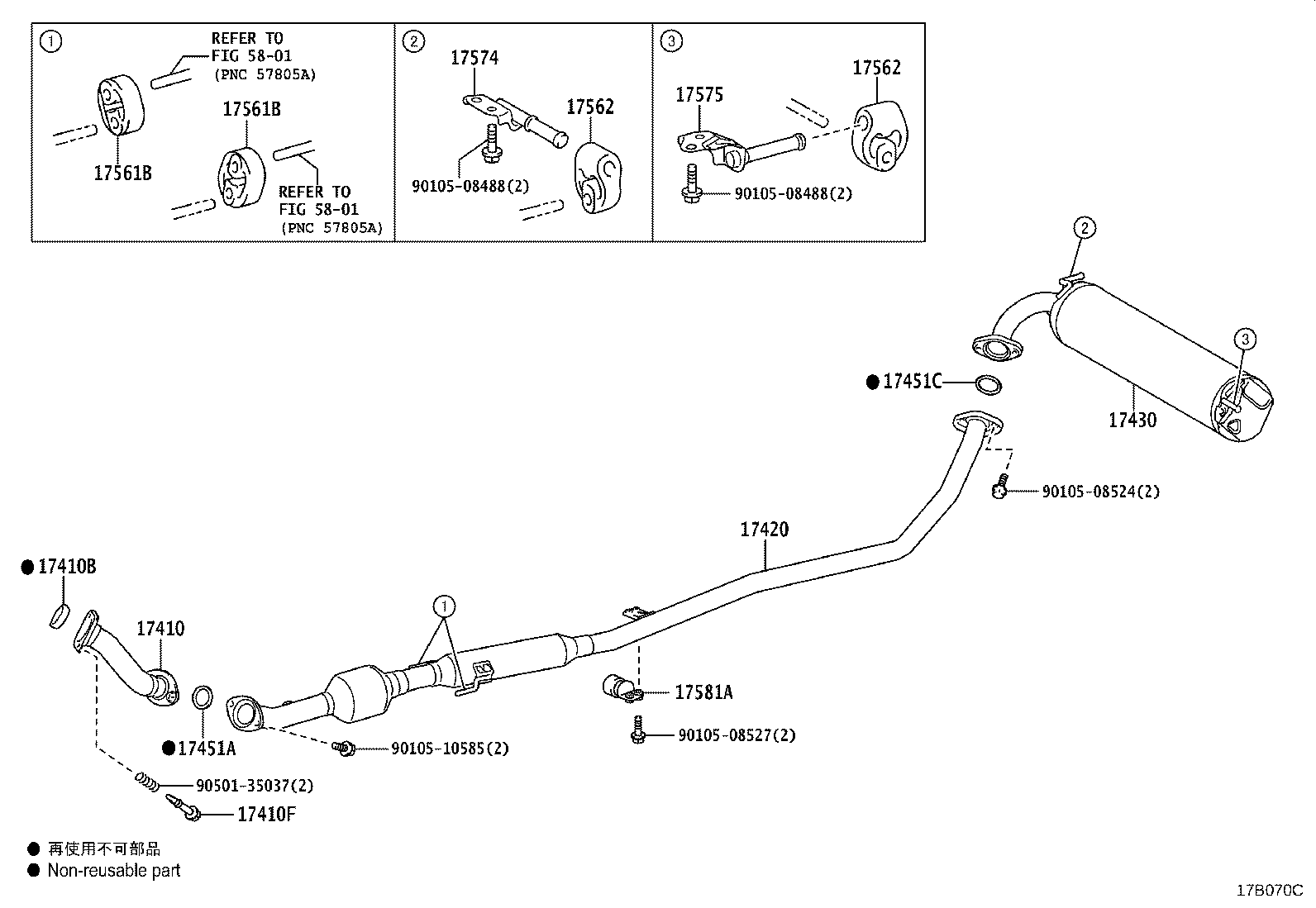

Exhaust Pipe
15 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17410F | Bolt OR Ring, Exhaust Pipe Front (FOR FRONT) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430D | Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17451C | Gasket, Exhaust Pipe, NO.3 |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17574 | Bracket, Exhaust Pipe Support, NO.4 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
| 17581A | Damper, Exhaust Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
