Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

21 part groups · 6 illustrations

Illustrations

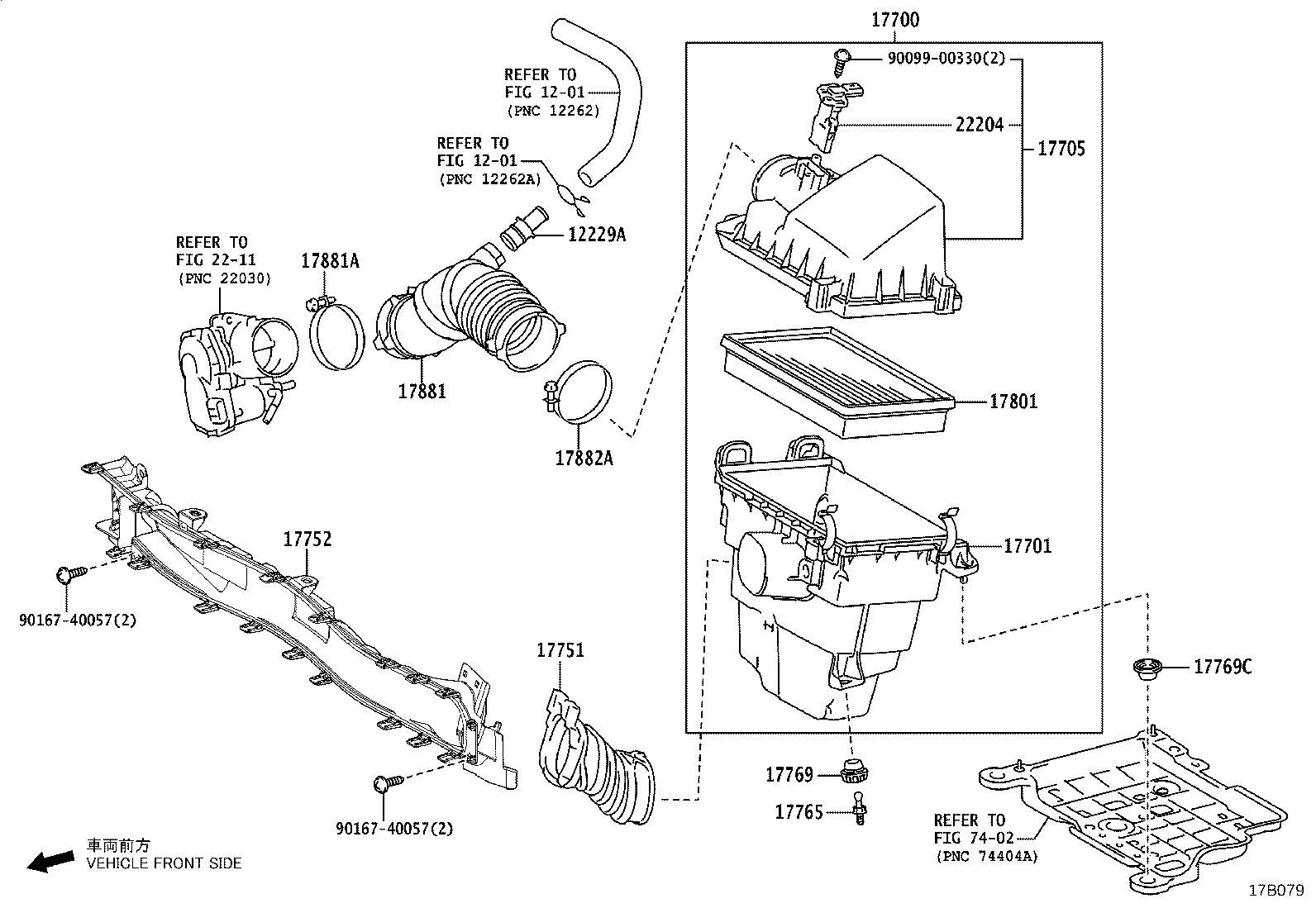

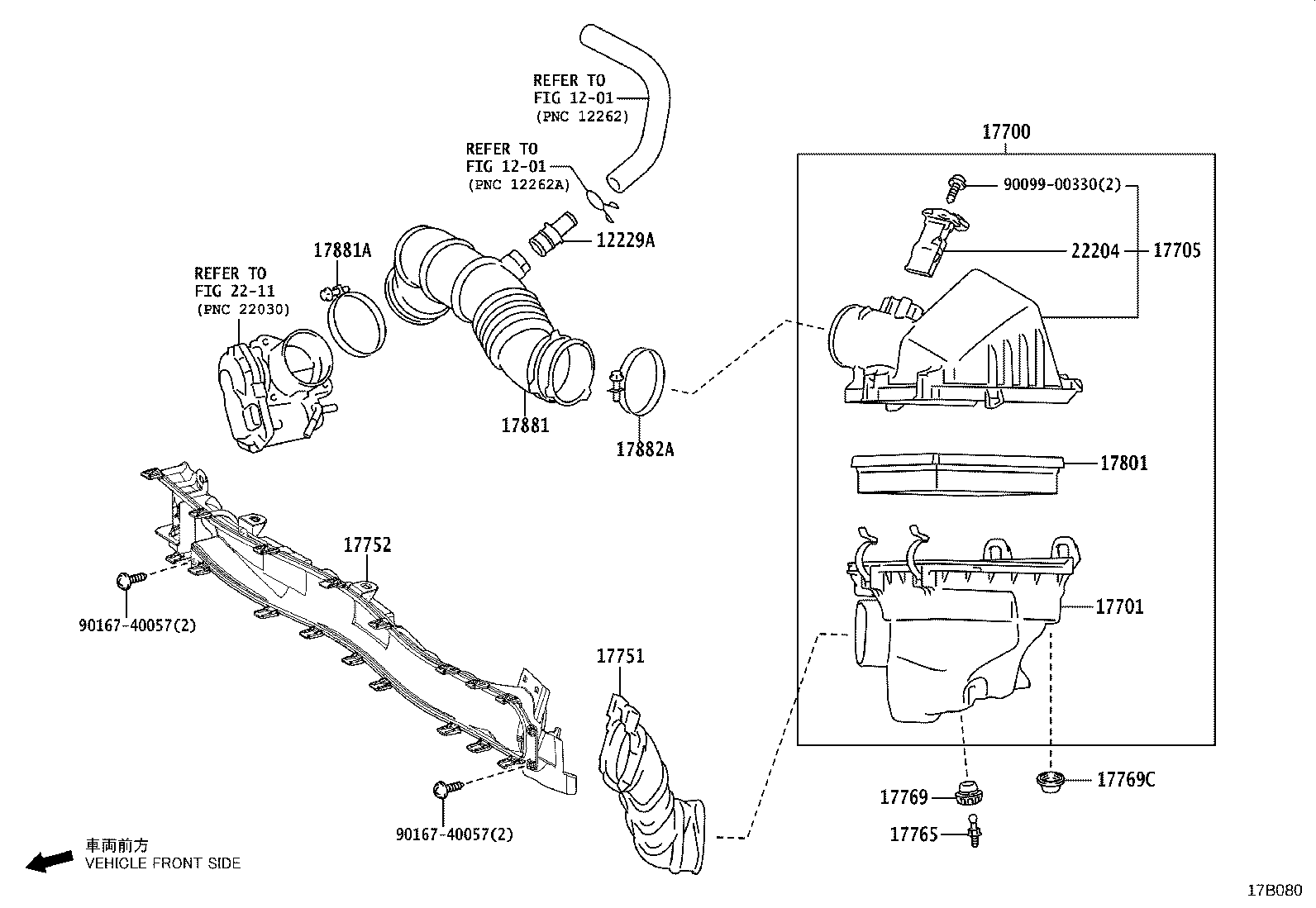

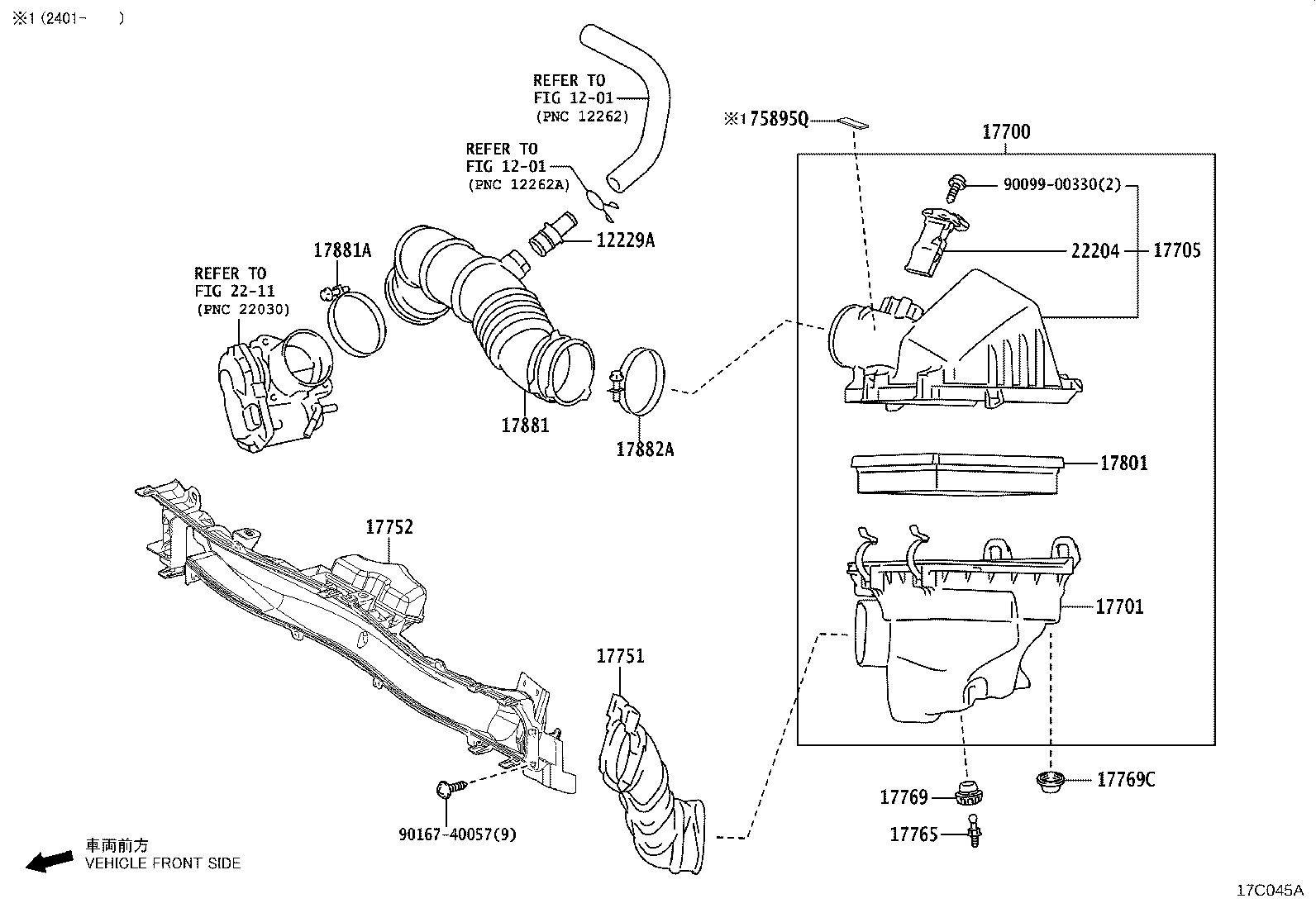

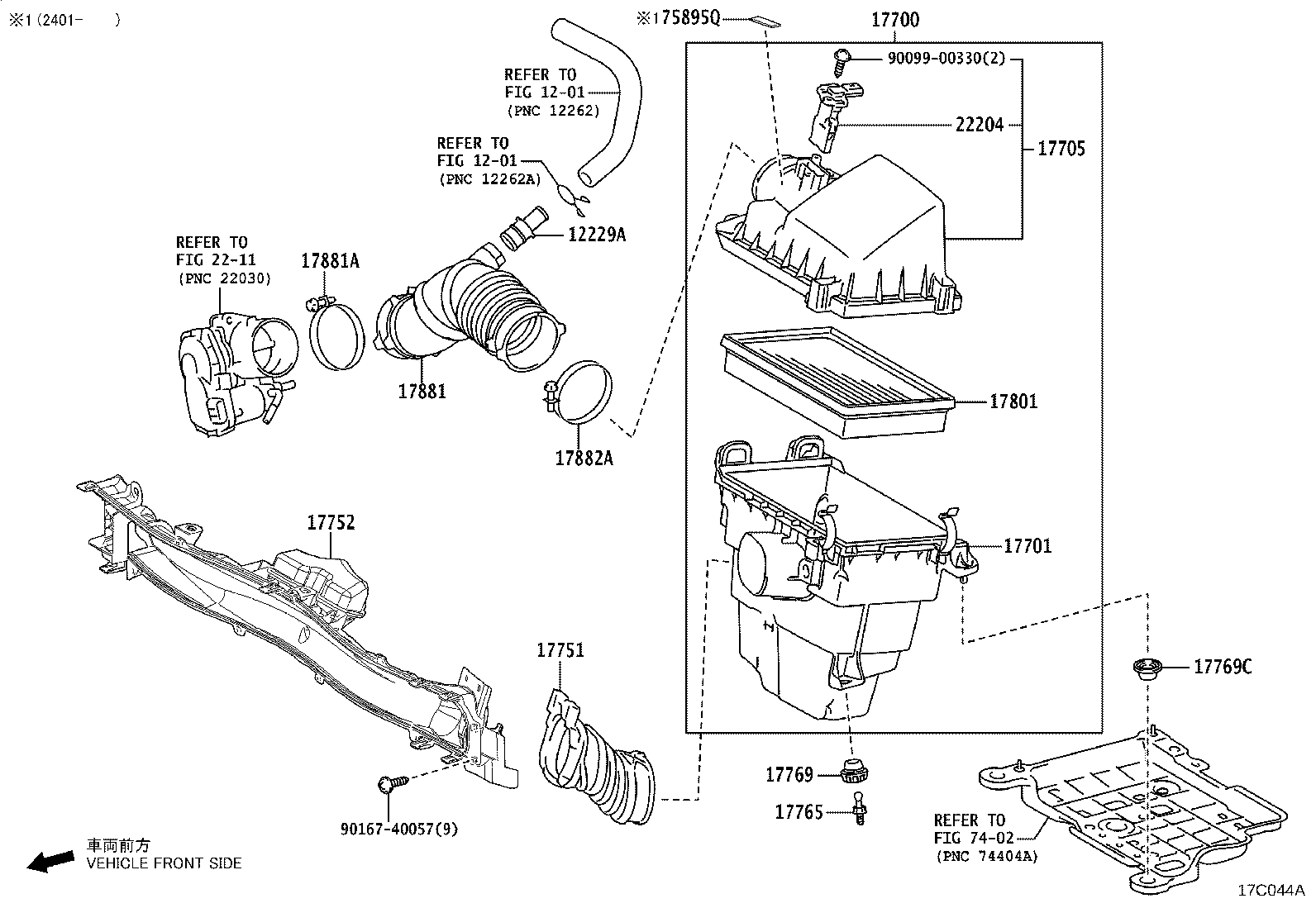

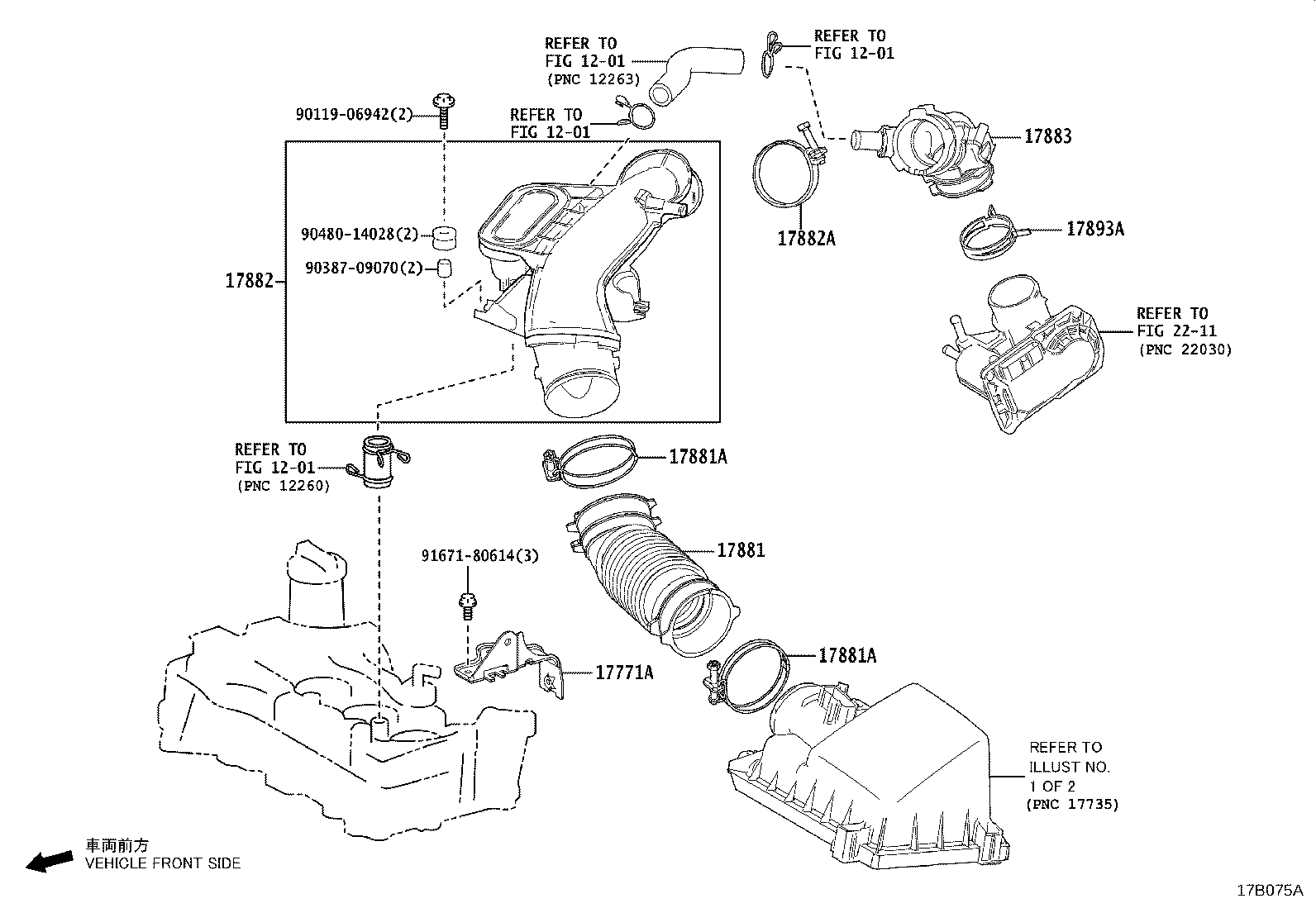

Figure 17B074A 17B074A 2020-02 → — Figure 17B075A 17B075A 2020-02 → — Figure 17B079 17B079 2020-02 → 2022-05 Figure 17C044A 17C044A 2022-05 → — Figure 17B080 17B080 2020-02 → 2022-05 Figure 17C045A 17C045A 2022-05 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17735 Cap, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17765 Stay, Air Cleaner, NO.1
17769 Support, Air Cleaner
17769C Support, Air Cleaner, NO.1
17769D Support, Air Cleaner, NO.2
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17893A Clamp, Hose
22204 Meter Sub-assy, Intake Air Flow
75895Q Tape, Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
