Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01

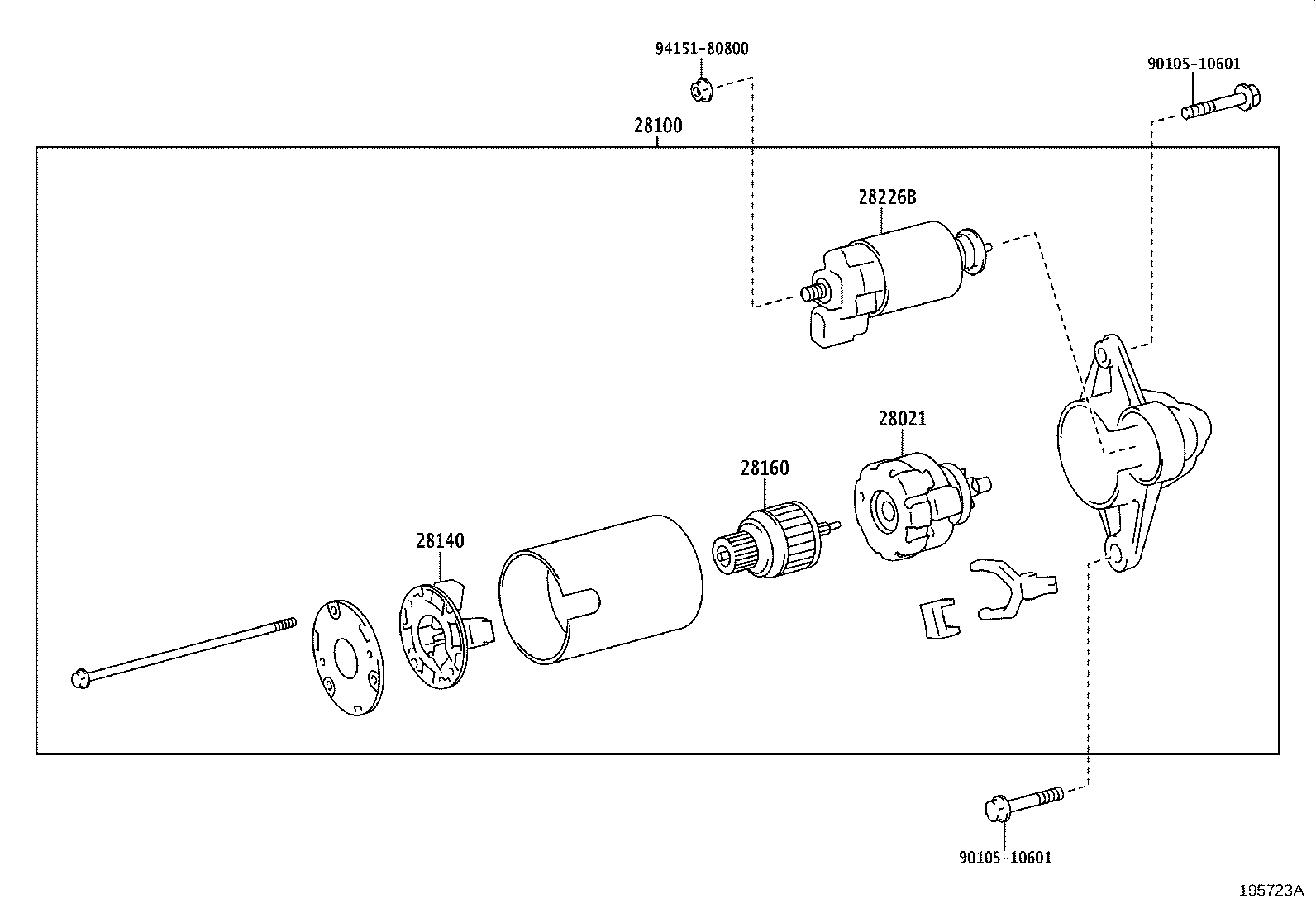

Starter
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28112 | Bolt, Housing Set |
| 28113 | Lever, Starter Pinion Drive |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28226B | Starter Kit, Repair Service |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
